Feature:
1. High Performance Processor: The WSB4322R features a 600MHz ARM9 processor, 8MB DDR2 memory, and 16M NAND FLASH memory, offering fast 38.4KBs download speed for efficient PLC and intelligent controller compatibility.
2. 4.3in TFT LCD Touch Screen: Experience crystal clear visuals with a 480x272Px resolution, 26,000 colors, and 400 cdm2 brightness with backlit display for effortless status monitoring.
3. Wide Application Range: Ideal for various PLCs and intelligent controllers with communicating ports, this compact HMI device boasts low power consumption, fast performance, and stable performance.
4. Accuracy Touch Control: Equipped with an for ARM9 processor, the touch screen ensures high touch accuracy, while the front panel meets IP65 standards for flat panel installation, and the rear shell meets IP20 standards.
5. Easy Installation: With a 130mmx80mm mounting hole size, included screws and fastening accessories, the device can be easily installed for immediate use in your works.
Specification:

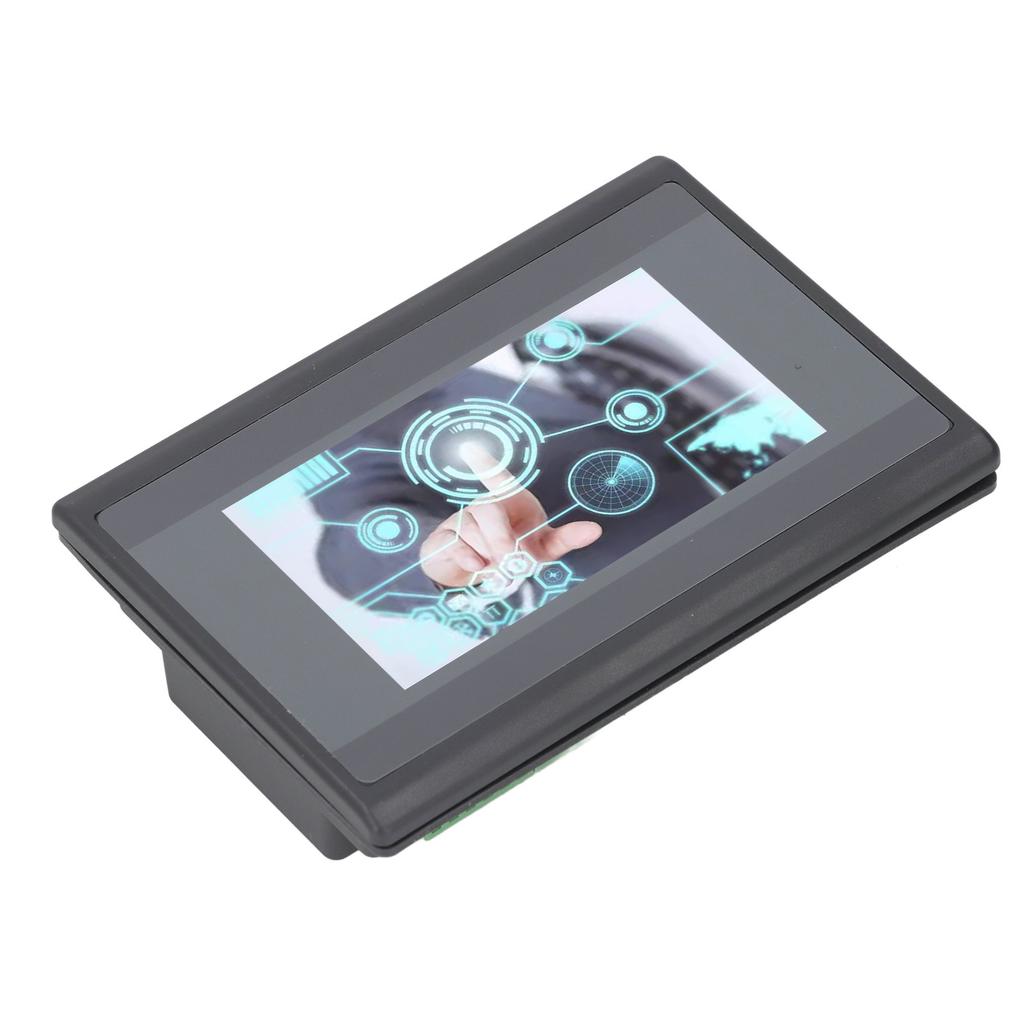

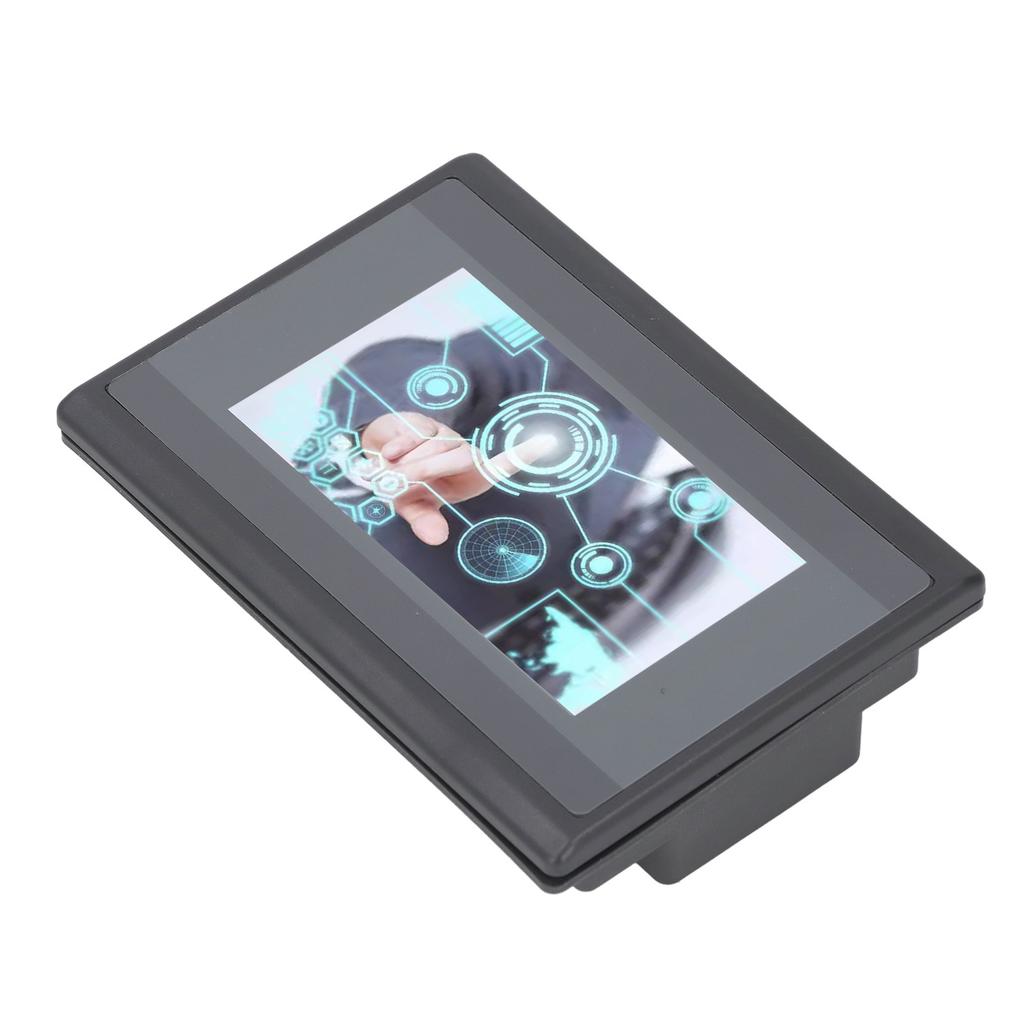

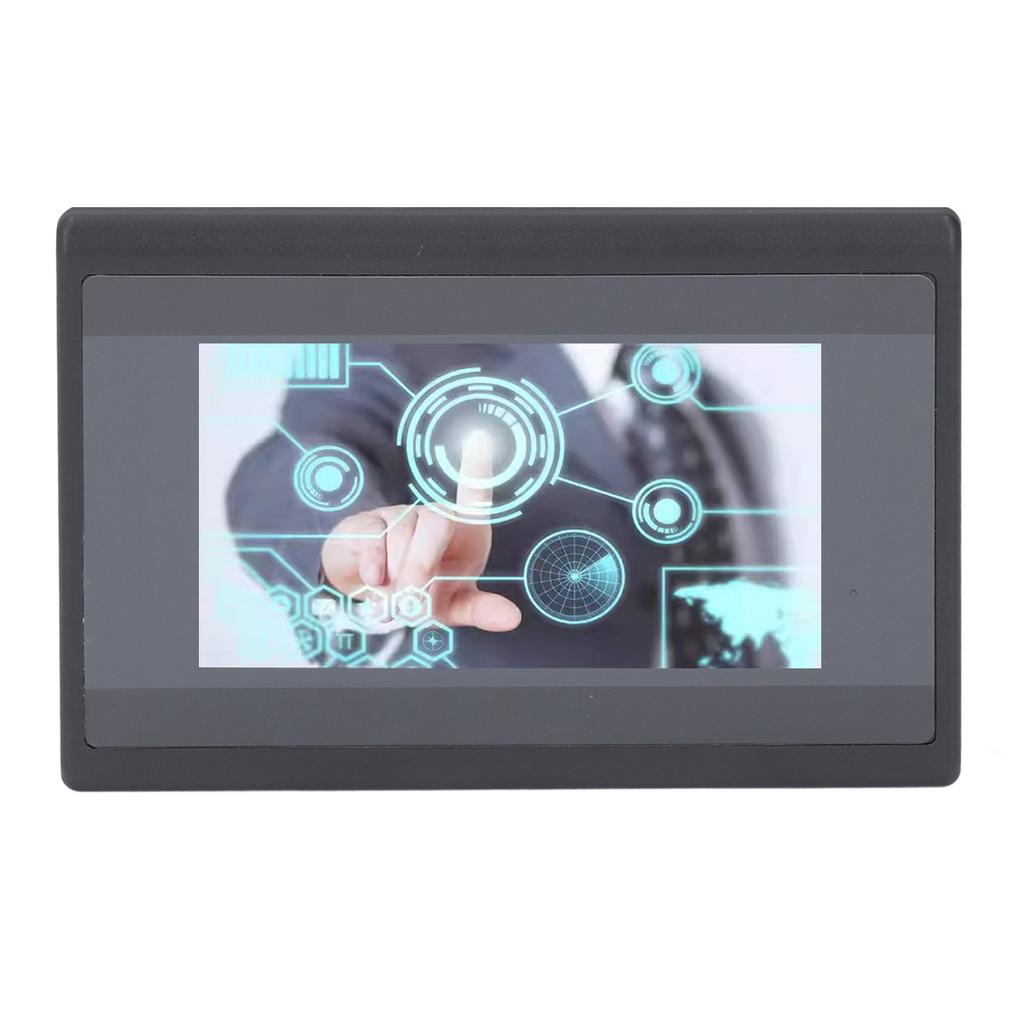

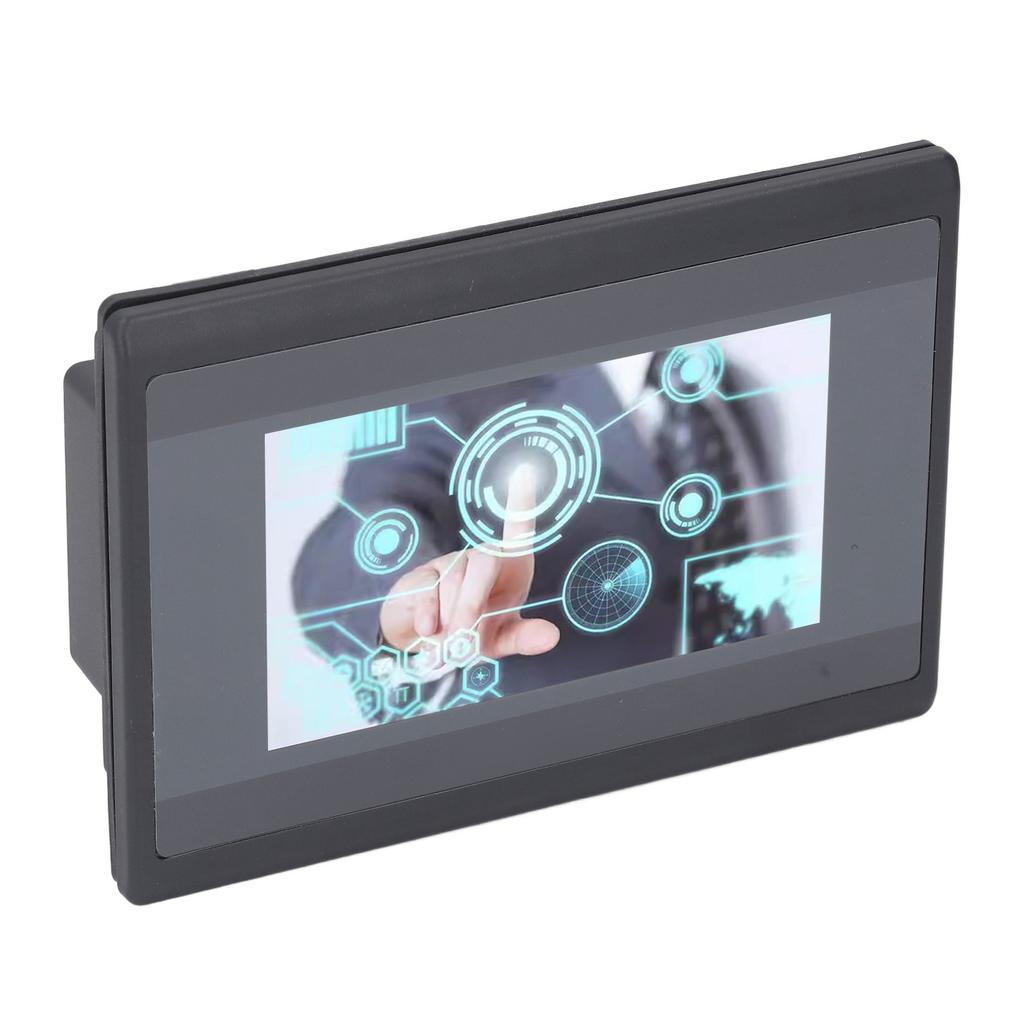

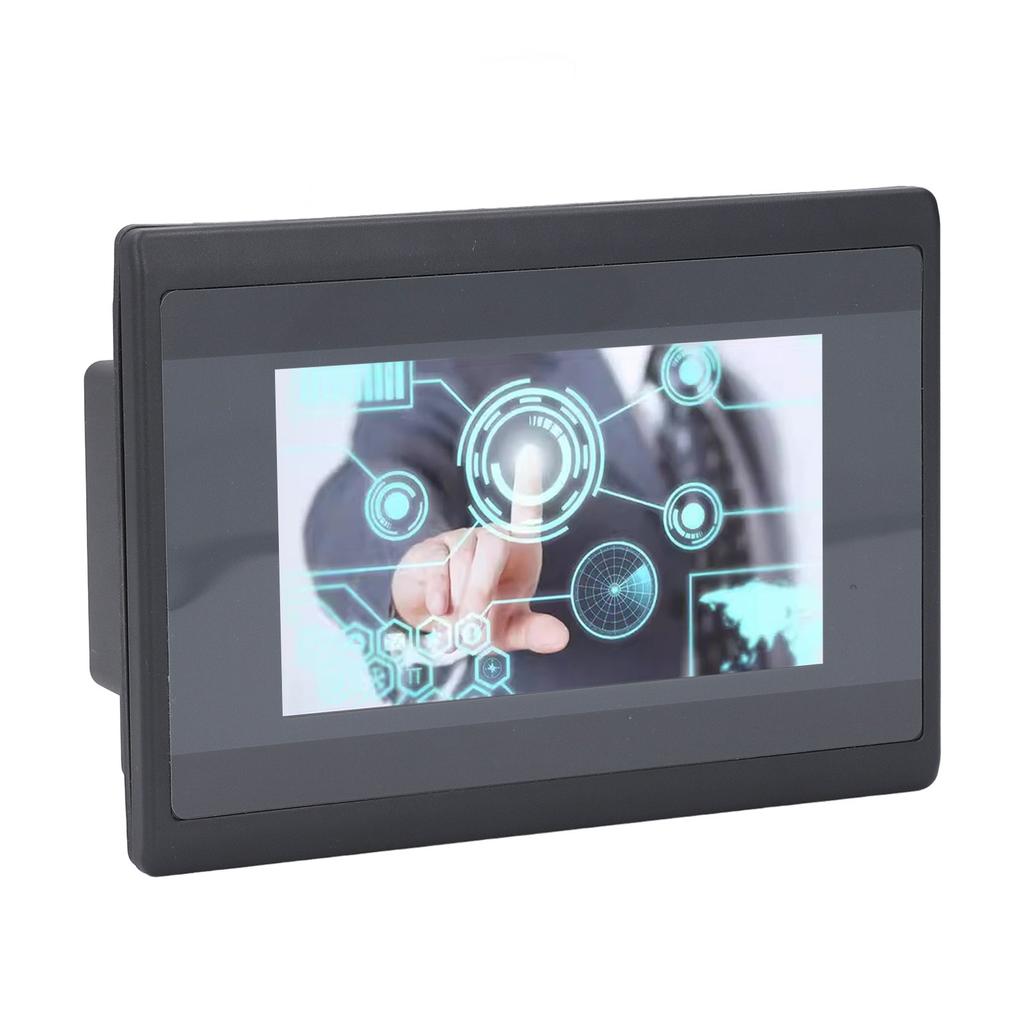

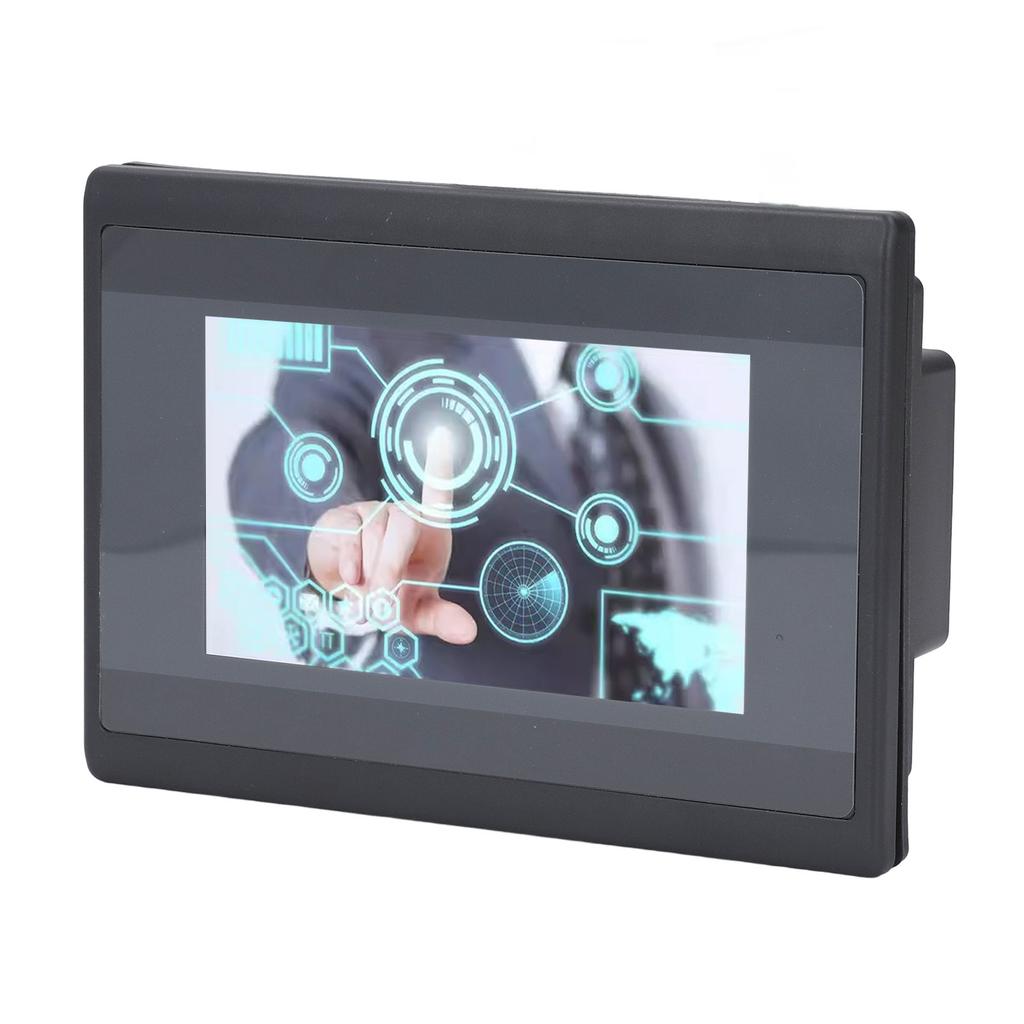

Item Type: PLC HMI All in One
Mode: WSB4322R 2PT
Material: ABS
Size: Approx. 140 x 98 x 36mm 5.51 x 3.86 x 1.42in
Hole Size: Approx. 130 x 80mm 5.12 x 3.15in
HMI Part:
Display Size: 4.3 inches
Resolution: 480 x 272px
Memory: 16M FLASH
CPU: 600MHz ARM9 with 8MB DDR2 Memory
Programming Software: for WS HMI Setup V3.1 5.1
PLC Part:
Output Type: Relay
Number of Input and Output Points: 12 inputs 10 outputs
Supply Voltage: DC 24V
Output Current: 5A
Analog Input: Default 3AD 010V, can be changed to 420mA, or 2 channels of PT100 temperature measurement
Analog Output: 2DA010V
High Speed Counting: 2 channels 60K
Pulse Output: None
Communicating Port: 1 RS232 port
Clock: Supported
Memory Capacity: 8000 steps
Download Speed: 38.4 Kb
PLC Series: Compatible with for FX3U Series
Programming Software: Compatible with for PLC programming software for GX Developer or for GX Works 2
.
Package List:
1 x PLC HMI All in One
2 x Installation Screws
2 x Mounting BracketsHigh Performance Processor: The WSB4322R features a 600MHz ARM9 processor, 8MB DDR2 memory, and 16M NAND FLASH memory, offering fast 38.4KBs download speed for efficient PLC and intelligent controller compatibility.
4.3in TFT LCD Touch Screen: Experience crystal clear visuals with a 480x272Px resolution, 26,000 colors, and 400 cdm2 brightness with backlit display for effortless status monitoring.
Wide Application Range: Ideal for various PLCs and intelligent controllers with communicating ports, this compact HMI device boasts low power consumption, fast performance, and stable performance.
Accuracy Touch Control: Equipped with an for ARM9 processor, the touch screen ensures high touch accuracy, while the front panel meets IP65 standards for flat panel installation, and the rear shell meets IP20 standards.
Easy Installation: With a 130mmx80mm mounting hole size, included screws and fastening accessories, the device can be easily installed for immediate use in your works.
