Feature:
1. [600MHz ARM9 CPU] Adopting 600MHz ARM9 with built in 8MB DDR2 memory, 16M NAND FLASH memory, and a download speed of 38.4KB.
2. [4.3 Inch Screen] This is a 4.3 inch TFT LCD touch screen, with 480x272Px resolution, 260000 colors, 400cdm2 brightness with backlit display, easy to observe status.
3. [High Safety] The front panel meets IP65 (flat panel installation), and the rear shell of the body meets IP20, ensuring security.
4. [Easy Installation] The hole size is 130x80mm, the set is equipped with screws and fixing accessories, the screen can be installed directly.
5. [Main Purpose] Mainly used for various PLCs or intelligent controllers with communication ports, with low power consumption, fast operating speed, stable performance.
Specification:

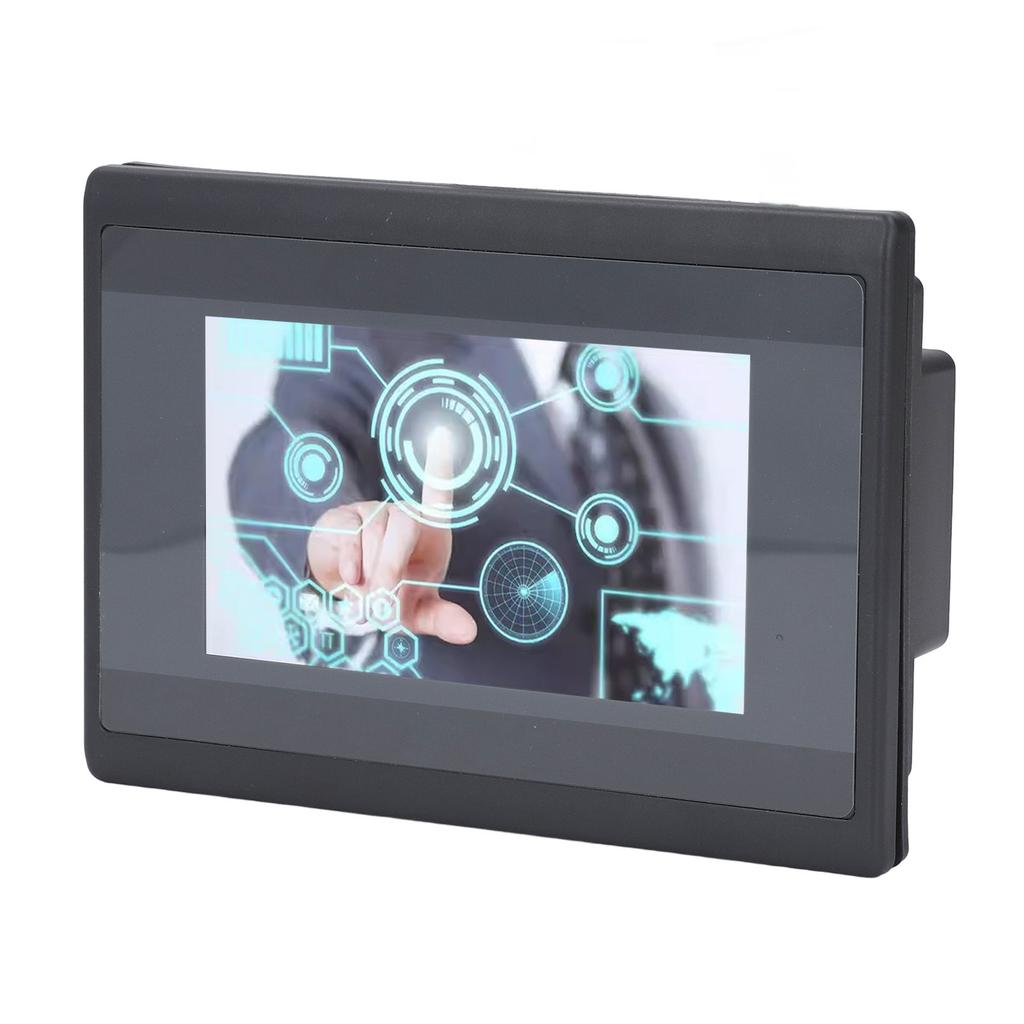

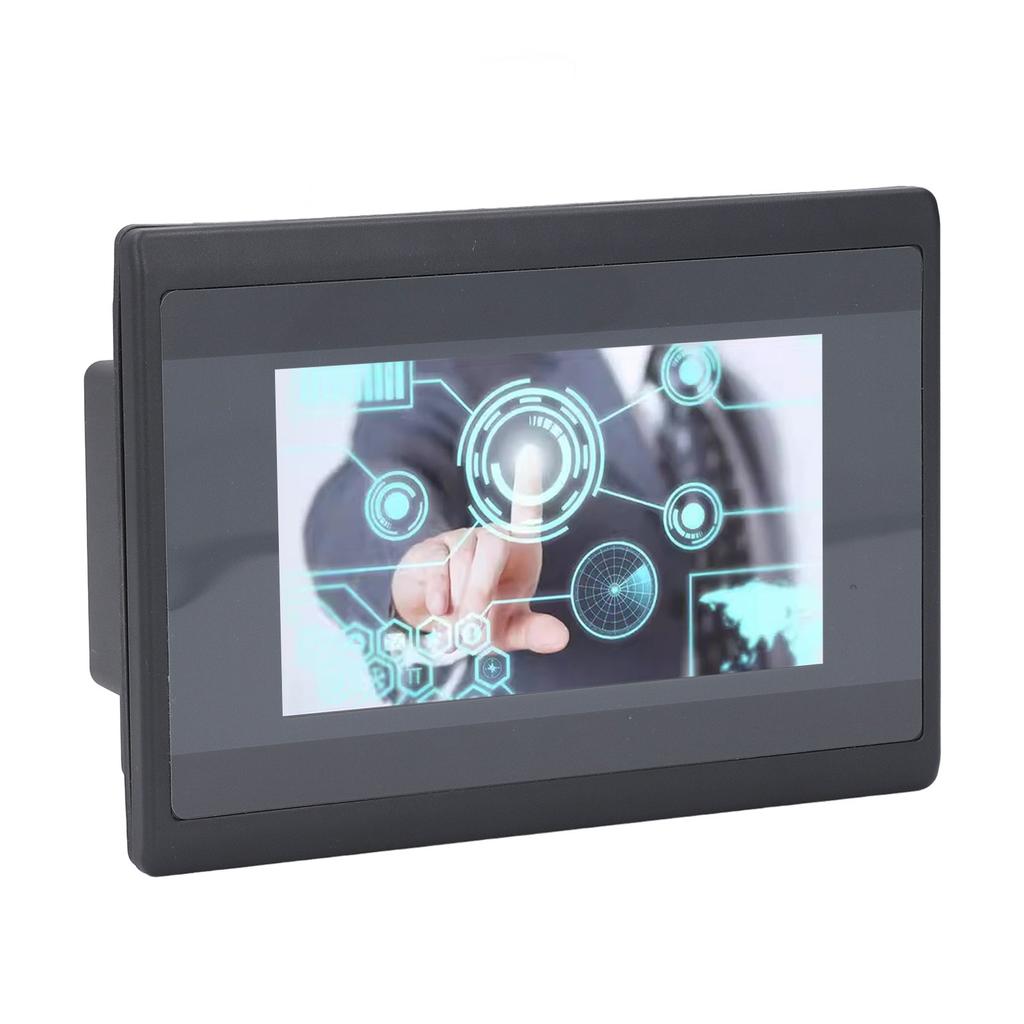

Item Type: PLC Touch Screen
Material: ABS
Model: WSB4322R
Size: Approx. 140x98x36mm 5.51x3.86x1.42in
Opening Size: Approx. 130x80mm 5.12x3.15in
HMI Section:
Display Size: 4.3 inch
Resolution: 480x272px
Memory: 16M FLASH
CPU: 600MHz ARM9 built in 8MB DDR2 memory
Programming Software: for WS HMI Setup V3.1 5.1
PLC Section:
Output Type: Relay
Number of IO Points: 12 inputs 10 outputs
Power Supply Voltage: DC 24V
Output Current: 5A
Analog Input: Default 3AD 010V, can be changed to 420mA
Analog Output: 2DA 010V
High Speed Counting: 2 channels at 60K
Pulse Output: None
Communication Ports: 1 x 232 serial port, 1 x RS485
Clock: Supported
Memory Capacity: 8000 steps
Download Speed: 38.4 Kb
PLC Series: Compatible with for FX3U Series
Programming Software: Compatible with PLC Programming Software for GX Developer or for GX Works 2.

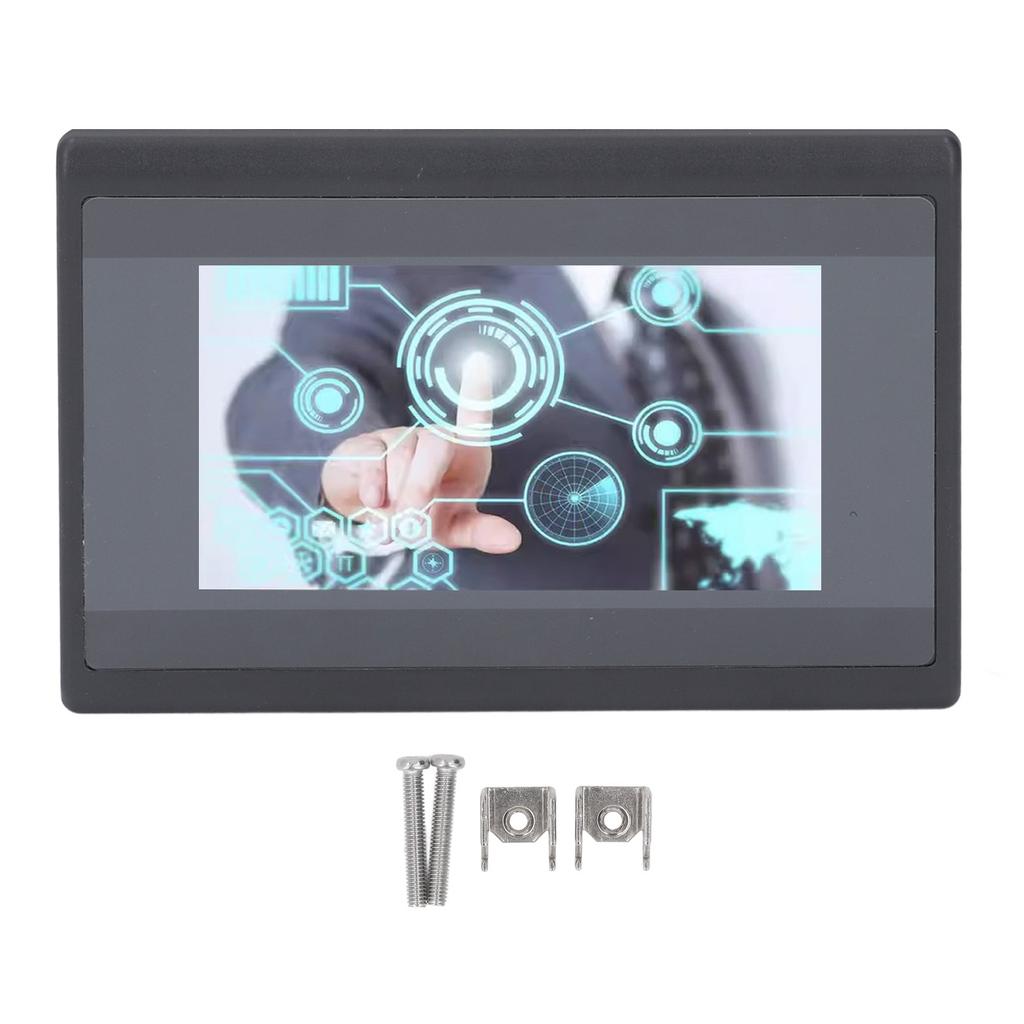

Package List:
1 x PLC Touch Screen
2 x Installation Screws
2 x Mounting Brackets[600MHz ARM9 CPU] Adopting 600MHz ARM9 with built in 8MB DDR2 memory, 16M NAND FLASH memory, and a download speed of 38.4KB.
[4.3 Inch Screen] This is a 4.3 inch TFT LCD touch screen, with 480x272Px resolution, 260000 colors, 400cdm2 brightness with backlit display, easy to observe status.
[High Safety] The front panel meets IP65 (flat panel installation), and the rear shell of the body meets IP20, ensuring security.
[Easy Installation] The hole size is 130x80mm, the set is equipped with screws and fixing accessories, the screen can be installed directly.
[Main Purpose] Mainly used for various PLCs or intelligent controllers with communication ports, with low power consumption, fast operating speed, stable performance.
