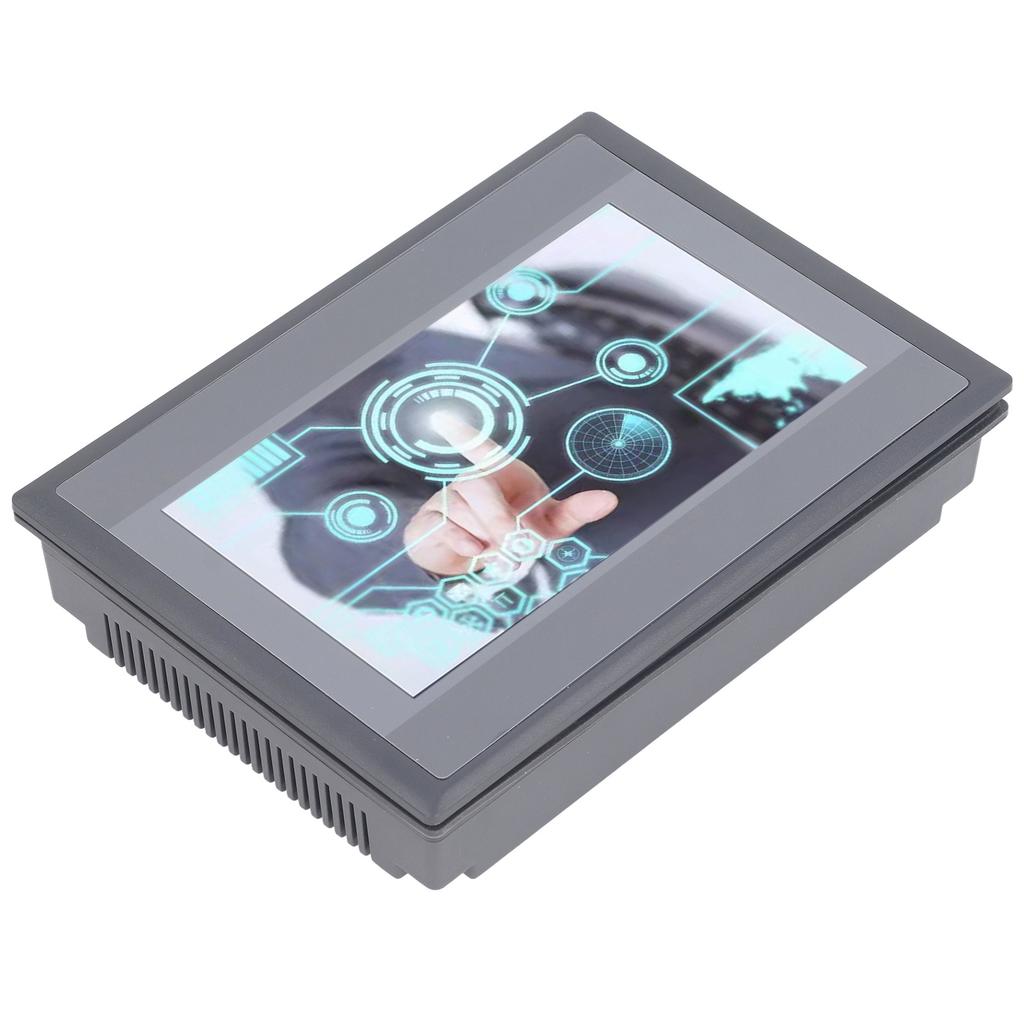

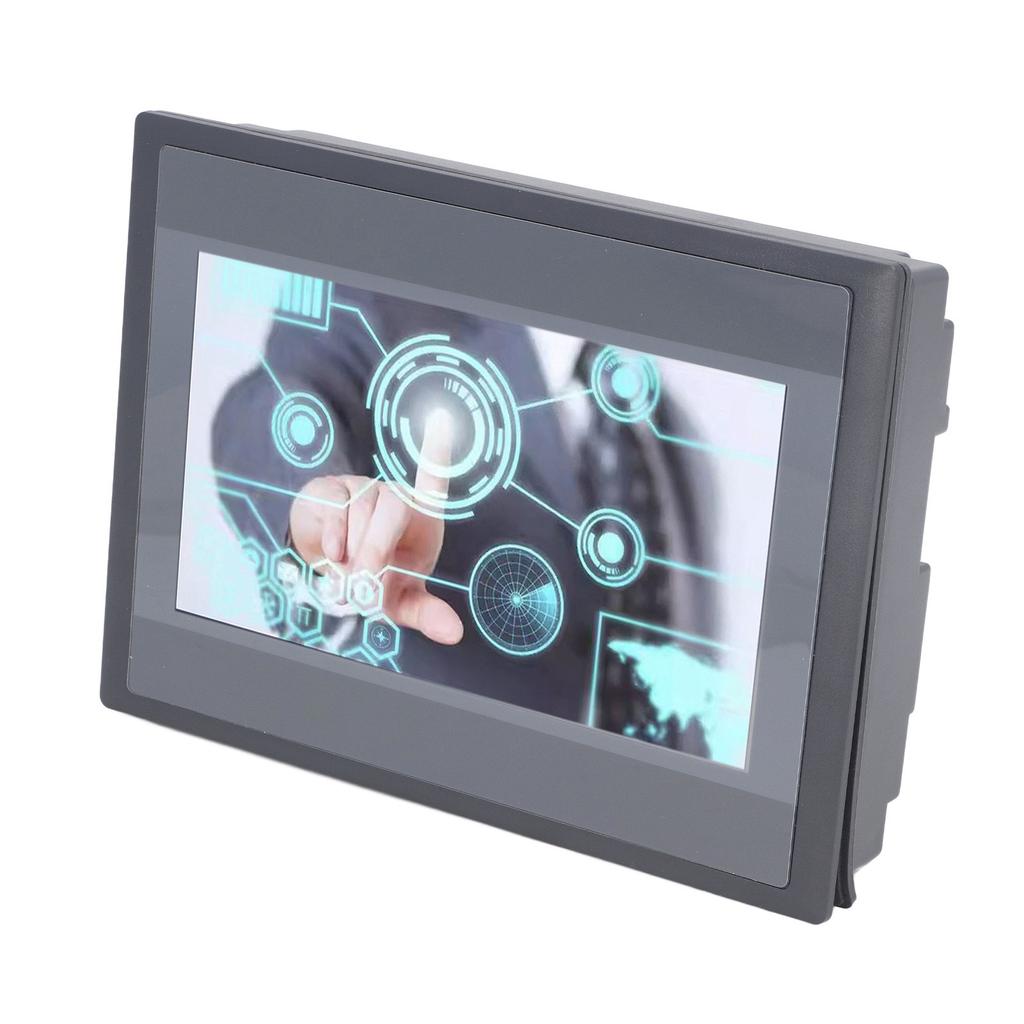

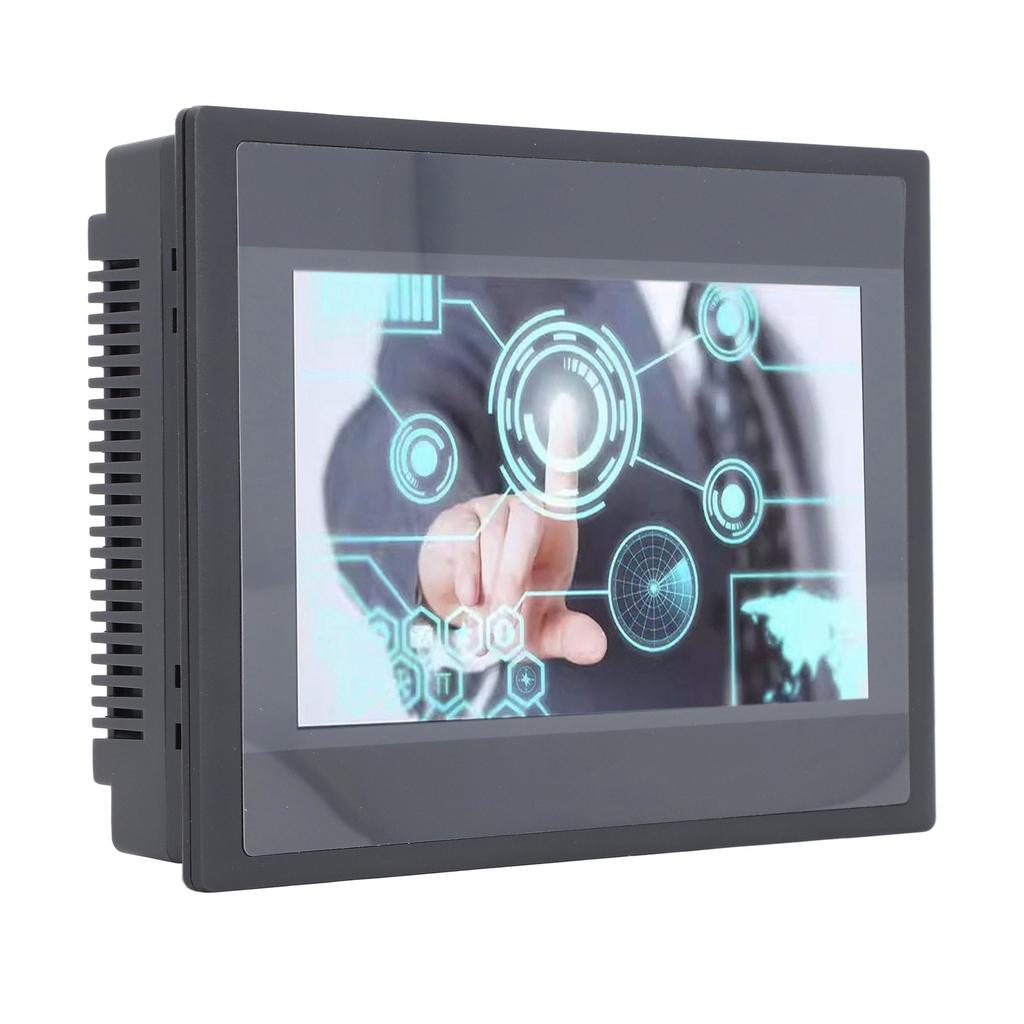

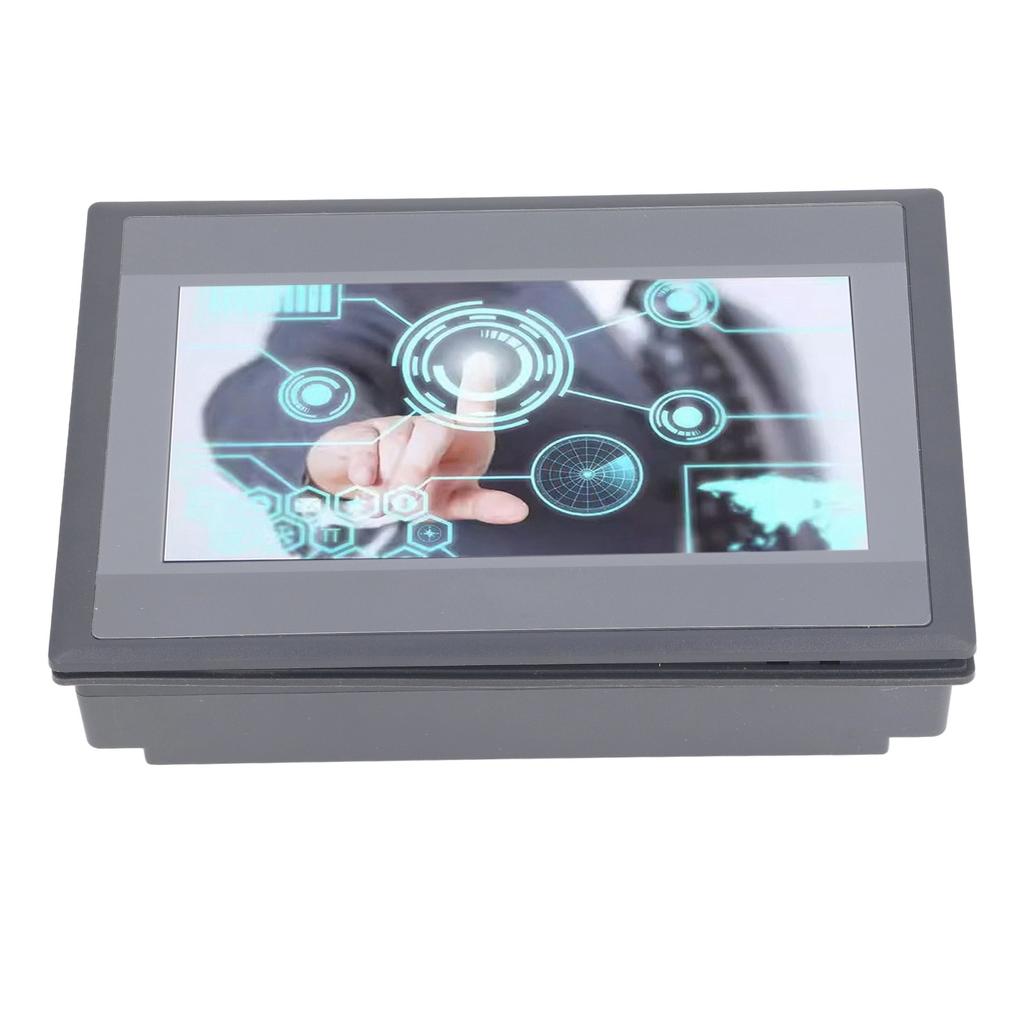

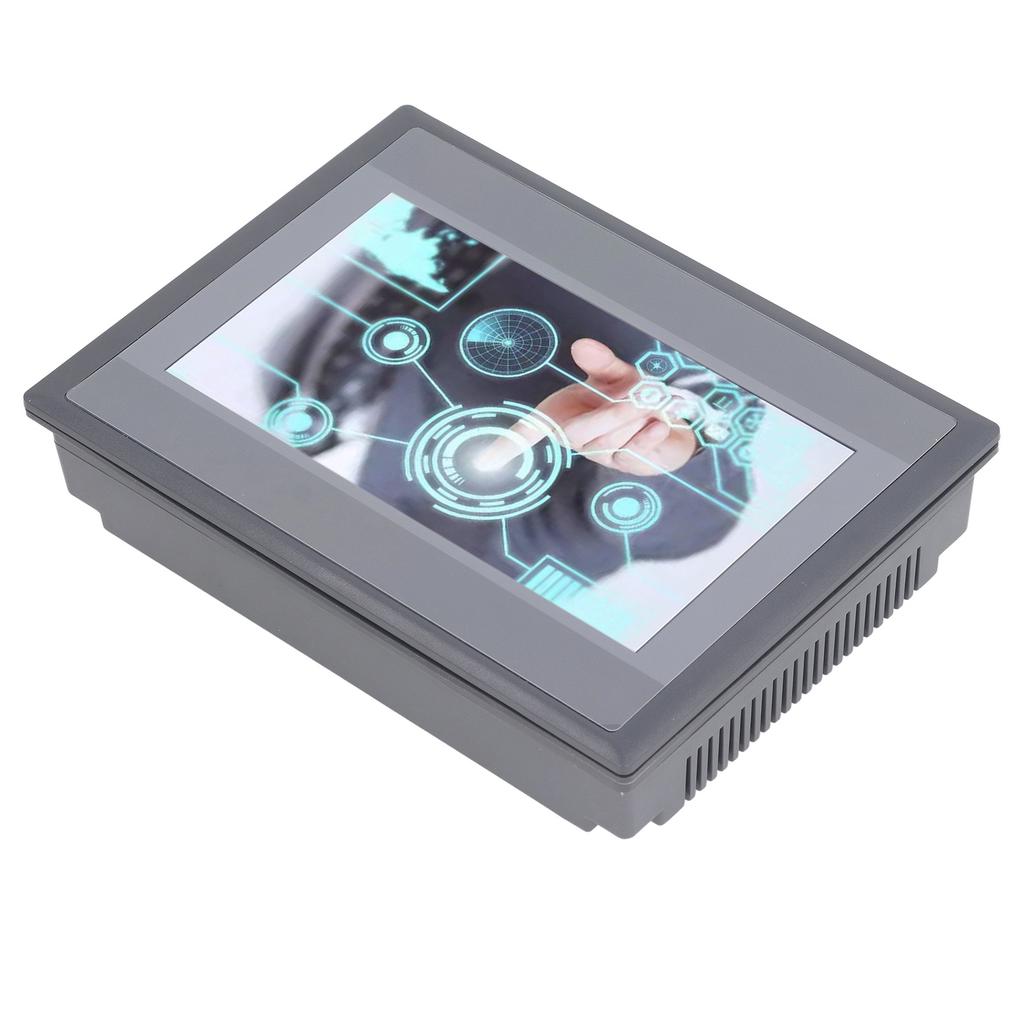

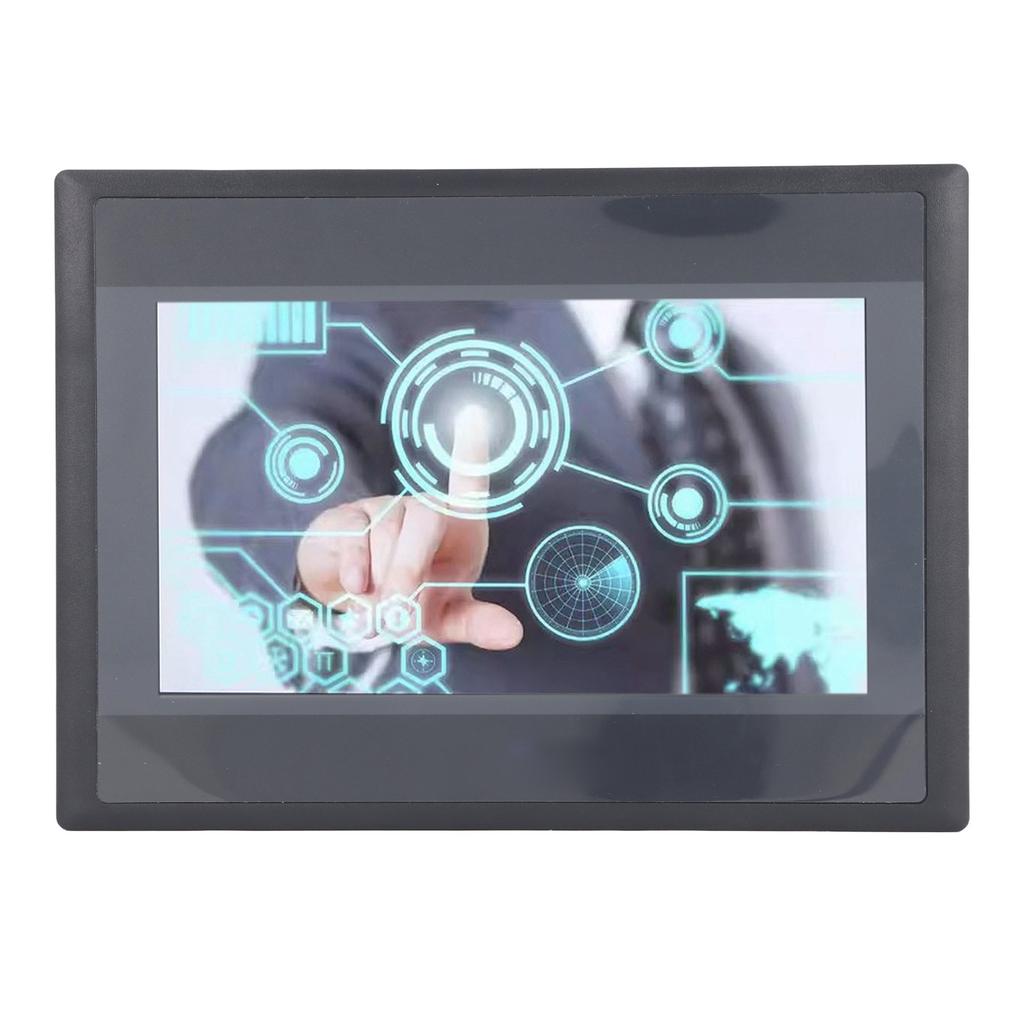

Feature:
1. HMI PANEL: This is a small human machine interface mainly used for various PLCs or intelligent controllers with communication ports, has low power consumption, fast operation speed, and stable performance.
2. ARM9 PROCESSOR: This HMI display panel adopts a 32 bit 240MHz ARM9 with 128M FLASH memory, a download speed of 38.4KB and high touch accuracy, compatible with for FX3U 20 40 48MRT.
3. 7 INCH TFT LCD: With 800x480P resolution, 260,000 colors and 400cdm2 brightness, backlit display, users can easy to observe the status.
4. PROTECTION GRADE: The front panel complies with lP65 (flat panel installation), and the rear shell of this touch screen complies with IP20, can be applied in various industrial automation control scenarios.
5. SIMPLE INSTALLATION: With a hole opening size of 190mmx136mm, equipped with screws and fixing accessories, this industrial touch screen can be installed directly.
Specification:
Item Type: PLC Touch Screen
Material: ABS
Type: WS7020T
Output Type: Transistor
Number of Switches: 12 in and 8 out
Power Supply Voltage: DC24V, working range +15percent
Output Current: 1A
Rated Power: <2.5W
Power Loss Allowance: <5mS
Display Screen: 7 Inch TFT LCD
Resolution: 800x480px
Colors: 260,000
Brightness: 400cdm2
LED Lifespan: 20,000 hours
Touch Screen: 4 wire industrial resistive touch screen (surface hardness 4H)
CPU: 32 bit 240MHz ARM9
Memory: 128M FLASH
Programming Software: for HMI_Setup_V2.0
Ethernet: None
Analog Input: 3AD 010V + 3AD 420mA
Analog Output: 2DA 010V
Pulse Outputs: 4 channels 100K, changeable to 8 channels 100K
High Speed Counting: 6 channels 3K, changeable up to 6 channels 60K, supports 3 channels AB phase
Pulse Outputs: None
Communication Port: 1 x RS232, 1 x RS485 (terminal)
Communication Protocol: Support
Clock: Support
Memory Capacity: 8000 steps
Download Speed: 38.4KB
PLC Series: Compatible with for FX3U series
Programming Software: Compatible with for GX Developer or for GX Works 2
Program Download Method: USB download
USB Drive: Support USB drive download and data import and export
Serial Communication Port: COM communication serial port is a 9 pin D type male socket, COM1 supports RS232 or RS485 or RS422 communication
Power Protection: Equipped with surge protection
Hole Size: Approx. 190x136mm7.5x5.4in
Overall Size: Approx. 199x144x59mm7.8x5.7x2.3in.
Package List:

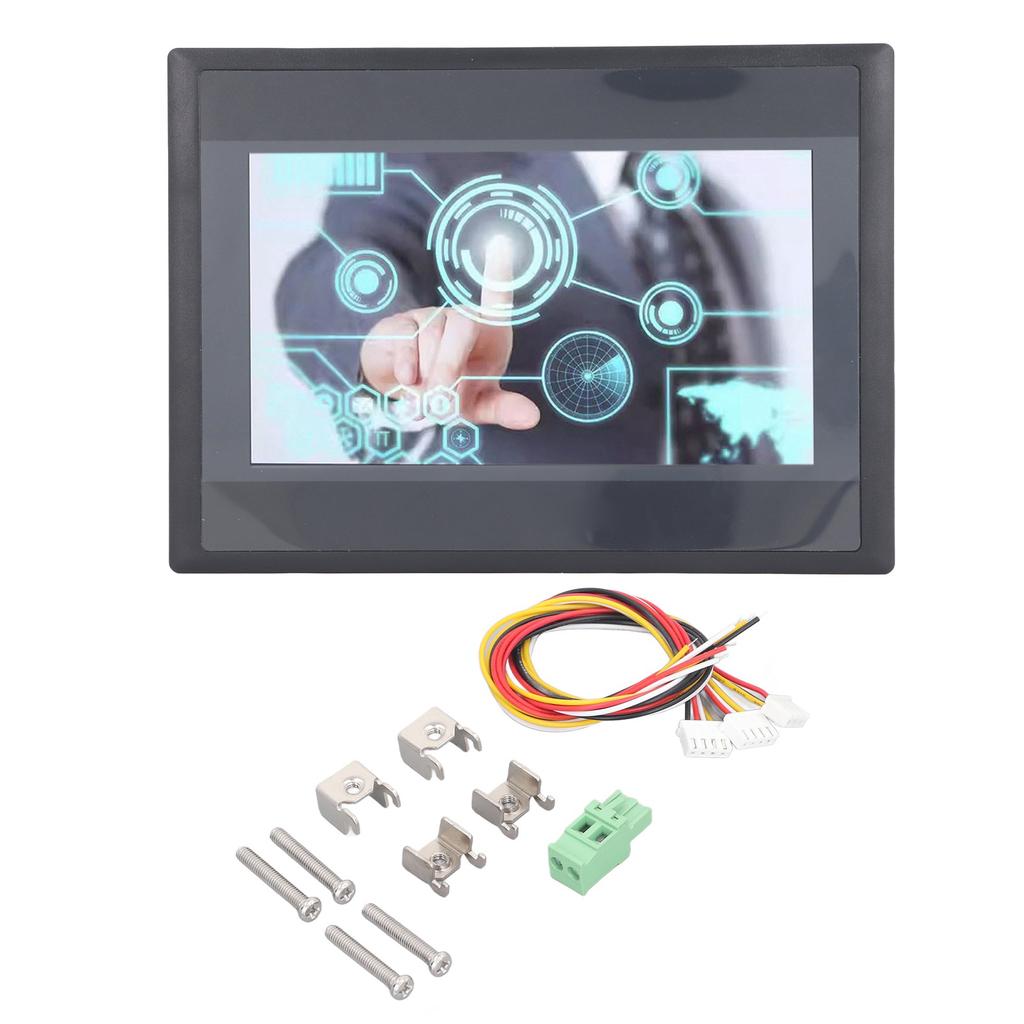

1 x PLC Touch Screen
4 x Installation Screws
4 x Mounting Brackets
1 x Terminal
