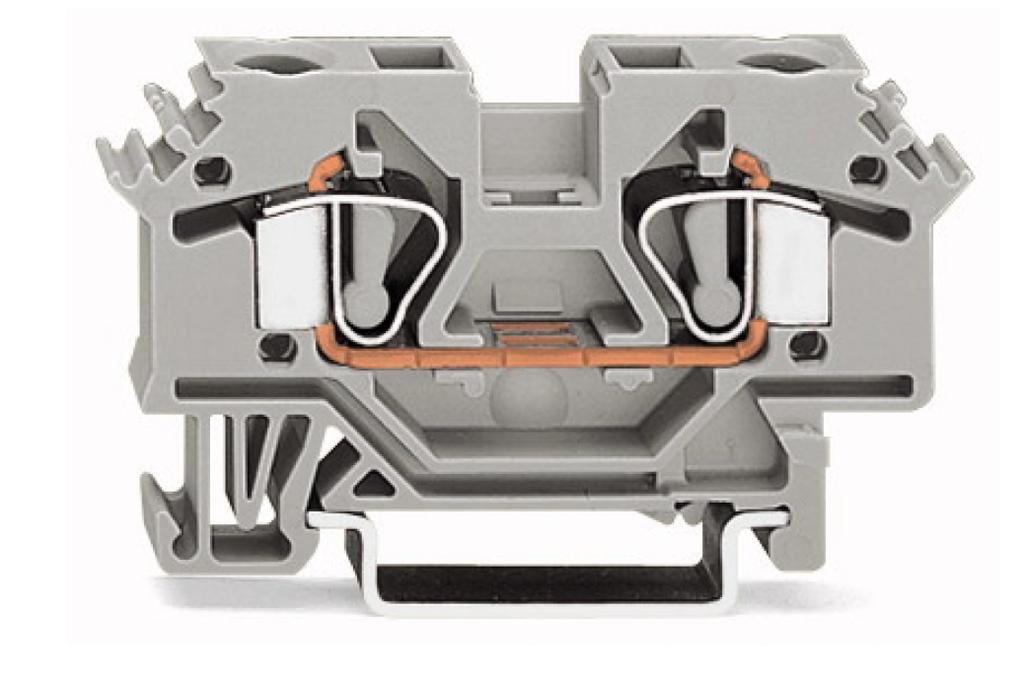

2-Wire Rail Connector 6mm2 Gray 282-601

Length [mm]: 62

Manufacturer's index: 282-601

Insulating material flammability class according to UL94: V0

Rated current In [A]: 41

Cross-section of the connected solid wire [mm2] up to: 6

Cross-section of a solid conductor [mm2] from: 0.2

Cross-section of a stranded conductor without ferrule: 6

Cross-section of a multi-core conductor [mm2] up to: 6

Cross-section of a multi-core conductor [mm2] from: 0.2

Type of electrical connection 1: Spring terminal

Type of electrical connection 2: Spring terminal

Width / grid size [mm]: 8

Explosion-proof version "EEx e": No

Height with lowest mounting type [mm]: 31.5000

Operating temperature range from/to [°C] to: 105

Operating temperature range from/to [°C] from: -35

CN: 85369010 Length: 65 EAN: 4044918306836 Color: Gray Number of levels: 1 Number of terminals per level: 2 Connection position: From above / at the top Type of insulating material: Thermoplastic Series: 282 Mounting method: DIN mounting rail 35 mm Width: 35 Weight: 0.0200 Internal floors bridged: No Closing plate required: Yes Height: 8
