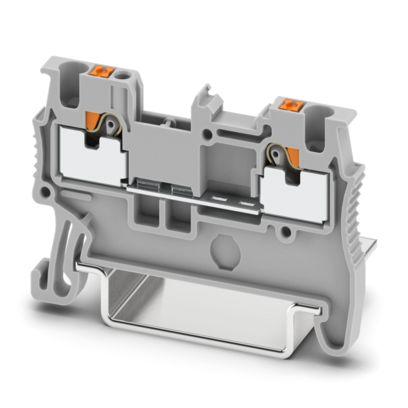

Phoenix Contact PT 1,5/S 3208100 Through Terminal Block – Fast and Reliable Push-in Connections
Phoenix Contact 3208100 is a modern through terminal block, designed for quick and safe connection of wires in electrical installations and industrial automation.
The PT 1,5/S model uses innovative push-in technology, which enables direct insertion of wires without the use of tools. This makes installation much faster, and the connection is reliable and vibration-resistant.
The terminal block supports wires with a cross-section of 0.14–1.5 mm² and operates at currents up to 17.5 A and voltages up to 500 V. The compact width of 3.5 mm saves space in the distribution board and organizes the installation :contentReference[oaicite:2]{index=2}.
Benefits for the user
• Quick assembly - push-in technology without tools.
• Space saving - compact width of 3.5 mm.
• Secure connection - vibration resistance and long service life.
Technical specifications
• Manufacturer: Phoenix Contact
• Model: PT 1.5/S
• Catalog code: 3208100
• Type: through connector (feed-through terminal block)
• Number of connections: 2
• Connection technology: push-in
• Nominal cross-section: 1.5 mm²
• Wire range: 0.14 – 1.5 mm²
• Nominal current: 17.5 A
• Nominal voltage: 500 V
• Width: 3.5 mm
• Mounting: DIN rail NS 35
• Color: gray
• Material: polyamide (PA), UL94 V0
• Application: switchboards, industrial automation, electrical installations
