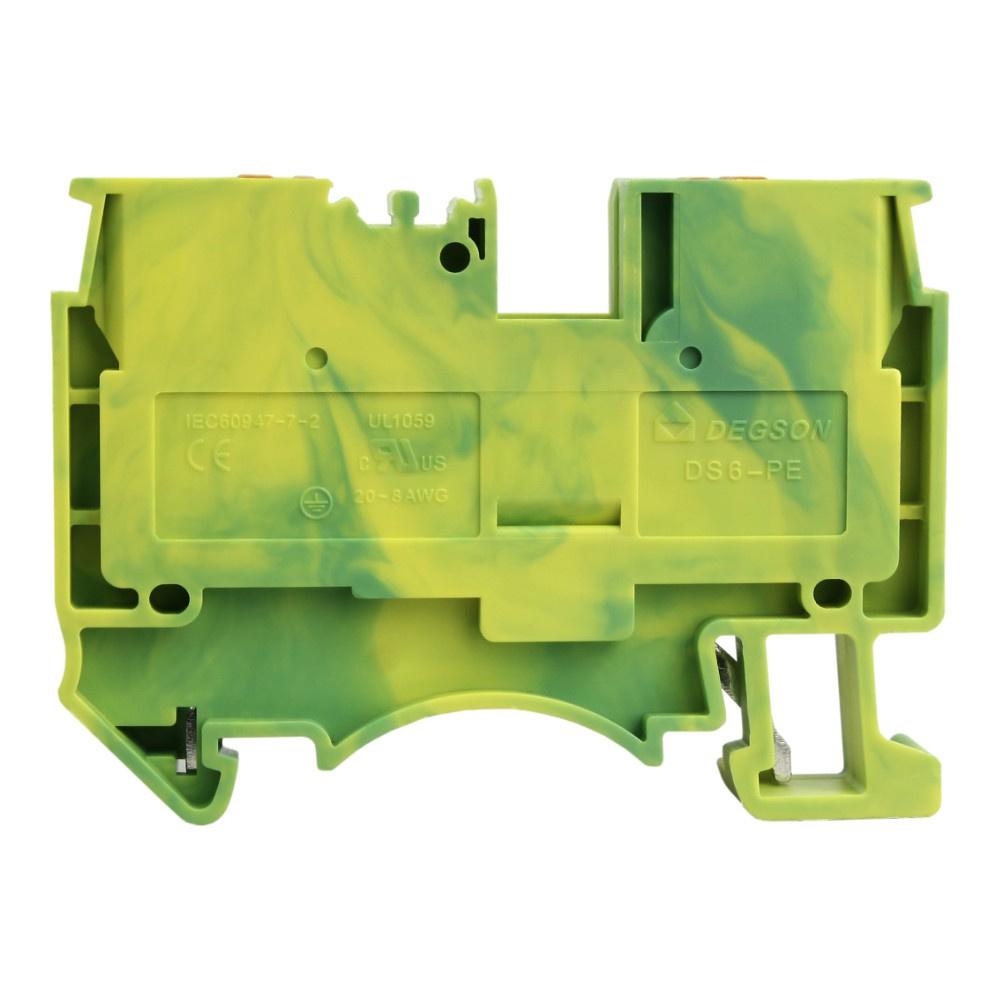

Rail Terminal Block 6mm2 1P Spring Terminal Yellow-Green PE UL
An electrical installation consisting of multiple conductors must ensure continuity of current flow in the circuit. Through terminal blocks are mounted on a DIN TH/TS 35 rail and enable connecting and bridging wires.
DS6 series rail terminal blocks enable quick and convenient connection of wires with a cross-section of 0.5 - 6mm2 (20 - 8 AWG) using spring terminals. The connector housings are made of high-quality PA66 and UL94V-0 plastics.
All metal components in the connector are made of coated copper alloy. DEGSON rail connectors have undergone numerous tests confirming their quality and durability. The connectors have been awarded the UL standard certificate.
➡️ Features of the DS6 rail connector:
✔️ spring terminals - simple and quick wire assembly
✔️ mounting on a DIN 35 rail
✔️ for connecting PE grounding wires
✔️ wire cross-section0.5 - 6 mm2 (20 - 8 AWG)
✔️ certificationUL (no. E228872)
✔️ color yellow-green
✔️ high quality material
✔️ copper alloy clamps
crimp connector for wires with spring clamp
+ press-in spring support, 2 projections per contact
number of tracks
number of terminals
installation on DIN 35 rail
high-quality steel cage
maximum cross-sectional area of the flexible hose |
rated voltage |
20 - 8 AWG
0.5 - 6 mm2
Stripping length |
from -40℃ to + 105℃
Basic connector color
UL 1059 certification
dCE declaration of conformity
Markers for connectors - ZB8-10P
End plate - D-DS6-PE-01
