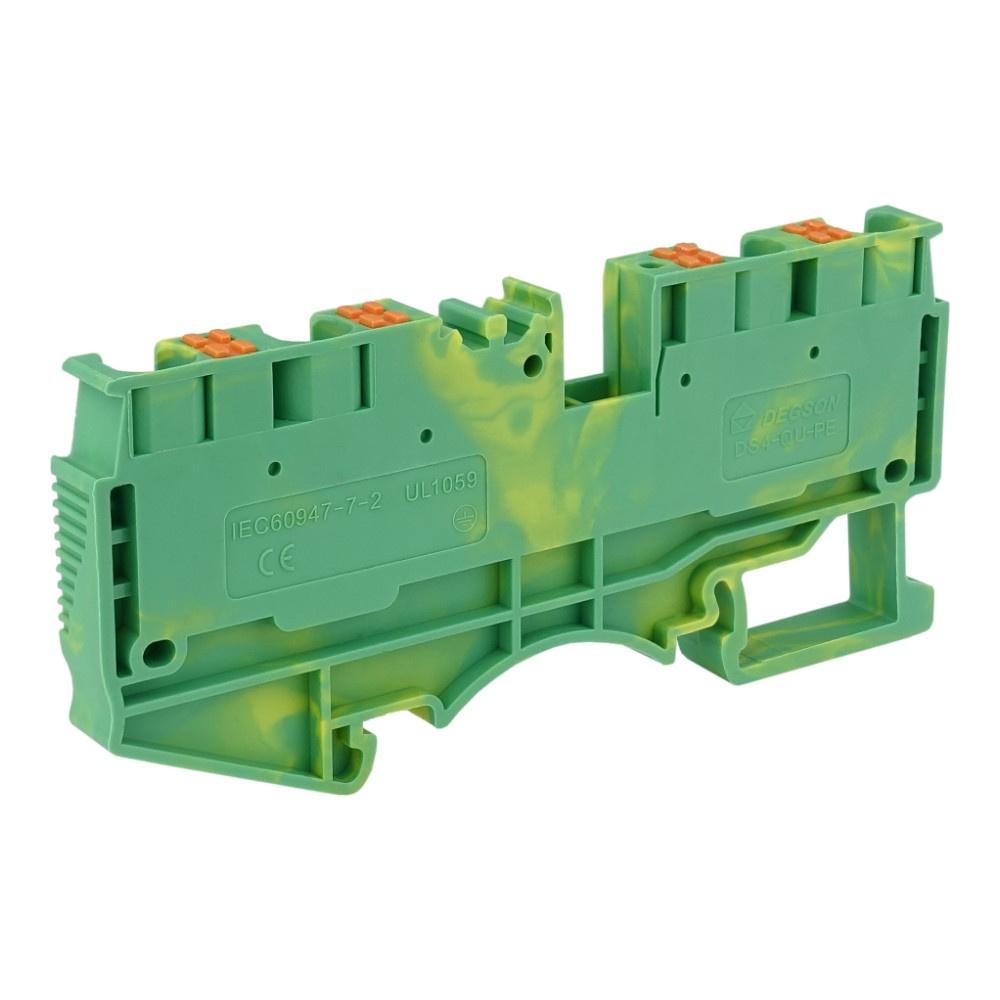

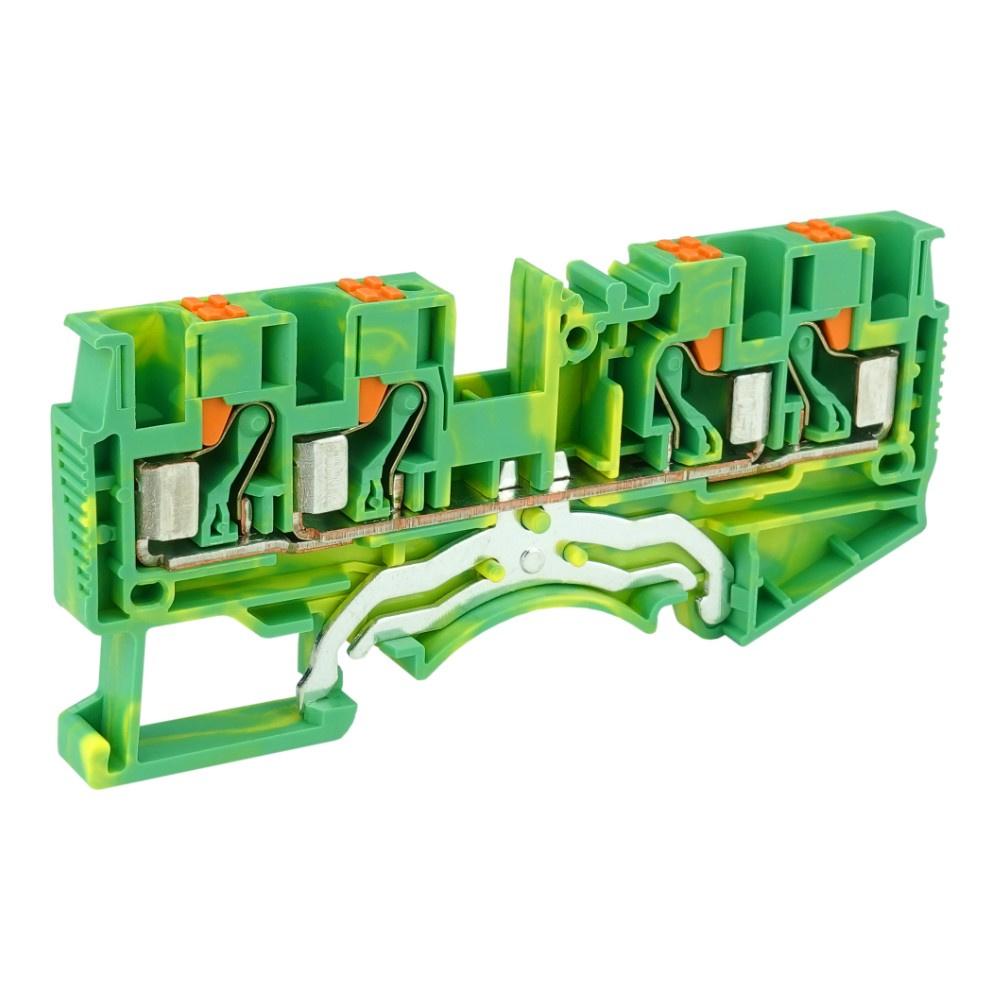

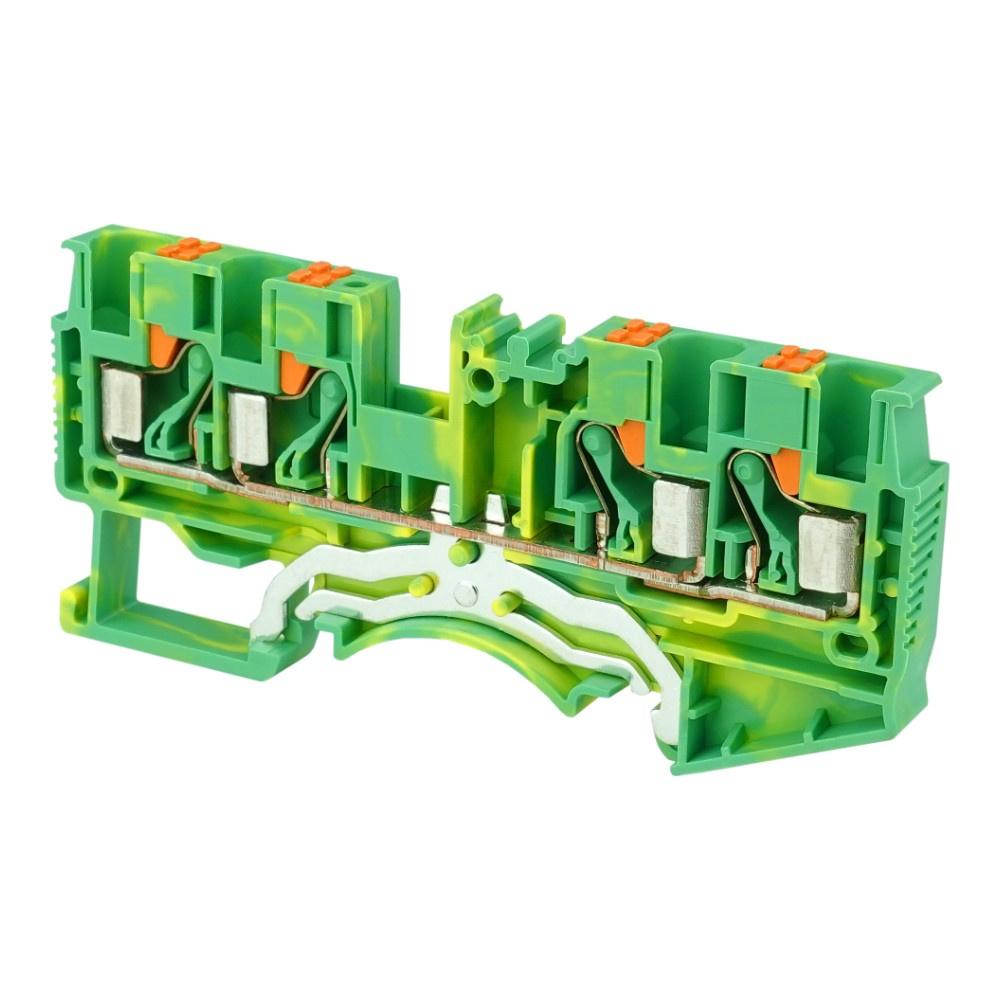

4mm2 Busbar Connector DS4-QU 1P4-wire, spring clamp, yellow-green PE
⭐⭐⭐⭐⭐
An electrical installation consisting of many wires must ensure the continuity of current flow in the circuit.. Through connectors are mounted on the DIN TH/TS 35 rail and enable connecting and bridging wires. DS4 TW series rail connectors enable quick and convenient connection of wires with a cross-section of 0.2 - 4mm2 (24 - 10 AWG) using spring clips. The connector housings were made of high-quality PA66 and UL94V-0 plastics. All metal elements in the connector were made of a coated copper alloy. The busbar connectors have undergone many tests confirming their quality and durability. The busbar connector allows connecting four wires on one pole.
➡️ Features of the DS4-QU busbar connector:
✔️ spring terminals - simple and quick wire installation
✔️ mounting on a 35 mm DIN rail
✔️ for connecting PE earthing conductors
✔️ the connector allows connecting four wires on one track
✔️ cross-section of wires 0.2 - 4 mm2 (24 - 10 AWG)
✔️ yellow-green color
✔️ high-quality material
✔️ copper alloy clamps
Properties of terminal clamps
with Push-in lock
connector (components)
push-in terminal
connector type
railway
number of tracks
1
number of clamps
4
mounting on DIN 35 rail
Yes
electrical installation
spring clamp
execution
cage made of high-quality steel
maximum cross-sectional area of the flexible cable
4mm2
rated voltage
-
rated impulse voltage
8 kV
rated current
-
wire range
24 - 10 AWG
0.2 - 4mm2
stripping length
10 - 12 mm
working temperature
from -40℃ to + 105℃
dimensions
basic connector color
yellow-green
CE declaration of conformity
Yes
RoHS directive
Yes
accessories
Terminal markers - ZB6-10PEnd plate - D-DS4-TW-PE-01P
AVAILABLE ON OUR AUCTIONS
Symbol
DS4-QU-PE-01P-1C-00A(h)
EAN
5907589335804
