Feature:
1. Controller Wiring Harness Function: Positive and negative power supply, motor three phase line, headlight interface, taillight, brake light interface, brake lamp headlight signal, battery power output, intelligent identification line, low brake power off, PAS1:1 power, speed control throttle turn, total switch (electronic control lock), LCD display interface, motor Hall interface.
2. LCD Display Include: Single run mileage and run time, real time speed, battery power and voltage, gear indication, cumulative average speed, total mileage, cumulative maximum speed, cruising indication,6km h boost and indication, real time running power, real time running current, fault icon code, etc.
3. Excellent Performance: This controller is made of superior metal with a notched design, durable, has excellent heat dissipation function, which can protect the internal circuit so as to avoid thermal overload. With stable performance, increased withstand voltage, increased adaptable voltage, and high reliability.
4. Main Applications: Suitable for 36V, 48V, 500W motor, can be used for the modification and replacement of damaged parts of electric power bike, electric bike, electric scooter, etc.
5. Easy to Install: The LCD Display is suitable for 22.5mm handlebars. Detailed operating instructions are attached below.
Specification:

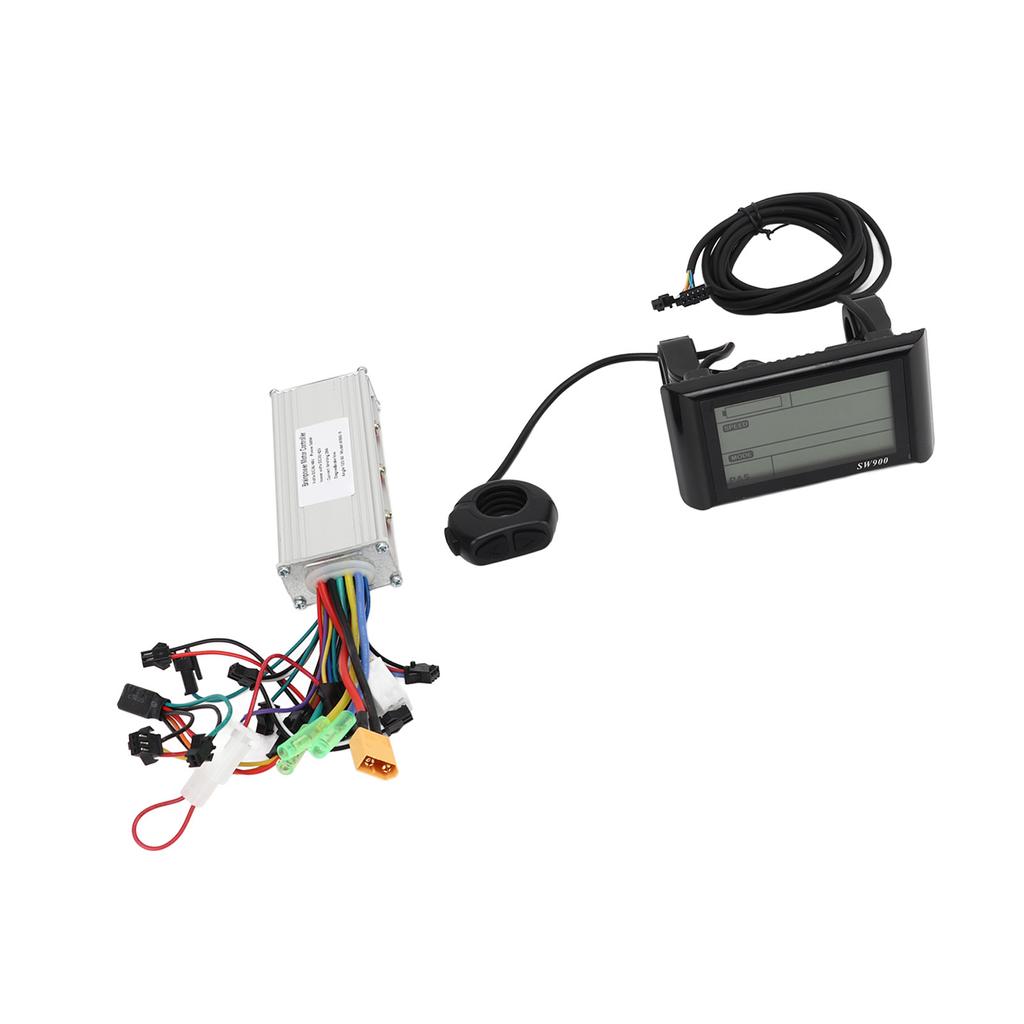

Item Type: Motor Brushless Controller and LCD Display
Material: ABS, Aluminium Alloy
Weight: Approx. 558g 19.7oz
Voltage: 36V, 48V
Power: 500W
Current Limit: 28A
Low Voltage: 30V 42V
.
Package List:
1 x LCD Display1 x Motor Brushless Controller1 x Specification
