Feature:
1. Display Content: LCD display instrument display content includes single operation mileage and operation time, real time vehicle speed, battery power and voltage, gear indication, cumulative average vehicle speed, total mileage, etc.
2. Harness Function: The function of the controller wiring harness includes the positive and negative poles of the power supply, the three phase motor wire, the headlight interface, the tail light, the brake light interface, the brake light headlight signal, etc.
3. Heat Dissipation: The controller shell is made of premium metal, and the groove design has a good heat dissipation function, which can guard the internal circuit, thereby avoiding thermal overload.
4. Widely Applicable: LCD display panel brushless controller kit is suitable for electric bikes, scooters, etc., suitable for 22.5mm 0.89in Diameter handlebars.
5. Easy to Operate: LCD display panel brushless controller kit is simple to operate, and the function can be realized by connecting the socket of the instrument to the socket corresponding to the controller.
Specification:

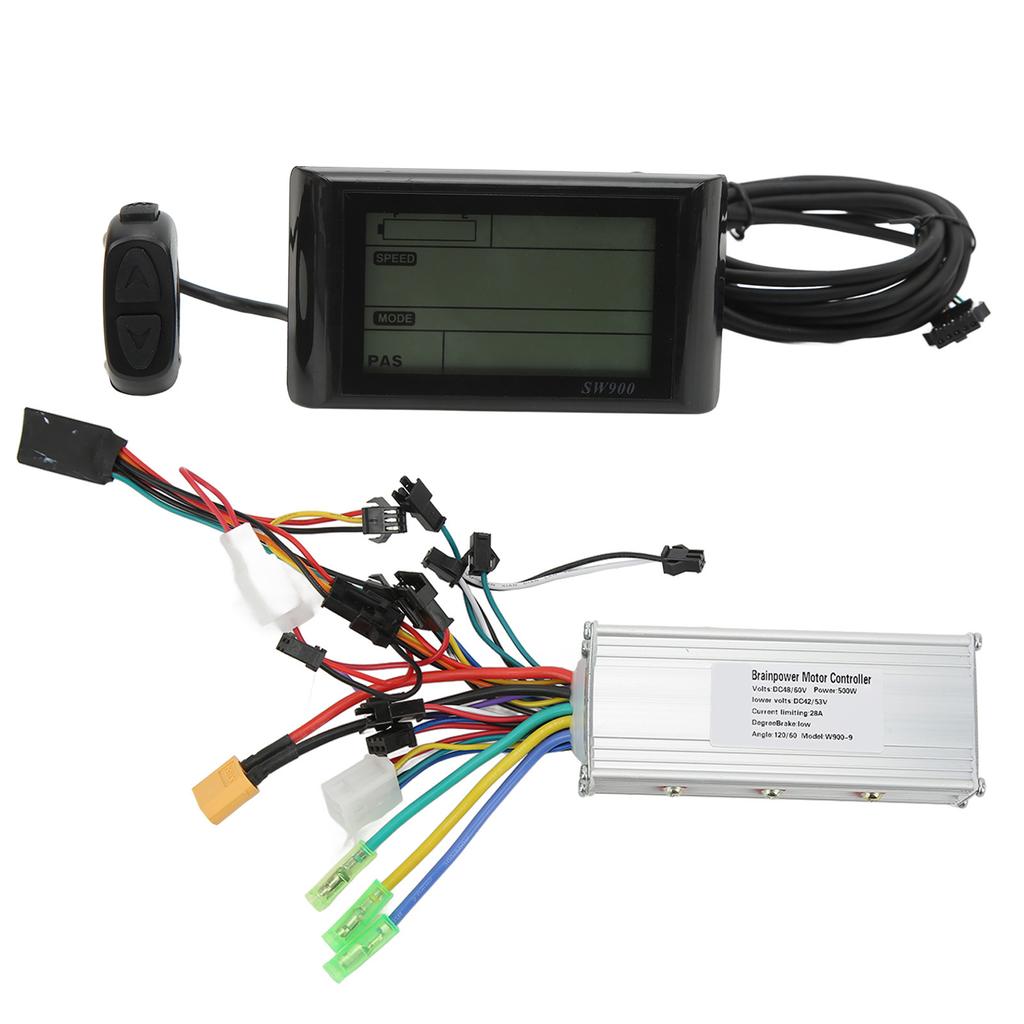

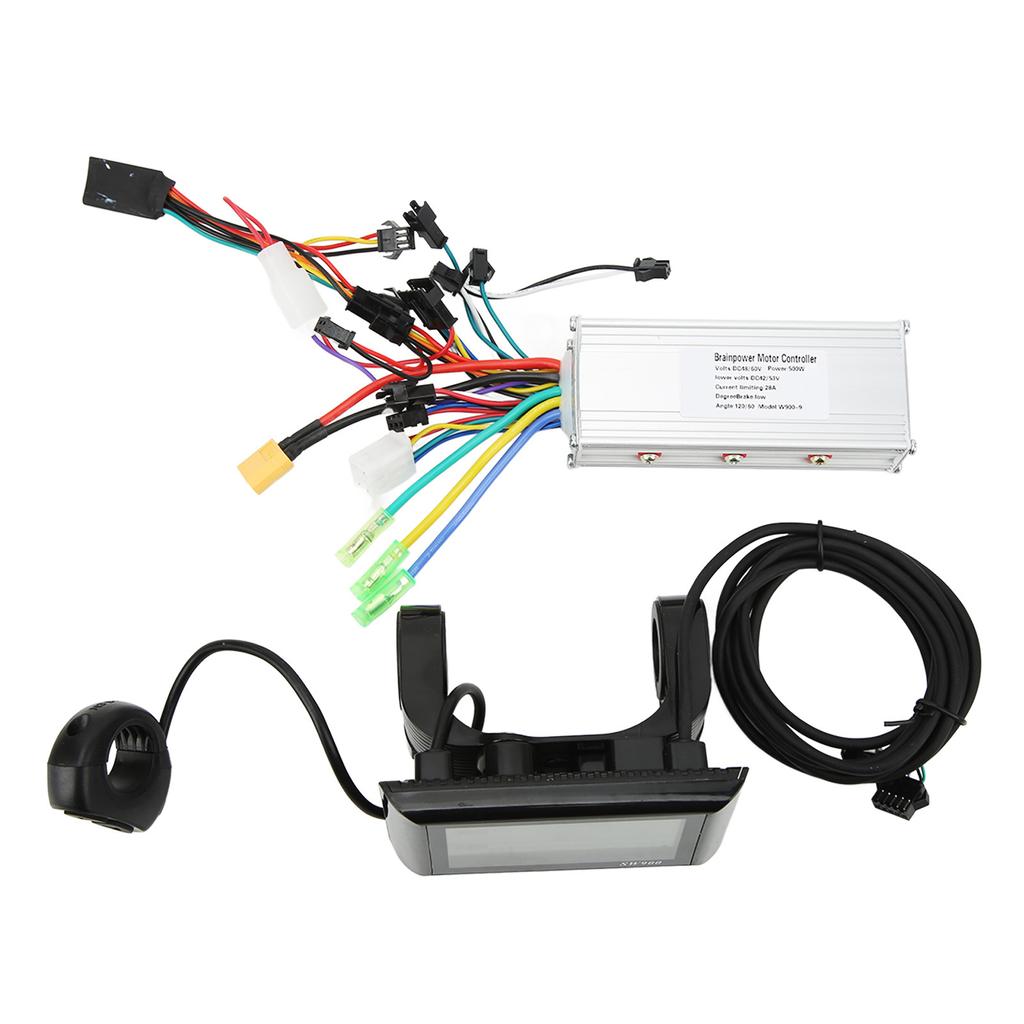

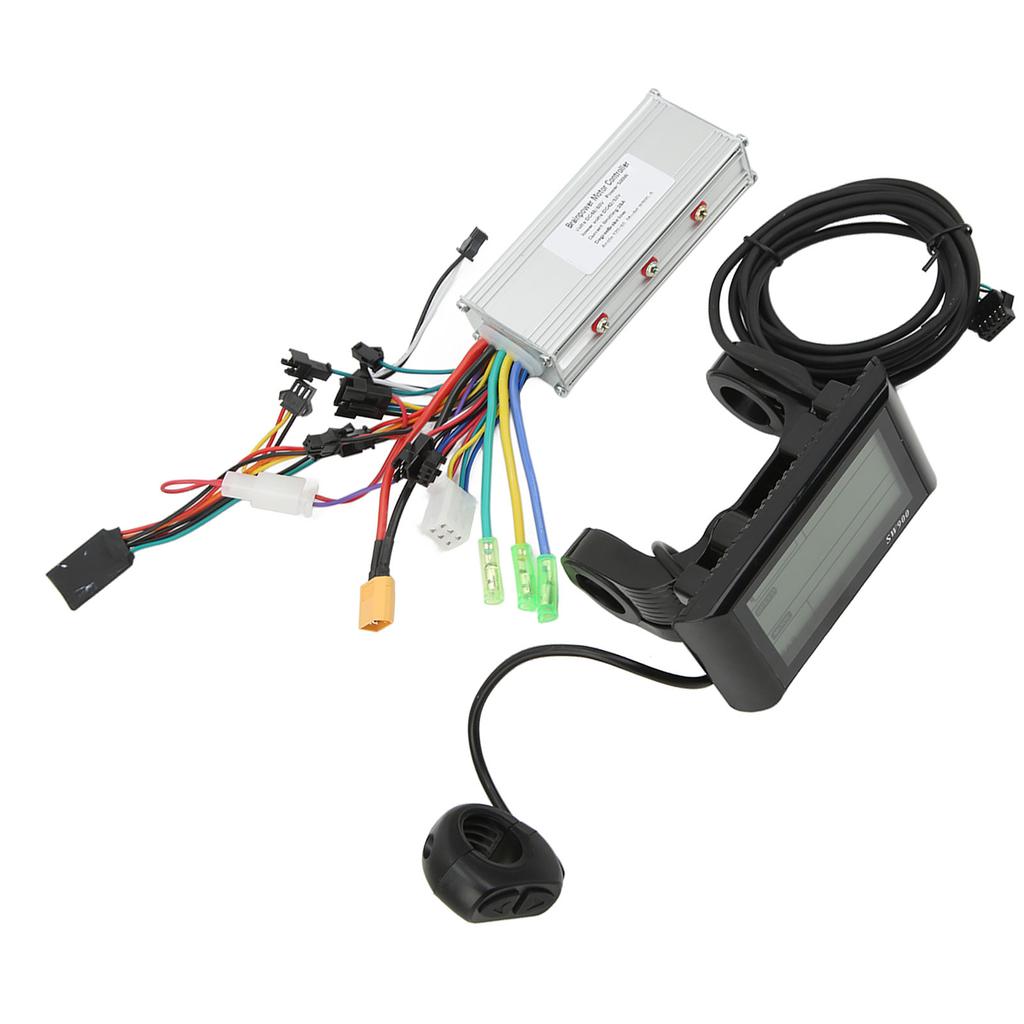

Item Type: Electric Bike Brushless Controller Kit
Material: ABS, Aluminum Alloy
Voltage: 48V 60V
Power: 500W
Current Limit: 28A
Low Voltage: 42V 53V.
Package List:
1 x
LCD Display1 x
Brushless Controller1 x Manual
Note:
1. Controller wiring harness functions include: positive and negative poles of powersupply, motor three phase wire, headlight interface, tail light, brake light interface, brake light headlight signal, battery power output, intelligent identification line, low brake power off, PAS1:1 assistance, speed control throttle handle, total electric door (electric control lock), LCD instrument interface, motor for Hall interface.2. The instrument display includes: single running mileage and running time, realtime vehicle speed, battery level and voltage, gear indication cumulative average speed, total mileage, cumulative maximum speed, cruise indication, 6km h boostand indication, real time running power, real time operating current, fault icon code, etc
