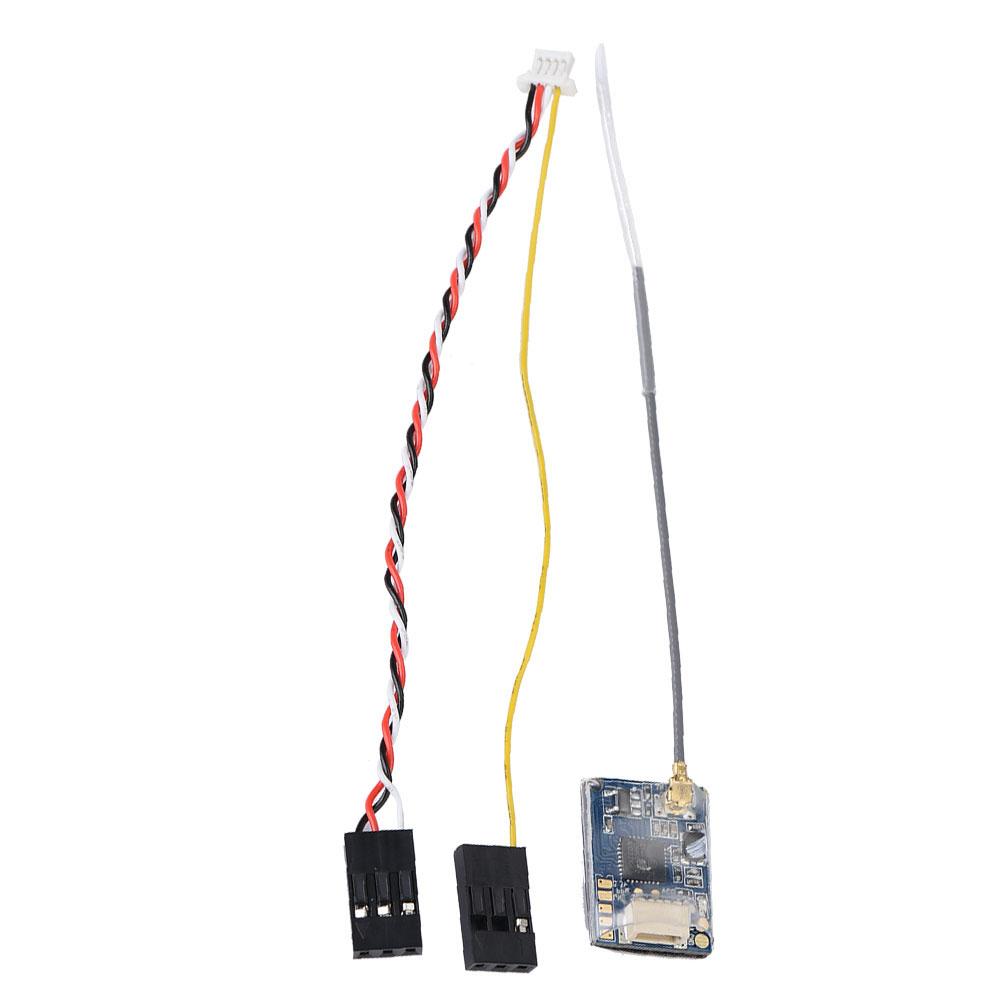

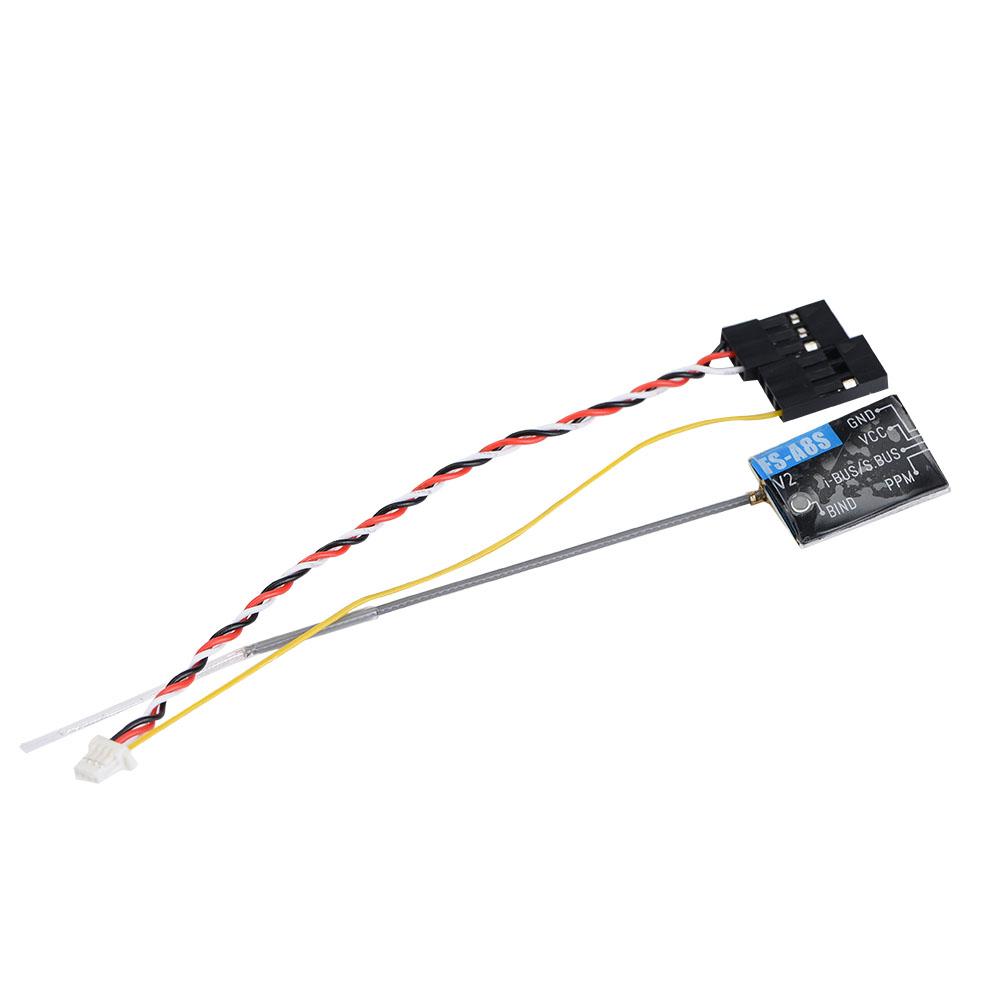

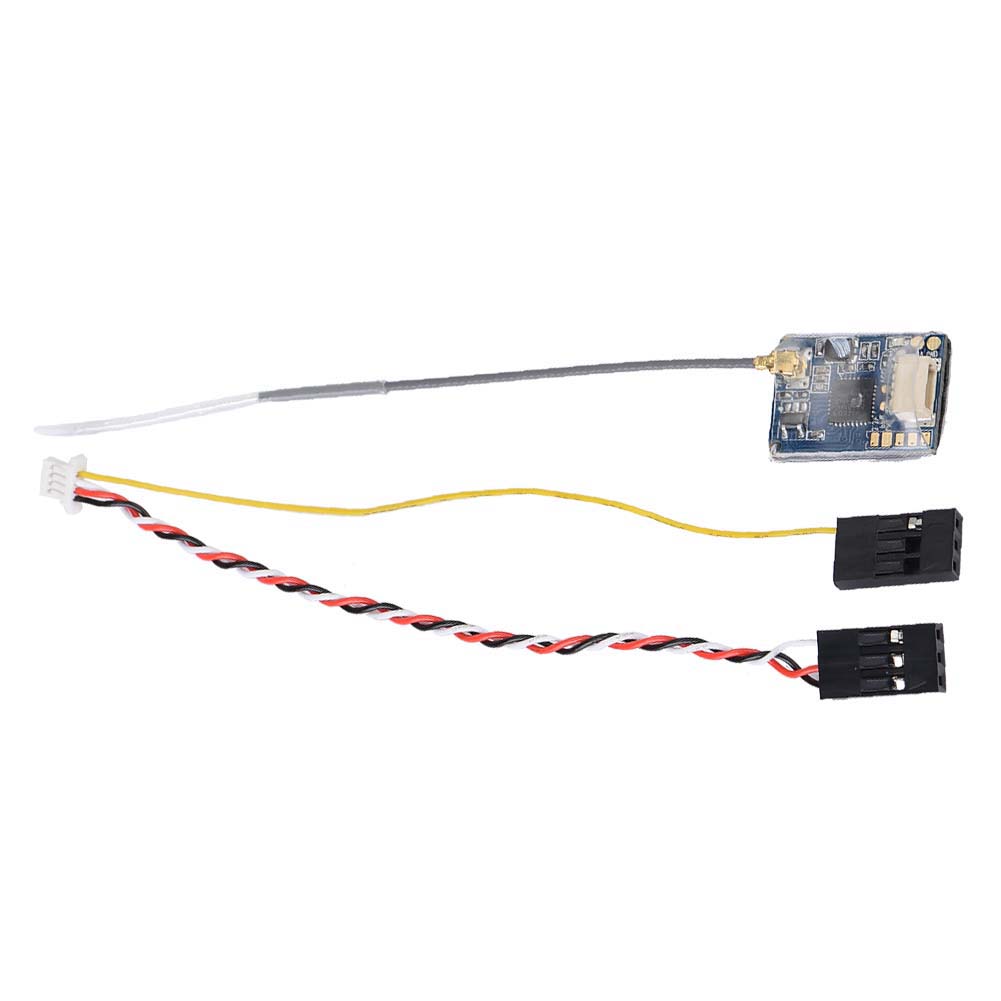

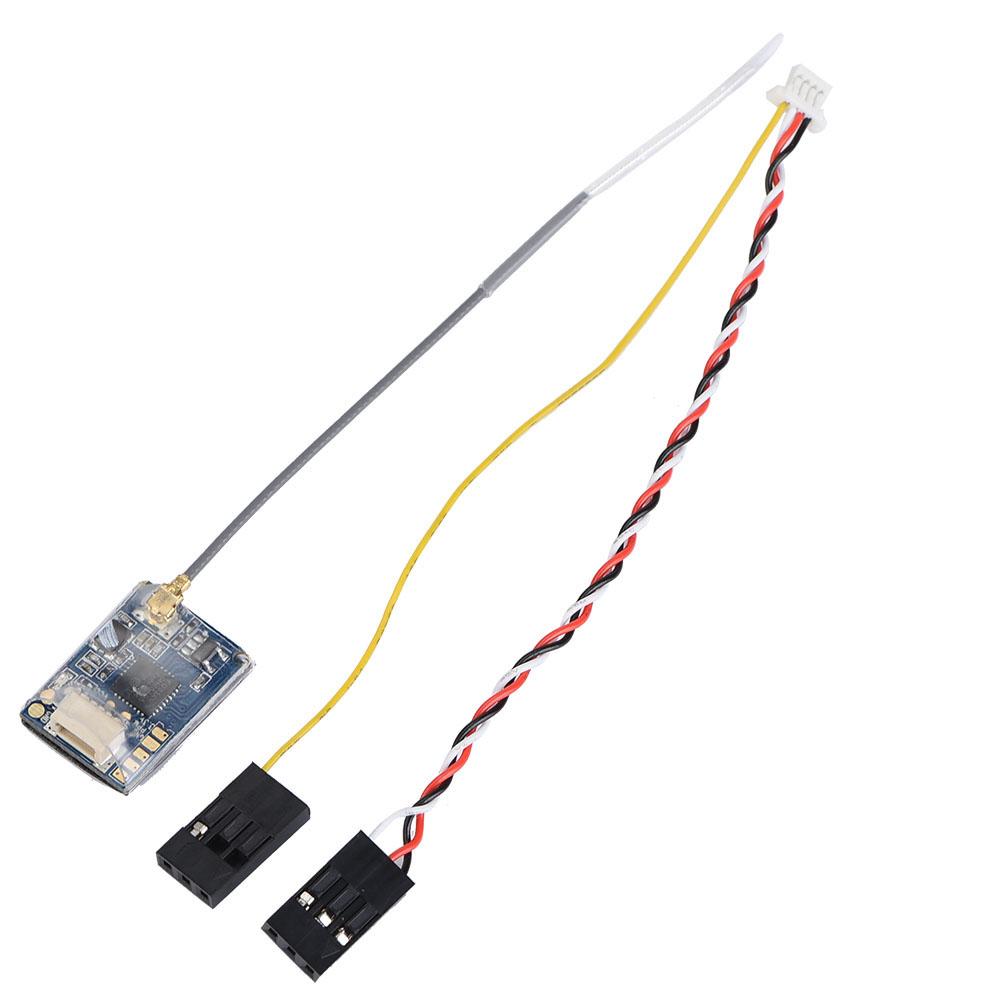

Flysky FS A8S 2.4G 8CH Mini Receiver w PPM i BUS SBUS Output for FS i4 FS i6 FS i6S

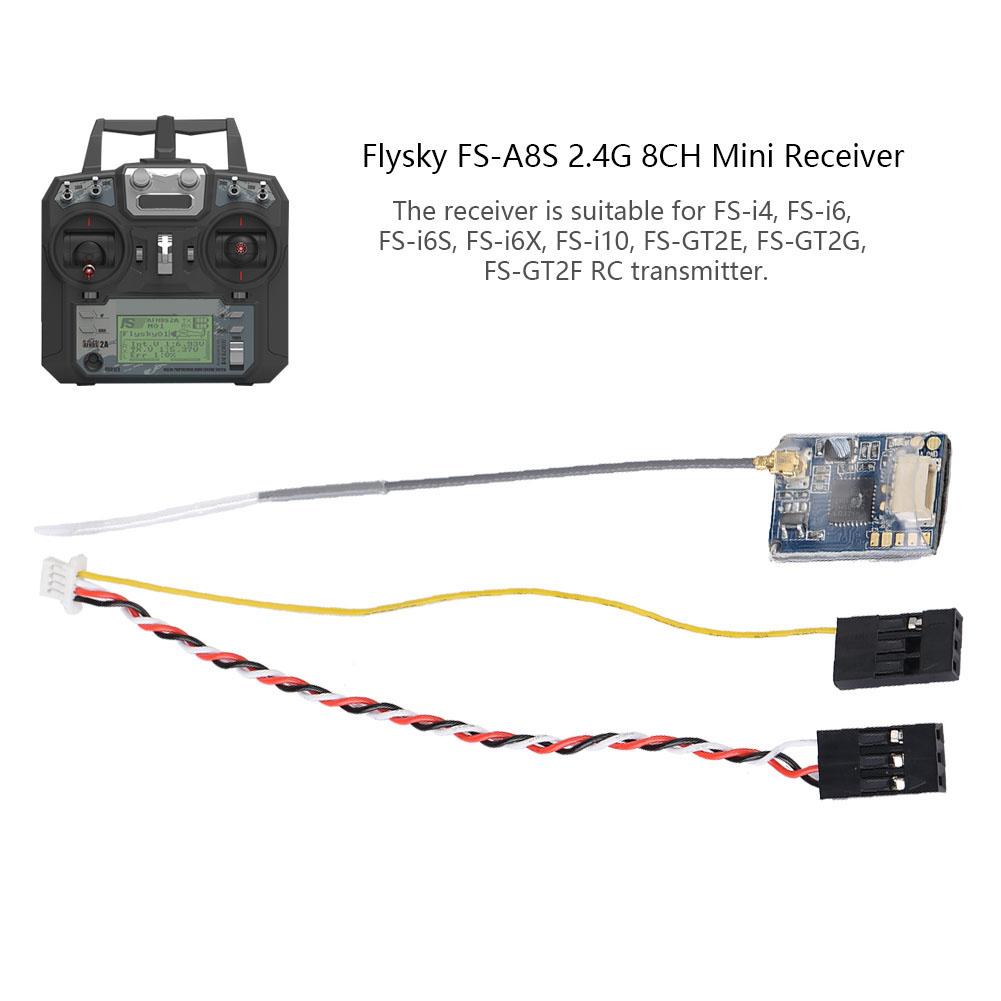

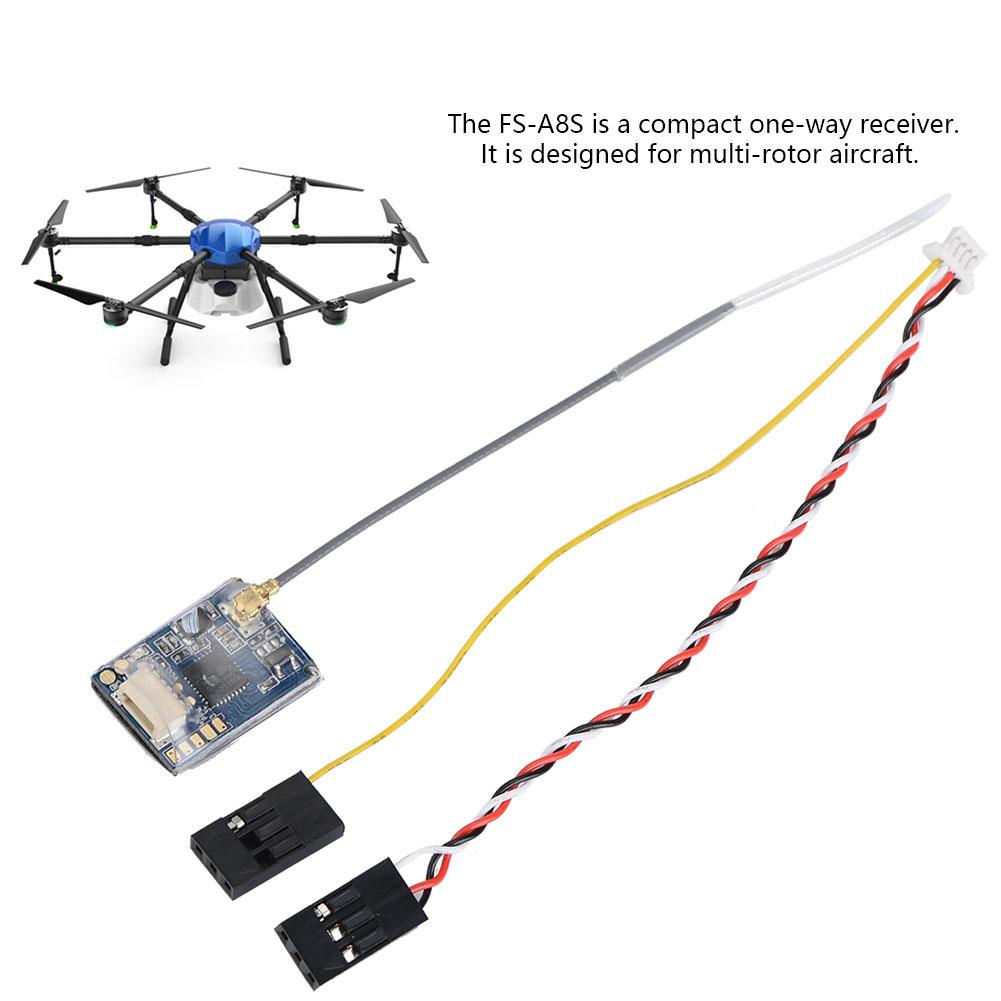

Features: The FS A8S is a compact one way receiver. It is designed for multi rotor aircraft. It uses the AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, and supports standard PPM output as well as has i BUS support for up to 18 channels. The receiver is suitable for FS i4, FS i6, FS i6S, FS i6X, FS i10, FS GT2E, FS GT2G, FS GT2F RC transmitter. Changing mode (i BUS S.BUS) is simplier and easier. Specification: Material: PCB + Rubber Color: Black Brand Name: Flysky Item Name: FS A8S Receiver Channels: PPM 8CH, i BUS 18CH Model Type: Multi rotor Frequency range: 2.408 2.475GHz Band width: 500KHz Band number: 135 RX Sensitivity: 92 dBm 2.4GHz System: AFHDS 2A Modulation Type: GFSK DSC Port: PPM i BUS S.BUS Transfer Method: FHSS Data Output: 1.5mm*3 Pin PPM i BUS S.BUS Antenna Length: 26mm (Not including brass contacts) Input Power Supply: 4.0 8.4V Display Method: LED No ground interference ( Transmitting and receiving 1 m from the ground): >300m Working current: 40mA Each Channel Data: Depend On The Transmitter Channel Delay: <15mS Certificate: CE0678, FCCID: N45ZA8S00 Compatible Transmitter: Compatible with FS i4, FS i6, FS i6S, FS i6X, FS i10, FS GT2E, FS GT2G, FS GT2F Size: Approx. 20 * 15 * 7mm 0.8 * 0.6 * 0.3inch Weight: 9g Type: RC Model Part & Acces Package List: 1 * Flysky FS A8S 2.4G 8CH Mini Receiver 1 * Cable 1 * Manual
