Feature:
1. Advanced MPPT Technology: The MPPT solar controller employs advanced maximum power point tracking technology with an impressive tracking efficiency of around 99percent . It also has a DC to DC conversion efficiency of about 93percent , maximizing the energy harvesting capability.
2. Bluetooth Connectivity: The controller features a built in Bluetooth capability, allowing real time monitoring and adjustment of controller parameters through a mobile app. It also offers adjustable output modes, including 24 hour output, light only output, light and timed output.
3. Aluminium Alloy Construction: The entire solar charge controller is made of an integrated aluminum alloy material, sealed with thermal conductive gel in multiple heat dissipation slots, making it completely water resistant and safe.
4. 12V to 24V Compatibility: The controller is universally compatible with 12V to 24V systems. By default, it auto adapts to 12V to 24V systems but can also be locked into a 12V or 24V system. This enhances system stability and reduces erroneous operations. It can be custom set for battery charging and discharging, with adjustable discharge voltage modes.
5. Smart 3 Stage PWM Fast Charging: The controller utilizes a smart three stage PWM fast charging technology that automatically identifies the battery, ensuring batteries are never overcharged. It reduces charging interference, making it more suited for small battery systems.
Specification:

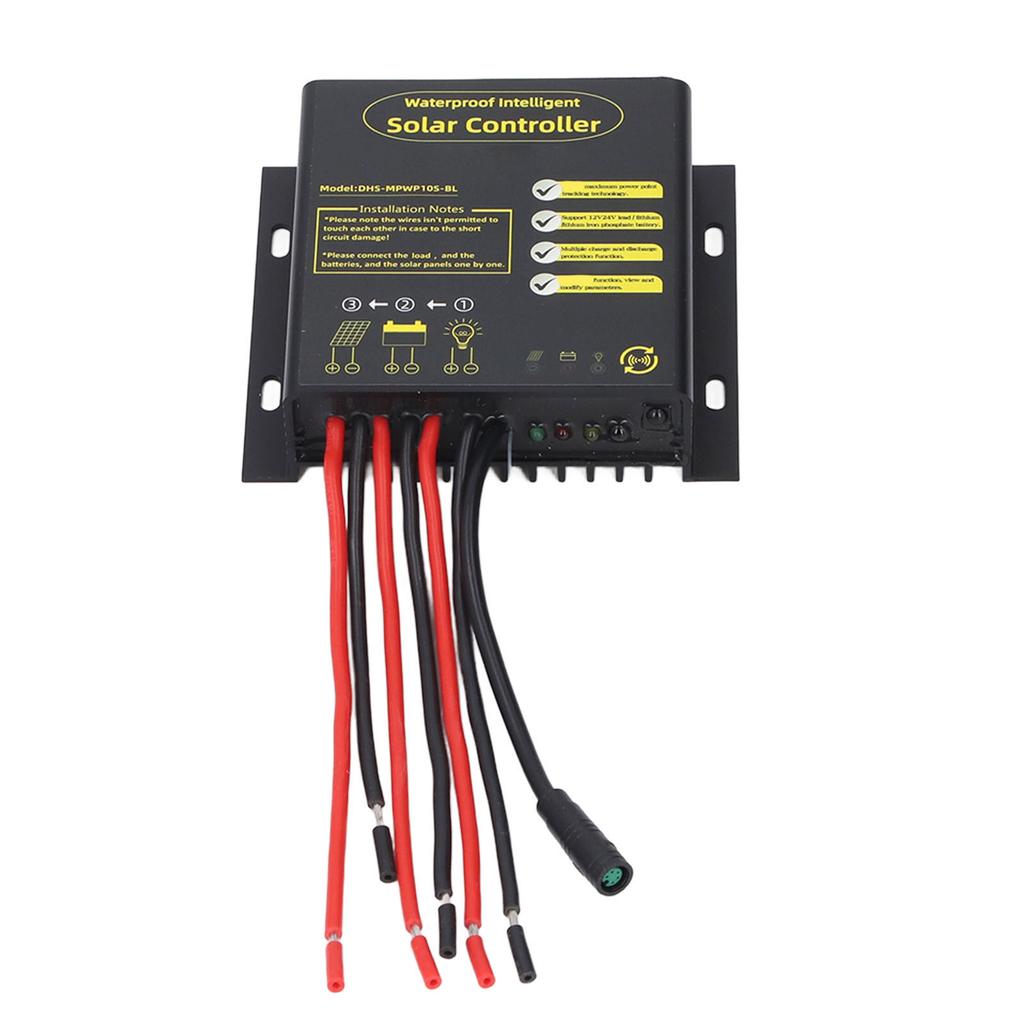

Item Type: MPPT Solar Charge Controller
Material: Integrated aluminum alloy shell
Battery Type: 12 to 24V Sealed Battery Universal
Battery Voltage: 12 to 24V
Battery Charging Current: less than 10A
Maximum Solar Input Power: 12V 150W; 24V 300W
Maximum DC Output Current: 10A
No Battery Mode: Support 12V
Battery Activation Function: Yes
Output Mode: Normally Open (24 hour Power Supply)
Connection Method: Infrared + Bluetooth
Size: Approx. 92x104x27.8mm 3.62x4.09x1.09in
Hole Distance: Approx. 94 45mm 3.7 1.8in; R4
Normally Open Output: Under normal battery voltage conditions, the mode discharges both day and night
Pure Light Control: When the controller detects that the solar panel is at the night turn on voltage point, the load is turned on until the solar panel voltage is higher than the light control turn off voltage again, and the load is turned off (automatically turned off during the day, automatically turned on at night, automatically adjusted in winter and summer, the sooner it gets dark, the sooner it closes, and it gets dark late and it opens late)
Light Control+Timing: When the controller detects that the solar panel is at the night voltage point, it directly turns on the load and works continuously for a fixed number of hours before turning off.
Weight: Approx. 465.00g 16.4oz
.
Package List:
1 x Controller
1 x User Manual
Note:
This series of products are default factory mode: 12V 24V automatic recognition, for sealed batteries, 24 hour output mode, Bluetooth version, for Android phone APP for self installation and download (no for IOS version). Detailed instructions will be included with the product shipment or sent electronic instruction. Output voltage equals battery voltage (non boost type). Can be used for street lights and monitoring systems, or solely for charging 12V batteries it is recommended to use solar panels within 30V, for charging 24V batteries it is recommended to use solar panels within 55V, high efficiency without damaging the controller.
