Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.
1. KEY FEATURES:
- Model number: AP202B
- A special tool used to remove and install lock pin pull-out type resin clips used on automobile fender liners, bumpers, etc.
- Applicable clips are lock pin pull-out type resin clips with two grooves, four grooves, and all-around grooves.
- For clip attachment: Shaft diameter φ5~φ10
- This product is suitable for deep places, and the 35 degree tip angle type (AP202A) is suitable for use on flat surfaces, making it suitable for a variety of situations.
2. PRODUCT DESCRIPTION:

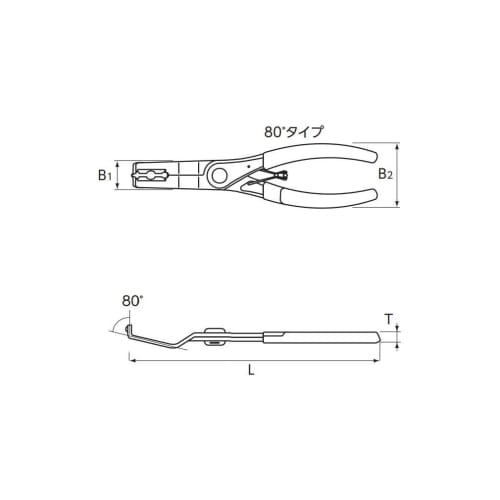

Product introduction Features - Easily removes resin clips used on automobile front/rear bumpers, front fender liners, etc., and retracts/inserts the shaft when installing. Applications - Removal of interior and exterior parts Specifications - Total length (mm): 196 - Thickness (mm): 9 - Height (mm): 9 - Width (mm): 53 - Tip angle: 80° From Amazon - For removing clips from bumpers, etc.
3. PRODUCT DIMENSIONS & WEIGHT:
- Weight: 0.17 kg
- Dimensions: 26.0 x 7.7 x 4.3 cm
4. SPECIFICATIONS:

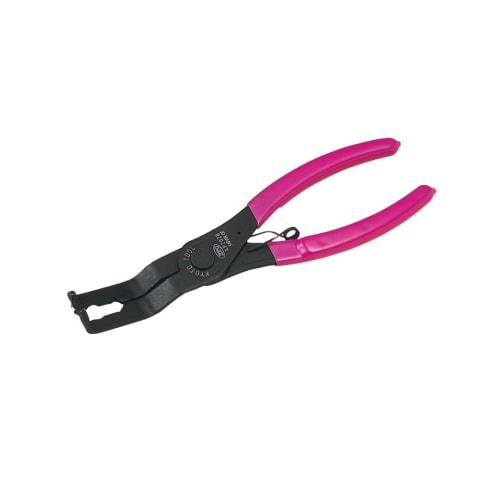

- Brand: Kyoto Machinery Tools (KTC)
- Model Number: AP202B
- Manufacturer: Kyoto Machinery Tools (KTC)
