Shinwa Auto Level SA-32A, 32x Magnification, Order Item 77056

Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.

1. KEY FEATURES: - •Standard deviation (km): ±1.0mm - •Telescope (image): Normal image - •Magnification: 32X - •Objective lens effective diameter: 40mm - •Visibility: 1°30'

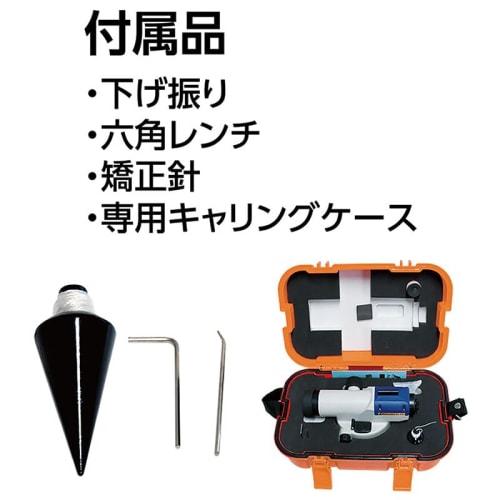

2. PRODUCT DESCRIPTION: [Features] Available without a tripod.Equipped with a collimator that makes it easy to see the target, and a horizontal scale plate that allows you to read the level in 1° increments.The minimum focusing distance is 0.5m and the magnification is 32x.[Applications] Can be used for surveying work (horizontal and height confirmation) at civil engineering and construction sites.It can be used to check the level and height of buildings, measure the depth of root moats, and align the height of foundation piles.Also effective for installing slopes on roads and gutters.[Specifications] - Standard deviation (km): ±1.0mm - Telescope (image): Normal image - Magnification: 32X - Objective lens effective diameter: 40mm - Field of view: 1°30' - Minimum focusing distance: 0.5m - Stadia: [Multiplier] 100 [Addend] 0 - Circular bubble sensitivity: 8'/2mm - Minimum horizontal scale: 1° - Automatic correction: [mechanism]Magnetic damper [Range] ±15´ •Repeatability: 0.3゛ •Tripod mounting screw: 5/8 inch •Bottom plate type: flat/spherical •Waterproof performance: IPX4 (will not be adversely affected by water splashes from any direction) •Package size: 230 x 1070 x 410 mm •Accessories: plumb bob, hex wrench, straightening needle, special carrying case

3. PRODUCT DIMENSIONS & WEIGHT: - Weight: 1.308 kg - Dimensions: 107.0 x 41.0 x 23.0 cm
