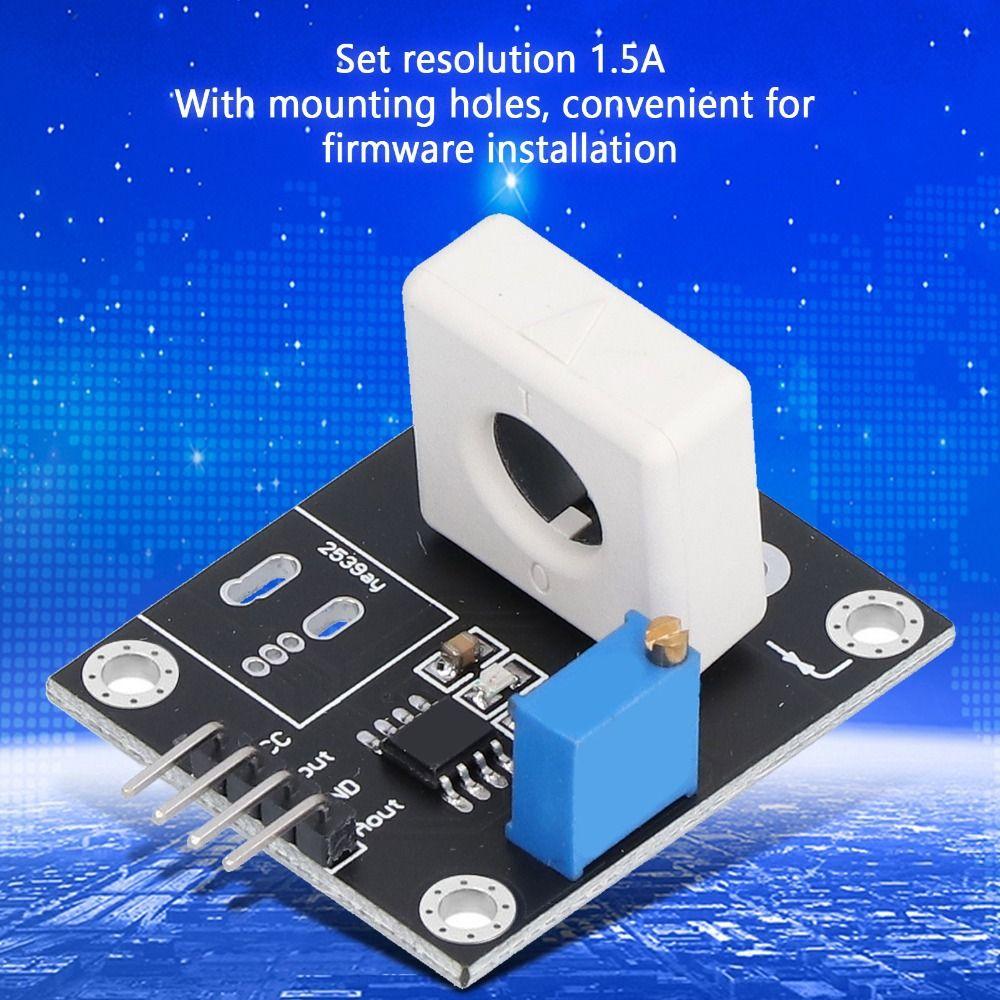

1.The over-current protection threshold is user-adjustable with a setting resolution of 1.5A, allowing for customized current monitoring.

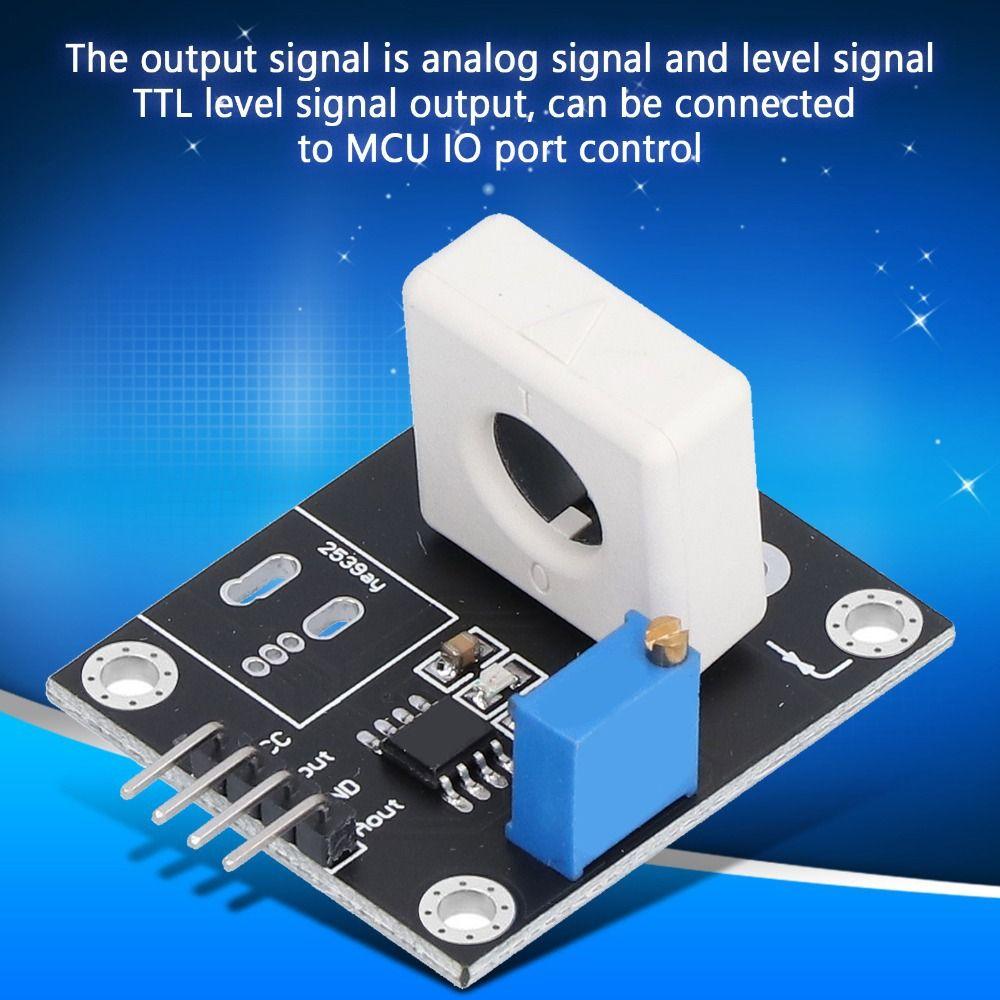

4.The output signals of the hall current sensor module are analog signals and level signals respectively. compatibility with microcontrollers for projects, demonstrations, and teaching experiments.
2.This Hall current sensor detects up to 35A for short-circuit and over-current protection. Includes mounting holes for secure installation.

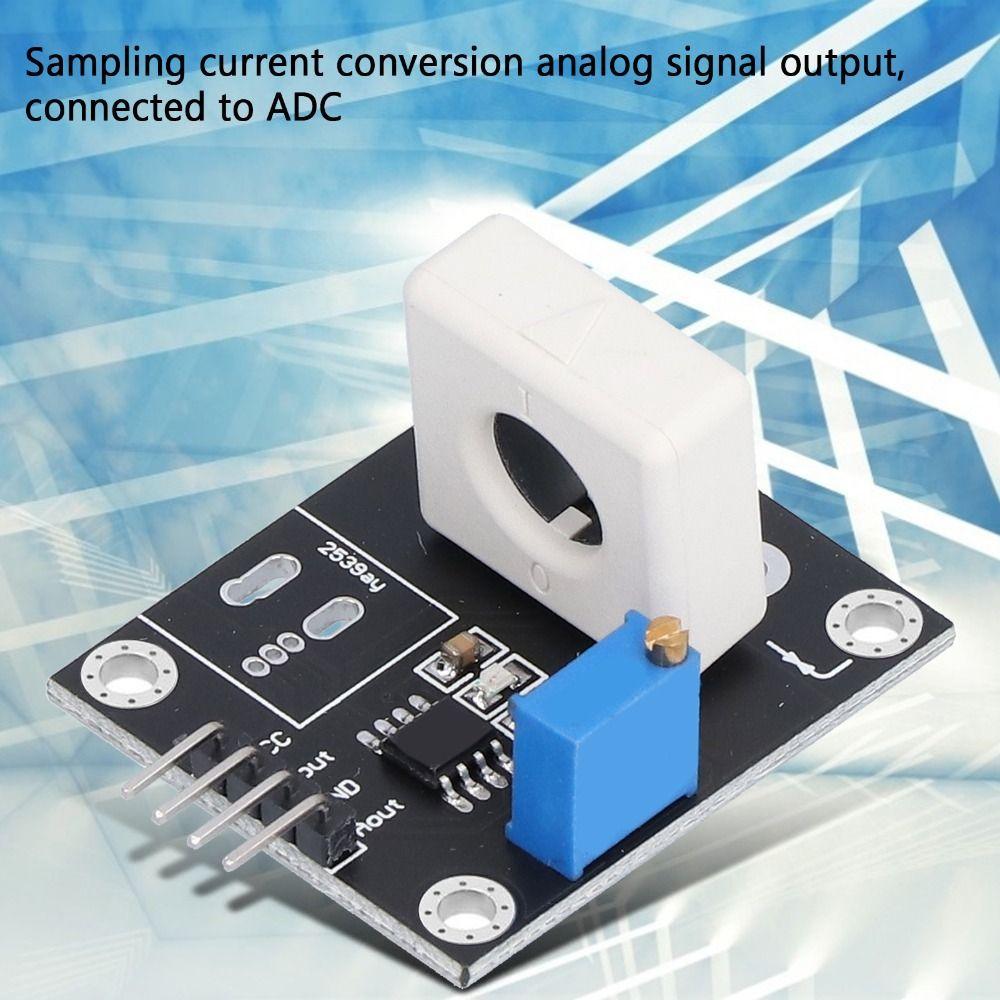

3.Sampling current conversion analog signal output, can be connected to analog-to-digital converter, TTL level signal output, can be connected to MCU IO port control
5.Suitable for over-current detection in smart car motors, stall protection monitoring, and short-circuit protection scenarios. Supports secondary development and system integration.
Specifications:

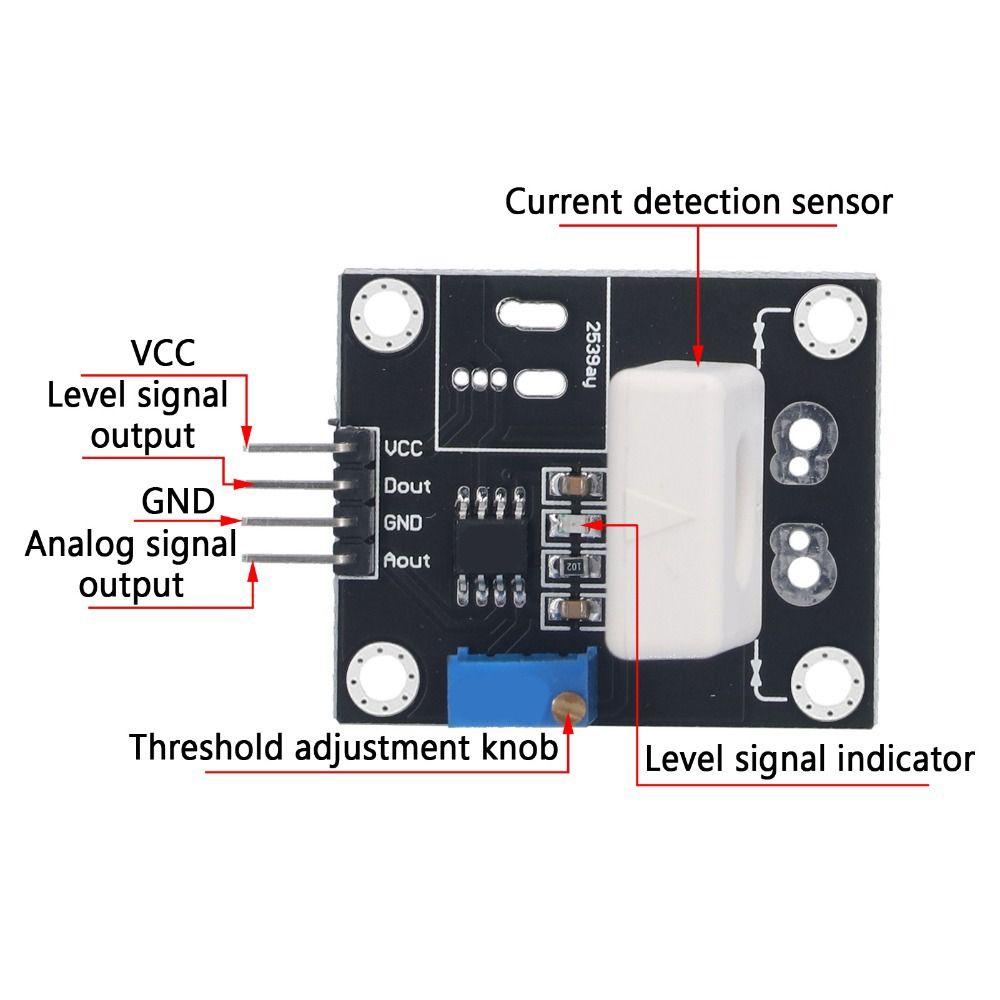

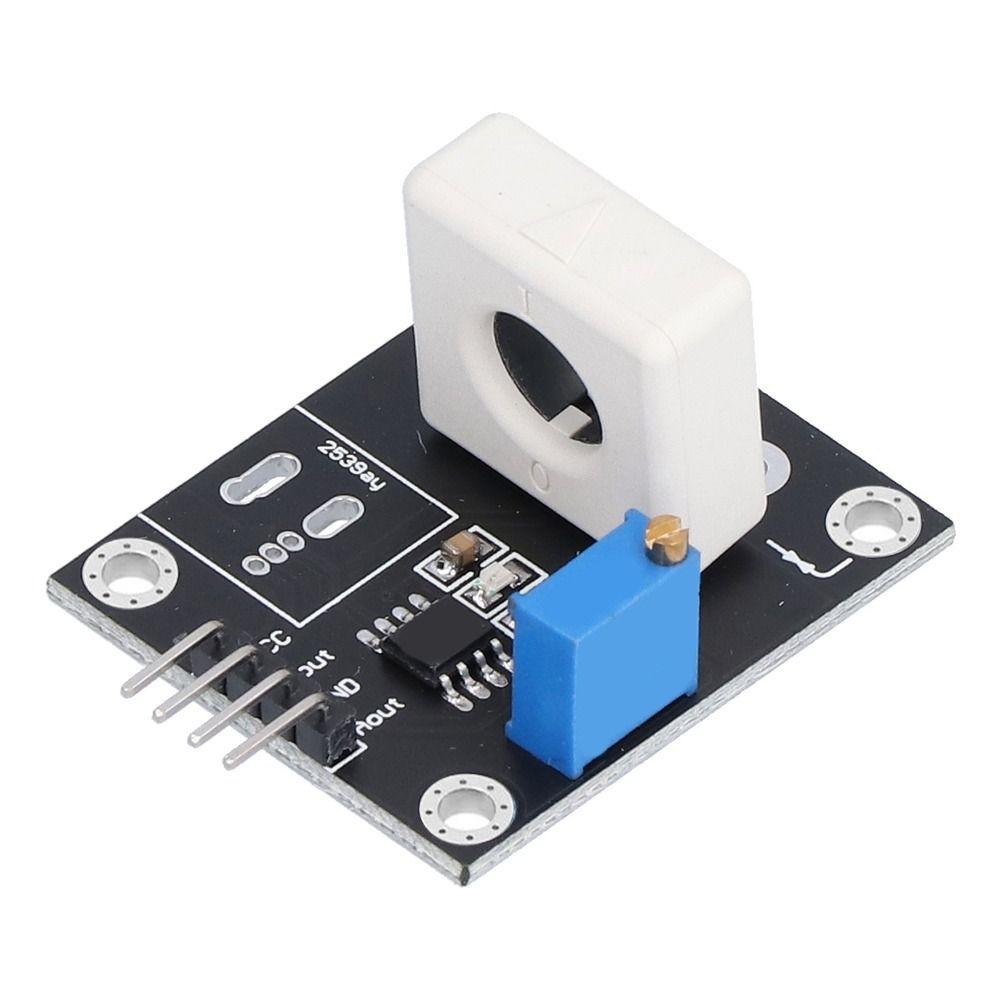

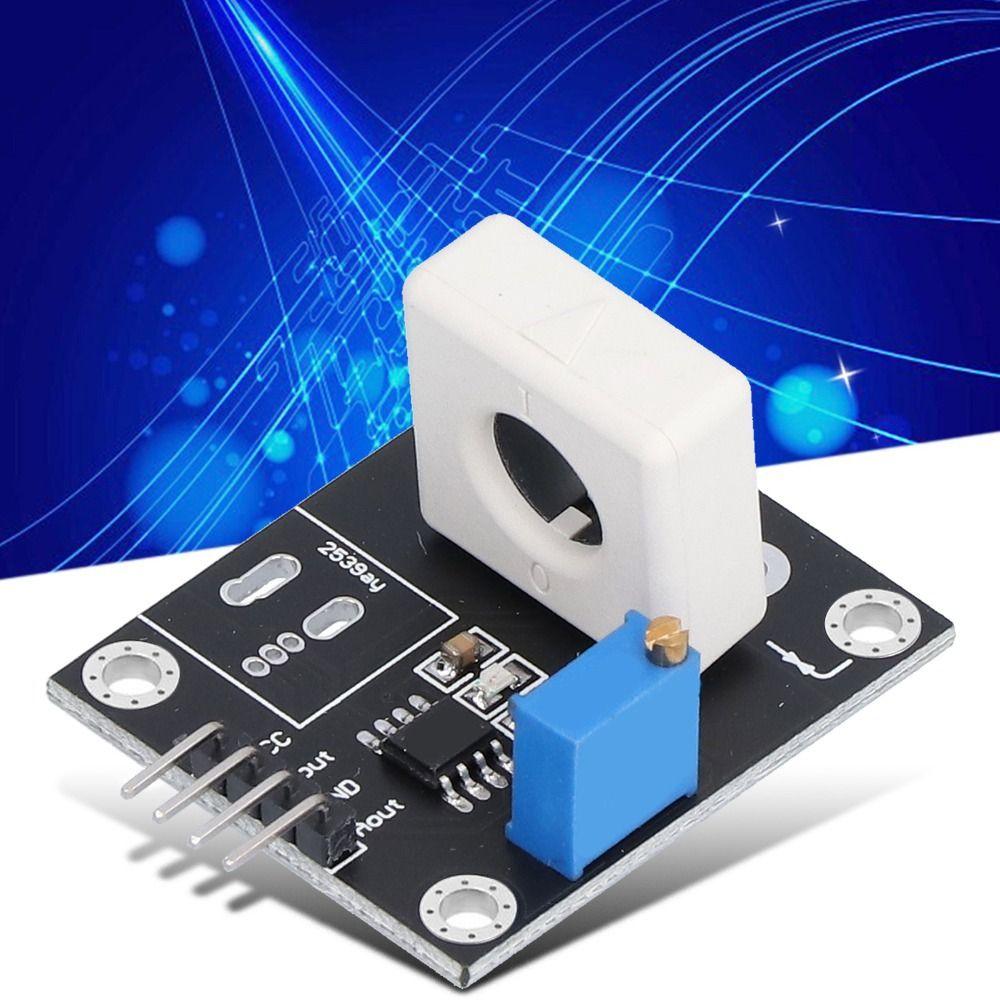

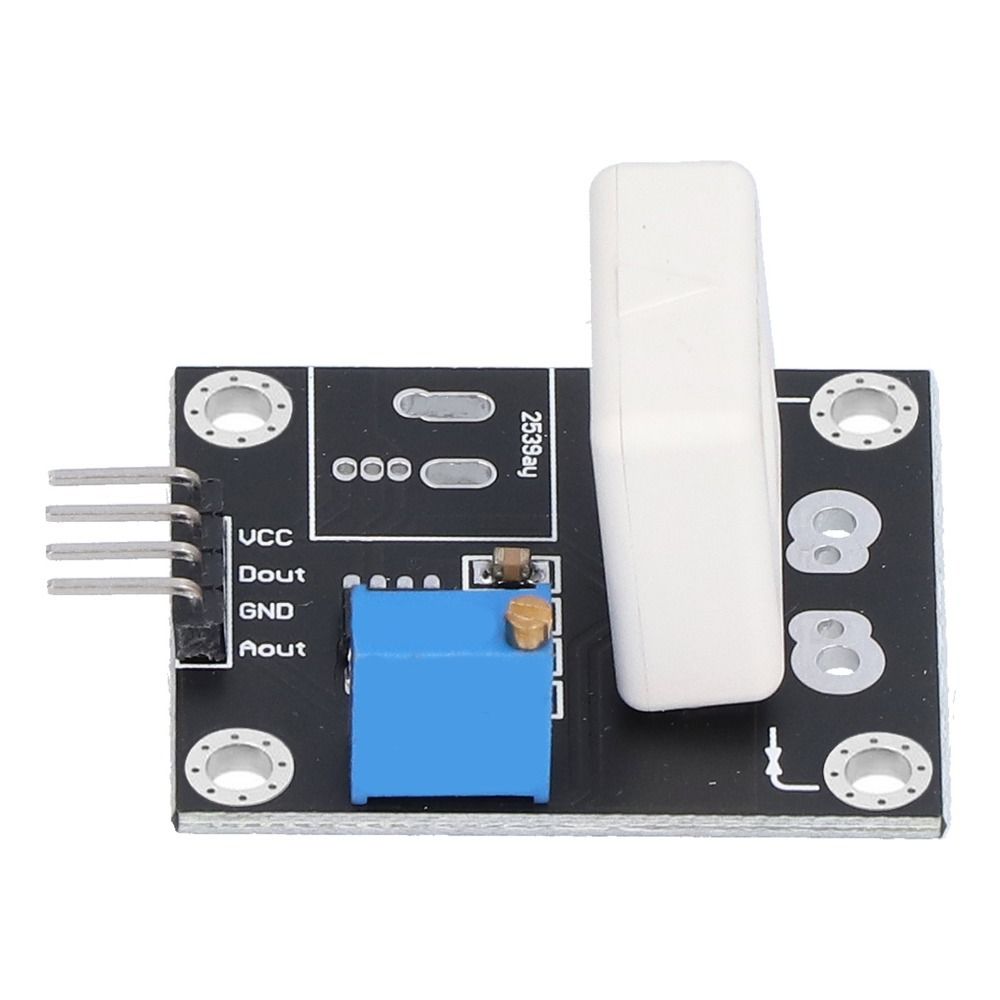

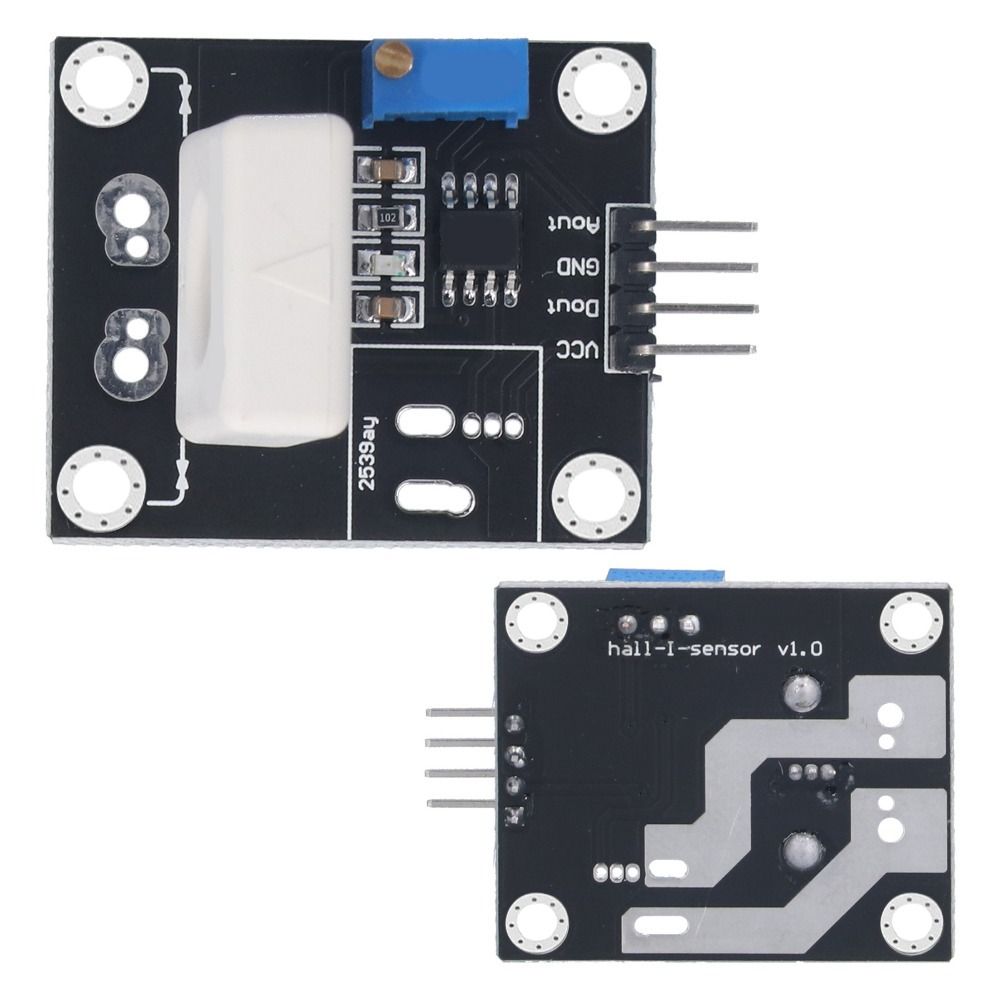

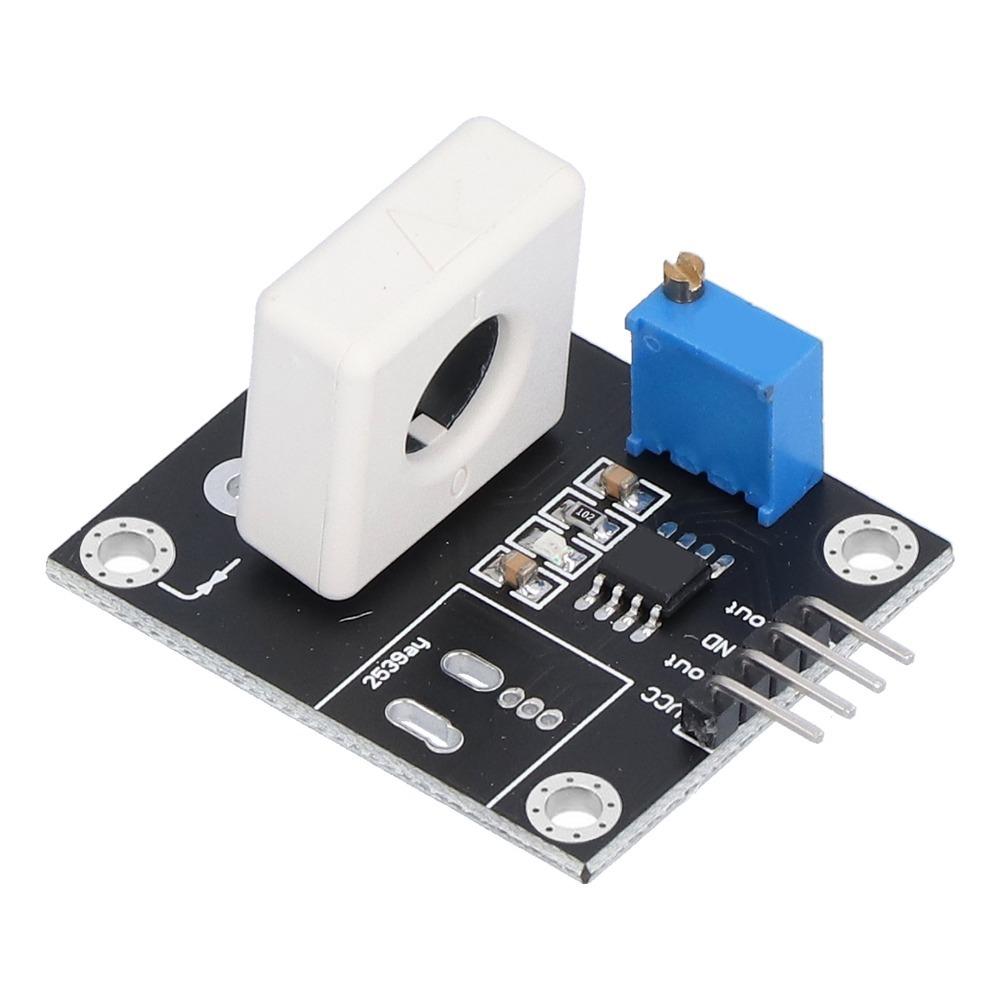

Item Type: Hall Current Sensor Module
Size: 37 * 31 * 16.5mm
Main chip: LM393 operational amplifier, WCS1800
Working voltage: DC5V
Features:
1. With signal output indication;
2. Wide current detection range: DC±35A AC: 25A
3. The current detection resolution is 66mV/A
4. Output overcurrent signal indication;
5. The overcurrent signal setting threshold point is adjustable, with a setting resolution of 1.5A;
6. With mounting holes for convenient hardware installation;
7. Sampling current converts to analog signal output, can be connected to analog-to-digital converter, TTL level signal output, and can be controlled by single-chip microcomputer IO port.
8. Output signals: analog signals and level signals.
Applications: Overcurrent detection of smart car motors, current detection for locked-rotor protection, short-circuit protection detection, demonstration teaching experiments and other occasions, facilitating secondary development;
Package List:
1 x Protection Module
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
