【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
------------------------------------------------------------------------------------------------------------------
■Panel size: 23.8 inch wide ■LCD panel method: Equipped with an IPS panel, non-glossy ■Display area: 527x296mm ■Maximum resolution: Full HD (1920x1080), 16:9 ■Pixel pitch: 0.274mm ■Display colors: Approximately 16.7 million colors ■Color reproducibility: sRGB 99% ■High Dynamic Range: HDR10 compatible ■Visibility angle: Horizontal 178° / Vertical 178° ■Brightness: 250cd/㎡ (White LED) ■Contrast ratio: Max: 100,000,000:1 (ACM), Normal: 1,000:1 ■Response speed: 2ms (GTG) / 0.5ms (GTG, Min.) ■G -Sync, FreeSync: Compatible with AMD FreeSync ■Input frequency ・Horizontal: 30-185kHz (HDMI), 185kHz (DisplayPort) ・Vertical: 48-165Hz (HDMI/DisplayPort) ■Input signal: Digital ■Input terminal: HDMI 2.0 x2, DisplayPort v1.2 x1 ・Audio input terminal: Not installed ・Headphone terminal: Installed ・Other connection terminals: Not included ■Speaker: 2W+2W stereo speaker

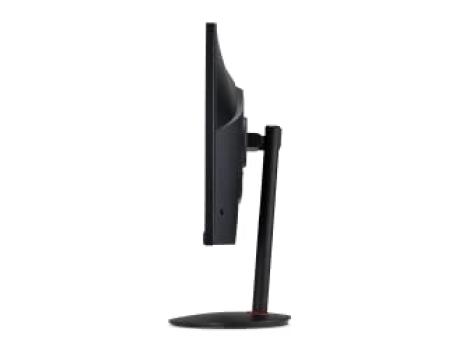

- ■Display aspect: Full mode: Yes, Fixed magnification mode: Yes, 1:1 mode: Yes ■Blue light reduction: BluelightShield ■Other functions: Flickerless ■Plug and play: VESA DDC2B (DDC/CI compatible) ■Power input : Built-in (100-240V, 50/60Hz) ■Power consumption: Normal (*our actual measured value): 25W, Maximum: 50W, Standby/Off mode: 0.50W / 0.40W ■Environmental conditions: Temperature: 0 to 40℃, Humidity: 20 to 80% (no condensation) ■Various standards: RoHS Directive, J-Moss Green Mark, PC recycling, PSE (Electrical Appliance and Material Safety Law) , MPRⅡ, VCCI-B, FCC, CE, CCC, ISO 9241-307 ■Body color: Black ■Angle/height adjustment ・Tilt angle: Up 20°/Down 5°・Swivel function: 360° ・Height adjustment function: Max. 120mm ・Pivot function: 90° clockwise / 90° counterclockwise ■VESA mount: 100x100mm compatible ■Kensington lock: Equipped ■Dimensions (WxHxD): Approx. 540 x 379- 499 x 234 mm ■Weight: With stand: Approx. 4.93
kg, without stand: approx. 3.4kg ■Main accessories: HDMI cable (1.5m), DisplayPort cable (1.5m), power cable (1.8m), user guide, pedestal, support, warranty, repair request form
