This series of products is a single-channel DC regulated power supply with 4-bit LED digital display; Automatic switching between constant voltage (CV) and constant current (CC) modes; The output voltage and current limiting current are continuously adjustable; Advanced switching power supply control technology and components are adopted, which has high efficiency, light weight, energy saving and environmental protection, and can provide 5V2A USB fast charging function (optional).
Features:

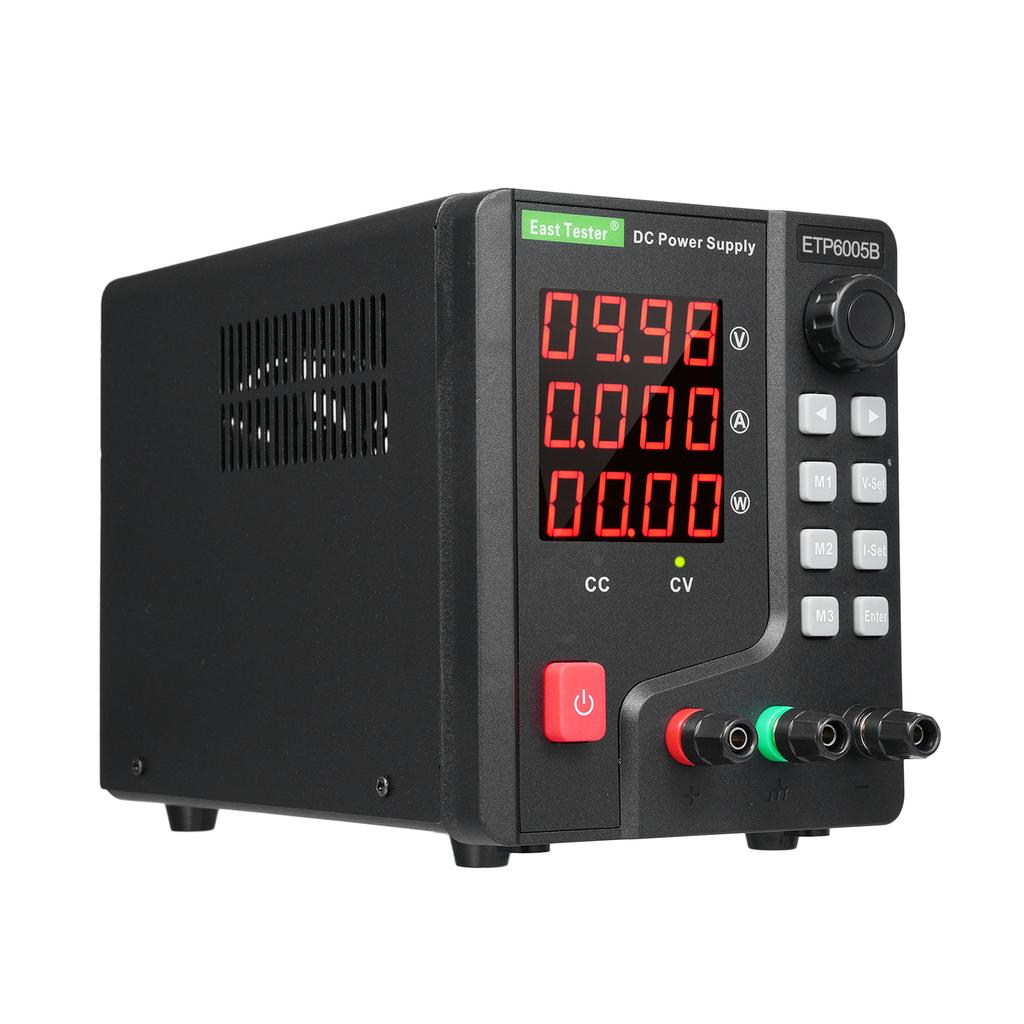

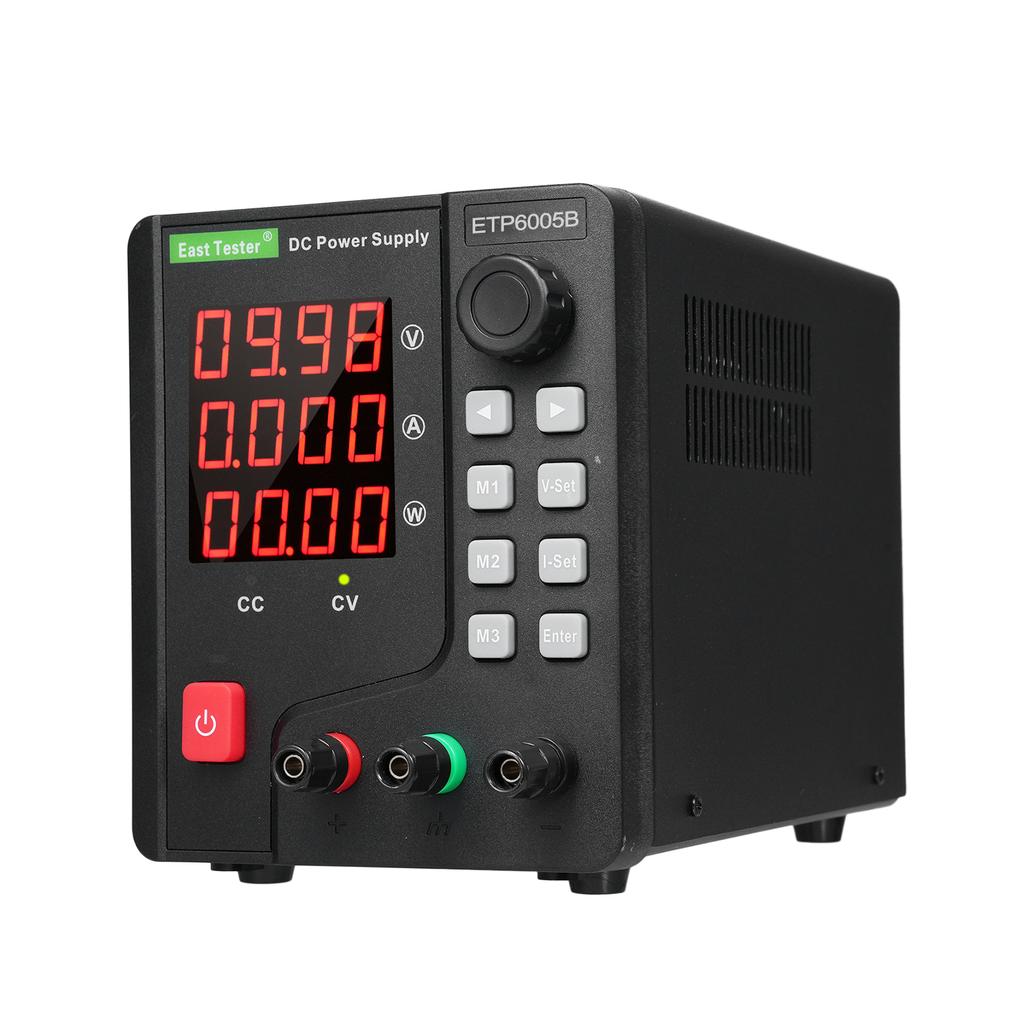

Display Mode: LED digital display, 4-digit digital voltage, current and power display.
Multiple Protection: over-voltage, over-current, over-power and over-temperature protection

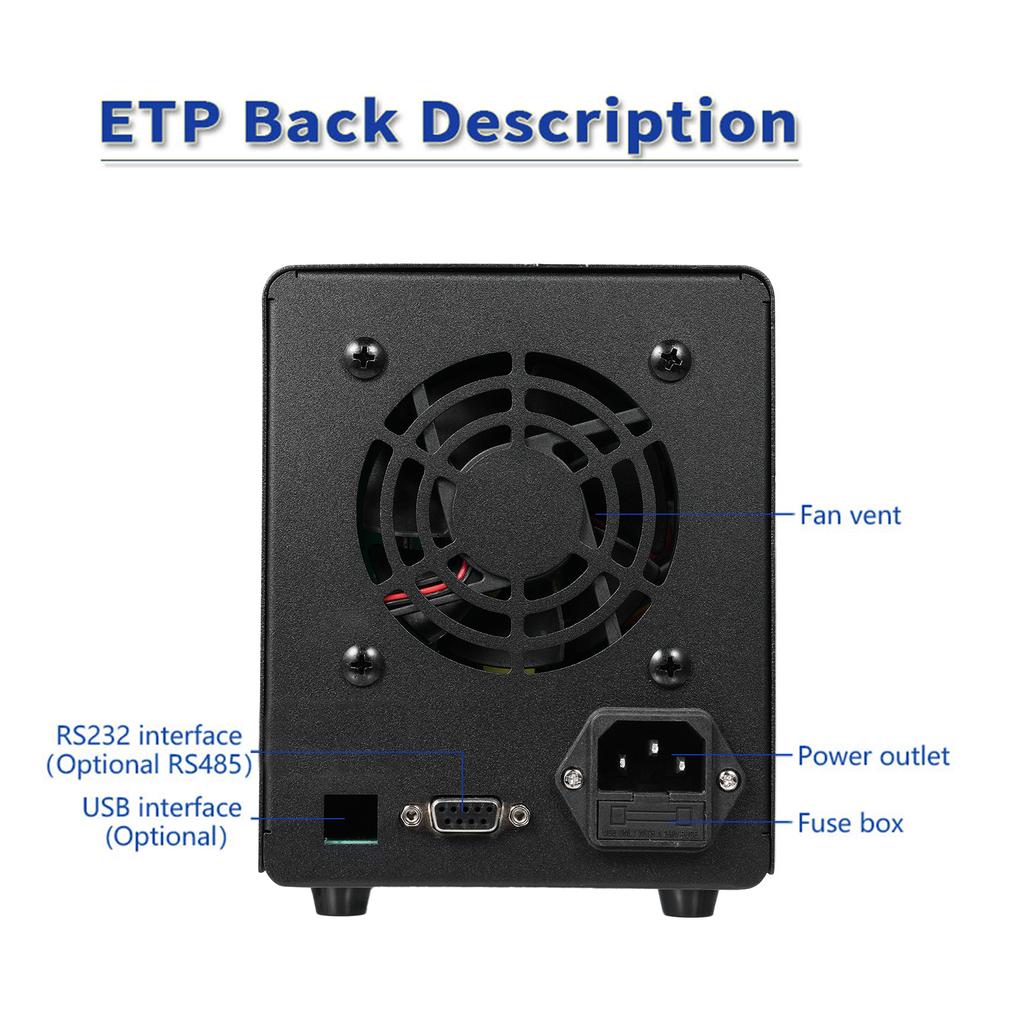

Efficient Heat Dissipation: With fan vent and intelligent temperature control fan, used for internal heat dissipation of power supply, intelligent temperature control adjustment, energy saving and electricity saving.
Data Storage and Recall: 3 sets of shortcut parameter storagerecall functions, which are convenient and effective.
Easy to Use: Constant voltage (CV) and constant current (CC) modes can be automatically switched, with status indicator. Encoder adjustment, the specified number of digits can be adjusted accurately.
Support a Variety of Communication Modes: The product provides users with up to three communication modes, namely USB(optional), RS232(optional) and RS485(optional), to realize remote control.
Caution:
US Plug Input Voltage: 100-120V
EUUK Plug Input Voltage: 200-240V
Specifications:
Plug: US EU UK (Optional)
Model: ETP6005B
Output Voltage: 0~60V
Output Current: 0~5A
Output Power: 300W
Voltage Stabilizing State: voltage stability: less than 0.1percent +-3mV; load stability: less than 0.1percent +-3mA.
Current Stabilizing State: current stability: less than 0.1percent +-3mV; load stability: less than 0.1percent +-3mA.
Display Accuracy: voltage: 0.5percent +-3 words; current: 0.5percent +-3 words.
Ripple and Noise: VPP less than 1percent
Display Resolution: voltage: up to 10mV; current: up to 1mA; power: up to 10mW
Display Mode: 4-digit red LED digital tube, 0.56 inch.
Power Input: AC 220V+-10percent 50Hz or AC 110V+-10percent 60Hz (please specify when purchasing).
Operating Environment: indoor use, altitude: less than =2000m, temperature: 5~40 celsius , humidity: 10~85percent RH.
Storage Environment: temperature: -20~80 celsius , humidity: less than =80percent RH.
Fuse Specification: 3A
Material: Plastic+galvanized sheet
Item Size: 20.6 * 14.5 * 12 cm 8.11 * 5.71 * 4.72 inch
Item Weight: 1537g 54.22oz
Package Size: 29.2 * 20.2 * 18.7 cm 11.5 * 7.95 * 7.36 inch
Package Weight: 1935g 68.25oz

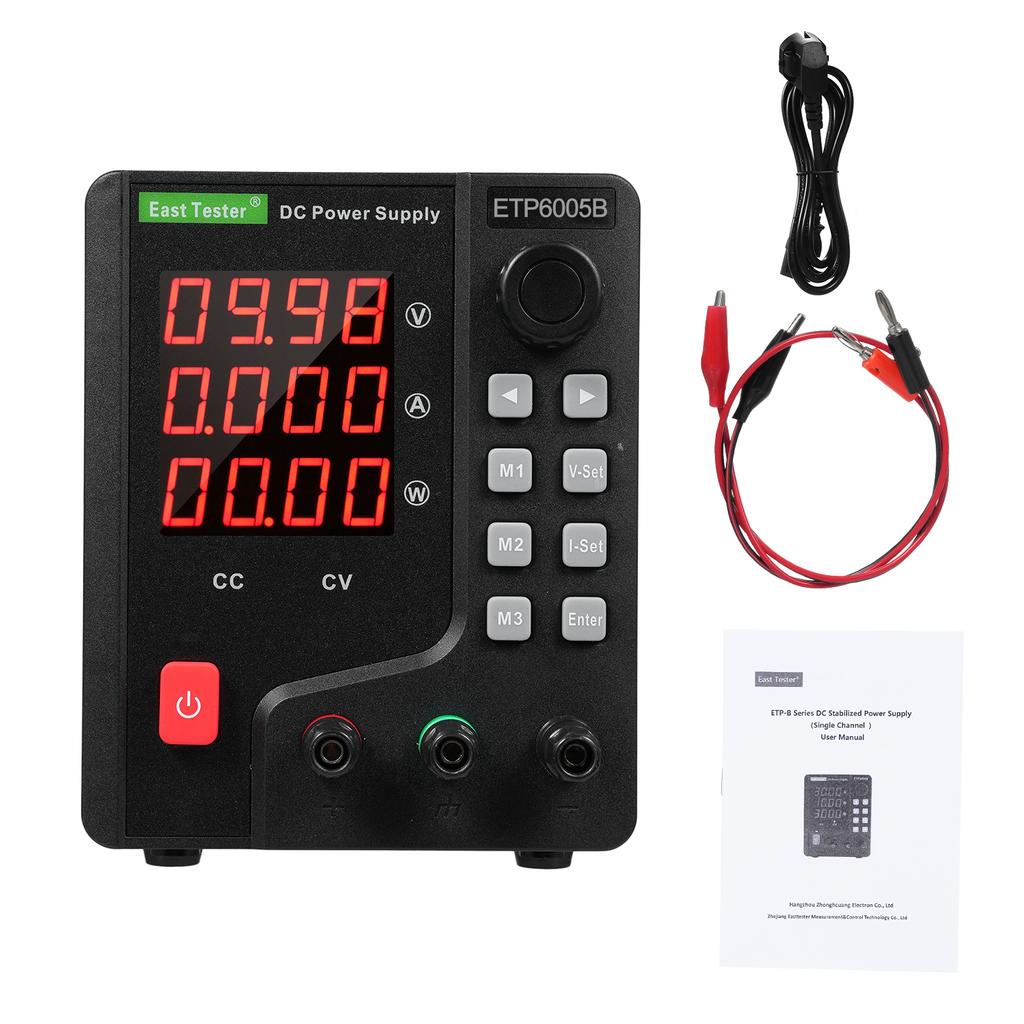

Package List:
1 * DC Regulated Power Supply
1 * Power Cable
1 Pair * Test Cable
1 * User Manual (English)
