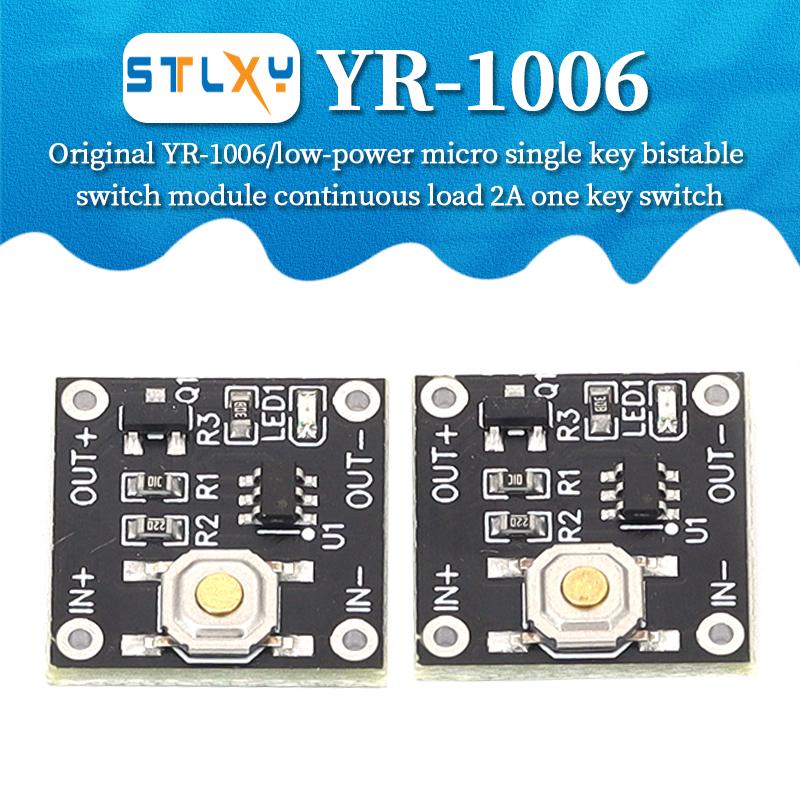

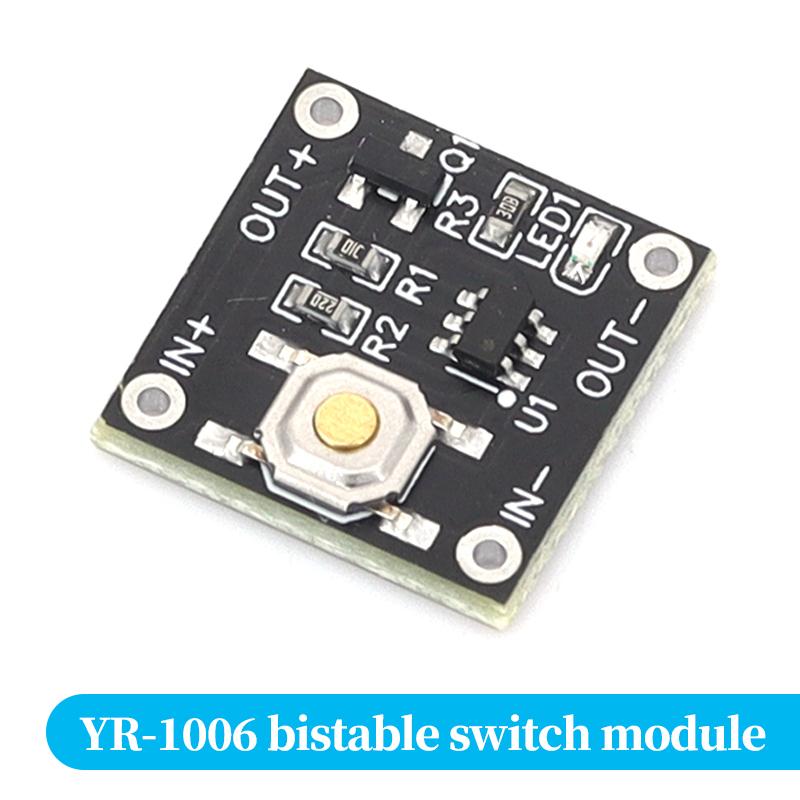

Micro YR1006 One Button Bistable Trigger Module DC 2.2-5V Low Static Current 0.5uA Max 2A Load Latching Switch Board

Semi-finishedproduct : No High-concerned chemical : none Electronic : No Model Number : YR-1006 DIY Supplies : Electrical Brand Name : Stlxy Origin : Mainland China

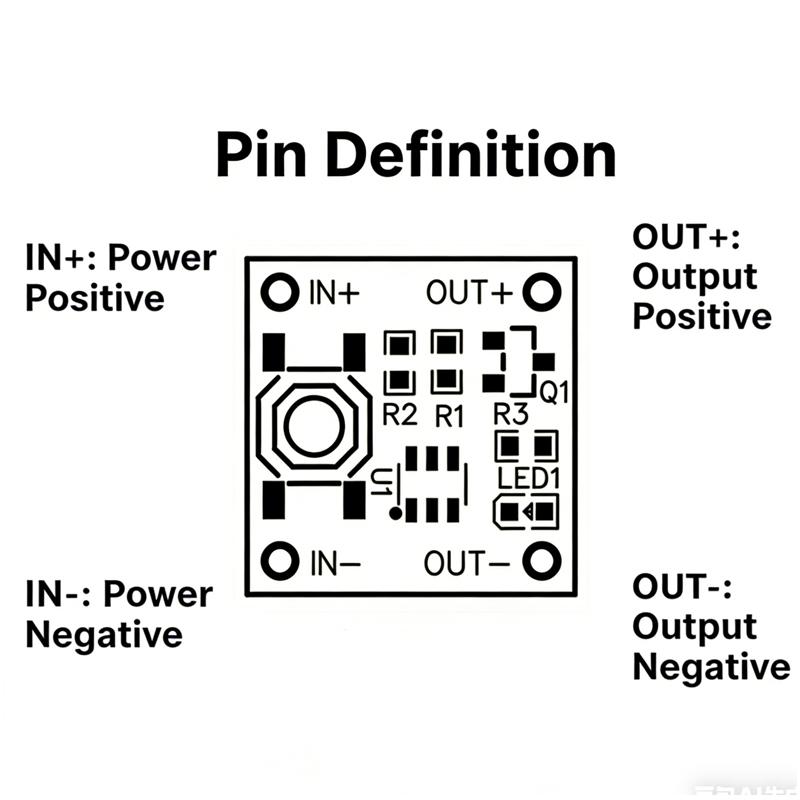

Driver chip: YR1006 dedicated bistable key control chip Working voltage: DC 2.2V~5V, suitable for single lithium battery and 3.3V/5V battery power supply system Static power consumption: The standby static current is as low as 0.5 μ A, greatly extending the standby time of lithium batteries Output switch: Built in N-channel MOS transistor, maximum continuous load current 2A Work logic: Single button cyclic switching, press once to conduct, press again to disconnect (bistable self-locking mode) Operating characteristics: No need for a microcontroller, independent operation; Default power-off state when powered on Hardware structure: Onboard touch buttons, also expandable with external independent buttons; Standard solder pads facilitate wiring Load adaptation: LED light strips, small recorders, portable lighting fixtures, fans, various 3-5V small DC loads Main controller: YR1006 dedicated bistable key management IC. Operating voltage DC 2.2V~5V, suitable for single lithium cell, 3.3V/5V battery equipment. Ultra-low standby quiescent current: only 0.5μA to maximize battery standby duration. Built-in N-channel MOSFET, maximum continuous load up to 2A. Bistable toggle logic: press once to turn ON, press again to turn OFF. Standalone operation, no microcontroller required; default OFF after power-up. Equipped with onboard tact switch, also support external remote key extension. Ideal power switch for portable lights, camera recorder, LED strips and battery-powered IoT gadgets. label:yes
