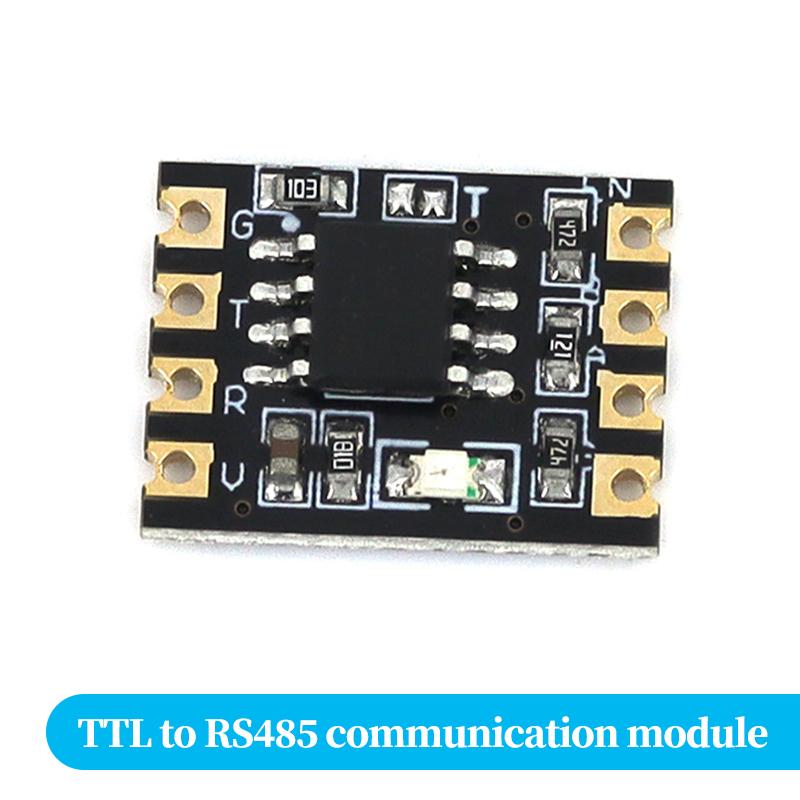

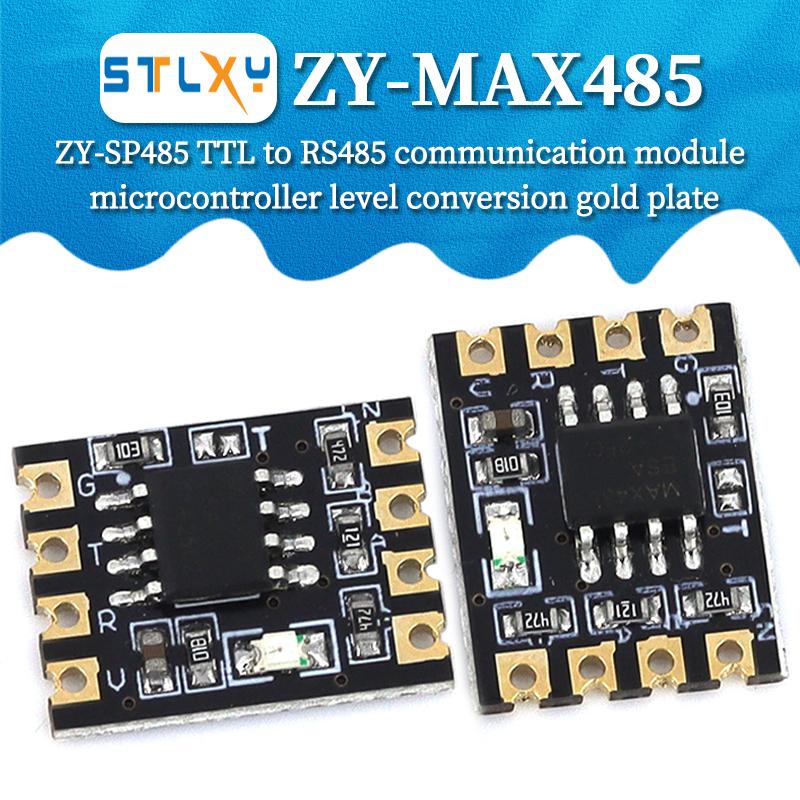

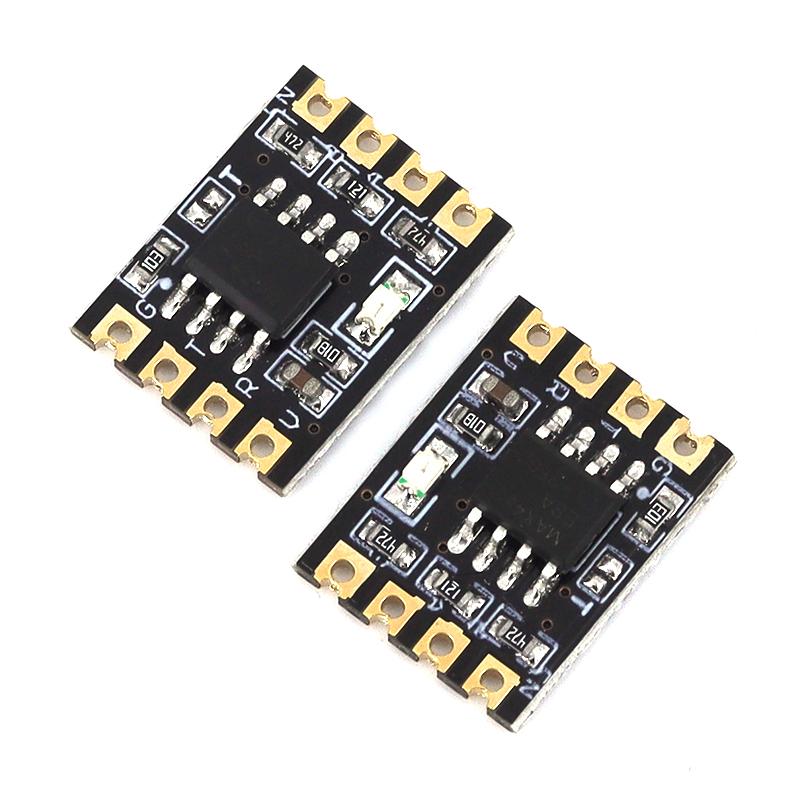

ZY-MAX485 TTL To RS485 Communication Module Microcontroller Level Converter Gold Plated ZY-SP485

Semi-finishedproduct : No High-concerned chemical : none Electronic : No Model Number : ZY-MAX485 ZY-SP485 DIY Supplies : Electrical Brand Name : Stlxy Origin : Mainland China Output Voltage : DC 3V-5.5V

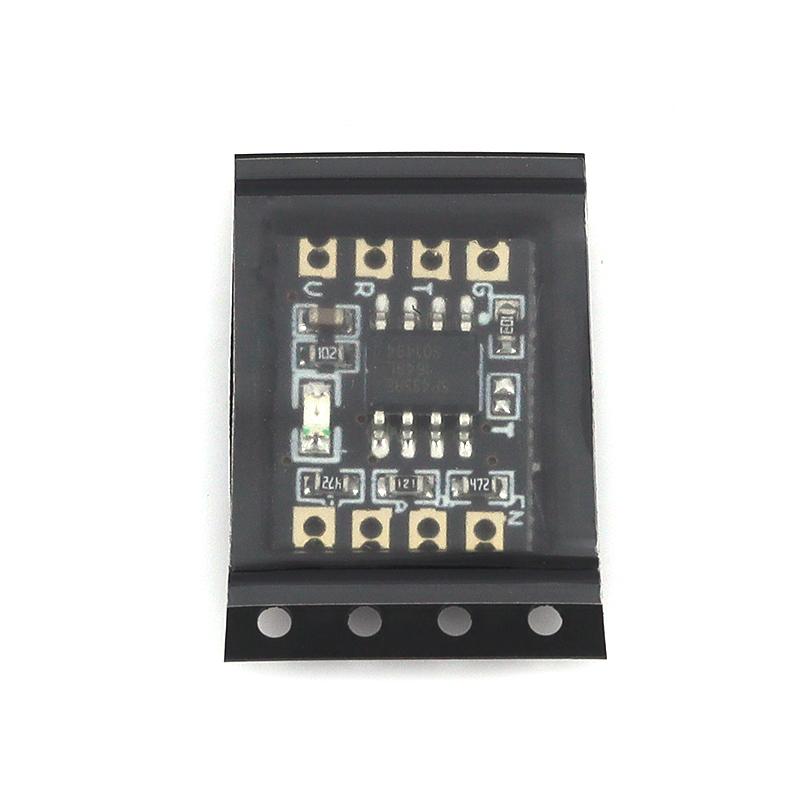

TTL to RS485 module, using original MAX485/SP485 chip, half-hole gold sinking process, SMT patch package, can also be used for welding pins, braided and packaged for shipment, which is convenient for customers to store and use. Main purpose: 1: MCU, ARM and other MCU through the computer's serial port to RS485 communication 2. Radio modification, mobile phone brushing, XBOX360 brushing, GPS, car inspection, DVD brushing, hard disk maintenance, set-top box upgrade 3: Serial port expansion of the device

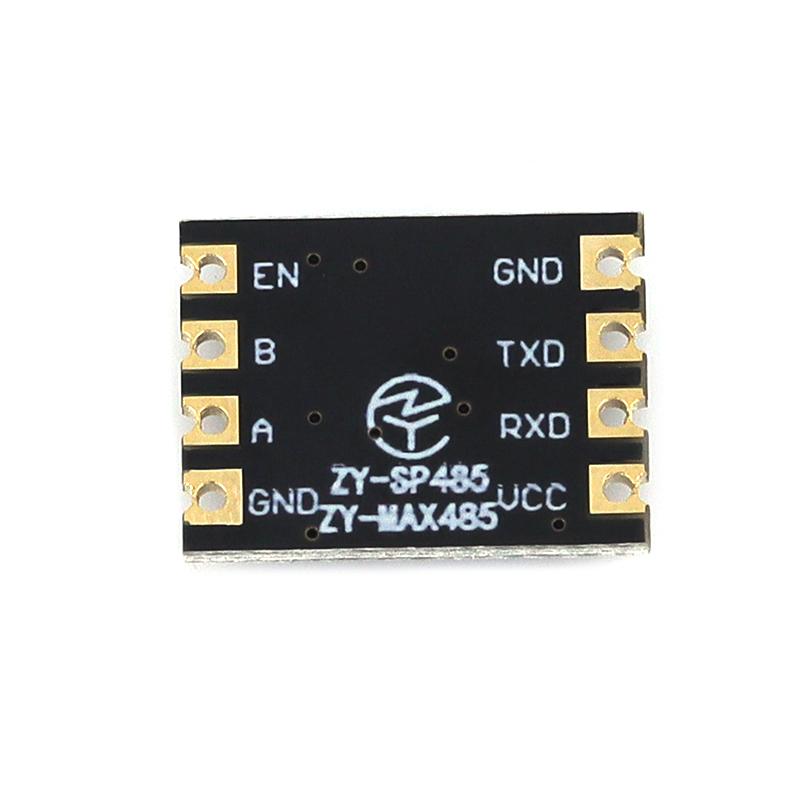

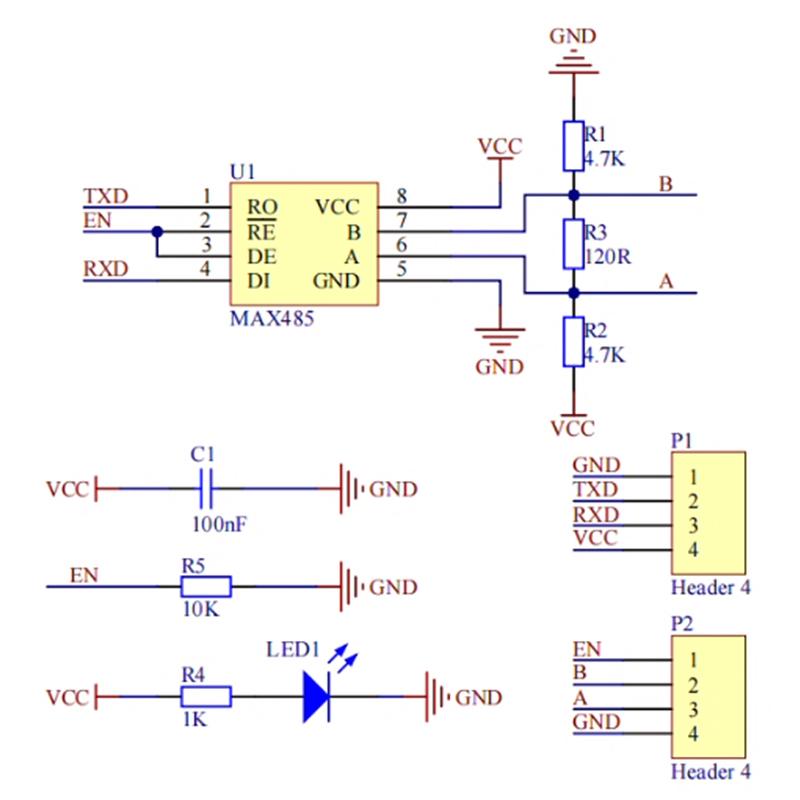

Instructions for use: (Take access to MCU as an example to explain how to connect each pin) VCC: DC 3V-5.5V GND: Connected to GND TXD: connected to TTL end TX RXD: connected to TTL terminal RX A: connected to RS485 terminal A B: connected to RS485 terminal B label:yes
