Model Number : 12V Lithium Battery Spot Welders Control Board
Origin : Mainland China

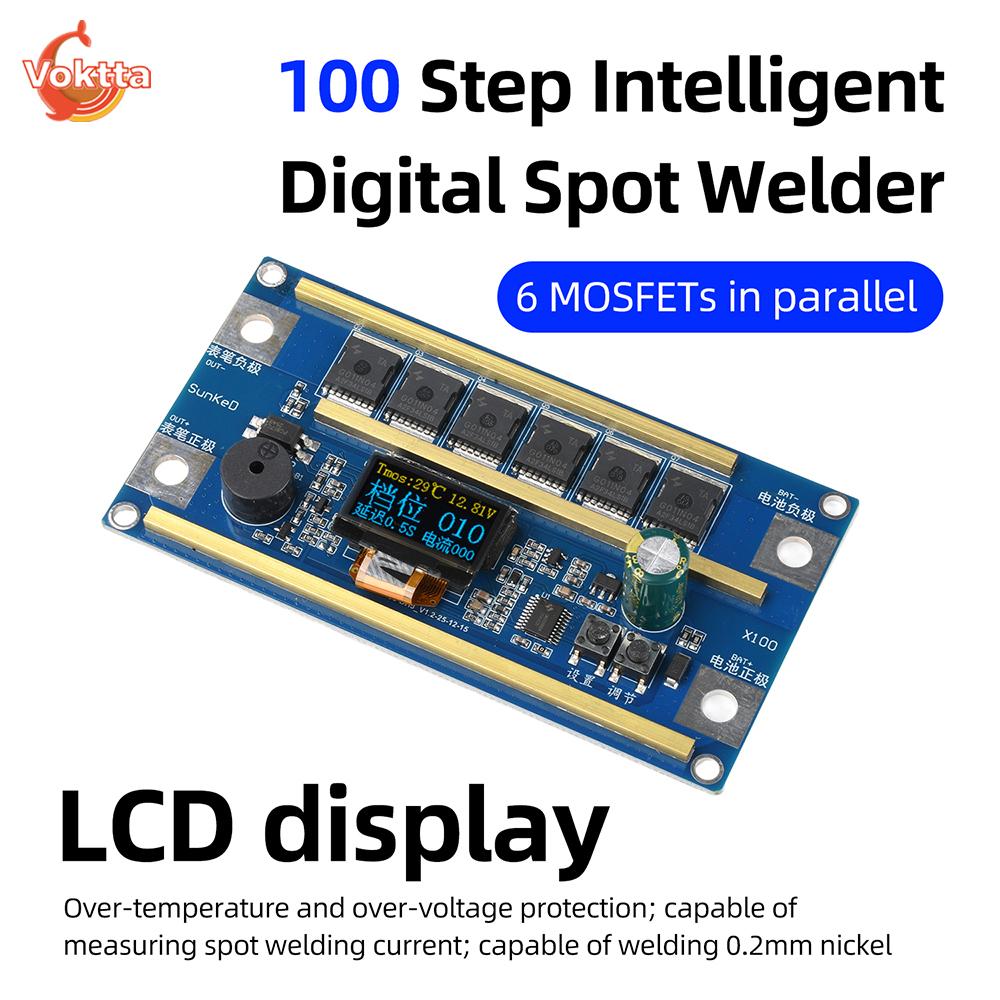

12V Lithium Battery Spot Welders Control Board 6 MOS Transistors Motherboard 100 Gears Adjustable Portable Spot Welding Machine
Product Features

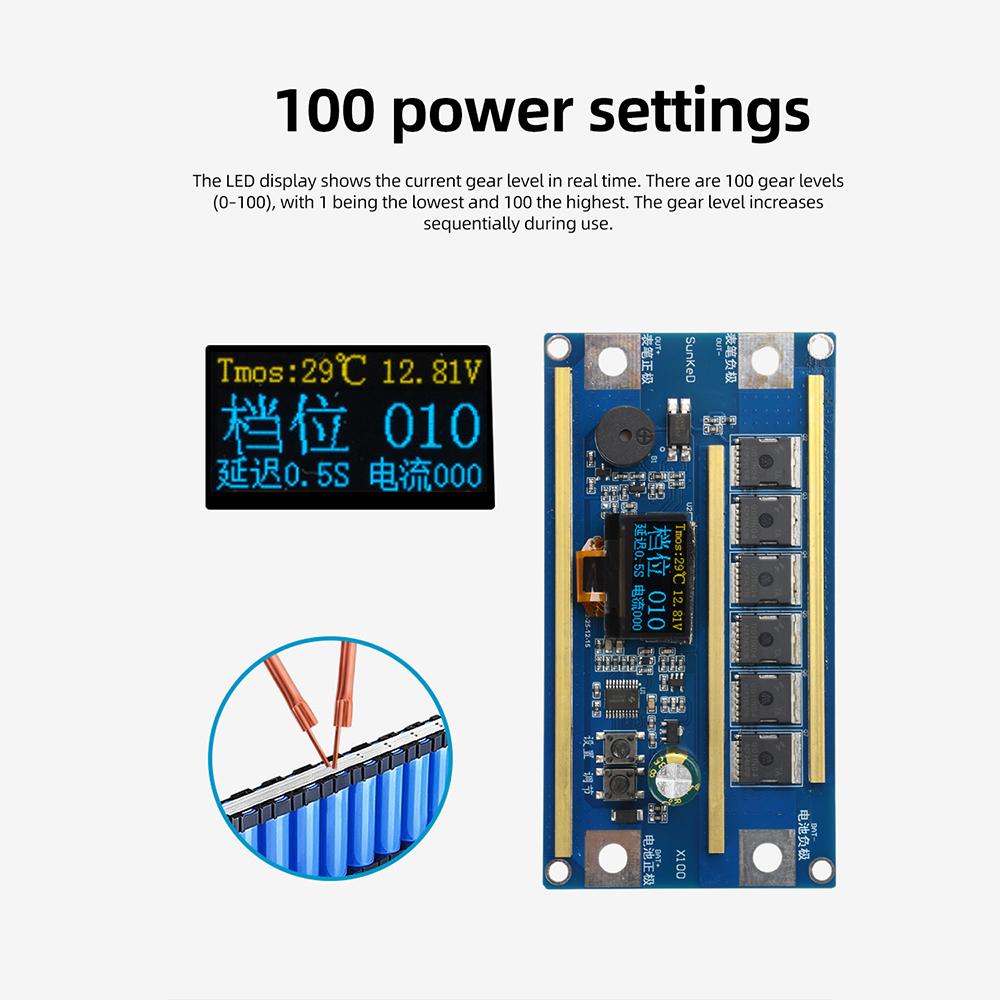

1. Multi parameter display: 100 levels of power can be adjusted, and the LCD screen displays real-time parameters such as level, voltage, current, temperature, etc
2. Real time voltage monitoring protection: When the spot welding current exceeds the set short-circuit current value, the spot welding will be terminated

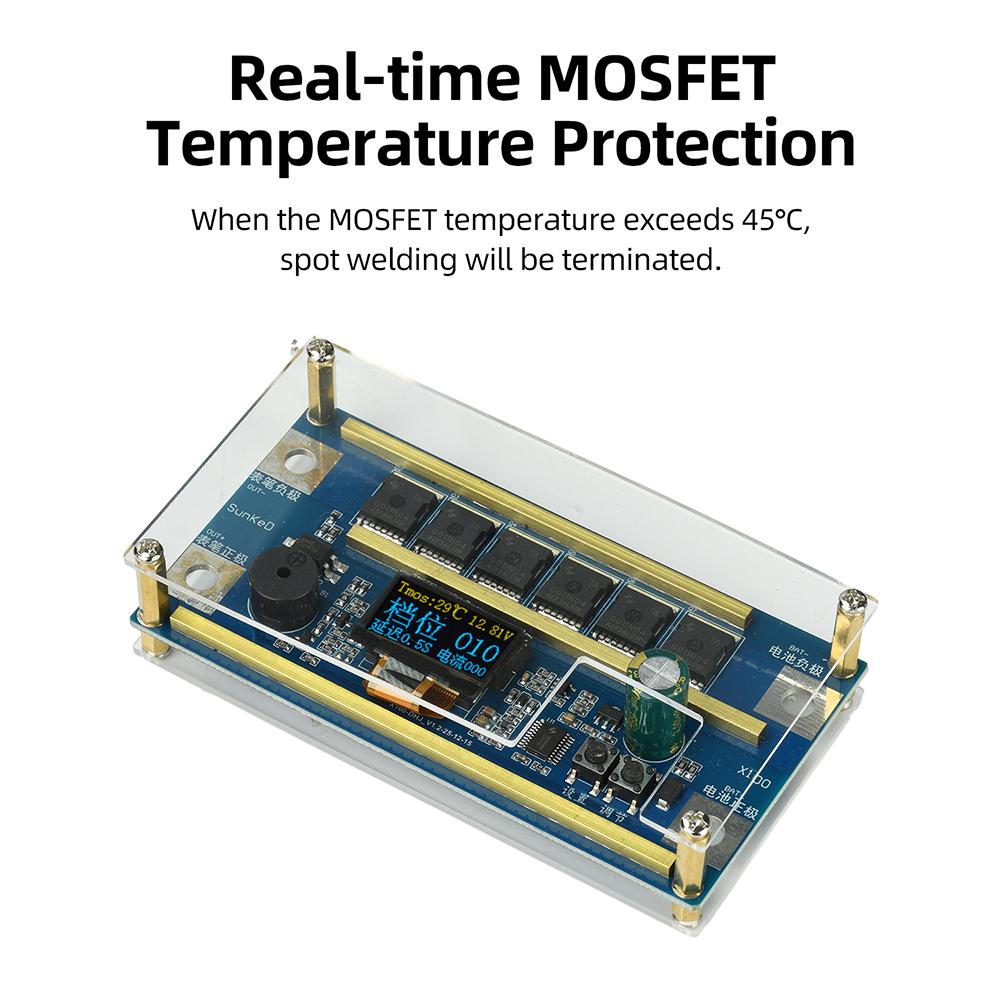

3. Real time MOS tube temperature protection: When the MOS tube temperature exceeds 45 ℃, spot welding will be terminated
4. Using 6 MOS transistors, spot welding peak current is 600A, pure copper conducts electricity and heat, improving spot welding efficiency
5. Using 10AWG wire and aluminum oxide copper spot welding needles to ensure high current passing capacity and durability
6. Multi parameter adjustable: switching between Chinese and English, buzzer switch, preheating pulse, high temperature protection, short circuit protection, etc
Product Parameters:
Product model: X100
Working voltage: 12V
Working current: 20-45AH
Standby power consumption:<0.5ma
Welding nickel sheet thickness: 0.1-0.3mm (related to battery rate)
Welding peak current: 500A
Power supply selection
1.12V lead-acid battery, 2 requires battery capacity of 20AH-45AH. For lead-acid batteries exceeding 45AH, please contact customer for current limiting methods
2. Model airplane batteries or lithium battery packs require 3S-4S, and the product of capacity (AH) and discharge rate (60C is the discharge rate of 60) should be between 200-350, which is more suitable
3. The car starter requires 12V, EC5 interface, and peak current not exceeding 500A
Will damage the control circuit of the spot welding machine
Prohibit the use of Farah capacitors, switching power supplies, transformers, chargers, water batteries, and power banks to power spot welding machines
Operating instructions
After 5 minutes of inactivity, it will automatically enter sleep mode
2. Sleep mode can reduce device power consumption when not in use
3. If not used for a long time, please disconnect the power supply to avoid damage to the battery feed
4. If spot welding fails, it may be due to poor battery discharge. For new ones, attention should be paid to extending the input for those with higher safety ratings
5. Increasing the gear from 0-5-10 at once is prohibited, and excessive adjustment is not allowed, such as 0-30, which may easily burn the board. It is important to note that adjusting the gear is to adjust the welding time, not the current.
6. When spot welding, keep the nickel sheet and battery surface flat, and there should be no gaps in the fit. When spot welding, tilt the probe slightly and do not apply force. Just touch gently, as applying force may not tighten the spot.

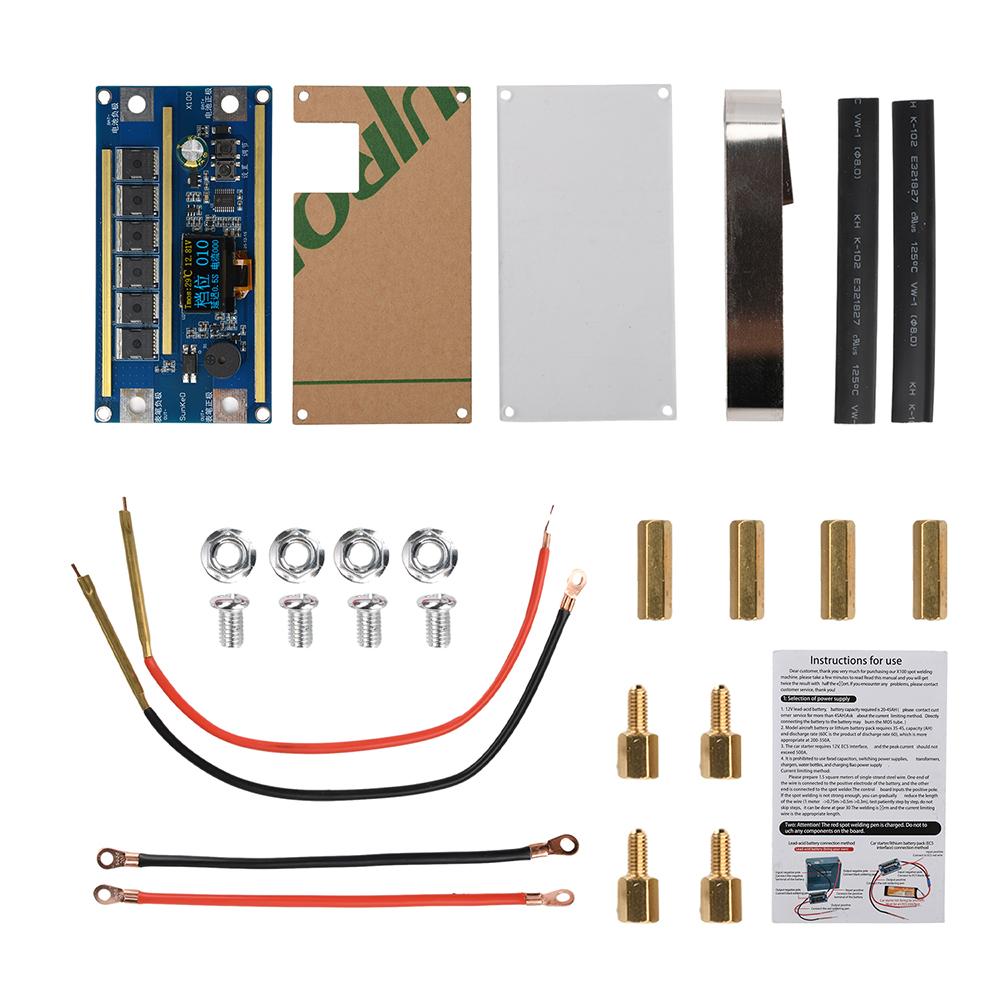

Packaging includes:
Package 1:
Motherboard * 1
Package 2:
Motherboard * 1
Welding pen * 2
Connection line * 2
Heat shrink tubing * 2
Nickel sheet * 1
Screw * 4
Transparent shell * 1
label:yes
No-delivery refund
