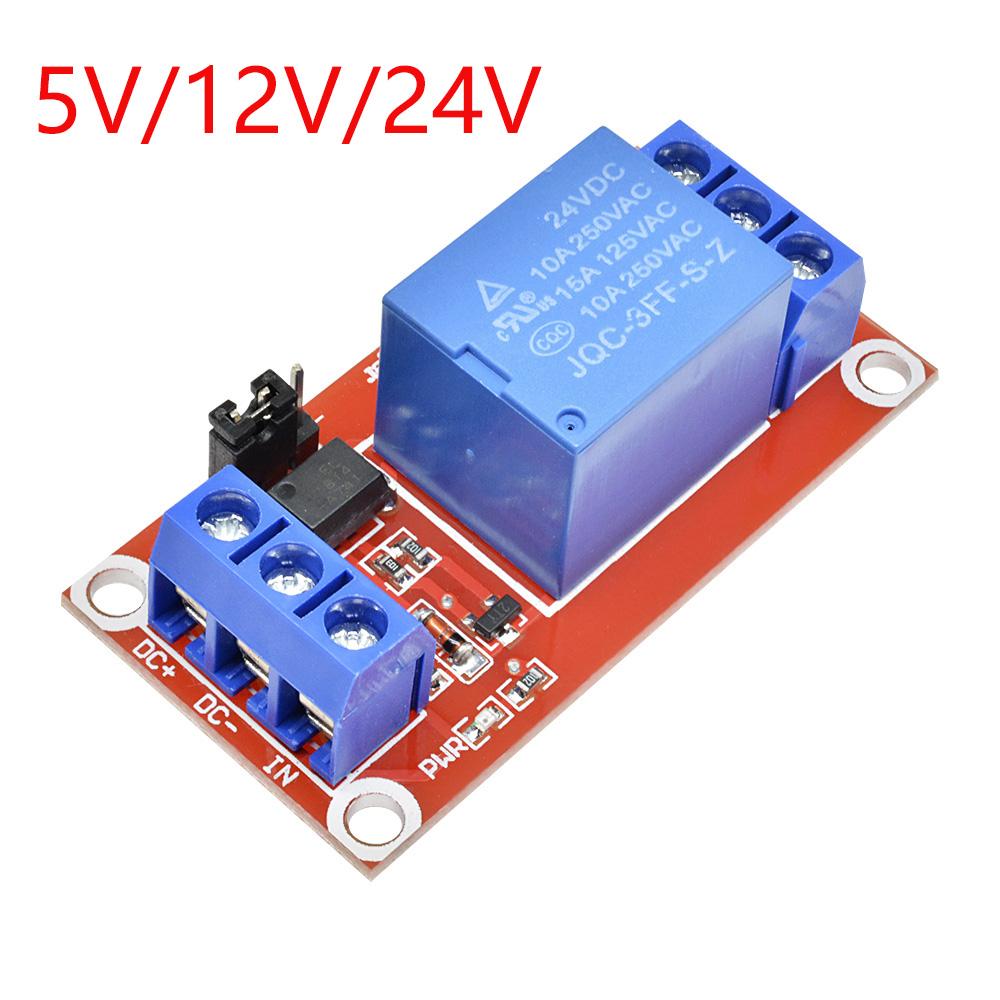

One 1 Channel 5V 12V 24V Relay Module Board Shield With Optocoupler 12V Relay Module Support High and Low Level Trigger

Applicable Object : Other EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc High-concerned chemical : none Power Source : DC Theory : Voltage relay is_d : Yes Contact Load : Low Power Model Number : 5V 12V 24V Relay Module Board Brand Name : Aideepen Voltage : 5V12V24V Origin : Mainland China Certification : CE Power Source : DC Use : General Purpose Protect Feature : Sealed Feature 1 : Relay Module Board Shield With Optocoupler Feature 2 : 12V Relay Module Feature 3 : 5V Relay Module Feature 4 : 24V Relay Module Feature 5 : Support High and Low Level Trigger

One 1 Channel 5V 12V 24V Relay Module Board Shield With Optocoupler 12V Relay Module Support High and Low Level Trigger Describe: 1. The module uses genuine quality relay normally open interface Maximum load: AC 250V/10A, DC 30V/10A; 2. Adopt SMD optocoupler isolation, strong driving ability and stable performance; trigger current 5mA; 3. The working voltage of the module is 5V/12V/24V; 4. The module can be set to trigger high or low by jumper; 5. Fault-tolerant design, even if the control line is broken, the relay will not operate; 6. Power indicator (green), relay status indicator (red) 7. Humanized interface design, all interfaces can be directly connected to terminal leads, which is very convenient 8. Module size: 50*26mm*18.5mm (L*W*H) Module interface: 1.DC+: Positive power supply (VCC) 2.DC-: Negative power supply (GND) Relay output: 1.NO: relay normally open interface 2.COM: Common Interface Relay 3.NC: relay normally closed interface High and low level trigger options: It is low-level triggered when the jumper is connected to the low pin It is HIGH triggered when the jumper is connected to the HIGH pin Packing list: 1*Relay module label:yes
