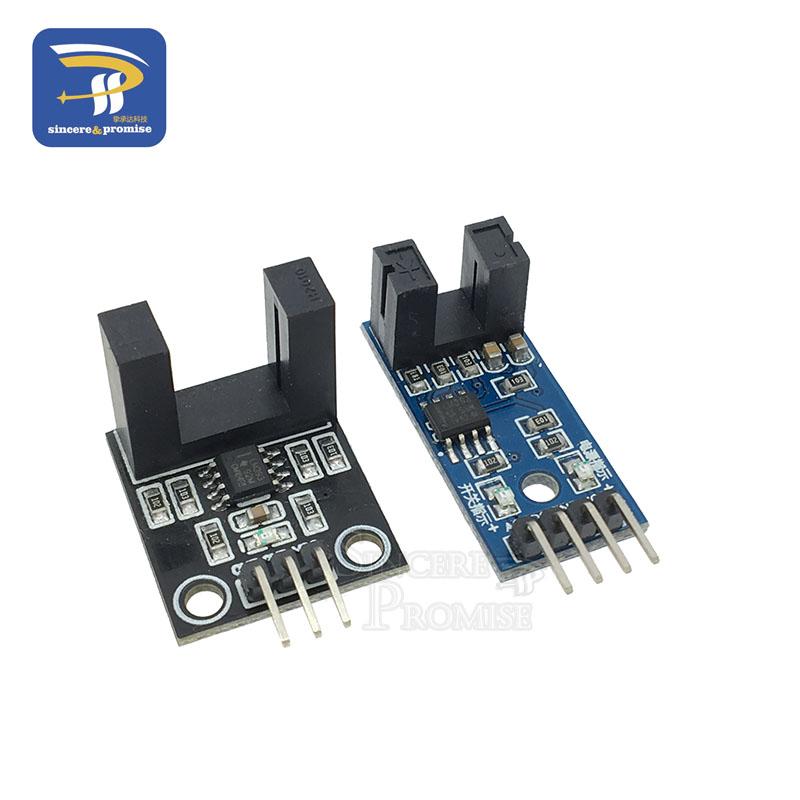

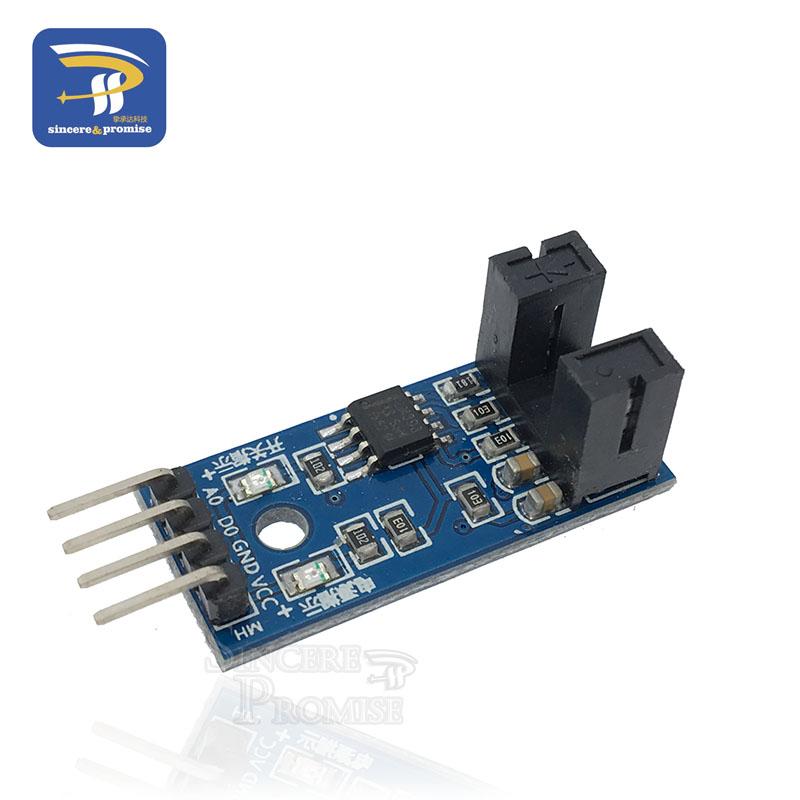

Blue speed sensor:
Widely used in motor speed detection, pulse counting, position limit and so on.
Module features:
1, the use of imported groove coupler sensor, slot width 5mm.
2, output status indicator lamp output high, output low lights.
3, block, output high; no shelter, output low.
4, the comparator output signal clean, good waveform, driving ability, than 15mA.
5, the working voltage of 3.3V-5V
6, the output format: digital switching output (0 and 1)
7, a fixed bolt holes for easy installation
8, small PCB board size: 3.2cm x 1.4cm
9, using a wide voltage comparator LM393
Module for use:
1. module slot unobstructed, receiver tube conduction module DO output low, when blocked, DO output high;
2, DO output interface can be directly connected to the microcontroller IO port, whether the sensor with barriers, such as the motor speed can be detected with the motor encoder.
2. DO module can be connected to relays, limit switches and other functional composition, and to be connected with active buzzer module, consisting of alarm.
Product wiring instructions:
1, VCC positive power supply 3.3-5V
2, GND power supply is negative
3, DO TTL switching signal output
4, AO this module does not work

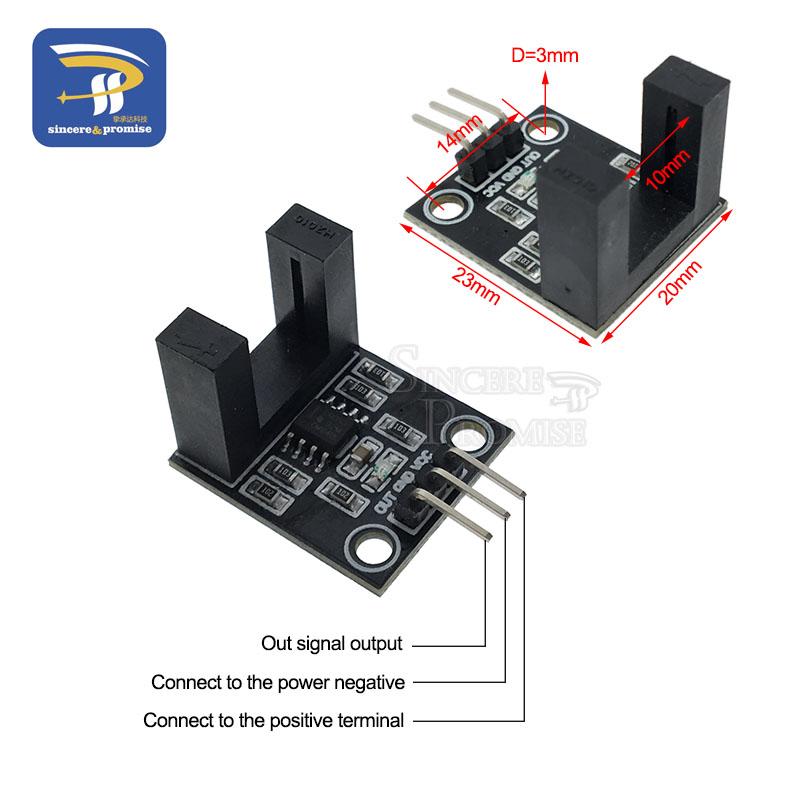

Black speed sensor:
Widely used in motor speed detection, pulse counting, position limit, etc.
Module features:
1, using imported slot type optocoupler sensor
2. The groove width is 10mm.
3. There is an output status indicator, the output high level light is off, and the output low level light is on.
High-concerned chemical: none
Output: Digital Sensor
Theory: Current Sensor
Use: Speed Sensor
Material: Mixture
Choice: yes
Brand Name: NONE
Origin: Mainland China
Type: Acceleration Sensor
No-delivery refund
