Charger included : N
Battery Included : Yes
High-concerned chemical : none
Model Number : 65W 100W power bank fast charging module
Accessory Type : Charger Accessories
Brand Name : occkic
Origin : Mainland China
Certification : NONE
Features:
1. Fully compatible with QC, PD, PPS, SCP, VOOC and other fast charging protocols, to meet the charging needs of the majority of electronic devices on the market, to achieve a board in hand, charging without worry!
2.Support MPPT function, can be connected to solar panels for charging.
3.Efficient lifting voltage automatic switching, don't worry about the battery voltage is too high charging bad cell phone, automatic PWM and PSM mode switching to realize efficient lifting voltage.
4. The product supports a variety of protection mechanisms, over-current/over-voltage/short-circuit/over-temperature and other protection, safer and more secure use.
5. Not only the output fast charging, its own charging is also rapid, support PD two-way fast charging, significantly shorten the self-charging time, improve the convenience of use

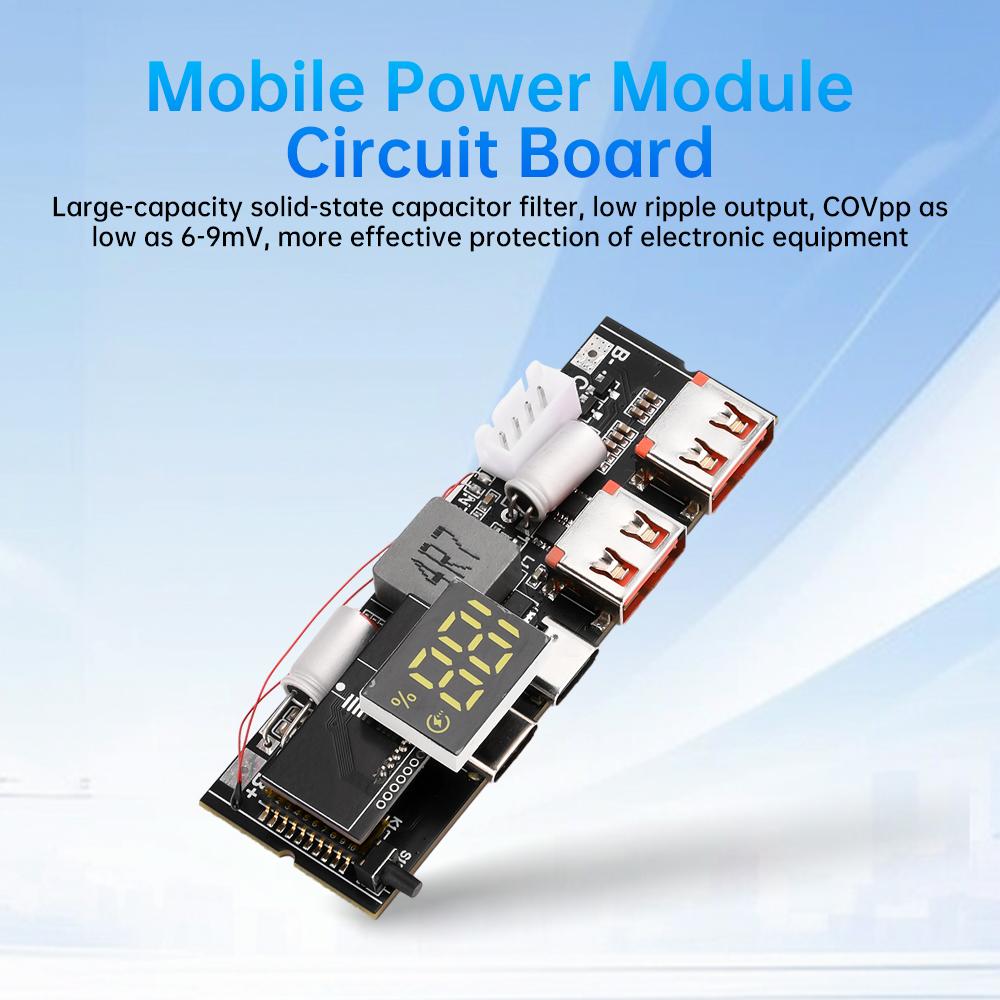

6. Large-capacity solid capacitor filtering, low ripple output, C port Vpp as low as 6-9mV, more effective protection of electronic equipment
7. Designed for DIY enthusiasts, providing a clear circuit layout and labeling, easy to assemble and debug, suitable for personal customization of mobile power projects to meet individual needs
Parameter:
The motherboard has 4 USB ports by default, Type-C1, Type-C2, Type-A1, Type-A2
Type-C1 and Type-C2 support AFC/FCP/SCP/PD3.1 input protocols.
Support PPS/PD3.1/UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP Output Protocol Type-A1/Type-A2 Support UFCS/PE1.1/PE2.0/QC3+/0C3.0/QC2.0/AFC/FCP/SCP/ SFCP output protocol
Voltage Current Power:
PPS/PD3.1: 20V@5A, 3.3V-21V@5A, Maxin100W/Maxout60W
UFCS: 3.4-21V@5A, Maxin100W/Maxout60W
QC2.0: 5V3A/9V3A/12V2.8A/20V1.5A
QC3.0: 3.6V-20V@200mV/step!5V@3A/9V@3A/12V@2.8A/20V@1.5A
AFC: 5V3A/9V3A/12V2.8A
FCP: 5V3A/9V3A/12V2.8A
SCP: OUT3.3V-12V, IN5V/9V/10V/12V, support 10V4A
PE1.1: 5V/7V/9V/12VPE2.0: 5V-12V@500mV/step
SFCP: 5V/9V/12V
The motherboard must be wired according to the diagram to connect the battery, battery self-protection board then only need to connect the battery positive and negative to the motherboard B + and C - two pads can be, otherwise the motherboard integrated protection must be wired according to the diagram, you need to connect to the equalization line, otherwise it can not be activated properly use!
Notes:
1: motherboard external battery line must be able to pass 10A current, at least 1 square copper wire, ordinary line to use 1.5 square. There is no need to be too thick, but not too thin, too thin will be a security risk. (Because the battery side of the current is very large) recommended 16AWG specification line.
2: The motherboard comes with a protection chip, only supports 2-5 series batteries, 6 series of 7 series of batteries need to come with a protection board, come with a protection board overcurrent protection current must be greater than 15A, otherwise it can not work properly, serious damage to the motherboard chip.
3: Due to the high current on the battery side, you must use a thick wire to weld on the battery to test, you can't use crocodile clips to clip the pads to test charging and discharging.
4: support OPO flash charging, support HW super fast charging, different protocols have different power, 65W, 100W are said to be the power of the PD protocol, VOOC is 20W SCP is 22.5W. please confirm the demand and then shoot, do not accept returns that do not support your phone can not be fast charging. Welded are not supported returns. (Unsupported cell phone because the phone's own protocol is not public, the third party can not be used.)
5: The battery connected to this motherboard must meet the requirements and be connected in series.
Package include:
Mobile power module *1
15cm equalization cable *1
label:yes
Battery capacity: 43200
Charge indicator: No
Number of ports: 1 port
No-delivery refund
