ESP32-S3 CAM Development Board Dual Type-C Low Power WiFi Bluetooth with OV2640/OV5640/OV3660 Camera Module ESP32-S3-1 N16R8

Battery Included : no High-concerned chemical : none Compatible With : ESP32 S3 CAM development board Accessory Type : Camera Module Brand Name : occkic Origin : Mainland China

Product Features: 1. The ESP32-S3 is designed as an ESP32S3 module with a PCB-mounted antenna. The ESP32-S3 development board can be paired with either the OV2640 or OV5640 camera module, depending on the user's choice. The ESP32-S3 is a low-power MCU System-on-Chip (SoC) that integrates dual-mode wireless communication with 2.4 GHz Wi-Fi and Bluetooth Low Energy (BLE). 4. The ESP32-S3 features a complete Wi-Fi subsystem and a low-power Bluetooth subsystem, offering industry-leading low-power performance and RF capabilities. It supports multiple low-power operating modes, meeting the power consumption requirements of various application scenarios. 5.The ESP32-S3 chip offers a wide range of peripheral interfaces and incorporates multiple unique hardware security mechanisms. These comprehensive security features enable the chip to meet stringent security requirements.

Performance Parameters: Controller: XtensaR dual-core 32-bit LX7 CPU, with a frequency up to 240MHz Storage: 384 KB ROM 512 KB of SRAM 16 KB RTCSRAM 8 MB PSRAM Operating voltage: 3V to 3.6V. Up to 45 GPIOs 2*12-bit ADC (up to 20 channels) Communication Interface: 2 x 12C interfaces 2 12s interface 4 SPI interfaces 3 UART interfaces 1 USB OTG port. Temperature range: -40 to 65 degrees Celsius WiFi Supports IEEE 802.11 b/g/n protocols The 2.4 GHz band supports bandwidths of 20 MHz and 40 MHz Supports 1T1R mode with a data rate of up to 150 Mbps Wireless Multimedia (WMM) Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU) Immediate Block ACK Fragmentation/Defragmentation - Beacon Automatic Monitoring (Hardware TSF) - 4× Virtual Wi-Fi Interfaces It also supports infrastructure-based network (Infrastructure BSS) Station mode, SoftAP mode, and hybrid Station+SoftAP mode. Note that when the ESP32-S3 scans in Station mode, the SoftAP channel will also change simultaneously Antenna diversity 802.11 mc FTM Support for external power amplifier Bluetooth Low Energy Bluetooth (Bluetooth LE): Bluetooth 5, Bluetooth Mesh High Power Mode (20 dBm, sharing PA with Wi-Fi) The rates supported are 125Kbps, 500Kbps, 1 Mbps, and 2 Mbps Broadcast Extensions (AdvertisingExtensions) MultipleAdvertisement Sets Channel Selection Algorithm #2 Wi-Fi and Bluetooth Coexistence, Sharing the Same Antenna Advanced Peripheral Interface and Sensors 45 x GPIO pins

Digital interface: - 4xSPl -1xLCD interface (8-bit) -16 bit parallel RGB, l8080, MOTO6800), supporting mutual conversion between RGB565, YUV422, YUV420, YUV411 -1xDVP 8-bit~16 bit camera interface -3xUART -2xl2C - 2x 12S - 1xRMT (TX/RX) -1x pulse counter -LED PWM controller with up to 8 channels -1x Full Speed USB OTG -1 x USB Serial/JTAG controller - 2x MCPWM -1 x SDIO host interface with 2 card slots -General DMA Controller (GDMA) with 5 receive channels and 5 send channels -1xTWAI controller, compatible with IS011898-1 (CAN specification 2.0)

Simulation interface: -2x12 bit SAR ADC with up to 20 channels -1x temperature sensor -14x capacitive sensing GPIO

Timer: -4x54 bit universal timer -1 × 52 bit system timer -3 x watchdog timer Product size: 57mm * 28mm

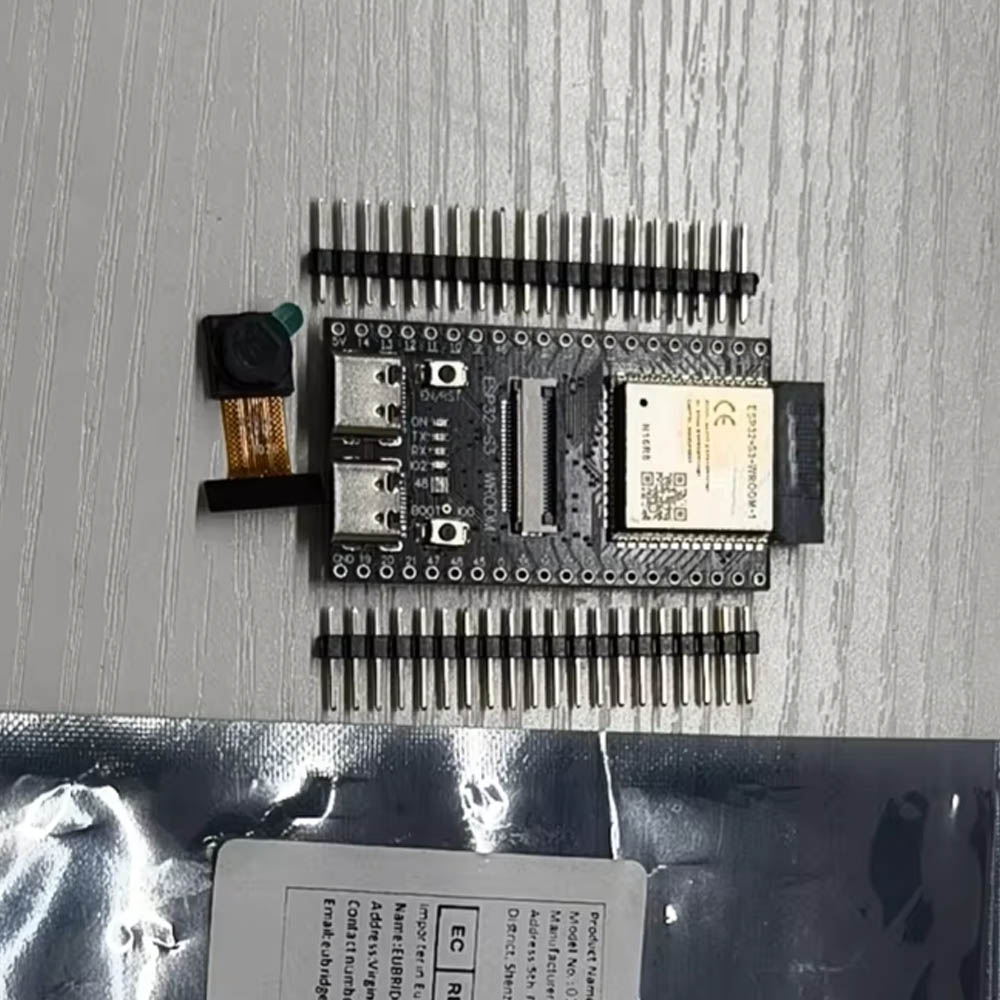

Product list: Set 1: 1X development board 2X needle arrangement

Set 2: 1X development board 2X needle arrangement 1X camera (OV2640/OV5640/OV3660 selectable) label:yes
