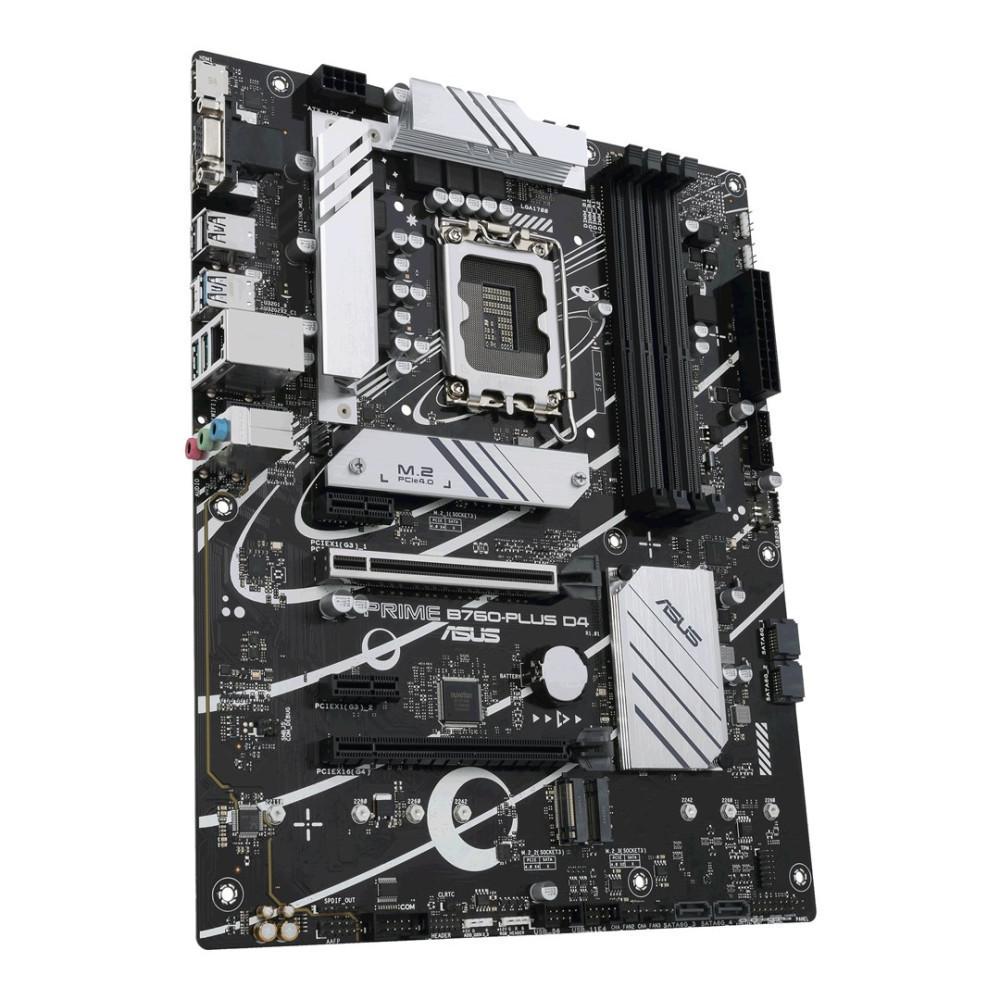

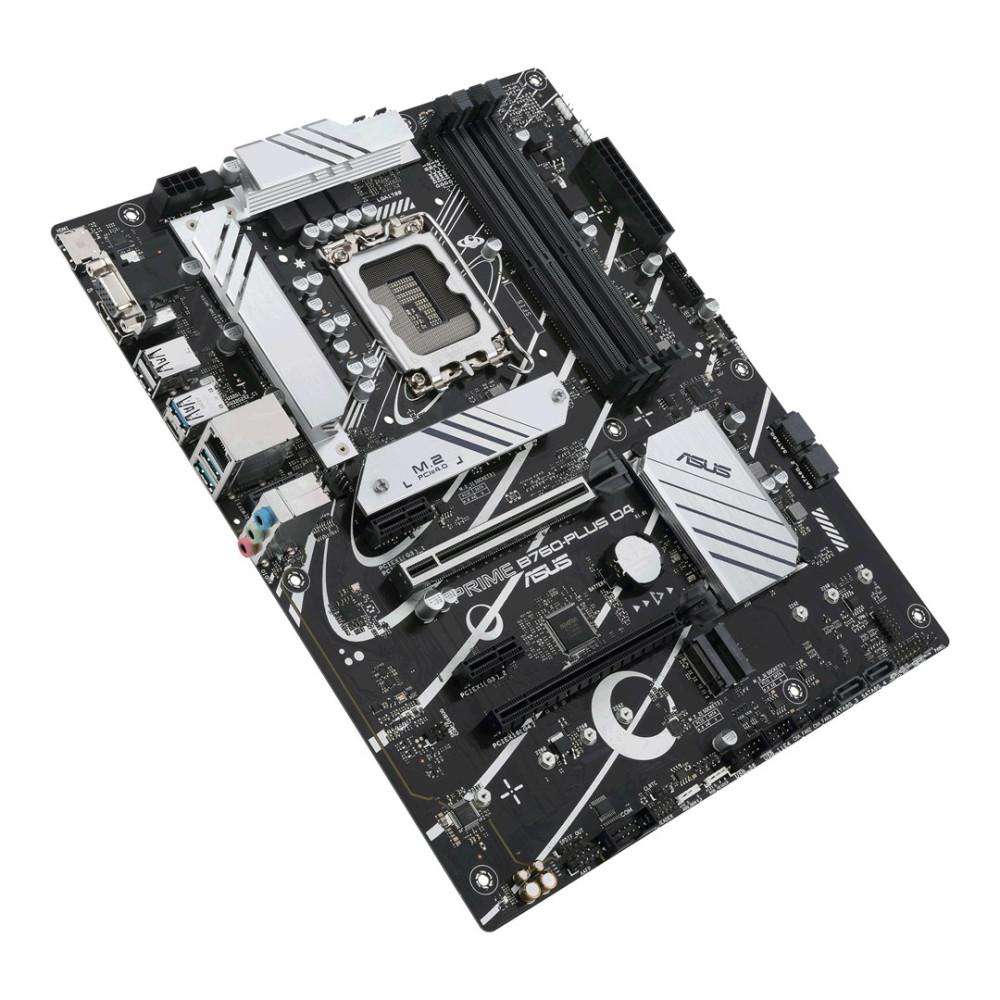

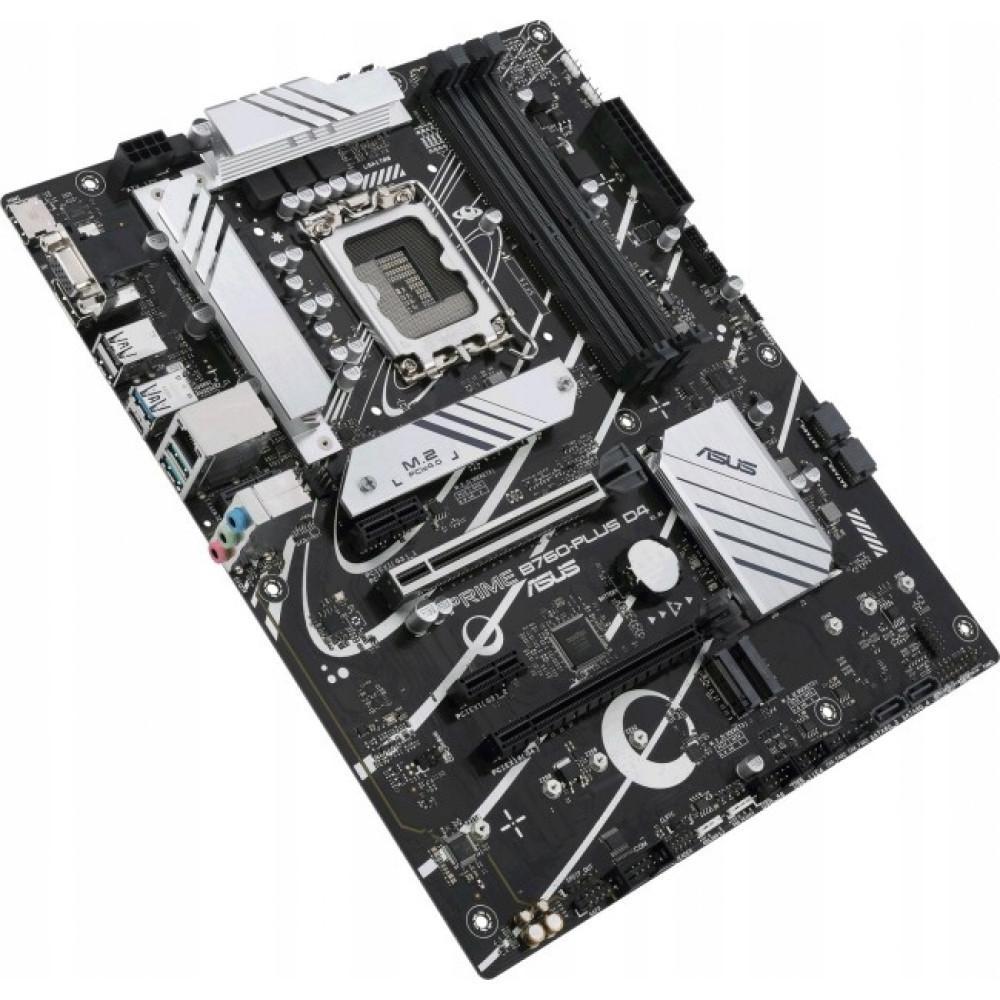

Asus Prime B760-Plus D4 Motherboard

? ASUS PRIME B760-PLUS D4 – a solid Intel LGA1700 motherboard with DDR4 5066 MHz, 3x M.2 and LAN 2.5G!

ASUS PRIME B760-PLUS D4 is a high-performance ATX motherboard designed for gamers who value stability, flexibility and modern solutions without having to invest in a DDR5 platform. With support for 12th and 13th generation Intel Core processors, fast DDR4 memory up to 5066 MHz, RAID support, and three M.2 connectors, it's the perfect foundation for a gaming rig based on proven technologies.

? Compatible with 12th and 13th Generation Intel Core Processors

With the LGA1700 socket and the Intel B760 chipset, this motherboard supports modern Intel Core processors, delivering excellent performance for gaming, streaming, and everyday computing. Perfect for mid-range and high-end gaming rigs.

? DDR4 up to 5066 MHz – Proven Technology, Maximum Speed

Four DDR4 slots allow for up to 128 GB of RAM with support for clock speeds up to 5066 MHz (OC). This is more than enough for gamers and enthusiasts who want high responsiveness without upgrading to DDR5.

? Three M.2 + RAID connectors – ultra-fast data access

A set of three M.2 (NVMe) connectors and four SATA III ports allows you to create configurations with super-fast SSDs and RAID 0/1/5/10. Short game loading times? No problem!

? 2.5G LAN – smooth, lag-free connectivity

The built-in 2.5 Gb/s LAN port guarantees low latency and stability even during intense online gaming. An excellent choice for streamers and online gamers.

? 7.1 sound + complete audio ports

Support for 7.1-channel surround sound allows for full immersion in games and movies. Thanks to the headphone output, line-in, and S/PDIF connector, you have full control over the sound.

? Modern connectors: USB4, HDMI 2.1, DisplayPort 1.4

On the back you'll find 10 USB ports, including USB4 Gen 2x2 Type-C, HDMI 2.1, and DisplayPort 1.4 – perfect for connecting 4K monitors and high-bandwidth peripherals.

? Full RGB support and passive cooling

Built-in fan headers and addressable RGB LEDs allow you to create a neat and cool setup. Quiet operation and a stylish look all in one.

✅ Why is the ASUS PRIME B760-PLUS D4 a great choice?

• Support for 12th/13th Intel Core gen (LGA1700) • DDR4 up to 128 GB, OC up to 5066 MHz – speed without compromise • 3x M.2, RAID 0/1/5/10 – flexible data storage • 2.5G LAN – smooth connection for gamers and streamers • USB4, HDMI 2.1, DisplayPort 1.4 – full compatibility • Audio 7.1 – clear and spatial sound • ATX format, stylish and functional design • Windows 10/11 ready – gaming and office systems

Specifications

Processor

• Processor Manufacturer: Intel • Processor Socket: LGA 1700 • Processor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold • Maximum Number of SMP Processors: 1 • Supported Sockets Processor: LGA 1700

Memory

• Supported memory types: DDR4-SDRAM • Number of memory slots: 4 • Memory slot type: DIMM • Memory channel support: Dual channel • ECC compatibility: Non-ECC • Supported memory clock speeds: 5066 MHz, 5000 MHz, 4800 MHz, 4600 MHz, 4400 MHz, 4266 MHz, 4000 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3400 MHz, 3333 MHz, 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz • Supported Memory Clock Speed ​​(Max): 5066 MHz • Maximum Memory Capacity: 128 GB • Unbuffered Memory: Yes

Memory Drivers

• Supported Drive Types: HDD & SSD • Supported Hard Drive Interfaces: M.2, SATA III • Number of Supported HDDs: 4 • Number of Supported Storage Drive Sizes: 7 • RAID Support: Yes • RAID Levels: 0, 1, 5, 10

Graphics

• Parallel Processing Support: Not Supported

Internal I/O

• Number of USB 2.0 Ports: 2 • USB 3.2 Gen 1 (3.1 Gen 1) Ports: 2 • Number of SATA III Connectors: 4 • S/PDIF port: Yes • Front panel audio connector: Yes • Front panel connector: Yes • ATX power socket (24-pin): Yes • CPU fan connector: Yes • Number of case fan connectors: 3 • Peripheral (Molex) power connectors (4-pin): 1 • EPS power connector (8-pin): Yes • Number of COM ports: 1 • TPM connector: Yes • Thunderbolt pins: 1 • Power connector 12V: Yes • RGB LED: Yes

Back Panel I/O Ports

• Number of USB 2.0 Ports: 2 • Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports: 1 • Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A Ports: 2 • Number of USB 3.2 Gen 2x2 Type-C Ports: 1 • Number of Ethernet LAN (RJ-45) Ports: 1 • Number of VGA (D-Sub) Ports: 1 • Number of HDMI Ports: 1 • HDMI Version: 2.1 • DisplayPort Quantity: 1 • DisplayPort Version: 1.4 • Headphone Outputs: 1 • Line-in: Yes

Network

• Wired LAN: Yes • Ethernet Interface Type: 2.5 Gigabit Ethernet • Wi-Fi: No

Features

• Motherboard Layout: Intel B760 • Audio Output Channels: 7.1 channels • Motherboard Form Factor: ATX • Motherboard Family Chipsets: Intel • Cooling Type: Passive • Power Supply: ATX • Supported Windows Operating Systems: Windows 10, Windows 11

Expansion Slots

• PCI Express x1 (Gen 3.x) Slots: 2 • PCI Express x16 (Gen 4.x) Slots: 1 • PCI Express x16 (Gen 5.x) Slots: 1 • Number of M.2 (M) Slots: 3

BIOS

• BIOS Type: UEFI AMI

Packaging Details

• Package Width: 328 mm • Package Depth: 266 mm • Package Height: 53 mm • Weight with Packaging: 1.16 kg

Weight and Dimensions

• Product Width: 305 mm • Product Depth: 244 mm

Package Contents

• Cables: User Guide • SATA: Yes

Other Features

• Number of M.2 (E) Slots: 1
