KWS-2301C
Product Features:
1.Current, voltage, power, electrical energy, capacity, timing and other quick identification and other parameters, one screen display multiple parameters.
2.Adopt 0.77 inch OLED HD display, make your vision brighter at a glance, with 12A high current terminal, make the product more stable.

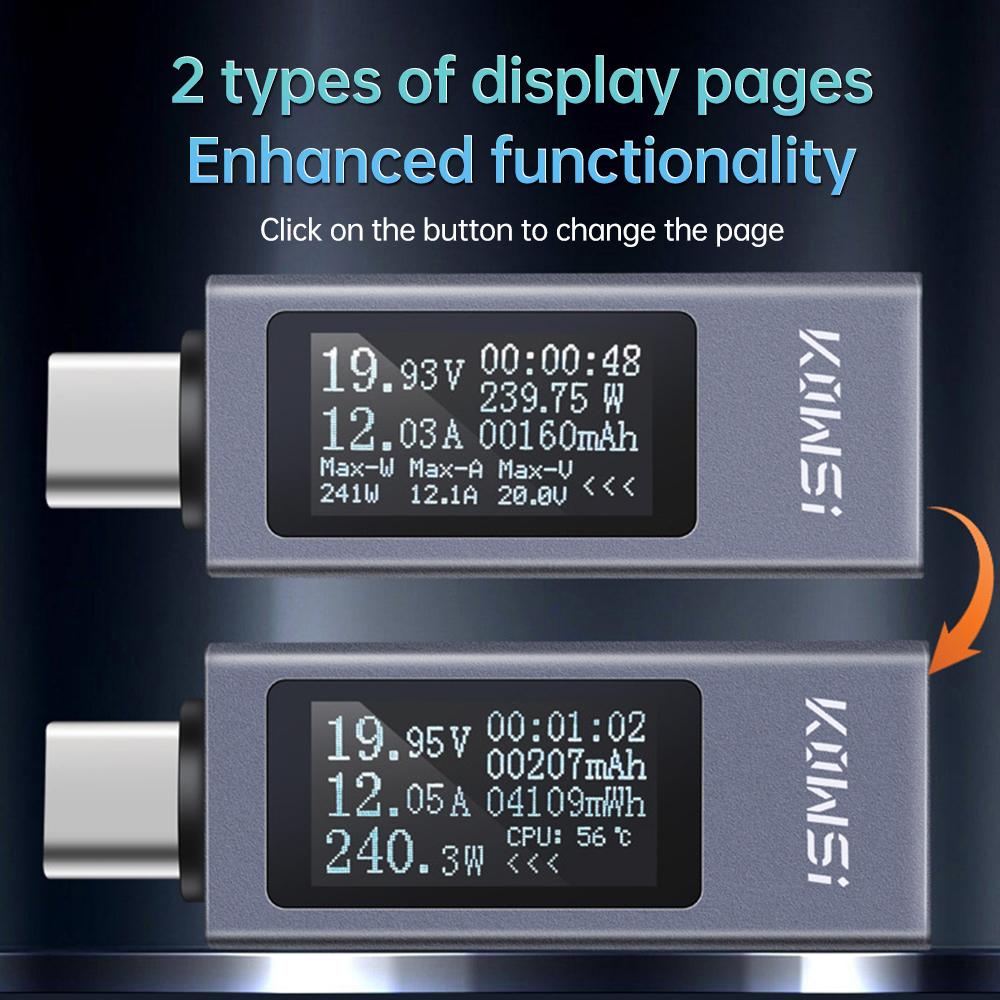

3.CNC metal shell dustproof and drop-proof, two kinds of display page, more convenient to watch, so that the function is more strengthened.
4. Full interface compatibility, two-way current test function, real-time charging power detection, support fast charging test.
5. You can detect the charging status of the electrical appliances in real time, real-time monitoring of the charging voltage and current and other parameters of information at a glance.
Product parameters:
Voltage: DC 4-30V
Current: 0-12A
Power: 0-360W
Capacity: 0-99999MAH
Energy: 0-99999WH
Timing: 0-99 hours
Size: 41*16*9mm
Packing List:
Power Meter*1

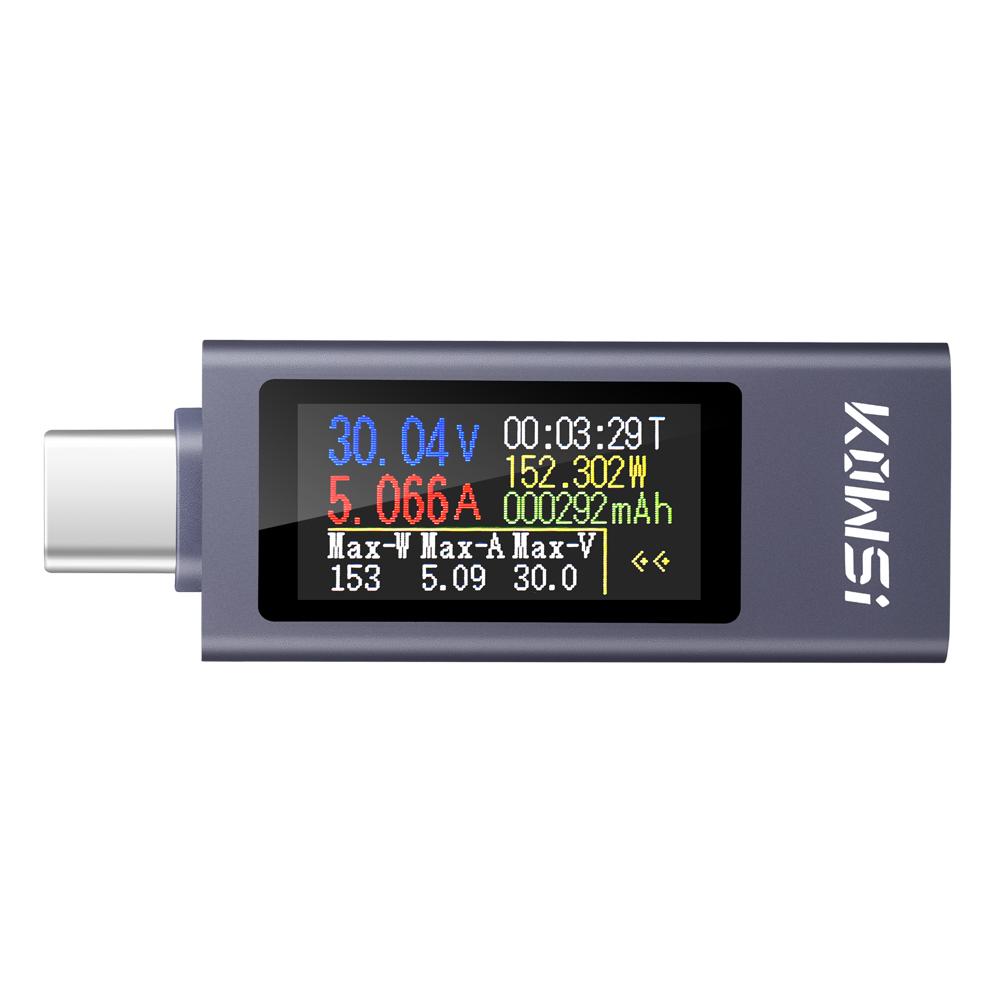

KWS-2302C
Product Features:
1.Adopting 0.96 inch TFT HD display with 12A high current terminal, which makes the product more stable.

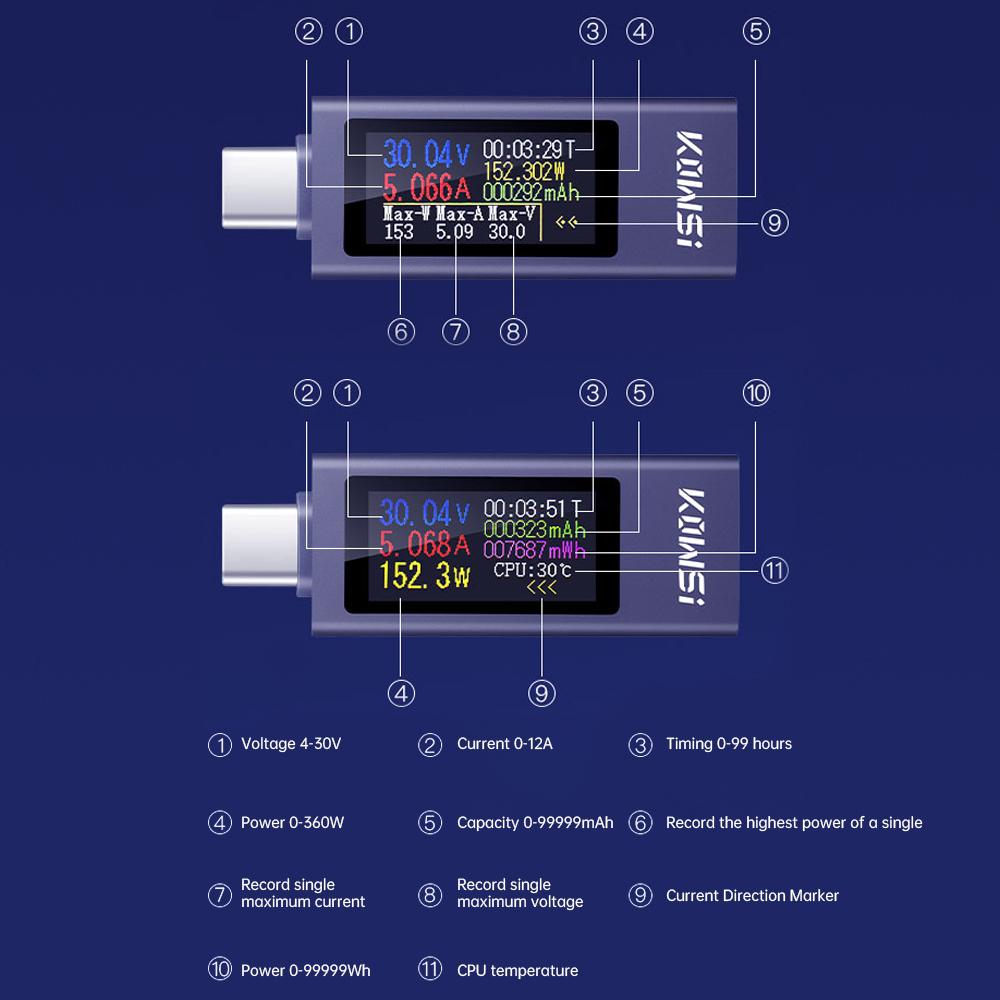

2.Voltage, current, power, capacity, electrical energy, timing, CPU temperature and other parameters real-time monitoring.

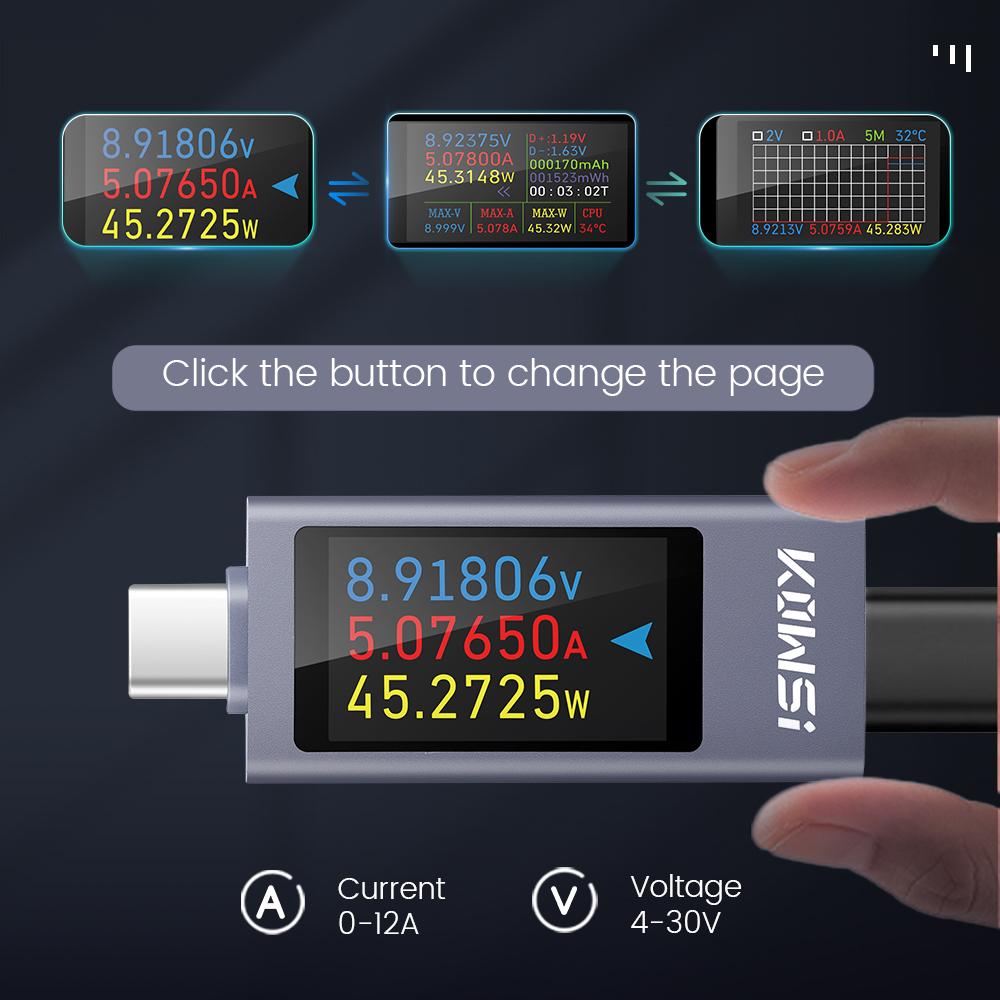

3. Click button, change page, double click button, screen rotation direction, can meet the needs of different places.
4. Intelligent identification, can record the single highest power, maximum voltage, maximum current.
5. With bidirectional current test function, support fast charging test, support power down to save data.
Product parameters:
Voltage: DC 4-30V
Current: 0-12A
Timing: 0-99 hours
Power: 0-360W
Capacity: 0-99999MAH
Energy: 0-99999WH
Product size: 50.6*18*9mm
Packing List:
Power Meter*1

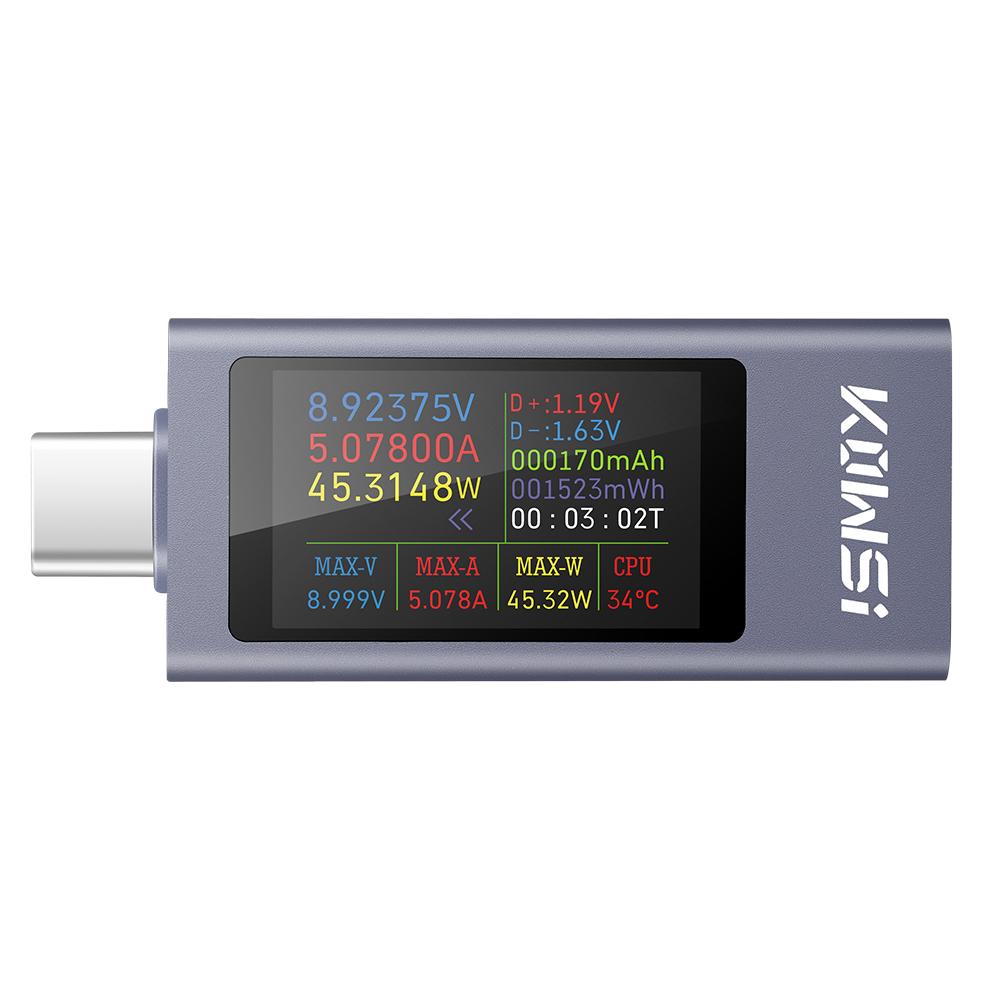

KWS-2303C
Product Features:
1. Real-time monitoring of multiple parameters including voltage, current, power, capacity, energy, timing, and CPU temperature.
2. Single-click button to switch between three display pages, enhancing functionality.
3. Double-click button to rotate the screen direction for easier viewing, accommodating various environments.
4. Features a 1.06-inch TFT high-definition display screen for clearer visuals and more accurate bidirectional voltage and current readings.
5. Can monitor and display multiple data points for charging devices such as chargers and power banks on a single screen, meeting diverse testing requirements.
6. Fully compatible with all interfaces, supports data retention during power outages, fast charging testing, bidirectional current testing, and real-time charging power detection.
Product parameters:
Voltage: DC 4~30V
Current: 0~12A
Power: 0~360W
Capacity: 0~666666mAh
Energy: 0~999999Wh
Timing: 0~99 hours
Product dimensions: 53*20*9mm
Packing list:
Power meter*1
