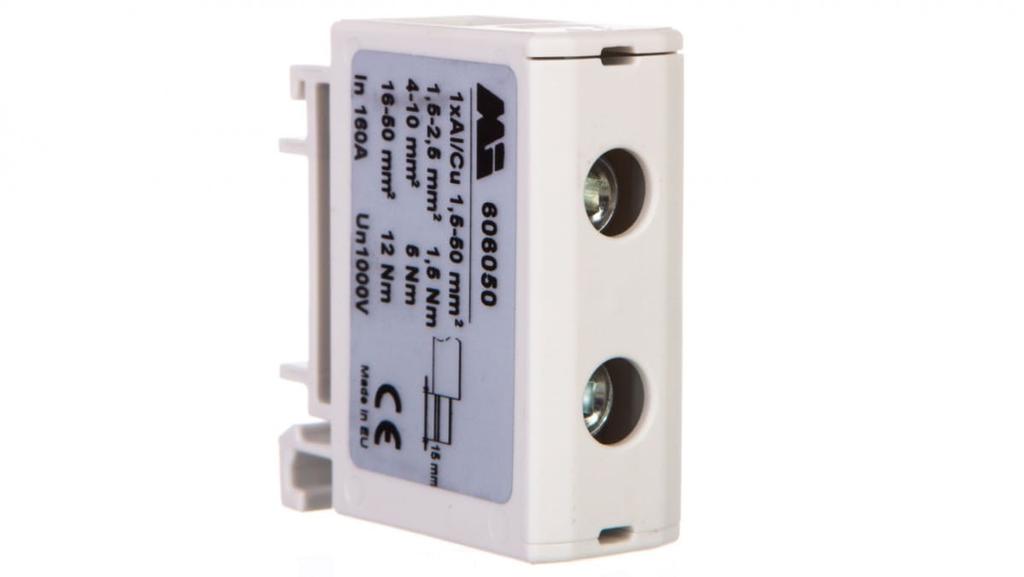

Single-track Rail Connector 1.5-50mm2 Gray Euro Otl 50 1Xal/Cu 606050

Length [mm]: 50

Manufacturer's index: 606050

Rated voltage [V]: 1000

Rated current In [A]: 160

Cross-section of the connected solid wire [mm2] to: 50

Cross-section of a solid conductor [mm2] from: 1.5

Cross-section of a stranded conductor without ferrule: 1.5

Cross-section of a stranded conductor with ferrule: 1.5

Cross-section of a multi-core conductor [mm2] to: 50

Cross-section of a multi-core conductor [mm2] from: 1.5

Type of electrical connection 1: Screw connection

Type of electrical connection 2: Screw connection

Width / grid size [mm]: 18

Height at the lowest mounting method [mm]: 43

CN: 85369010 Length: 50 EAN: 5901592105614 Color: Gray Number of levels: 1 Number of terminals per level: 2 Connection position: Side / side Type of insulating material: Thermoplastic Mounting method: DIN mounting rail 35 mm Width: 43 Weight: 0.0400 Height: 17
