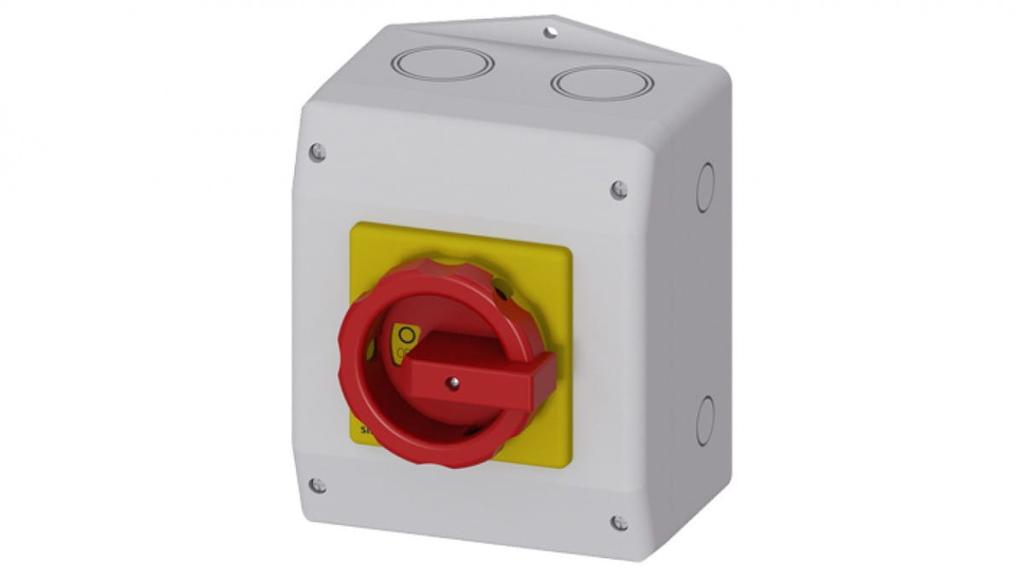

Main/Emergency Switch In Housing 3P 63A 22Kw Ac23A 400V Pom Contacts 1NO 1NC Yellow-Red Knob 3Ld2565-1Gp53

Manufacturer's index: 3LD2565-1GP53

Maximum rated operating voltage Ue AC [V]: 500

Suitable for 4-hole front mounting: Yes

Degree of protection (IP) of the front: IP65

Built-in motor drive: No

Rated operating power for AC-23, 400 V [kW]: 22

Rated operating power for AC-3, 400 V [kW]: 19

Rated continuous current Iu [A]: 63

Rated conditional short-circuit current Iq [kA]: 6

CN: 85365080 Length: 202 EAN: 4011209524347 As a safety switch: Yes As a main switch: Yes As a service switch: Yes As an emergency stop switch: Yes Number of poles: 3 Number of changeover auxiliary contacts: 0 Number of normally closed auxiliary contacts: 0 Number of normally open auxiliary contacts: 0 Suitable for flat mounting: Yes Optional motor drive: No Optional voltage release: No PKWiU: 27.33.11.0 Series: SENTRON 3LD Width: 155 Weight: 0.9000 Height: 150
