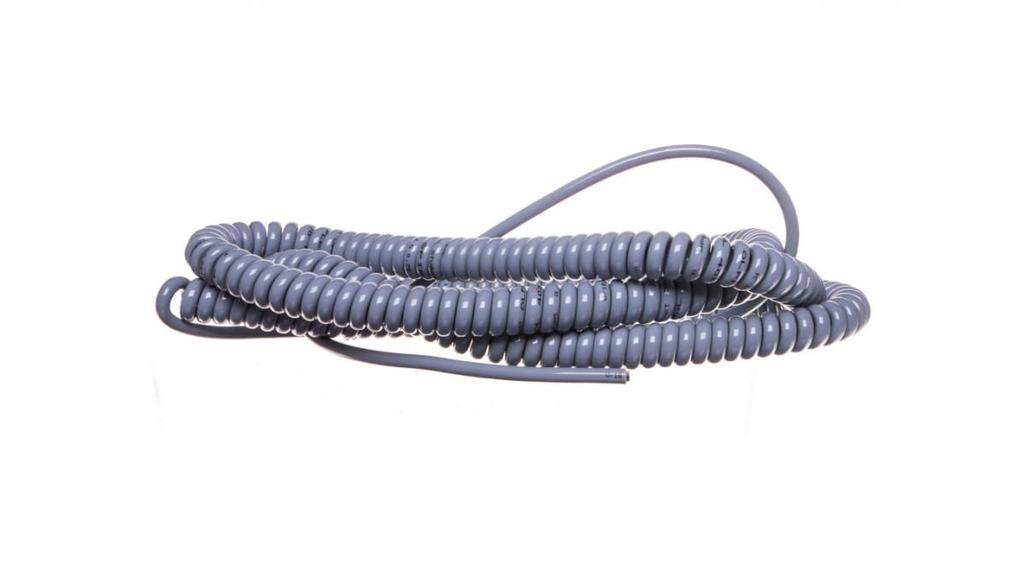

Spiral Cable Olflex Spiral 400 P 4G0.75 2-6M 70002637

Permissible cable temperature for flexible connections [°C] d: 50

Permissible cable temperature for flexible connections [°C] o: 5

Permissible cable temperature for permanently installed cables [°C] up to: 50

Permissible cable temperature for permanently installed cables [°C] from: 5

Spiral length (unstretched) [mm]: 2000

Spiral length (stretched) [mm]: 6000

Manufacturer's index: 70002637

Rated voltage U [V]: 500

Rated voltage U0 [V]: 300

Approximate outer diameter [mm]: 6.2000

series: SPIRAL 400 P

Nominal conductor cross-section [mm2]: 0.7500

CN: 85444995 Length: 360 EAN: 4044773302172 Core identification: Numbers Core insulation: PVC Core class: Class 5 = flexible Insulation color: Gray Number of cores: 4 Outer sheath material: PUR (polyurethane) Flame retardant: According to EN 60332-1-2 Width: 100 Weight: 0.3000 Height: 40 Protective conductor: Yes Size: 6m
