Forklift and warehouse vehicle kit with 4 cameras and a monitor with pedestrian detection
This kit provides forklift operators with an expanded field of view and increases safety in the workplace by detecting pedestrians and other hazards.
• 4 Cameras: The kit includes four high-resolution cameras that provide a panoramic view around the forklift. These cameras are strategically placed to minimize blind spots and provide the operator with full awareness of their surroundings.
• Monitor with Pedestrian Detection: The included monitor displays real-time camera feeds and uses advanced algorithms to detect pedestrians and other objects in the field of view. When a pedestrian or other object enters a hazardous area of the forklift, the system emits a visual and audible alarm, warning the operator of the potential hazard.
• Video Recording:The cameras can record video, which can be helpful in the event of an accident or incident.
• Increased Safety: The kit helps reduce the risk of accidents and injuries by detecting pedestrians and other hazards and alerting the forklift operator to potential danger.
• Improve Productivity: The kit can improve forklift operator productivity by providing improved visibility and awareness of surroundings.
• Reduce Costs: The kit can help reduce costs associated with accidents and injuries, as well as forklift repair costs.
• 1 x 7" Monitor with BSD function
• 4 x IR camera
• 4 x 2 meter camera cable
The AHD (Analog High Definition) system is a completely new technology that combines the advantages of analog transmission with IP quality transmission - HD 720p. The image resolution is 2 times higher than that of standard rear view cameras.
7-inch monitor with a sun visor operating in the AHD system with an IPS matrix
BSD function with an acoustic alarm. The monitor's built-in artificial intelligence to detect pedestrians, cyclists, motorcycles, and animals in the front, rear, and sides of the vehicle.
The built-in DVR records images from all cameras to the card while driving. SD.
• IPS Screen
• Screen Size 10.1 inches
• Resolution: 1024x600p
• Luminance: 500cd/m2
• Viewing Angle: 120 degrees
• Contrast: 500:1
• Power Supply: DC12V~24V
• Storage Temperature -30 ℃ ~ 80 ℃
• Video Input: 4 Channels
• Material: Flat Zinc Alloy / ABS Plastic
• Recording Function: Max 128GB SD Card
• AI Function of Detecting Pedestrians, Cyclists, Motorcycles and Animals (BSD)
• Remote Control
AHD 720P 4-pin camera (ordinary car cameras only have 420TVL)
Streamlined housing made of strong ABS - guaranteed durability
Instead of standard square cameras, our product stands out with a streamlined housing made of strong ABS. This solution provides a number of advantages:
• Increased resistance to damage: The streamlined shape minimizes the risk of catching on obstacles, making the camera more resistant to mechanical damage.
• Easier cleaning: The lack of sharp edges and nooks makes it easier to remove dirt and dust, ensuring optimal image quality.
• Modern design: The streamlined housing gives the camera an aesthetic appearance that suits modern forklifts.
Strong ABS ensures that the camera housing will withstand even the harshest operating conditions. This material is resistant to impacts, scratches, and chemicals, ensuring long-term use without losing functionality.
By choosing a camera with a streamlined housing made of strong ABS, you can be sure that you are investing in a durable and reliable product that will serve you for many years.

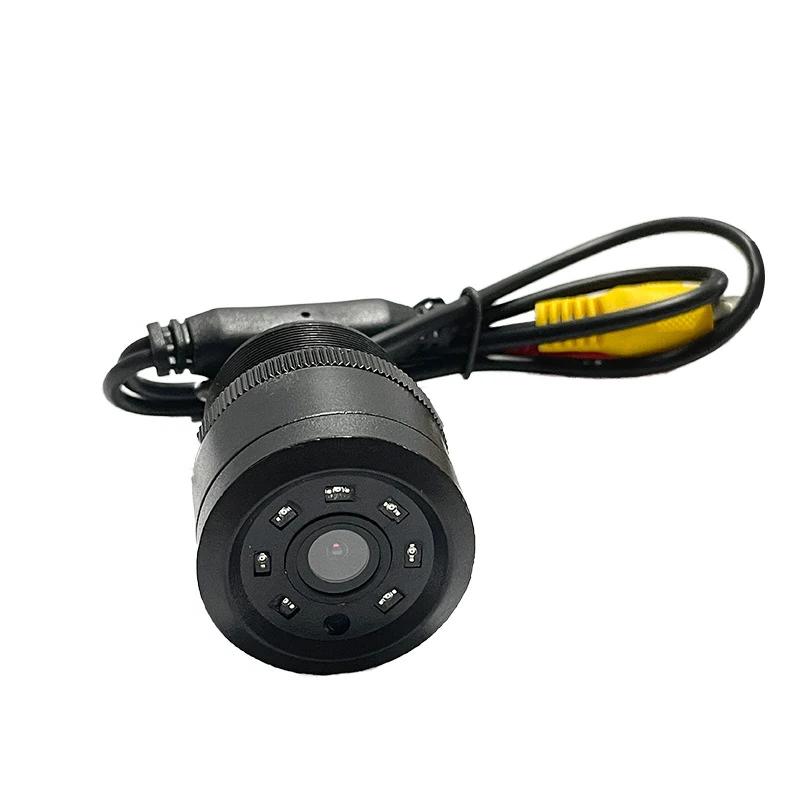

10 high-performance IR LEDs enable the camera to see clearly even in complete darkness. High image quality, excellent colors, and detail are ensured by a megapixel sensor. The camera's resolution is more than twice that of standard reversing cameras.

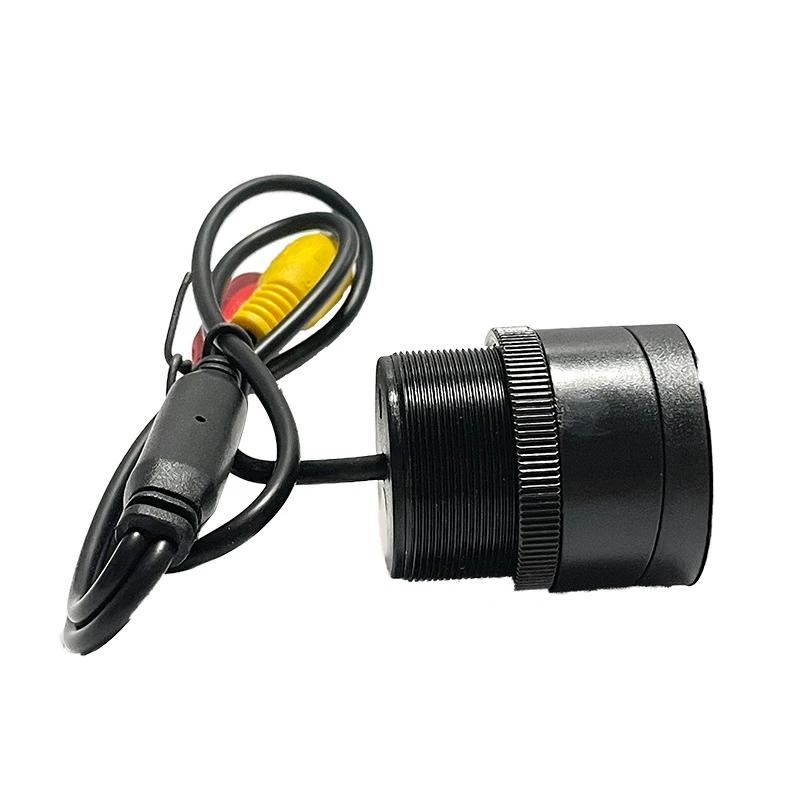

The camera is designed for mounting on the rear or side of the vehicle. Thanks to its special design, the lens can be rotated and angled during installation, allowing it to look straight down and see the outline of the vehicle's bumper or at an angle, depending on the need to eliminate the blind spot.
A 50 cm cable terminated with a mini 4-pin connector is connected to the camera, which is only 6 mm thick at its thickest point. This allows the cable to pass through a small hole or, relatively conveniently, be run through a rubber grommet to the door with the car's wiring.
The set also includes a 2-meter cable/mini 4-pin to 4-PIN reduction.
• Sensor: 1/4 CMOS (720P)
• Resolution: 1280 x 720
• Sensitivity: 0lux (IR ON)
• Shutter: 1/25s
• IR LED: 10 pcs
• Lens: 2.8mm
• Housing: ABS
• System: PAL
• Tightness: IP68
• Shock Resistance: 4G
• Operating Temperature: -20℃ to 70℃
The 4-Camera Forklift Monitor with Pedestrian Detection is a valuable tool that can help improve workplace safety and efficiency. This is especially important in environments where forklifts operate near pedestrians and other people.
