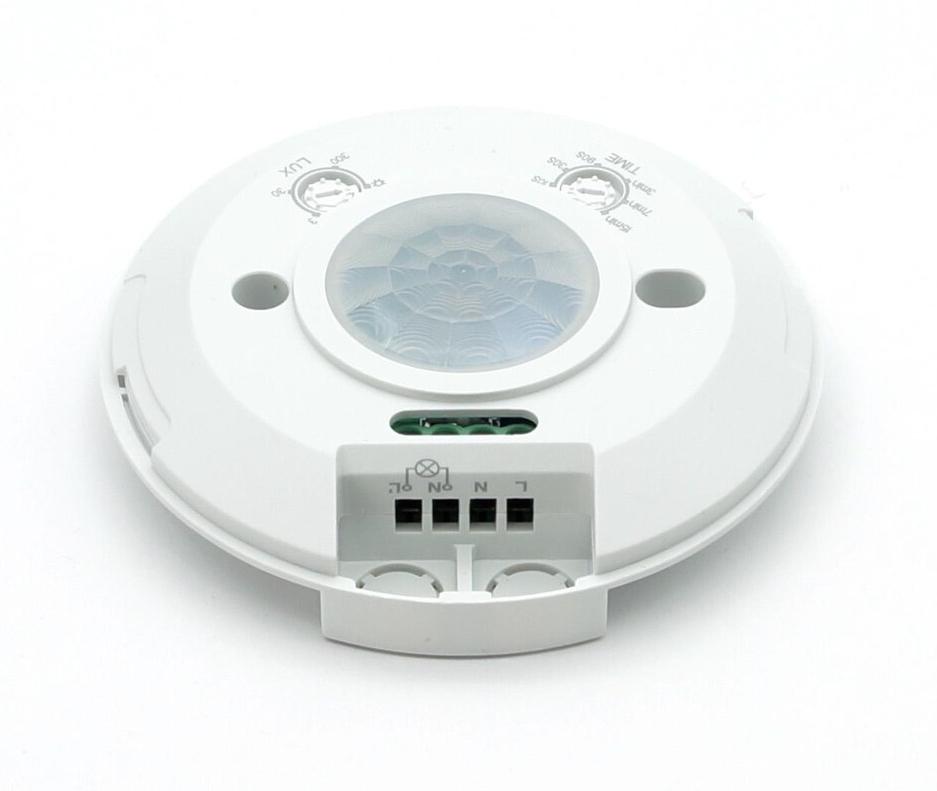

Ceiling Mounted PIR Motion Sensor 360 Degree Ultra Flat White Infrared

PIR CEILING MOTION SENSOR 360 DEGREE ULTRA FLAT WHITE INFRARED

The device is designed to switch on and off automatically after a set time of LED lighting. It uses the infrared emitted by the human body - (PIR Passive Infra Red sensor). The lighting is activated by the movement of an object emitting heat.

Ultra-flat PIR motion sensor - 360° surface-mounted switch:

• Equipped with a sensitive infrared detector.

• Motion sensor for automatic control of lighting or other electrical devices, while saving electricity. The receiver - the lighting - is activated by a PIR motion sensor. For indoor use.

• The product enables automatic switching on of the load using infrared radiation upon detecting movement in the detection field. It has a photosensitive element that allows for identifying the time of day. The device is easy to install and use.

• Product code: ID-7701

• Detection range: 8m at temperature <24°C at movement speed 0.6-1.5 m/s

• Switch-on time: min 10sec ±3sec; max 15min ±2min

• Maximum power of controlled lamps: 400W LED lamps; 800W incandescent light sources

• Light sensor: <3-2000LUX

• Detection field: 360°

• Operating temperature: between -20°C and + 40°C

• Recommended mounting height: 2.2-4m

• Power supply: 220-240V 50Hz

• Sensor type: infrared (PIR)

• Dimensions: diameter 102mm, height 24.9mm

• Power consumption: < 0.5W

• Protection degree: IP20

• Operating humidity: <93%RH

• Declarations: RoHs, CE
