Feature:
1. 8 Channel Headphone Amplifier: This headphone power amplifier features 8 channels design, professional and versatile, catering to both stage performances and recording studio needs
2. Improved Sound Quality: Enjoy improved audible fidelity with virtually any type of headphone, even at maximum volume, ensuring superior sound quality in every listening experience
3. Channel Settings: Each channel boasts 2 headphone outputs, input selection, stereo or mono switch, and 7 segment LED meter, and providing versatility in managing your audible setup
4. Specifications: Featuring a frequency response of 10Hz to 150kHz + 3dB and a dynamic range of 103dB (22Hz to 22kHz), with variable input level, this splitter guarantees a wide application
5. Metal Construction: Crafted from metal material, has high strength, wear resisting, this headphone amp is designed to withstand the demands of various settings, ensuring long lasting performance
Specification:

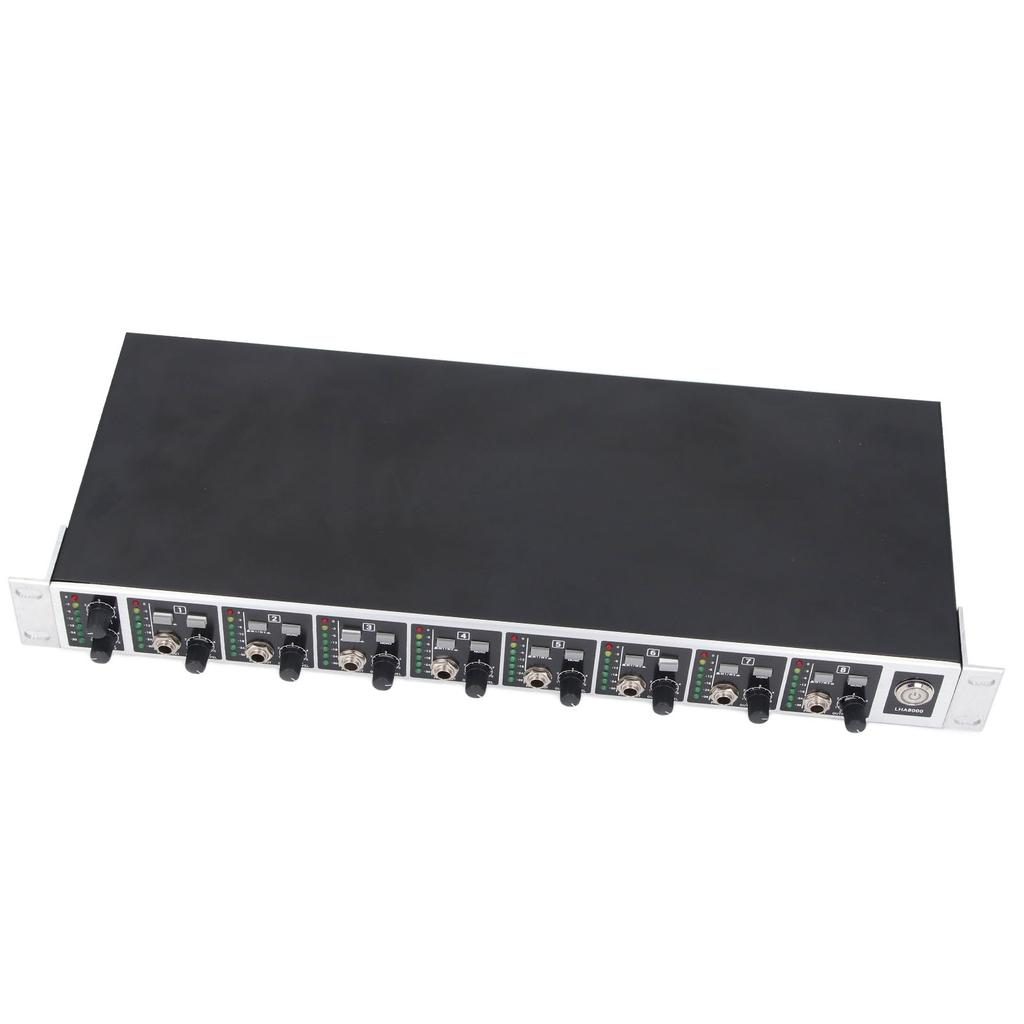

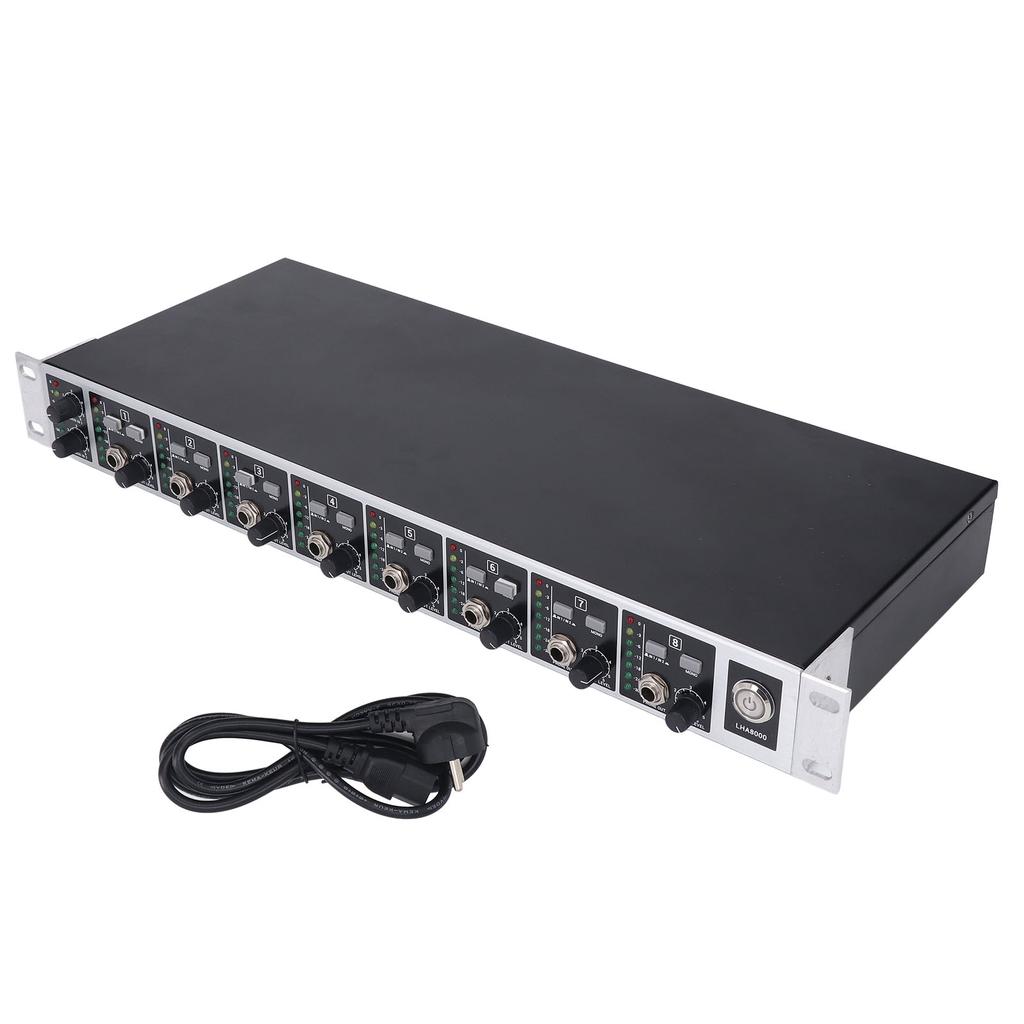

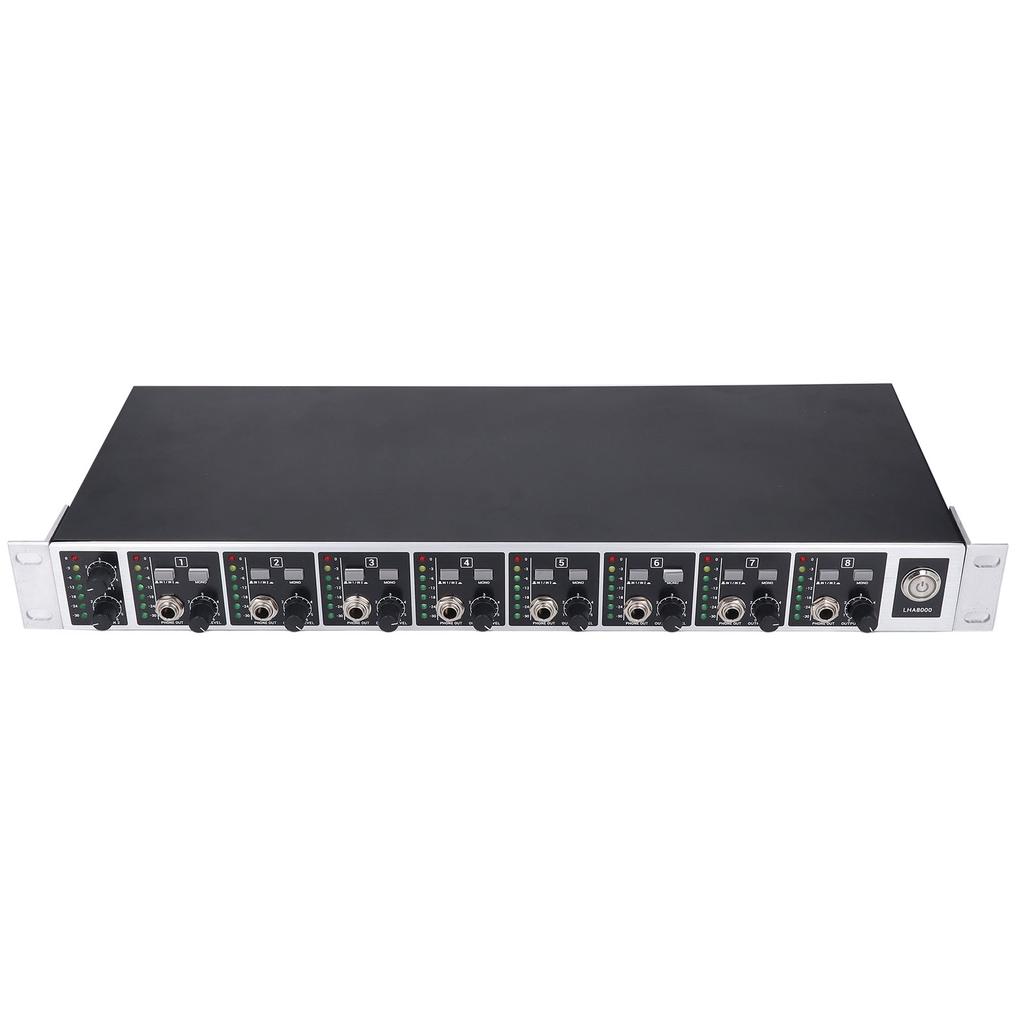

Item Type: 8 Channel Headphone Amplifier
Material: Iron
Machine Input: Standard IEC Socket
Input End:
Main Input: 4 x 1 4 inch TRS, servo balance
Impedance: 20 k Ohm balanced, 10 k Ohm unbalanced
Maximum Input Level: +16 dBu
CMMR: >50dB
Direct Input: 1 x 1 4 inch TRS stereo
Impedance: 15K Ohm
Audible Output:
Headphone Output: 8 x 1 4 inch TRS stereo
Maximum Output Level: +24dBm at 100 Ohm , +19dBm at 8 Ohm
Minimum Impedance: 8 Ohm
System Specification:
Frequency Response: 10Hz to 150 kHz, + 3 dB
Signal Time Domain: >80dB at 0dBu (22 Hz to 22 kHz)
Dynamic Range: 103 dB (22 Hz to 22 kHz)
Distortion (THD): 0.007percent typ. at +4 dBu (1 kHz Gain 1)
Function Control:
Input Level: Variable
Output Level (Per Channel): Variable
Function Switch:
Main Input 1 Main Input 2: Selectable
Mono: Selectable
Indicator:
Input Level: 30, 12, 0dB, down
Output Level: 30, 24, 18, 12, 6, 3, 0dB, down
Power Consumption: 35W
Fuse: T1.25AL
Main Connection: Standard IEC Socket.
Package List:
1 x Headphone Amplifier
1 x Supply Cable
1 x User Manual
