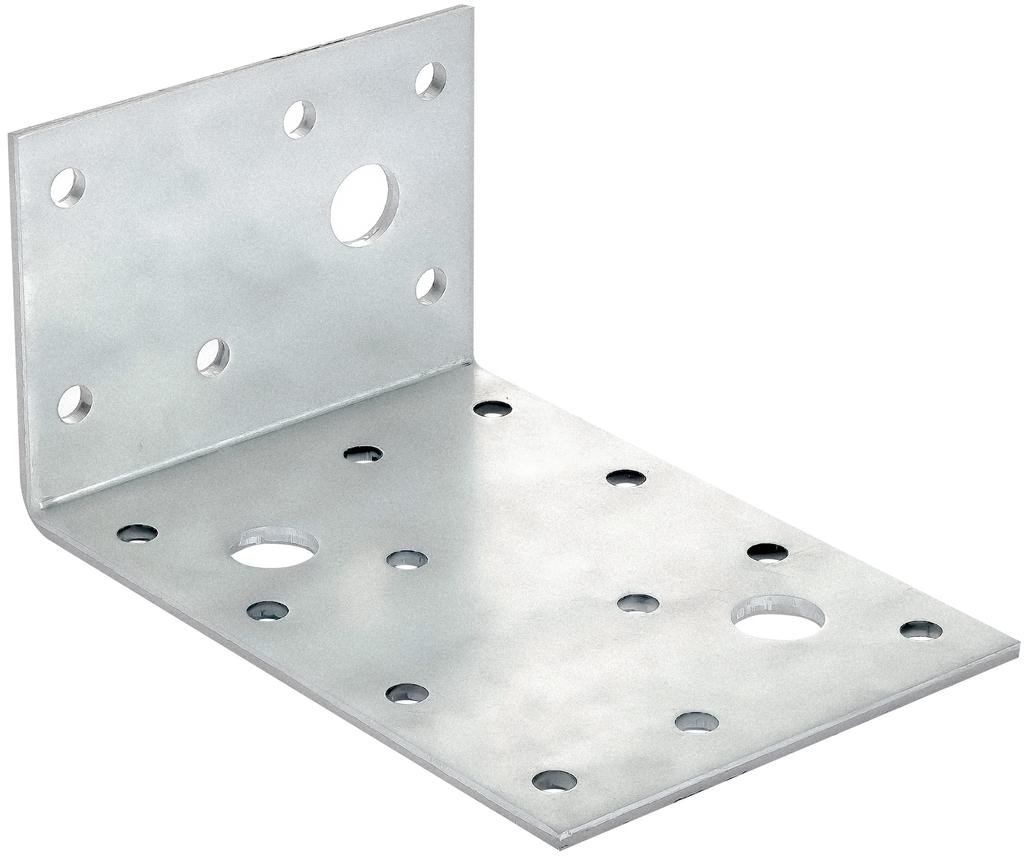

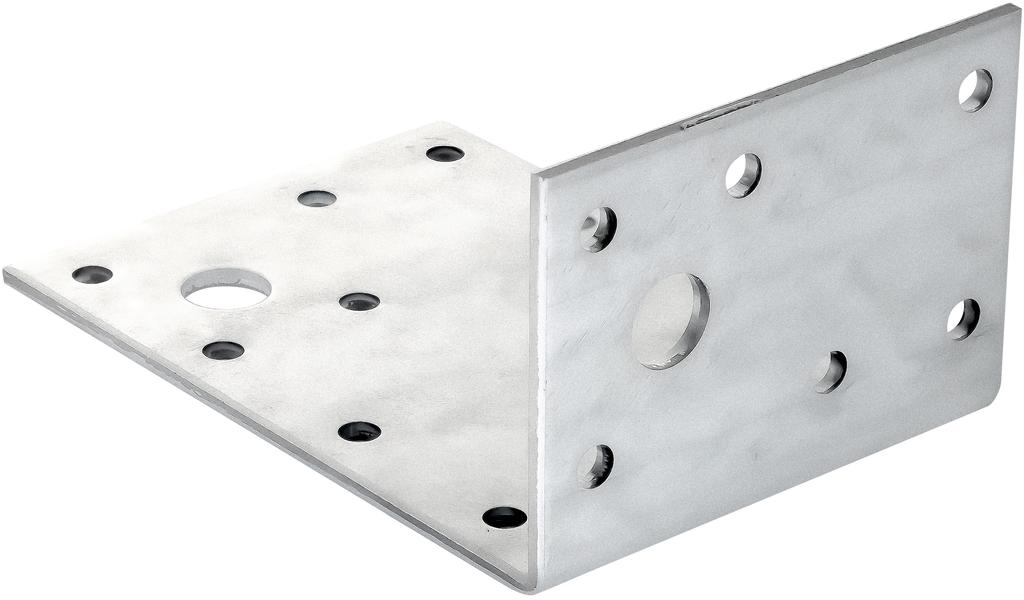

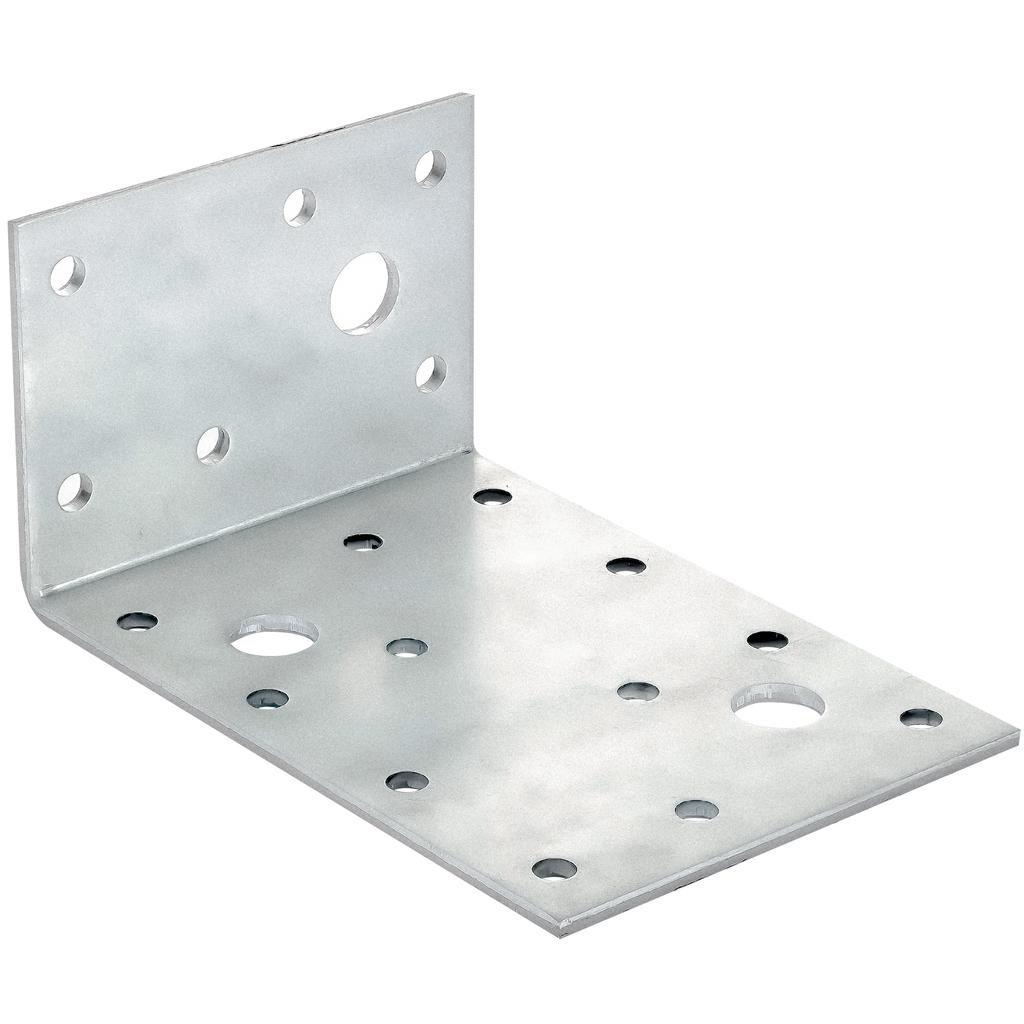

Perforated steel angle connector, connecting
• Model: KŁ9
• Size: 100 x 50 x 70 mm
• Sheet thickness: 2.5 mm
• Packaging: 1 pc.
• Holes Ø 5 mm: 18 pcs.
• Holes Ø 11 mm: 3 pcs.
• Material: Hot-dip galvanized steel DX51D+Z275
Original product from the renowned companyTechniki Zamocowań ®
Customers particularly value Technik Zamocowań products for their durability and a very good price-to-quality ratio.
Application and installation method
• Connections of rafters with wall plates or concrete ring beams.
• Fixing wooden elements to concrete.
• Connections of wooden columns with beams.
• All other structural elements where it is necessary to achieve high load-bearing capacity using unreinforced joints.
This European Standard specifies requirements and test methods for materials, geometry, strength, stiffness, and durability (i.e. corrosion protection) of joints used in load-bearing timber structures.
The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.
Intended for connections: wood - wood, wood - concrete
Main element: solid wood, composite wood, glued laminated wood, concrete.
Secondary element: solid wood, composite wood, glued laminated wood.
