Angle Connector E20/3 E20/3x170x113x95mm (1)

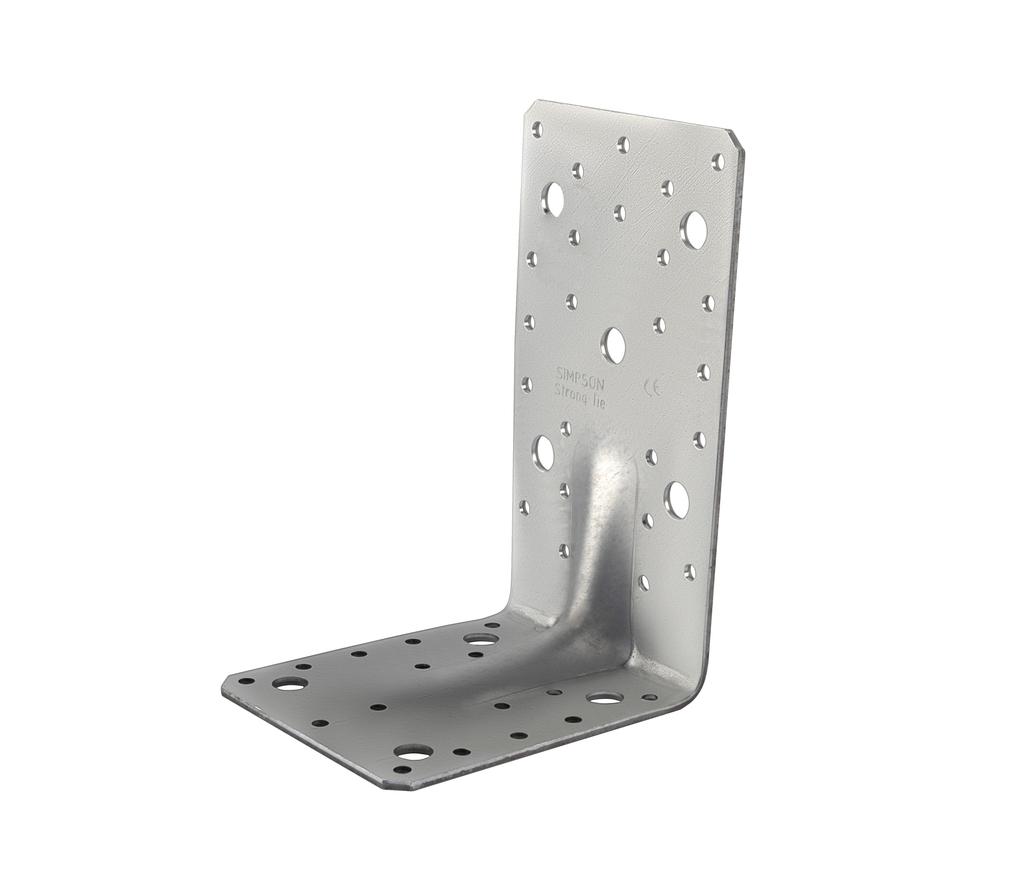

Perforated steel angle joiner

Reinforced angle joiner with embossing

• Model: E20/3

• Size: 170 x 113 x 95 mm

• Sheet metal thickness: 3.0 mm

• Packaging: 1 pc.

• Holes arm A: 24 pcs. x Ø 5 mm, 5 pcs. x Ø 11 mm,

• B arm holes: 16 pcs. x Ø 5 mm, 4 pcs. x Ø 11 mm,

• Material: S250GD steel galvanized with 275 g/m2 (20 µm)

• Intended for connections: wood - wood, wood - concrete

Original product of the renowned companySIMPSON Strong-Tie ®

The E20 reinforced angle connector belongs to the group of reinforced angle connectors that allow for the transfer of most load combinations in typical wooden structures.

Thanks to their larger dimensions and various perforations (including holes for screws and anchors), the applications of these angles are very wide.

Application and method of installation

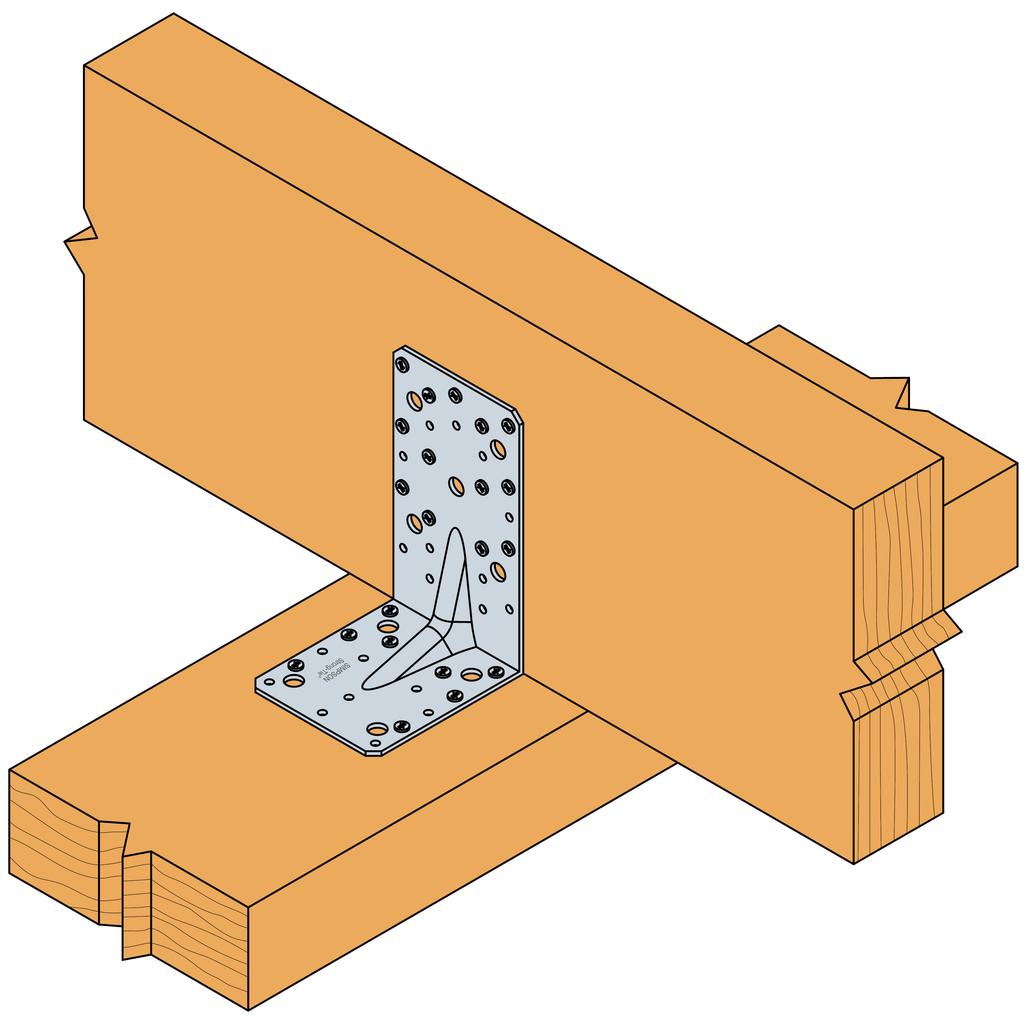

• Connections of rafters with wall plate or concrete ring beam.

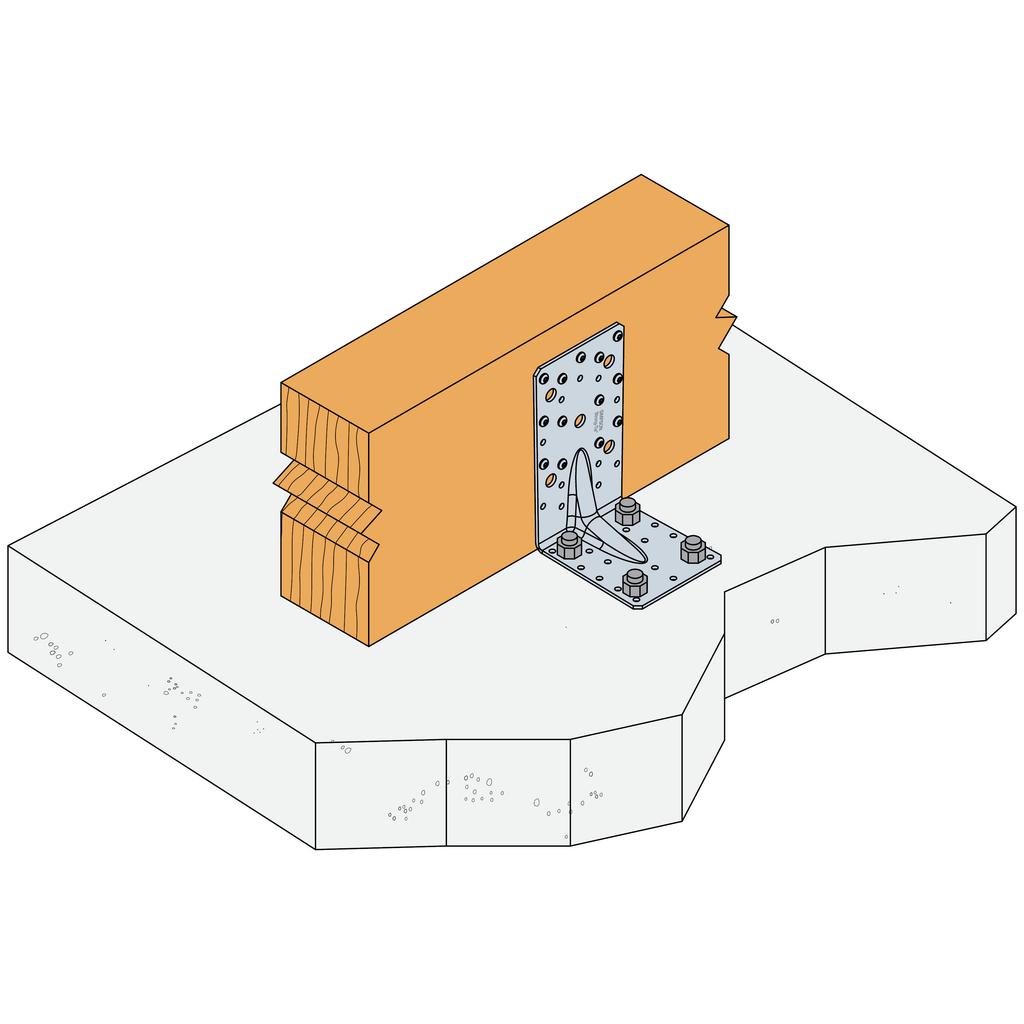

• Connections of wooden columns with beams or concrete.

• All other structural elements where high load-bearing capacity of the connection is necessary.

1. Simple assembly

The connector has been designed to be intuitive and quick to install, which significantly reduces work time and makes it ideal for both professionals and DIY enthusiasts.

2. Strong and durable connections

Thanks to the use of high-quality steel (S250GD steel) and the Sendzimir hot-dip galvanizing process, the connector ensures exceptional strength and durability of connections in a variety of wooden structures.

3. High load-bearing capacity

The connector has excellent load-bearing capacity parameters that have been statically calculated, ensuring the safety and stability of the constructed elements, which is crucial in load-bearing structures and garden architecture.

4. Usage class 2

Characterized by material moisture corresponding to a temperature of 20°C and a relative humidity of the surrounding air exceeding 85% only for a few weeks a year (e.g. open sheds or unheated attics)

This European Standard specifies requirements and test methods for the materials, geometry, strength, stiffness, and durability (i.e., corrosion protection) of joints used in load-bearing timber structures.

The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products supplied to our contractors are safe and suitable for specific tasks.

Intended for connections: wood - wood, wood - concrete Main element: solid wood, composite wood, glued laminated wood, concrete. Secondary element: solid wood, composite wood, glued laminated wood.
