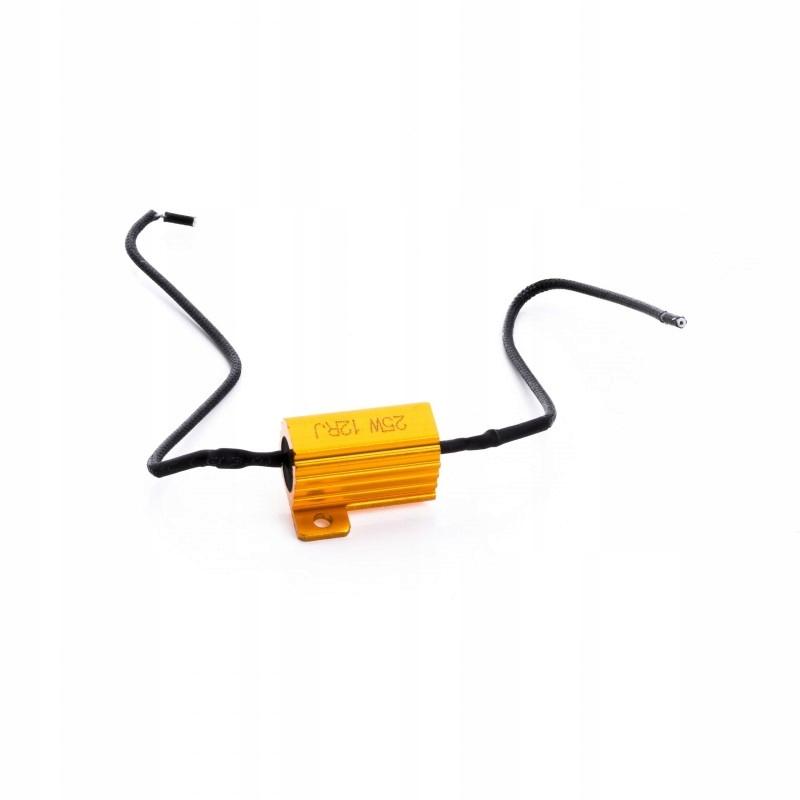

CANBUS LED BULB RESISTOR 25W 12 Ohm CHEATBOX

RESISTOR CANBUS LED BULB 25W 12 ohm CHEATBOX

⚡Technical data :

✅Power resistor 25W/12V

✅Type:Resistor passive

✅Application: LED Technology

✅Resistance: 12 OHM

✅Maximum power: 25W

✅Voltage: 12V

✅At a voltage of 13.5V, the resistor generates a load of 15.19W

✅Operating temperature: -40°C to + 50°C

✅The resistor is a passive device that generates an additional load to eliminate problems with electronically checking whether the bulb is burned out. Checking whether a bulb is burned out is done in two ways:

✅1. Checking signal continuity - whether current is flowing through the system (including the bulb).

✅2. Checking the load - if the load differs significantly from the standard one, the computer displays an error (This may happen when we install LED bulbs, which draw much less current than standard bulbs) - in this situation, you should select the appropriate resistor, which will help eliminate the load difference, which causes the "burned out bulb" error (as well as other errors and messages from the on-board computer, e.g., "no bulb", flashing lights, disconnecting lights, or incorrect turn signal frequency).

✅The system is used in cars with Can-Bus and others.

✅Attention! The resistor must be installed on a metal element due to the possibility of heating.
