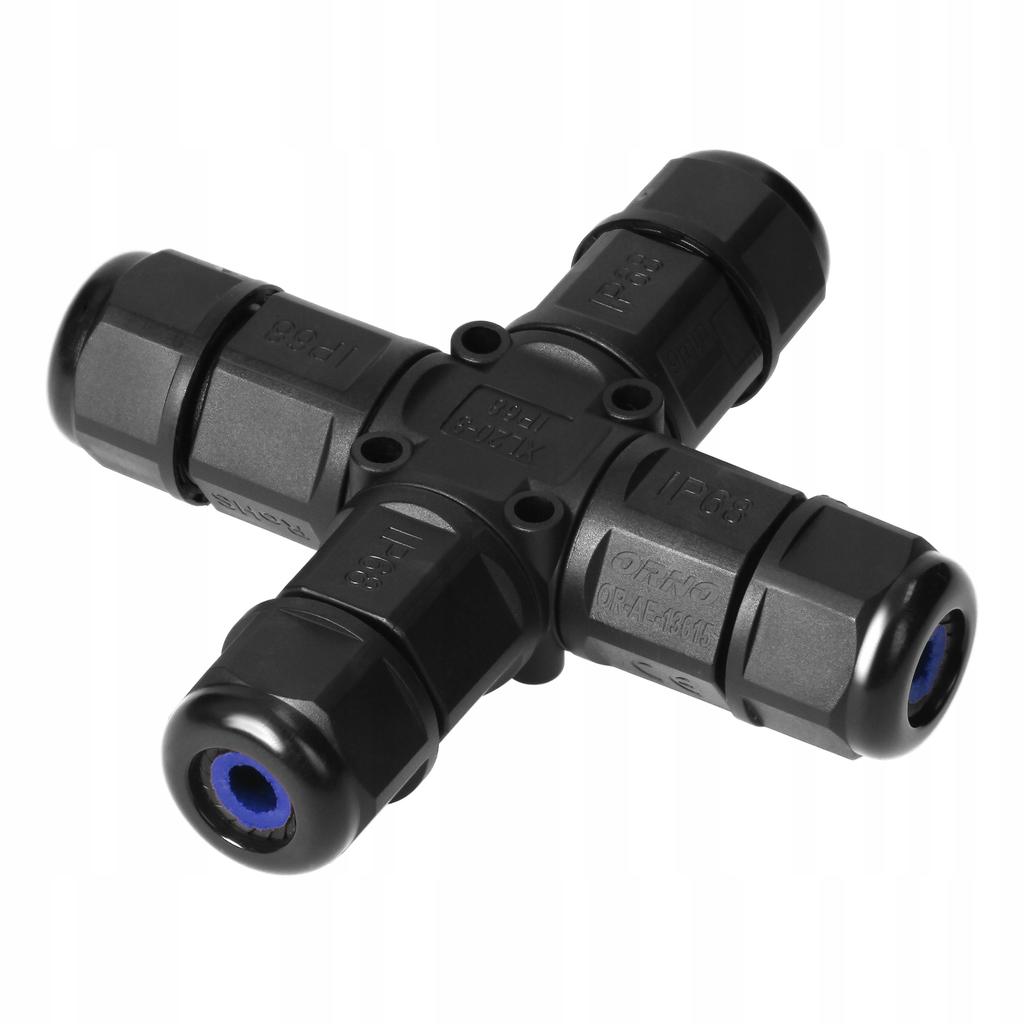

Cable Connector Quadruple Ip68 3X4Mm2

Cable cross-section: 4mm2

Protection degree (IP): 68

Flame-retardant housing: yes

UL94 Flammability Class: V1

Dimensions - length (mm): 100mm

Possibility of in-ground installation: yes

Dimensions - width: 100mm

The small-sized four-port cable connector (X-type) is suitable for cables with a maximum cross-section of 4mm2. The high IP68 degree of protection protects against external factors, and the innovative O-Ring sealing protects the seal from destructive external, chemical, and mechanical conditions.

The material used to manufacture the connector is resistant to UV radiation and suitable for outdoor use. The rigid and compact construction and innovative sealing enable in-ground installation. The contacts are made of brass, additionally protected against oxidation with a layer of nickel.

The gland is equipped with a thick gasket that thoroughly seals the inserted cables.

Connector type: X-type four-way connector Number of wires: 3 Current: 25A Cable diameter: 6-12mm Rated voltage: 450 V Contact material: nickel-plated brass UV radiation resistance: yes Connection type: screw Housing material: PA6 Diameter: 24mm
