5-Section Manifold With Filter and Compressor Pe 25, Hunter

Hunter PGV irrigation collector 5 sections with filter and drain valve for PE 25 pipe

Hunter Irrigation Set for 5 Sections - An Effective and Solid Solution!

Take care of comprehensive irrigation of your garden with the Hunter set.

It is a complete installation, ensuring not only irrigation efficiency, but also easy maintenance and preparation of the system for the arrival of winter.

✨5 Hunter PGV solenoid valves without flow regulation:

• Reputable Hunter solenoid valves, perfect for irrigation systems of varying complexity.

✨Watermil 1" Filter:

• Anti-sand filter from Watermil, ensuring water purity and protecting nozzles from contamination.

✨Compressor Connection/Irrigation Drain Valve:

• Enables quick and efficient purging of stagnant water from the system before the arrival of winter, protecting it from the harmful effects of frost.

✨5 Collector Tees Swivel:

• Flexible tees enable free connections between collector elements, adapting the irrigation system to individual needs.

✨2 Swivel Collector Elbows:

• Ensure efficient and flexible construction of the pipeline system.

✨5 PE 25-1"M Connectors with External Thread and 1 PE 25-1"F Connector with Internal Thread:

• Connecting elements enabling the assembly and connection of individual collector components.

• PE Pipe Diameter:25 mm

Install an effective and solid irrigation system - choose a ready-made Hunter set! Thanks to the comprehensive design and high-quality elements, your garden will always be well-kept.

Assembly of the entire manifold does not require the use of any tools!! Just use your hands :)

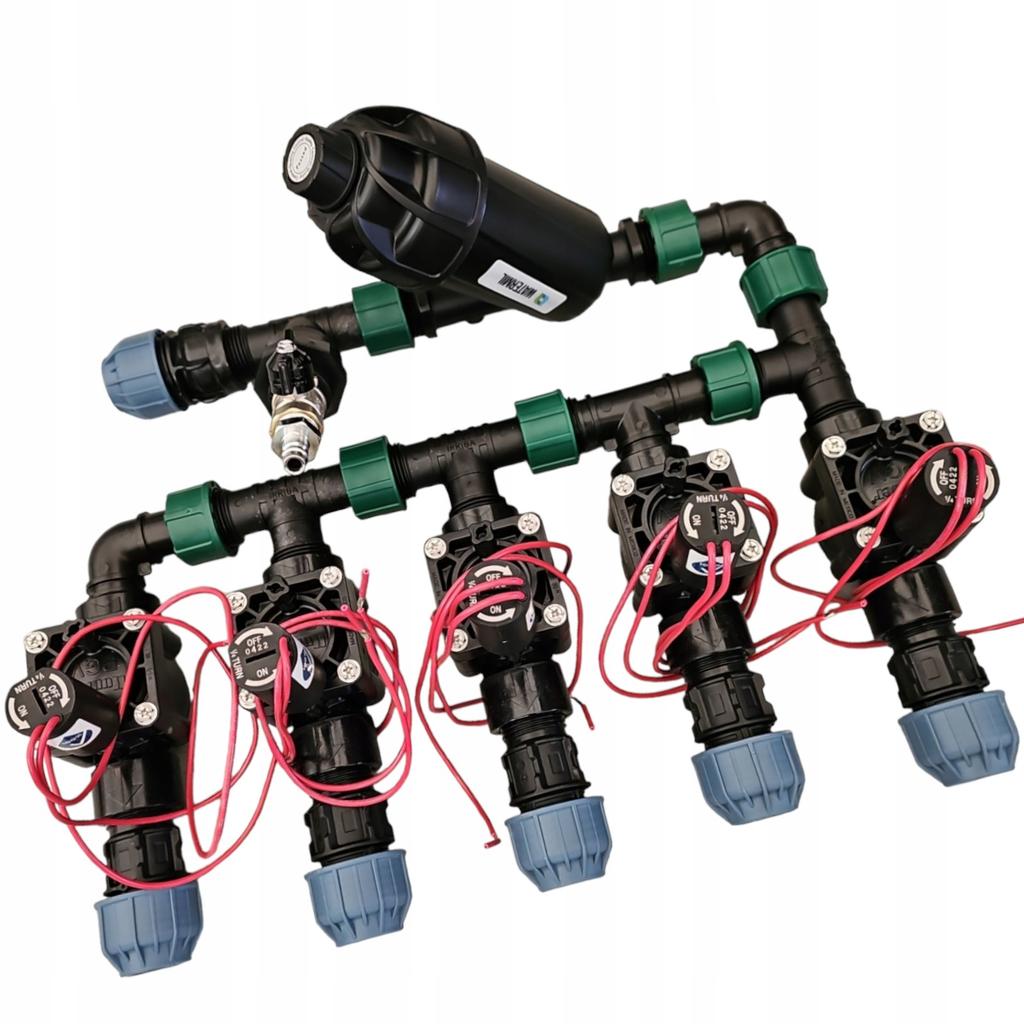

⚡ The manifold should be screwed according to the diagram as in the photo above.

⚡Threaded connections between solenoid valves and connectors The outlet connections, solenoid valves, and collector tees should be protected with Teflon tape, i.e., wrapped with the included Teflon tape, making about 16 wraps around each threaded connector.

⚡The compressor connection is already Teflon-coated by us!! All you need to do is tighten it completely.

⚡We will give you the Teflon tape necessary to protect the collector against possible leaks for FREE!!

NOTE!! The collector connectors (tees and elbows) used in the collectors are always from the same company (Tavlit, Irritec, or Elysee - depending on availability).

Each collector will consist of tees and elbows from the same company!!
