Vhm Z1 Cutter for PVC/Corian D3 I6 L60 S6 / Negative

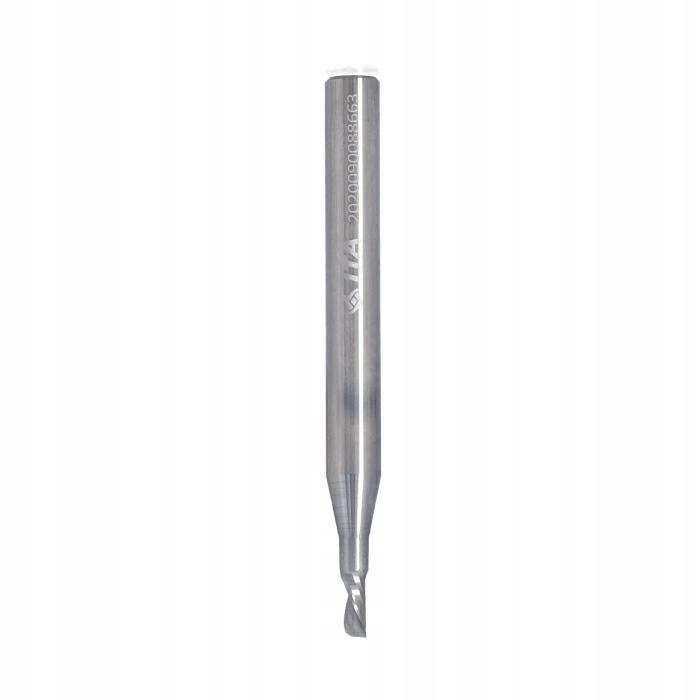

ITA TOOLS Z1 Solid Carbide Spiral End Mill

Z1 solid carbide end mills from the premium series are manufactured from a special type of carbide that is characterized by long service life. Designed for machining on CNC machines and handheld/stationary milling machines.

A wide range of dimensions and the possibility of applying a coating will allow you to customize the tool to your individual needs.

• Diameter (D [mm]): 3.00

• Working height (I [mm]): 6.00

• Shank diameter (S [mm]): 6.00

• Total length (L [mm]): 57.00

• Revolutions (REVOLUTION): Right-hand

• BODY (BODY): Solid Carbide

• Number of teeth (Z): 1

• single-flute cutter with a minimum helix angle of 10 degrees

• downward chip ejection.

• special type of carbide characterized by long service life*.

• variant of coating application*.

PE - polyethylene,

PE-LD - low-pressure polyethylene,

PE-HD - high-pressure polyethylene,

PP - polystyrene,

PS-E - expanded polystyrene (Styrofoam),

PW - polycarbonate,

PVC - polyvinyl chloride,

PETF - polyesters,

PA - polyamide, ABS, POM, PMMA, acrylic, etc.

Designed for use on CNC machines and milling machines.
