Feature:
1. SDI Splitter 1x4: Splits one SDI signal (SD SDI HD SDI 3G SDI) into 4 signals. It allows you to assign one SDI source to 4 monitors or SDI recorders at the same time without losing any signal. Support up to 1080P 60Hz HD resolution input and output.
2. SDI Signal Formats: This SDI splitter supports SD SDI (270Mbps), HD SDI (1.485Gbps) and Full HD 3G SDI (2.97Gbps) video formats. Plug and play, no driver required, easy and fast to use.
3. Extended Functions: This product has the functions of built in equalizer, for Reclocker and cable driver, and supports the maximum cable length (for Belden 1694A) as follows: SD SDI supports 300m, HD SDI supports 200m, and 3G SDI supports 100m (this is a theoretical value, the actual situation is related to the cable quality).

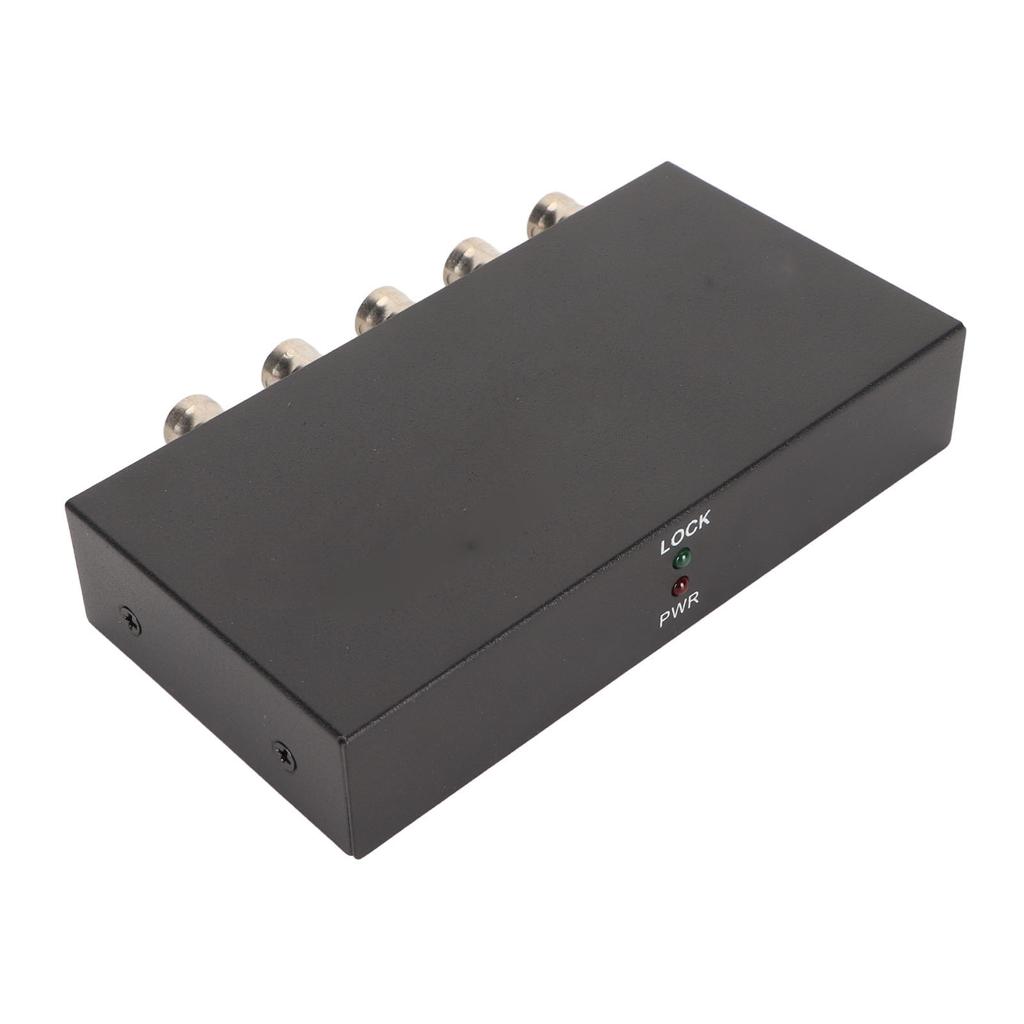

4. Smart Design, LED Work Light: It can automatically detect different SDI signals, when it detects a valid SDI input signal, the LED will turn green, otherwise, the LED will not light up.
5. Aluminum Alloy Shell, Wide Application: Aluminum alloy shell, strong and durable, long service life, with high stability and reliability. It is widely used in all workplaces such as TV stations, security monitoring, training places, etc.
Specification:
Item Type: SDI Splitter
Material: Aluminium Alloy

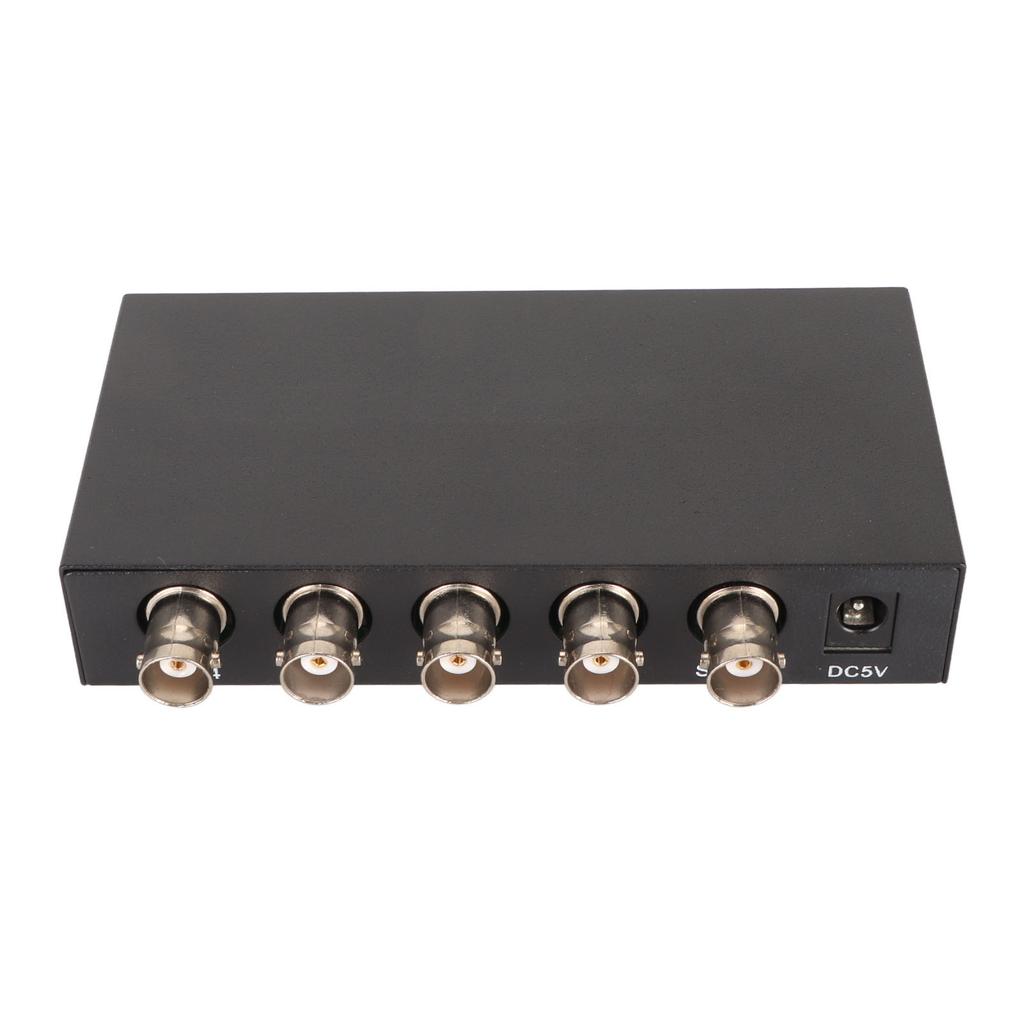

SDI Output Port: BNC SDI*4
SDI Standard: Compatible with SMPTE 424M, SMPTE 292M and SMPTE 259M C
SDI Signal Format: SD SDI, HD SDI, 3G SDI
SDI Speed: 143 2970MB S
SDI Resistance: 75 Ohm
SDI Output Resolution: 480i60Hz, 576i50Hz, 720P50 60Hz, 1080i50 60Hz, 1080P24 25 30 50 60Hz
SDI Signal Output Range: 800mVp p
Support Maximum Cable Length (for Belden 1694A) as Follows: SD SDI Support Approx. 300m 984.3ft, HD SDI Support Approx. 200m 656.2ft, 3G SDI Support 100m 328.1ft (This is a theoretical value, the actual situation is related to the quality of the cable)
Power: DC 5V; <2W
Temperature: 0 celsius 60 celsius
.
Package List:

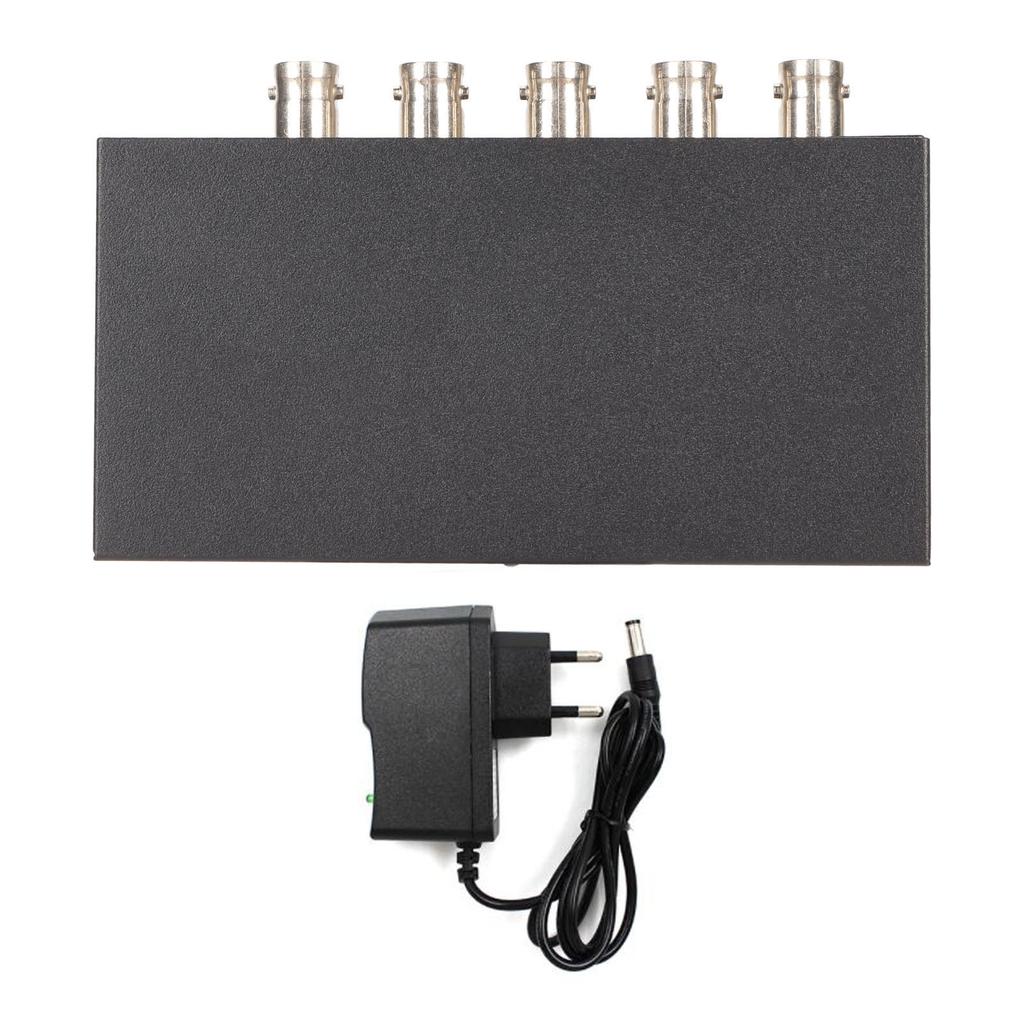

1 x SDI Splitter1 x Power Adapter 1 x Instruction Manual
