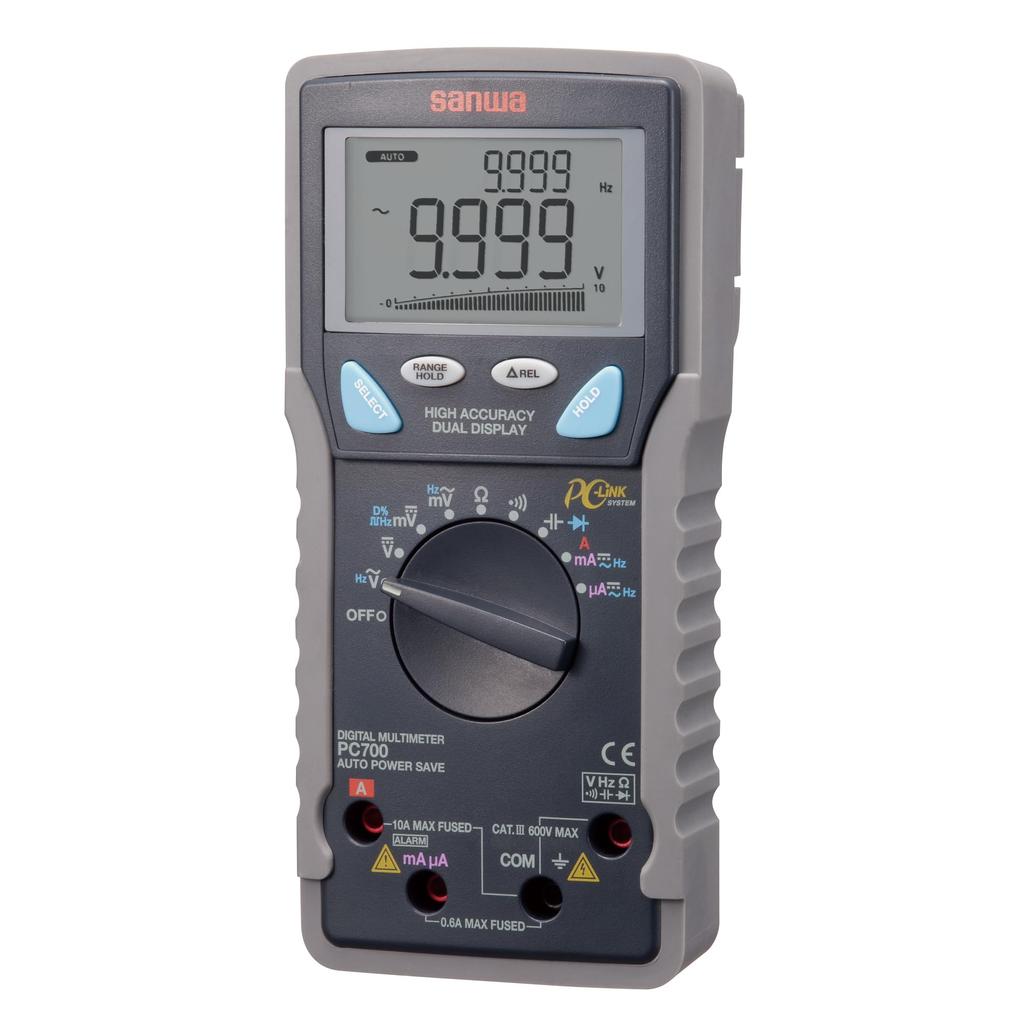

Sanwa Electric Instrument S SANWA Digital Multimeter PC700

---------------------------------------------------------------------- [JOOM-Certified Top Store] 🔹 Operated by a certified Japanese seller. Shop with confidence. ---------------------------------------------------------------------- ●This digital multimeter is designed for measuring low-voltage circuits. ●PC connectivity is available (optional). ●6000 & 9999 counts. ●Supports true RMS (Rough Mean Squared) values. [Measurement Specifications] ●DCV: 60m/600m/9.999/99.99/999.9V ●ACV: 60m/600m/9.999/99.99/999.9V ●DCA: 600μ/6000μ/60m/600m/6/10A ●ACA: 600μ/6000μ/60m/600m/6/10A ●Resistance: 600/6k/60k/600k/6M/60MΩ ●Capacitor capacitance: 60n/600n/6μ/60μ/600μ/6m/25mF ●Frequency: 15Hz to 50kHz ●Logic frequency: 5Hz to 1MHz ●Duty cycle: 0% to 100% ●Continuity: Buzzer sound at 20Ω to 300Ω or less, open circuit voltage approx. 1.2V ●Diode test: Open circuit voltage approx. 3.5V [General Specifications] ●Display: LCD ●6000 & 9999 counts ●AC detection: Average value method ●Built-in fuse: 11A/1000VIR20kA φ10×38mm, 0.4A/1000VIR30kA φ6.3×32mm ●Power supply: 6F22 (9V battery) ×1 ●Dimensions/Weight (product only): H175 x W80 x D40 mm / approx. 360 g ●Dimensions/Weight (with holster attached): H184 x W86 x D52 mm / approx. 430 g
