Feature:

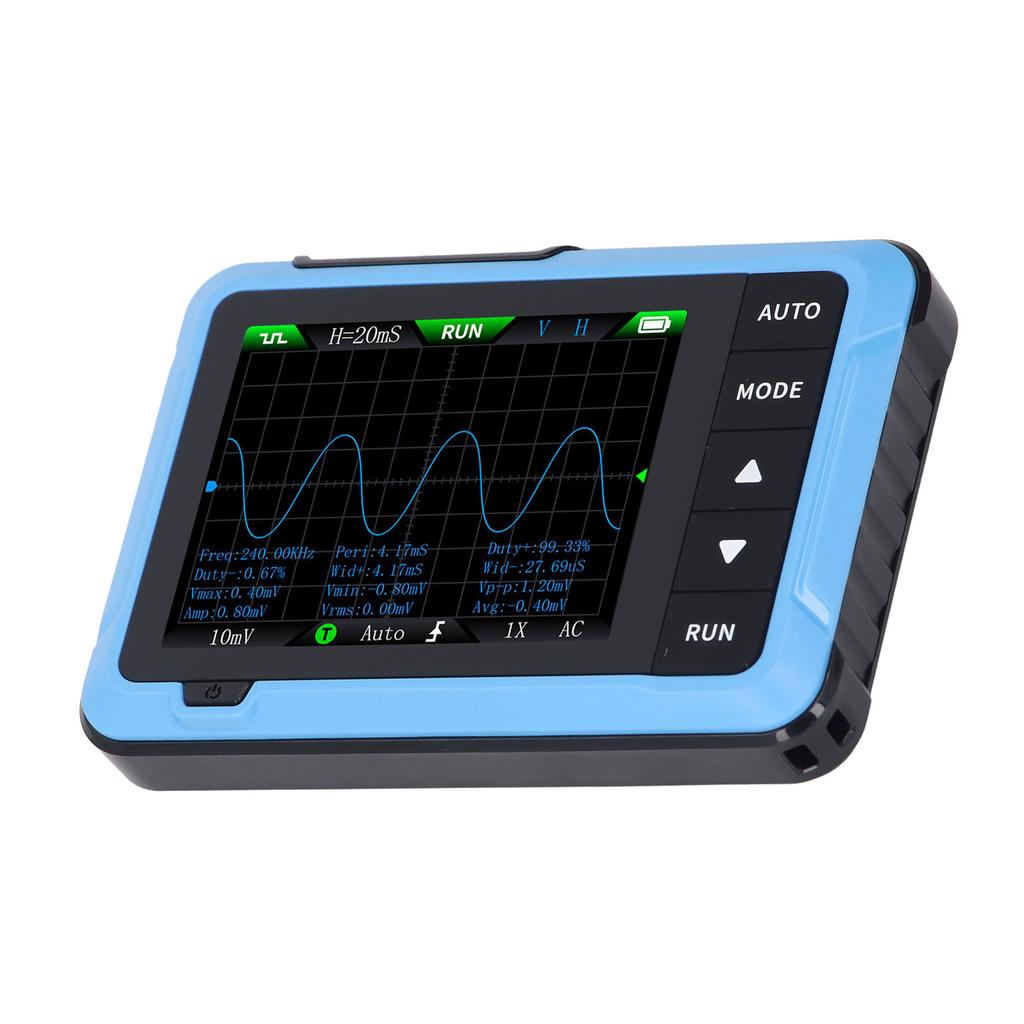

1. [Handheld Oscilloscope] Features 10MHz high bandwidth, 48MS/s high sampling rate, 50ns to 20s time base range, capable of measuring voltages up to 400V.
2. [DDS Signal Generator] Can output 14 waveforms including sine waveform, square waveform, sawtooth waveform, half waveform, full waveform, maximum waveform output frequency is 50KHz.
3. [Easy to Measure] Equipped with one key automatic configuration function. Long press AUTO key for quick baseline calibration and waveform display without complex debugging.
4. [2.8 Inch Display] The oscilloscope is equipped with 2.8 inch high definition LCD screen, with 320x240 resolution, the data is clear and intuitive.
5. [Rechargeable Design] Portable oscilloscope has built in 1000mAh lithium cell, offering about 4 hours service life, supporting Type C interface charging.
Specification:
Item Type: Handheld Oscilloscope
Material: ABS
Sampling Rate: 48MS/s
Bandwidth: 10MHz
Vertical Sensitivity: 10mV/Div-10V/Div
Time Base Range: 50ns-20S
Display Data: 12
Trigger Mode: Auto, Normal, Single
Measurement Voltage Range: X 1: ±40V (Vpp: 80V), X 10: ±400V (Vpp: 800V)
Calibration Square Waveform: Frequency: 1K; Duty Ratio: 50%; Amplitude: 3.3V
Trigger Edging: Rising, Falling
Coupling Method: AC DC
Signal Generator:
Frequency: 0-50KHz
Duty Ratio: 0-100 Percent (Square Waveform and Sawtooth Waveform)
Amplitude: 0.1-3.0V
Waveform: Sine Waveform, Square Waveform, Sawtooth Waveform, Half Waveform, Full Waveform, Positive Step Waveform, Negative Step Waveform, Noise Waveform, Exponential Rise, Exponential Fall, DC Signal, Multi Sound, Sync Pulse, Lorentz Waveform
Others:
Display: 2.8 Inch
PPI: 320x240
USB Charging: 5V 1A
Lithium Cell Capacity: 1 x 1000mAh Rechargeable Lithium Cell (Built in)
How to Use:
Remove the product, install and use.
Package List:
1 x Main Unit
1 x Crocodile Clip Probe
1 x Adapter
1 x P6100 High Voltage Probe
1 x Type C Data Cable
1 x User Manual
1 x Lanyard
1 x Storage Bag
