Feature:
1. Easy To Use: 2 measuring pens and a thermocouple are easy to install and use, allowing it to be widely used in electrical testing, car repairing, industrial temperature measuring, etc.

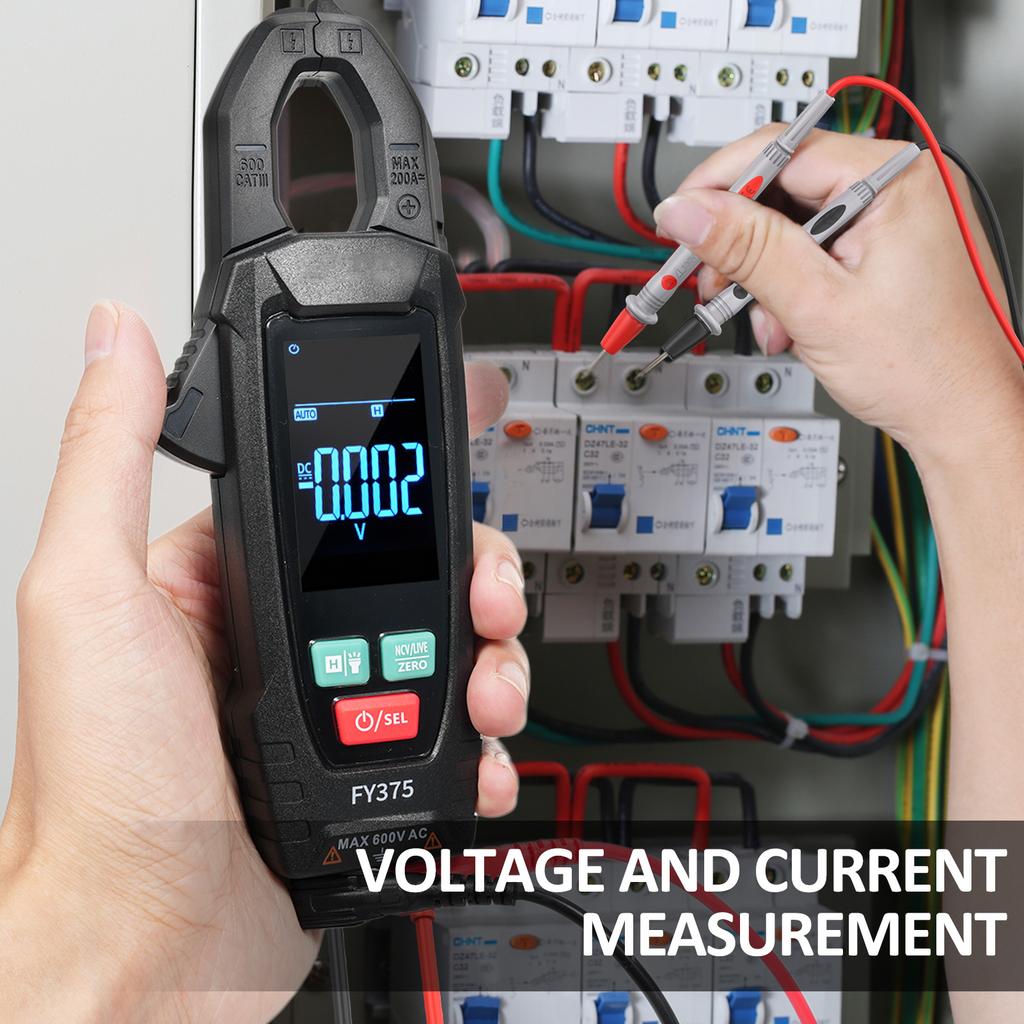

2. Multifunctional Clamp Meter: True RMS digital clamp meter with 5999 counts, wide measuring range and high accuracy. It can test AC current, DC current, AC voltage, DC voltage, temperature, capacitance, resistance, continuity, diode, frequency and live wire.
3. NVC Induction: bring the NVC part close to the wire, and it will send out an audible and visual alarm when the AC voltage is detected. Live wire detection: use measuring pen to recognize live line safely and easily.

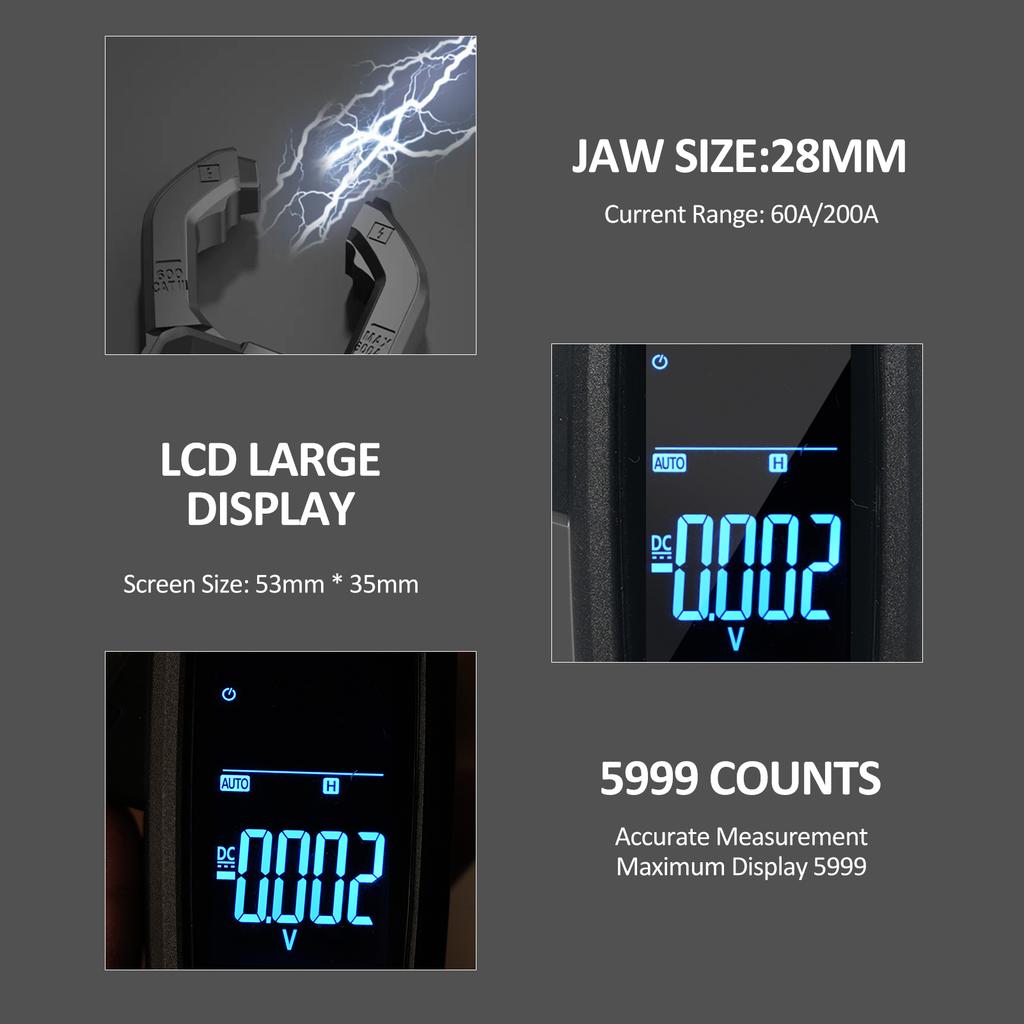

4. LCD Display: Large and clear LCD screen greatly enhances the reading experience and makes it easy to read, screen size 53x35mm. With LED flashlight to illuminate the measurement object without fear of dark environments, ensuring safe work.

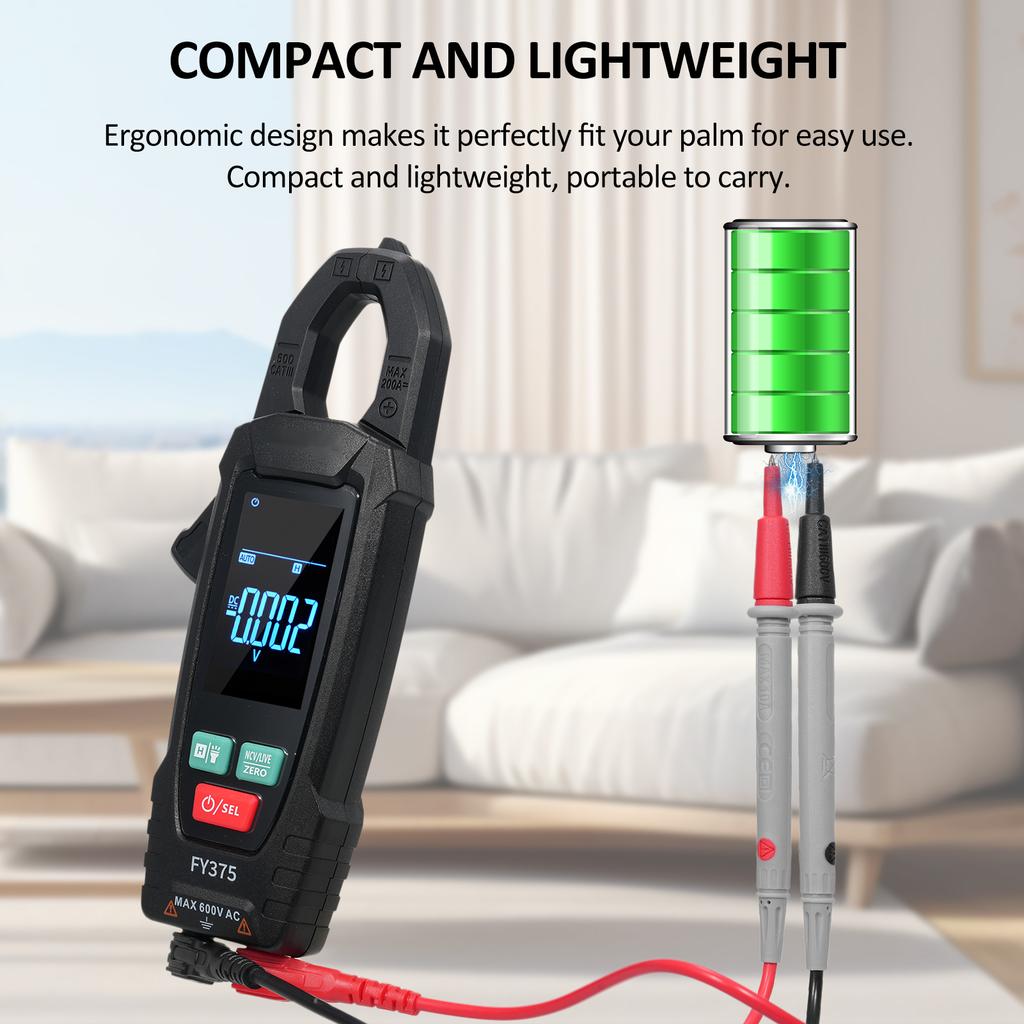

5. Premium Design: Powered by 2 AAA batteries (not included), with low voltage prompt. It will auto shutdown to save battery if no operation for 10 minutes. Ergonomic design makes it perfectly fit your palm for easy use. Compact and lightweight, portable to carry.
6. 28mm Jaw Opening: jaw opening of 28mm to measure current without touching or interrupting the circuit.
7. Data Hold Function: Hold the measured data for conveniently checking or observing data.
Specification:
Features:
Easy To Use: 2 measuring pens and a thermocouple are easy to install and use, allowing it to be widely used in electrical testing, car repairing, industrial temperature measuring, etc.
Multifunctional Clamp Meter: True RMS digital clamp meter with 5999 counts, wide measuring range and high accuracy. It can test AC current, DC current, AC voltage, DC voltage, temperature, capacitance, resistance, continuity, diode, frequency and live wire.
NVC Induction: bring the NVC part close to the wire, and it will send out an audible and visual alarm when the AC voltage is detected. Live wire detection: use measuring pen to recognize live line safely and easily.
LCD Display: Large and clear LCD screen greatly enhances the reading experience and makes it easy to read, screen size 53x35mm. With LED flashlight to illuminate the measurement object without fear of dark environments, ensuring safe work.
Premium Design: Powered by 2 AAA batteries (not included), with low voltage prompt. It will auto shutdown to save battery if no operation for 10 minutes. Ergonomic design makes it perfectly fit your palm for easy use. Compact and lightweight, portable to carry.
28mm Jaw Opening: jaw opening of 28mm to measure current without touching or interrupting the circuit.
Data Hold Function: Hold the measured data for conveniently checking or observing data.
Specifications:
Model: FY375
Tong Head Opening: 28mm
DC AC Voltage Range: 6V 60V 600V
DC AC Voltage Resolution: 0.001V 0.01V 0.1V
Resistance Range: 600 Ohm 6k Ohm 60k Ohm 600k Ohm 6M Ohm 60M Ohm
Resistance Resolution: 0.1 Ohm 0.001k Ohm 0.01k Ohm 0.1k Ohm 0.001M Ohm 0.01M Ohm
Capacitance Range: 6nF 60nF 600nF 6uF 60uF 600uF 6mF 60mF
Capacitance Resolution: 0.001nF 0.01nF 0.1nF 0.001uF 0.01uF 0.1uF 0.001mF 0.01mF
Frequency Range: 40Hz 400Hz 1KHz
Frequency Resolution: 0.01Hz 0.1Hz 0.001KHz
Temperature Measurement Range: 20 celsius 1000 celsius 4 Fahrenheit 1832 Fahrenheit
Temperature Measurement Resolution: 1 celsius 2 Fahrenheit
AC Current Range: 60A 200A
AC Current Resolution: 0.01A 0.1A
DC Current Range: 200A
DC Current Resolution: 0.1A
Diode: √
Continuity: Built in buzzer will beep when the tested resistance is less than 50 Ohm
NCV: √
Live Wire: √
Shutdown: 10 minutes without signal input, the instrument automatically shut down
Date Hold: √
Flashlight: √
Use Environmental Conditions: 600V CAT. III Pollution degree: 2; Altitude <2000 m
Working Environment: 32 Fahrenheit 104 Fahrenheit (0 40 celsius , < 80percent RH, <10 celsius non condensing)
Storage Environment: 14 Fahrenheit 122 Fahrenheit ( 10 celsius 50 celsius , <70percent RH, remove the battery)
Temperature Coefficient: 0.1 accuracy celsius (<18 celsius or >28 celsius )
Maximum Permissible Voltage: 600V DC or 600V AC RMS
Sampling Speed: approx 3 times second
Display: 5999 counts LCD display, automatically displays the unit symbols according to the measurement function gears
Over Range Indication: The LCD will display "OL"
Battery Low Voltage Indication: Yes
Input Polarity Indication : " " is automatically displayed
Power Supply: 2 x 1.5V AAA batteries(not included)
Material: ABS

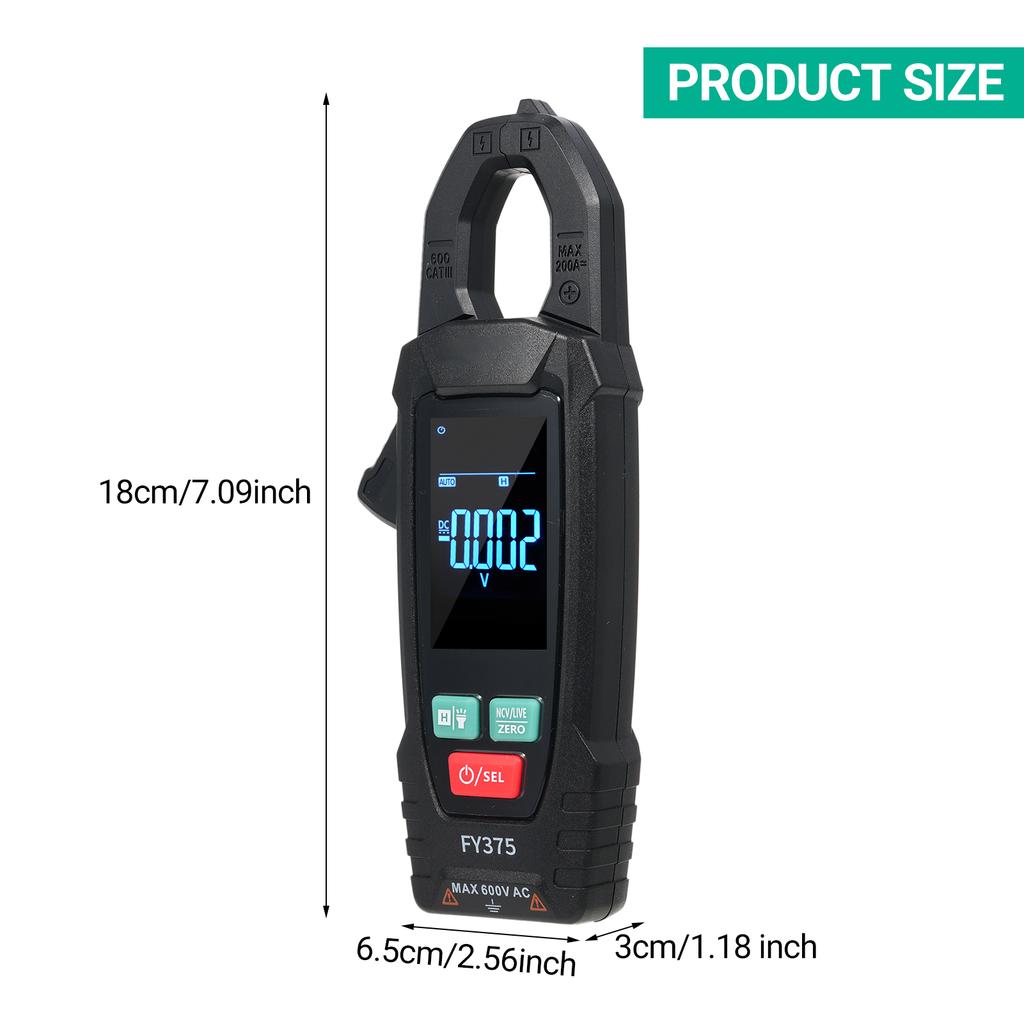

Item Size: 18 * 6.5 * 3 cm 7.09 * 2.56 * 1.18 inch
Item Weight: 149g 5.28oz
Package Size: 20.5 * 11 * 4.5 cm 8.07 * 4.33 * 1.77 inch
Package Weight: 350g 12.34oz
Package List:
1 * AC DC Clamp Meter
2 * Test
1 * Thermocouple
1 * Cloth Bag
1 * User Manual (English)
Package List:
1 * AC DC Clamp Meter
2 * Test
1 * Thermocouple
1 * Cloth Bag
1 * User Manual (English)
