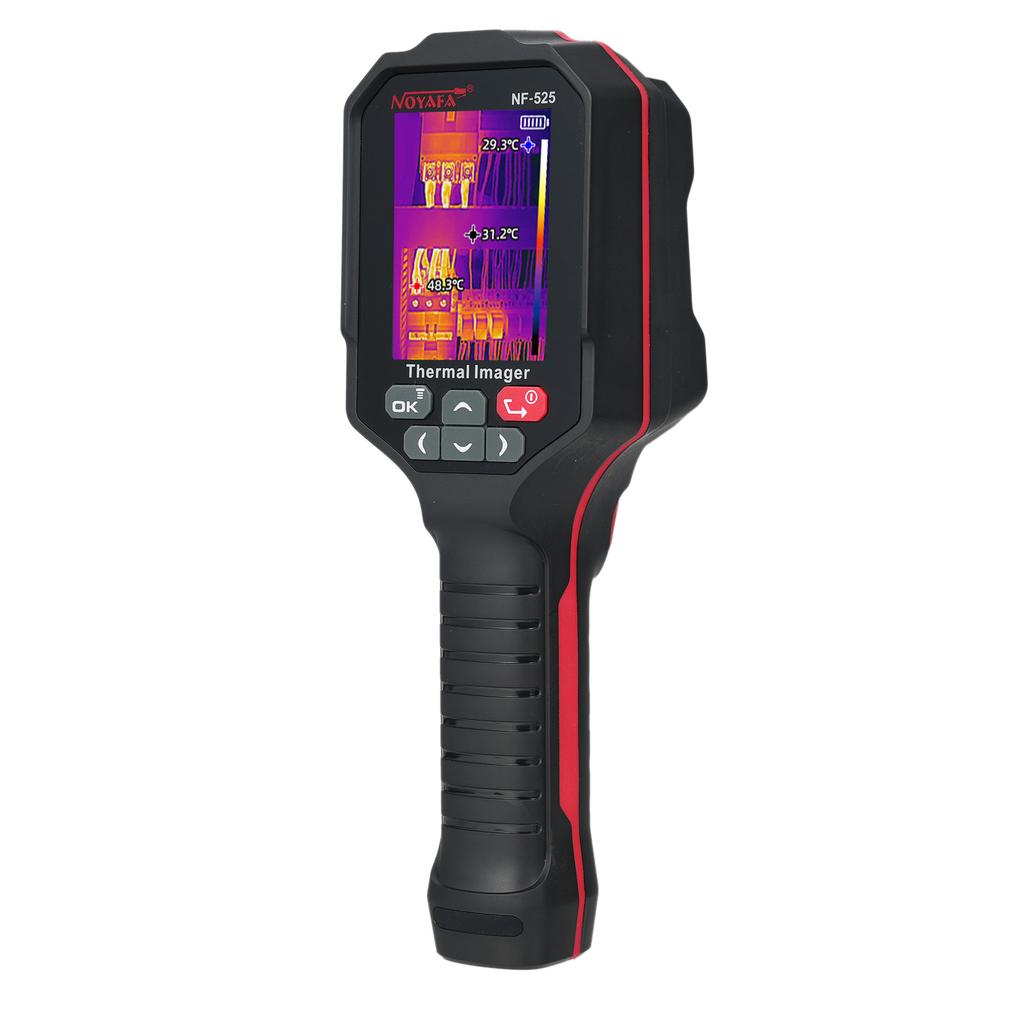

NOYAFA NF 525 Infrared Thermal Imager 120*90 Handheld Testing Imaging Camera For Water Pipe Leak and Electrical

Feature: 1. Dual Optical Fusion: Single infrared visible light, edge blending, overlay fusion and PIP, automatic fusion of resolution without manual adjustment. 2. Cold Hot Capture and Multi point Measurement: Automatic capture of center highestlowest temperature points, more flexible for 3 temperature measuring points. 3. 2.8 Full view TFT High definition Display: High pixel and resolution (120x90) for clear display of remote near heat source. 4. HD Infrared Sensor: High pixel infrared sensor for tracking cold hot point, quick capture of thermal images and high definition display. 5. 50 degrees Large Wide Angle, Focusing free and High Efficiency: Same distance covering larger measurement area, efficient measurement of whole circuit board, distribution cabinet and underfloor heating pipeline. 6. Two in One Interface: One jack for transmission and charging, compatible with computer through Type C, free for saving, view and comparing, supporting data export. 7. Wide Application: Widely applied to equipment overhaul, HVAC pipeline inspection, photovoltaic equipment testing in electronic industry, vehicle maintenance and inspection, etc. Specification: Specifications: Model: NF 525 Material: ABS Handheld Thermal Imaging Resolution: 120 * 90 Working Band: 8 14micrometer‌ Frame Rate: 25Hz NETD: <60mK@25 celsius Field Angle: H=38° V=50° Emissivity: 0.01 0.99 Temperature Measurement Range: Low Temperature: 10 celsius 160 celsius

High Temperature: 160 celsius 400 celsius Temperature Measurement Accuracy: ±2 celsius or ±2percent of the reading Screen Size: 2.8 inches Image Mode: Edge blending, overlay blending, picture in picture, single infrared and single visible light Palette: Iron red, white heat, black heat, rainbow, red heat, high contrast, green heat and lava Temperature Measurement: Support full screen temperature measurement of highest lowest center point and mild region Visible Light Visible Light Camera: 1 million pixels Field Angle of Visible Light: H=55° V=83° Resolution: 720 P General Language: Chinese (Simplifed), Chinese (Traditional), English, French, German, Spanish, Russian, Dutch, Japanese, Korean and Arabian Interface: USB Type C (support charging and data transmission) Battery: 2600mAh lithium battery Capacity: 8G internal memory Picture Storage Format: JPG Video Format: MP4 Working Time: 4 hours if the battery is fully charged Working Temperature: 10°C 50°C Storage Temperature: 40°C 85°C Item Size: 219 * 72 * 66mm 8.62 * 2.83 * 2.59in Item Weight: 292g 10.29oz Package Weight: 477g 16.82oz Package Size: 25.5 * 11.9 * 9.5cm 10.03 * 4.68 * 3.74in Package List: Package List: 1 * Infrared Thermal Imager 1 * USB Type C Data Line 1 * Color Box 1 * Qualification Certificate Warranty Card 1 * Instruction Card of Lithium Battery 1 * User Manual (English)
