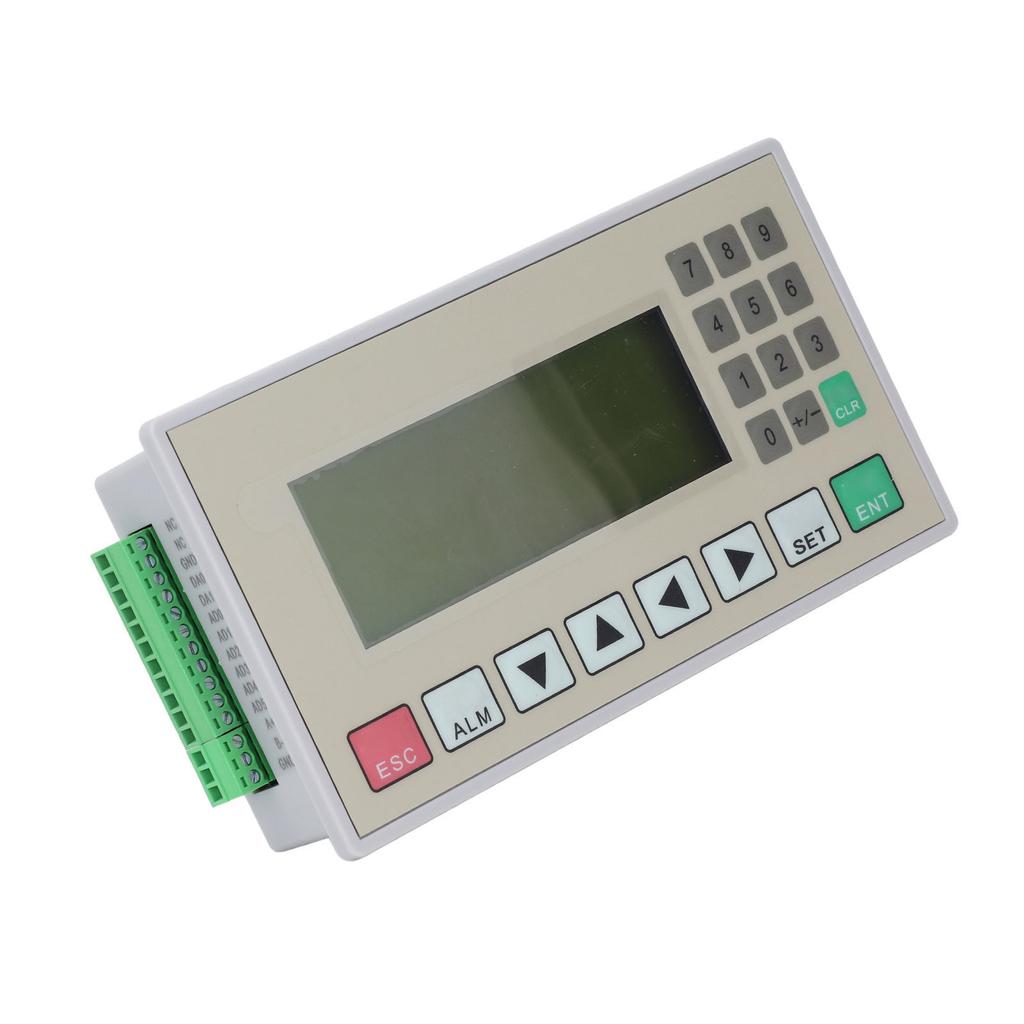

Feature:
1. Programmable Control: The text display module serves as a small human machine interface that allows operators to monitoring and modify values and statuses of internal registers or relays within the PLC. With the ability to display information in text or through indicator lights, operators can easily control machine equipment with flexibility.
2. User Friendly Interface Design: Using the for OP20 editing software on a computer, users can create customized displays, input Chinese characters, and set PLC addresses before downloading the screens through serial communication. The display also features password guard and optional built in clock functionality for added security and convenience.
3. Alarm List Function: The industrial controller panel display includes an alarm list function that displays current alarm information line by line in real time. This allows operators to stay informed about any issues or abnormalities promptly and take necessary actions accordingly.
4. Advanced Programming Capabilities: The text PLC integrated controller utilizes an for ARMCortex‑M3 32 bits MISC core chip, offering fast computing speeds and ample storage space for efficient operation. Programmers can use for GX Developer or for GX Works2 software for programming, downloading, debugging, and monitoring without support for screen writing.
5. Versatile Input Output Options: The text display panel operates on DC 24V power supply and features multiple relay outputs with specified current ratings. Additionally, it includes six analog input channels (three voltage and three current) and two analog output channels for versatile signal processing. The system also supports 10K temperature measurement and includes safety limits for relay and transistor outputs to ensure long term performance and reliability.
Specification:
Item Type: Text PLC Integrated Controller
Model: OP320-A 3-22MR
Material: ABS
Screen: 3.7 Inch STN LCD
Resolution: 192 x 64 Pixels (Supports 4 lines x 12 characters display)
Color: Monochrome
Contrast: Adjustable
Backlight: Long Life LED White Light
CPU: 8 Bit Processor
Memory: 64K Flash ROM
Allowable Dropout: Within 20ms
Output Type: Relay

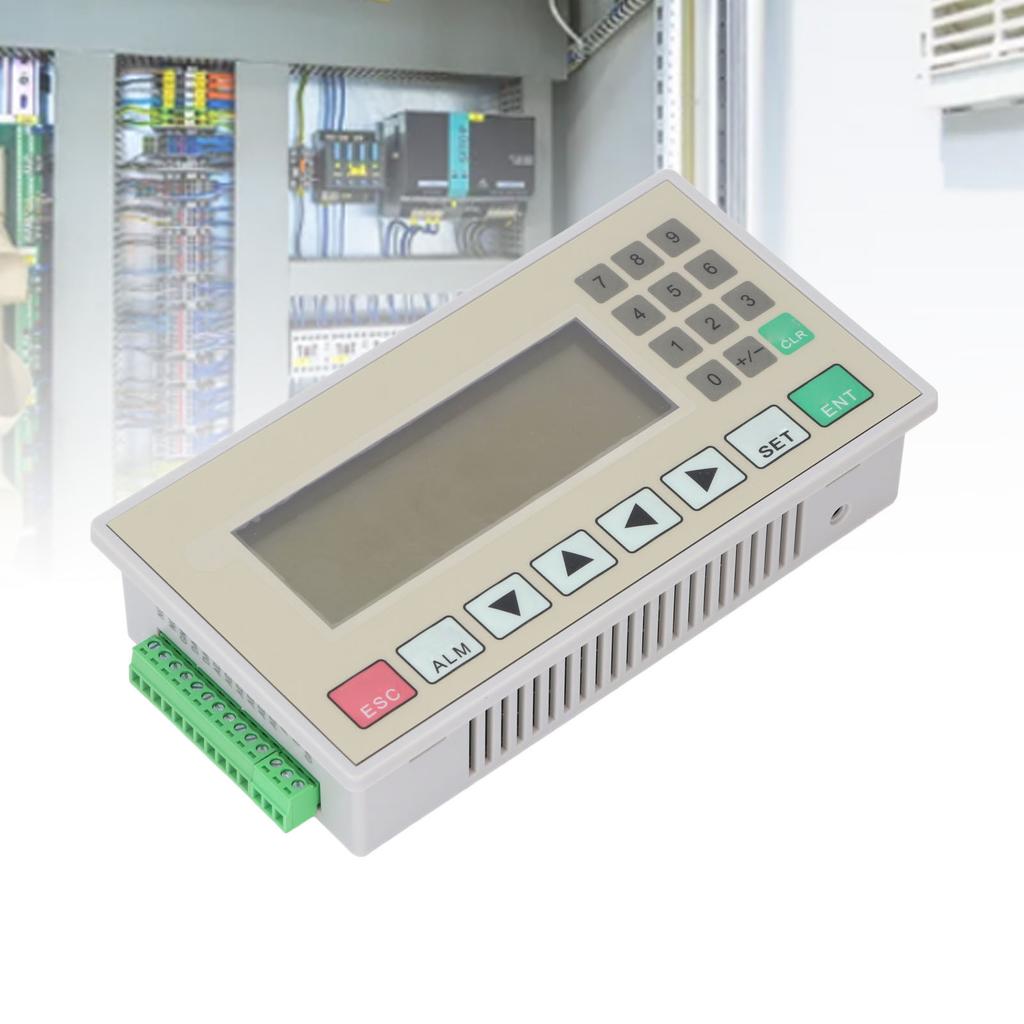

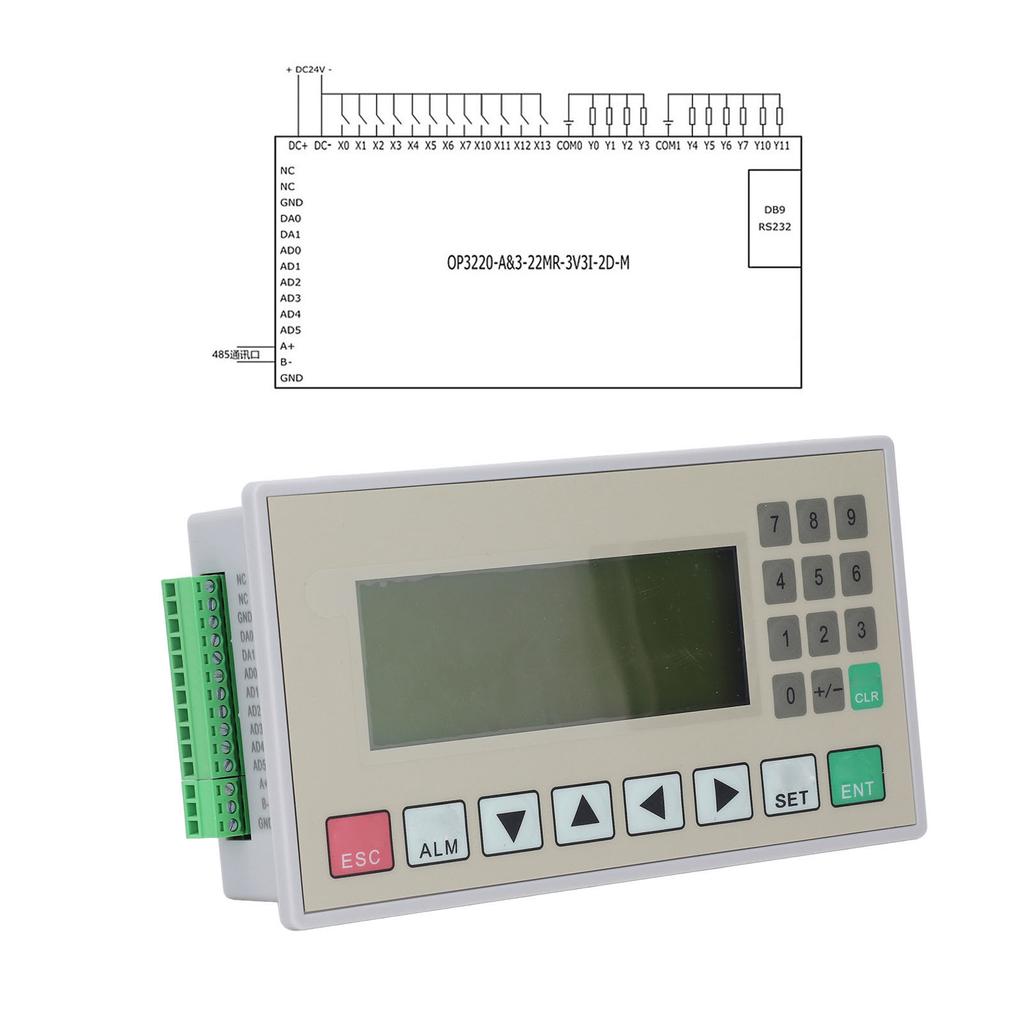

Input, Output: 12 Iin 10 Out
Analog Output: Default 2DA 0-10V
High Speed Counting: Default 6 Channels 3K, Can be changed to 6 channels 60K
Memory Capacity: 8000 Steps
Download Speed: 38.4Kb
Download Method: Direct Download
RS485 Communication Port: Supported
For MODBUS: Supported
Power Supply: 12-24 VDC +10% Insulation Resistance: Over 10mΩ at 500VDC
Shock Test: 10-20HZ (X.Y.Z Direction 2C 30 Minutes)
Cooling Method: Nature Air Cooling

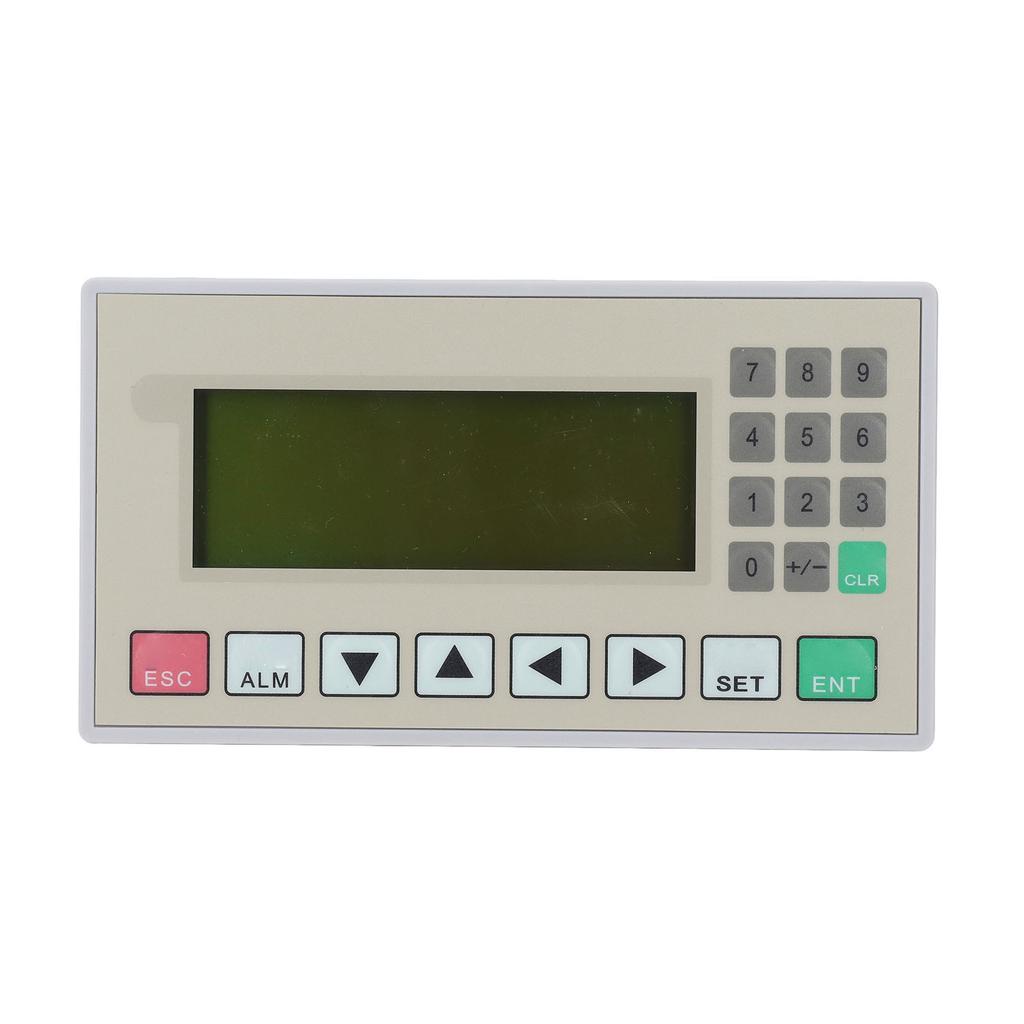

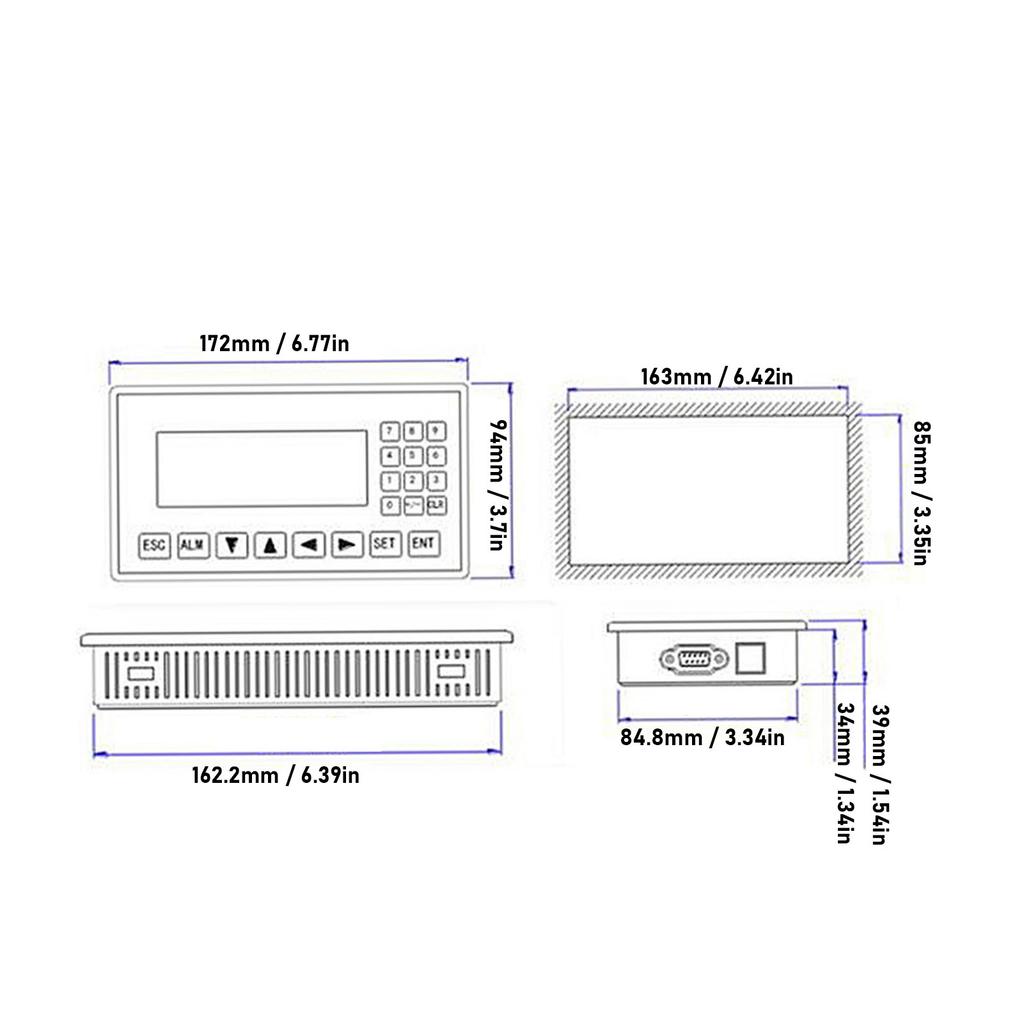

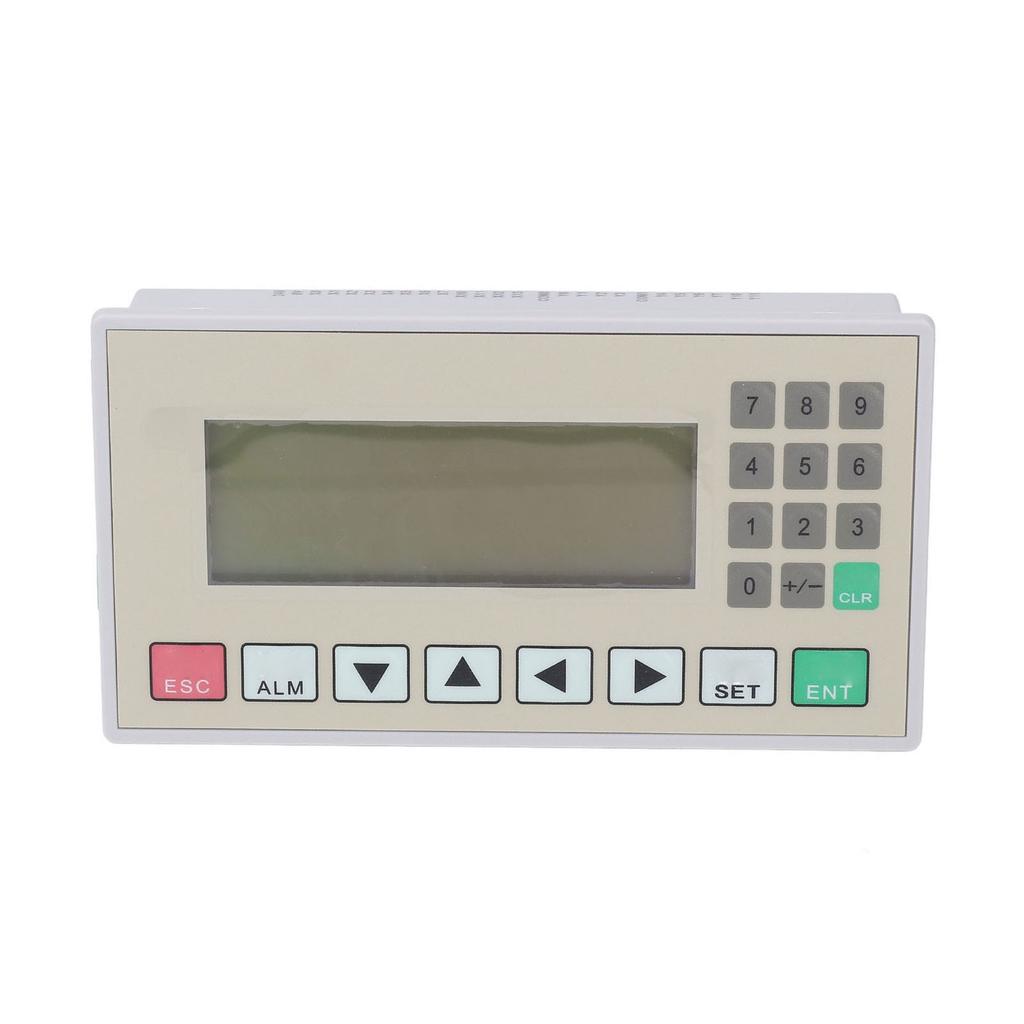

Size: Approx. 172 x 94 x 39mm / 6.8 x 3.7 x 1.5in
Display Size: Approx. 101 x 36mm / 3.98 x 1.42in
Installation Opening Size: Approx. 165 x 86mm / 6.5 x 3.39in
Proof Level: IP65 (Front Panel)
Operating Environment Temperature: 0-50°C
Communicating Port: COML: PC RS232 (Default 232 Communication) and PLC RS485, RS232
Function Keys: 20 can be customized
LCM Type: Blue Screen Yellow Screen
Brightness: 60cd/m2
LCM Lifespan: Over 50000 Hours Under Conditions of 25+2 C, 65+10%RH
LCM Display Effect: Blue Screen Displays Blue Light White Characters, Yellow Screen Displays Yellow Background Black Characters
Operating Environment Humidity: 20-90% (Non Condensing)
Storage Temperature: -20-70°C
Soft Elements
Intermediary Relay M: M0-M3071, Power off retention range can set step point, S: S0-1023, power off retention range can set S0-S1023
100MS Timer: TO-T199, Cumulative Power Off Retention T184-T199
10MS Timer: T200-T249, Cumulative Power Off Retention T246-T249
1MS Timer: T250-T383, where T250-T255 is cumulative
16 Bit Counter: C0-C199, Power Off Retention C100-C195
32 Bit Counter C200-C219, Power Off Retention C220-C234
32 Bit High Speed Counter: C235-255, C235-240 is single phase counter, no multiplier, C241-240 is single phase counter, 2x frequency, C247-249 is dual phase counter, no multiplier, C250-252 is dual phase counter, 2x frequency, C253-255 is dual phase counter, 4x frequency.
Register D: DO-D7999, power down save range can be set to D0-7999.
Indirect Addressing Pointer V, Z: V0-7, Z0-7
P Subroutine Jump Number: P0-63
I Interrupt: X0-5 External Interrupt. Timer Interrupt (in 1MS units). Counter Interrupt.
Special M Components: M8000 normally closed during runtime, M8002 power up pulse, M8011 for 10Ms pulse, M8012 for 100Ms pulse, M8013 for 1s pulse, M8014 for minute pulse.
How to Use:
Follow the electronic manual instructions.
Package List:
1 x Text PLC Integrated Controller
3 x Terminal Blocks
4 x Mounting Accessories
1 x Download Cable
