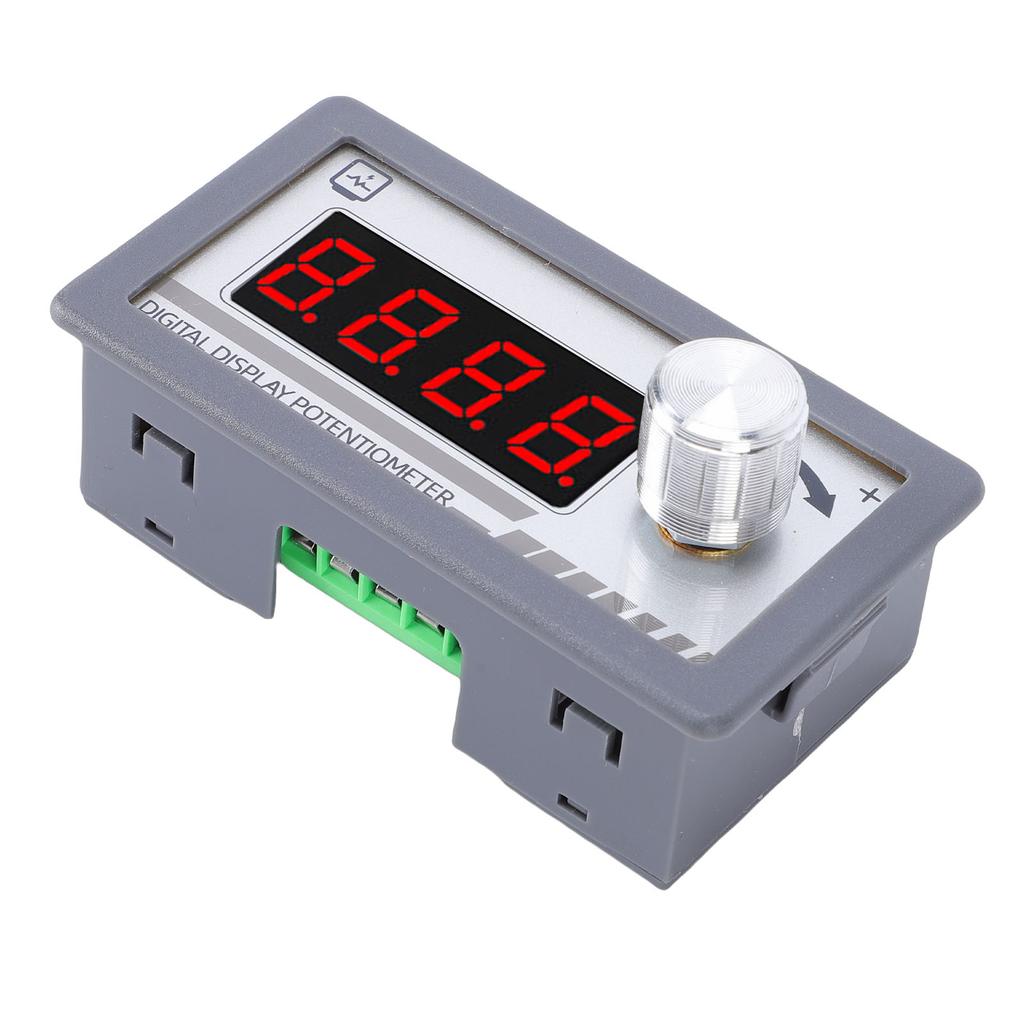

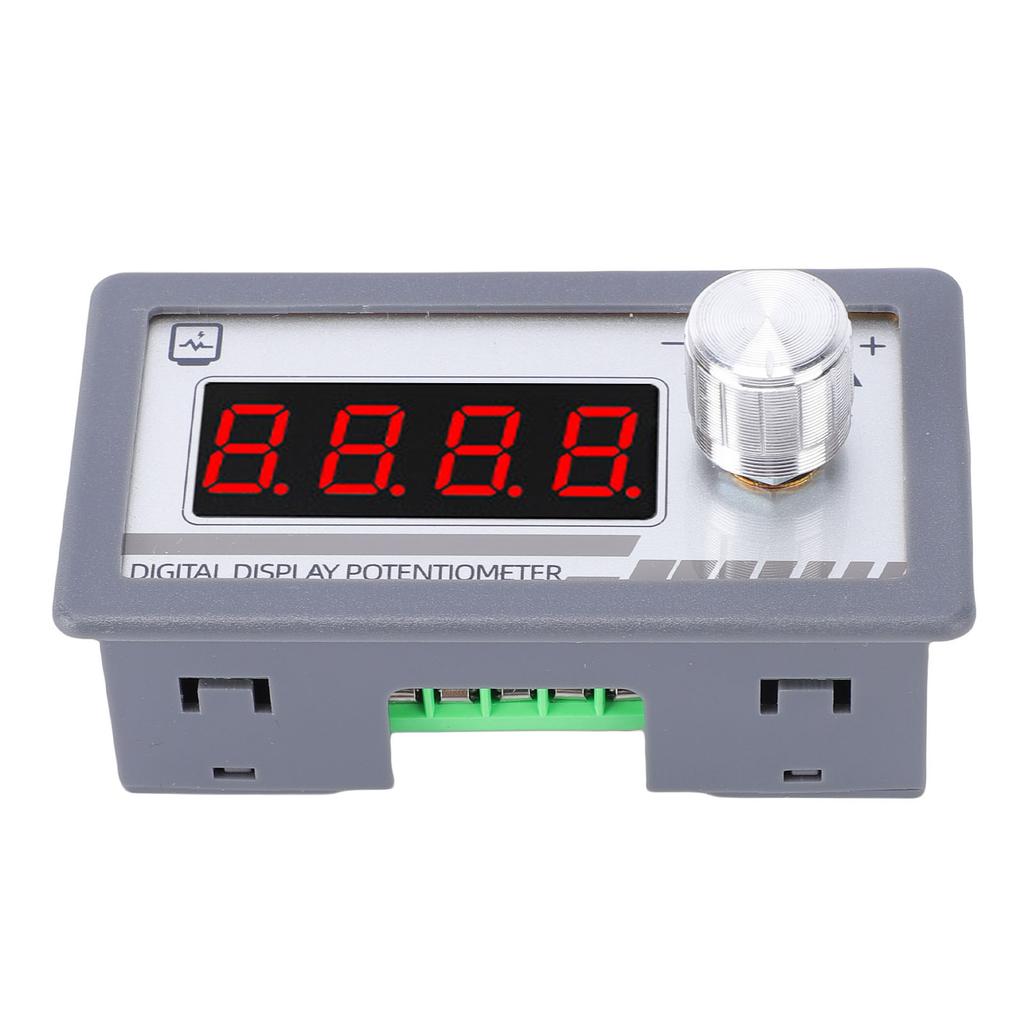

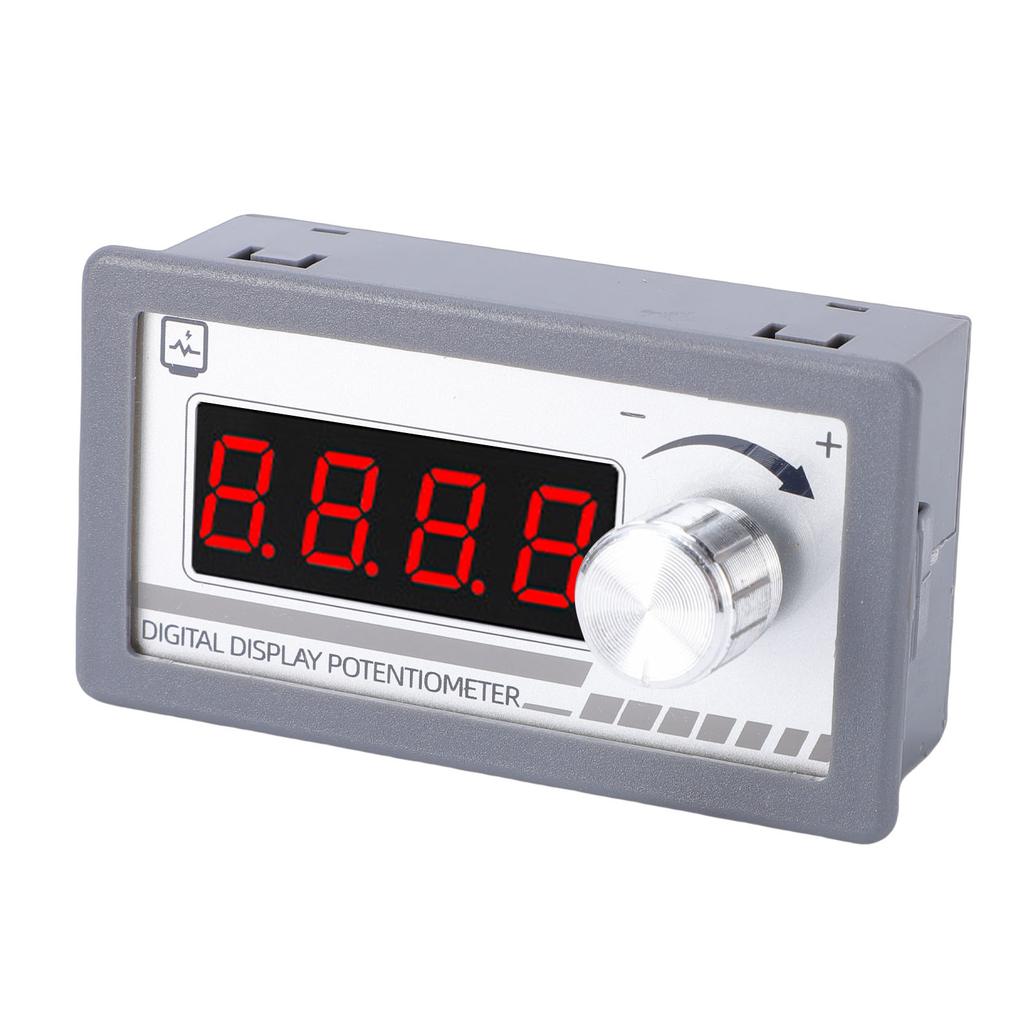

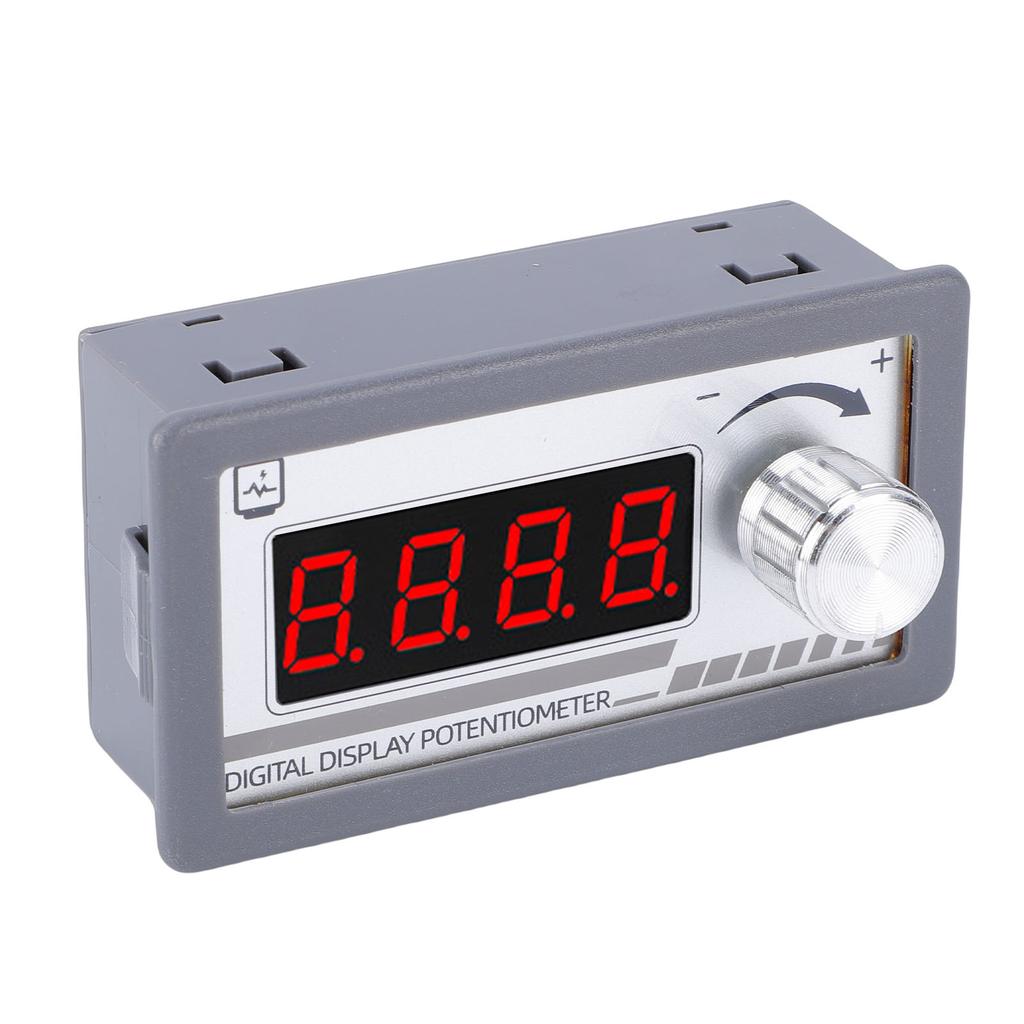

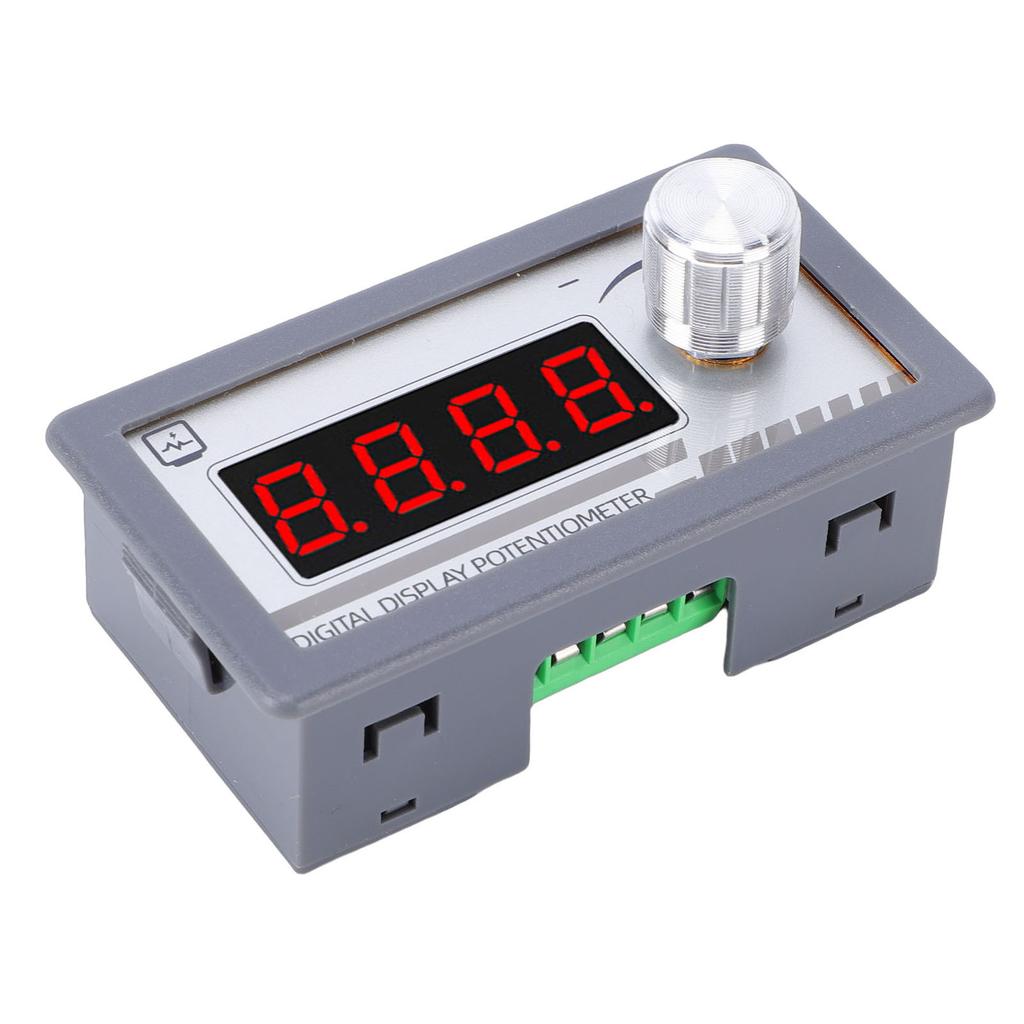

Digital Potentiometer 5K Ohm Adjustable Programmable with 4 Digit 0.4in Display DC Powered Replacement

Feature: 1. MAIN FUNCTION: The digital potentiometer is powered by DC and has a resistor value of 5K Ohm . Adjust the resistor value output of the potentiometer, which is suitable for most occasion that require speed regulation, voltage regulation, PWM regulation, etc. 2. ACCURATE MEASUREMENT: 4 digit 0.4in digital tube display, WH148 potentiometer adjustment, accuracy consistent with single turn 5K Ohm potentiometer 3. FLEXIBLE AND PROGRAMMABLE: The digital potentiometer can set the minimum range value ( 1000 to +1000), the magnification (0.1 to 5.0), the magnification (x1 x2 10x), and the decimal point position 4. STORAGE PROTECTION, MULTIPLE FUNCTIONS: The programmable potentiometer adopts a dedicated current loop chip and an industrial grade circuit design. The startup value, set parameters, etc. are stored when power is off 5. NICE REPLACEMENT: The programmable potentiometer features a smoothly variable output and can replace the vast majority of commonly used single turn potentiometers with the same resistor Specification: Item Type: Digital Potentiometer Resistor Value: 5K Ohm Material: Inflaming retarding ABS Minimum range of parameter A: 1000 to 1000

: Long press the A key, when the first flash occurs,

: Press the B key to adjust the value. ③: Press the A key again to switch to the second, third, and fourth positions. ④: Press A again to save and exit Parameter B setting ratio: 0.1 5.0

: Long press the B key, and the four digit number will flash.

: Press the A key each time to increase the value by 1, after adjusting to the appropriate value, ③: Press the B key again to save and exit C magnification Settings: x1, x2, 10x:

: Press the B key briefly to switch the magnification, 1x, 2x or 10x,

: Automatically stored after 2 seconds Decimal point Settings: X.XXX, XX.XX; XXX.X, XXXX:

: Press the A key briefly to switch to the decimal point.

: Automatically stored after 2 seconds Standard Potentiometer Linear Error 5percent or more Display Range: Min: 1999, Maximum: 9999 Consider C02 or C10 for values below 1000 or above 1000Serial numberDisplay minimum numberDisplay maximum numberSet minimum value, ASet magnification B, maximum 5.0Set decimal pointC10 C02 or C01Position DSet C10100001XXXXC012064003.2XXX.XC023030.0 803000.5XXX.XC014 5050 5001XXX.XC0154204001.6XX.XXC0160800004XXXXC027 10001000 10002XXXXC01801001XX.XXC019300050003000.2XXXXC101002402.4XX.XXC0111 15001500 1500.3XXXXC1012 19992000 10002XXXXC02. Package List: 1 x Potentiometer Note: This module is a potentiometer module, and cannot be directly used to adjust power loads, only as a replacement for potentiometers on controllers and devices.
