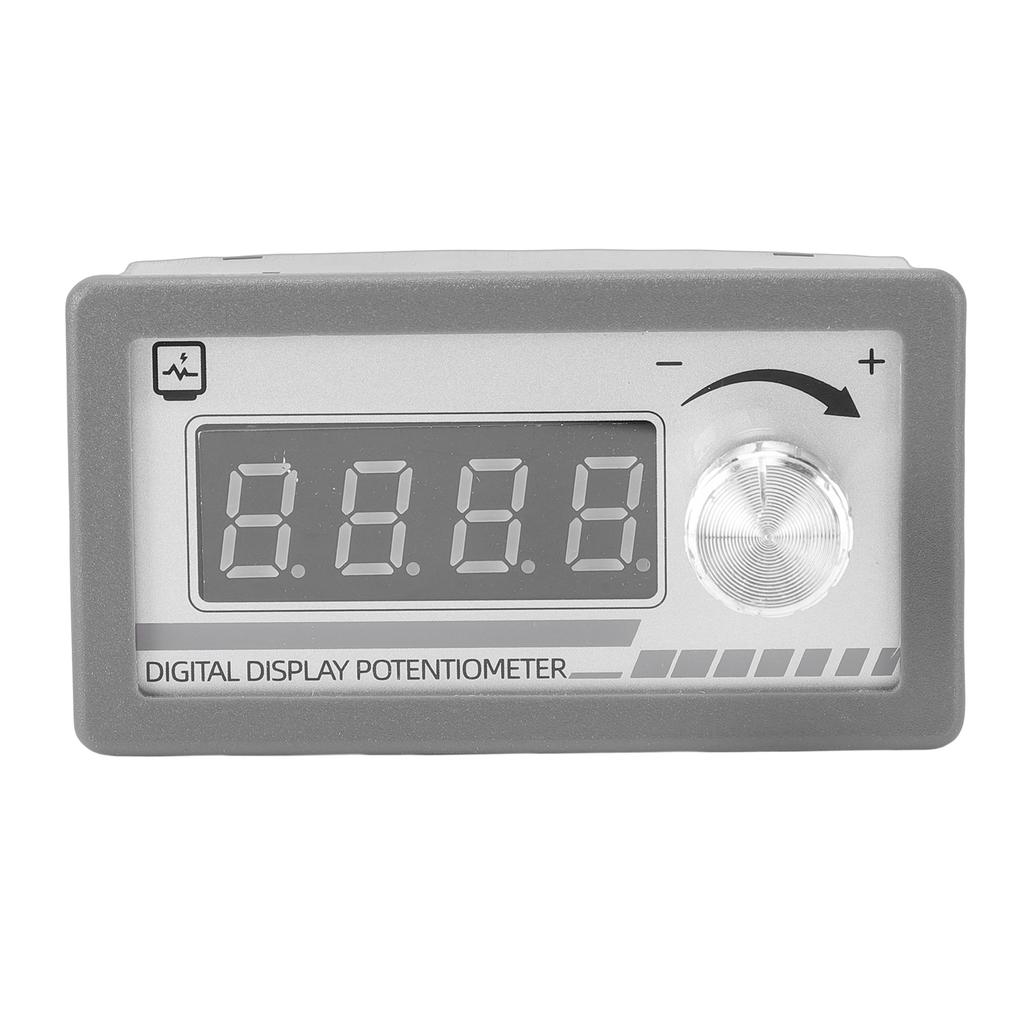

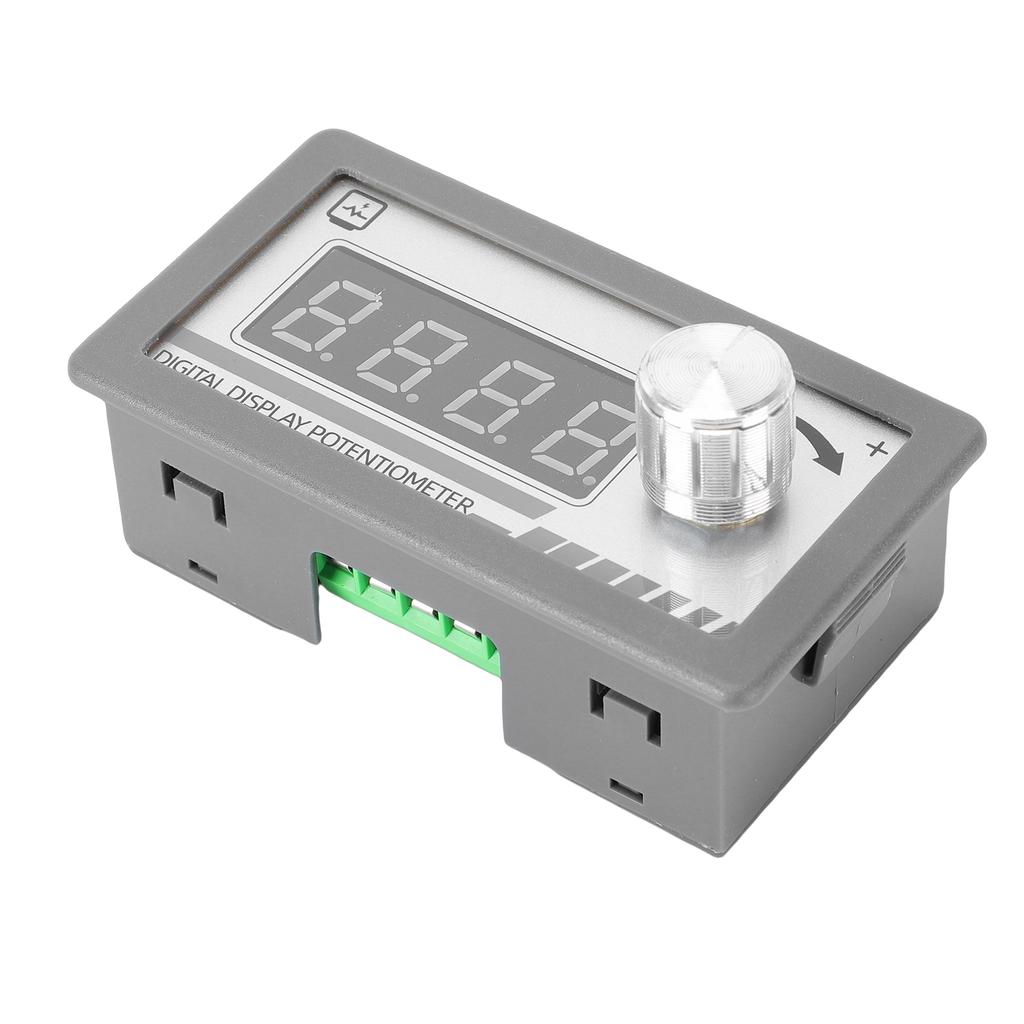

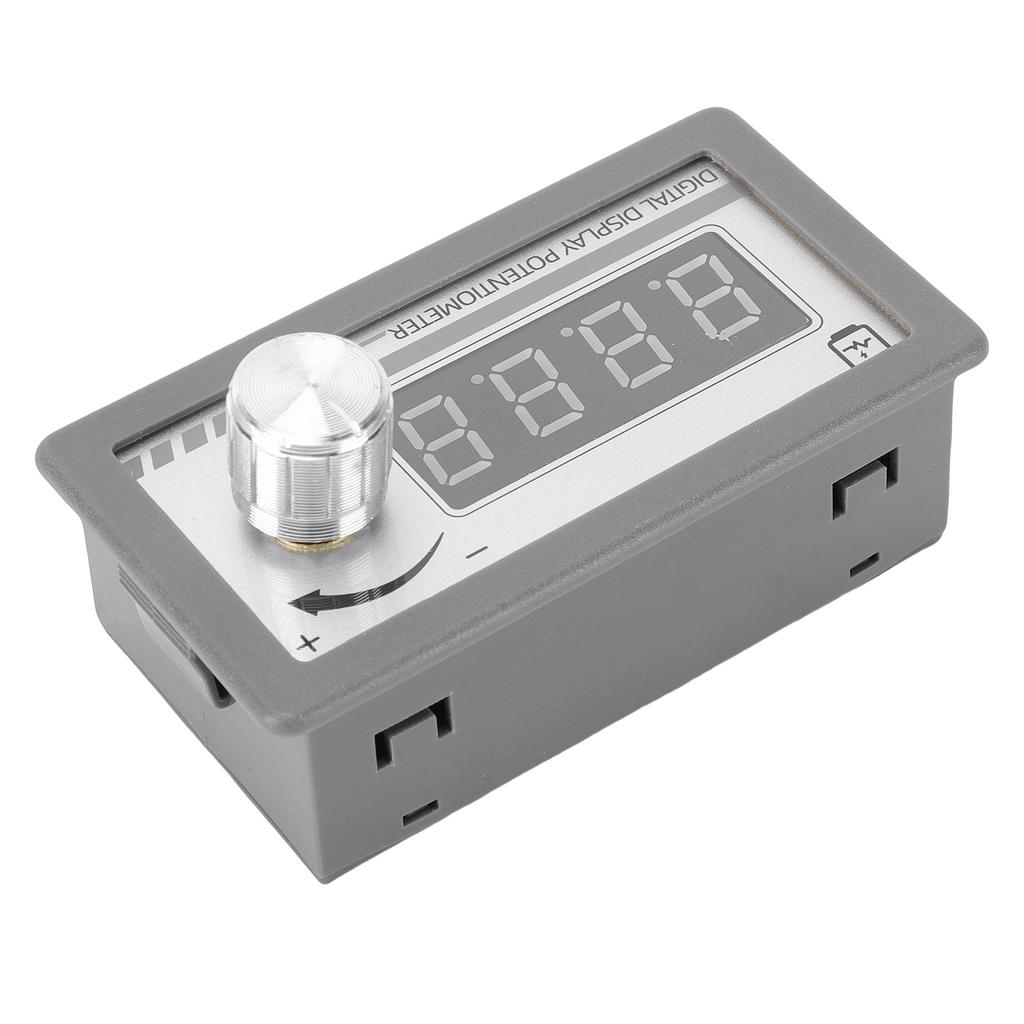

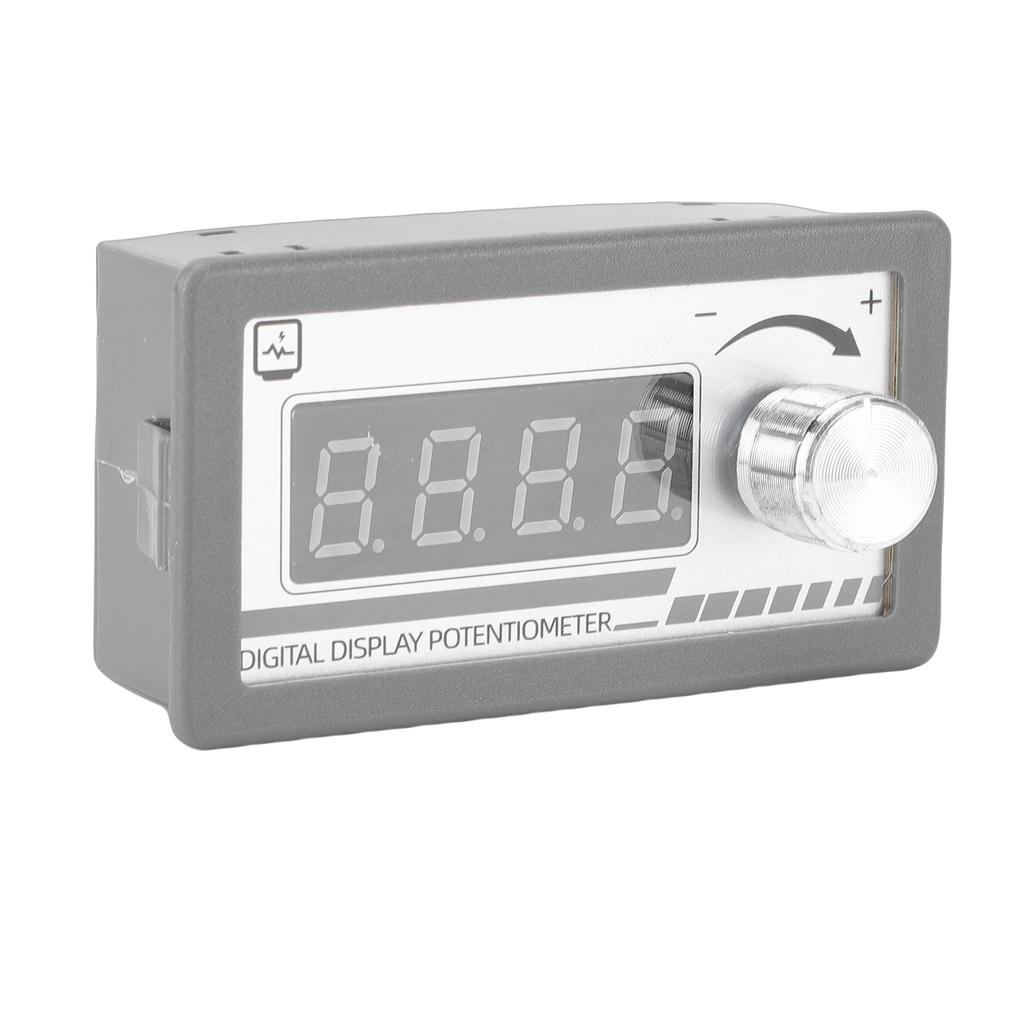

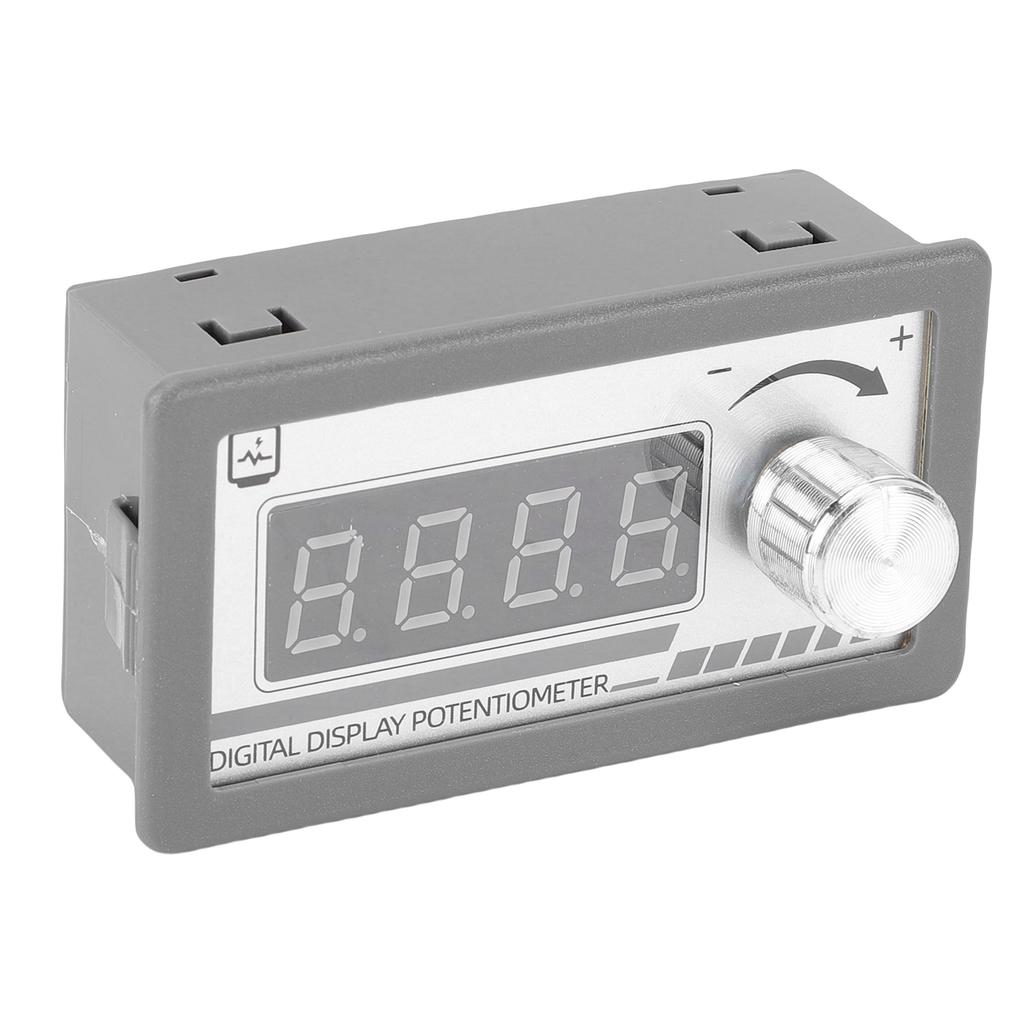

2K Ohm Digital Potentiometer 4 Digit Display Programmable Potentiometer for Speed Voltage PWM Control

Feature: 1. Applications: This 2K Ohm digital potentiometer features stable output, is suitable for speed, voltage, or PWM control applications, replacing traditional single turn potentiometers 2. Accurate Display: Equipped with a 4 digit 0.4 inch digital tube display, this potentiometer ensures precise readings. It maintains consistent accuracy with single turn potentiometer 3. Programming Function: This digital display potentiometer can set minimum range ( 1000 to +1000), multiplier (0.1 5.0), magnification (1x, 2x, 10x), and decimal point position 4. Storage Protection: With current loop chip and industrial grade circuit, this potentiometer protects stored parameters like boot values and set parameters, with power off storage 5. Versatile Use: This potentiometer delivers stable output transitions, serving as a direct replacement for most conventional 2K Ohm potentiometers in diverse electronic setups Specification: Item Type: Digital Display Potentiometer Product Material: Flame Retardant ABS Resistive Value: 2K Ohm Parameter Setting: A Parameter Minimum Value Range: 1000 1000; Operating Instruction: Long press the A key, when the first one flashes, press the B key to adjust the value, and then press the A key to switch the second, third, fourth, and then press A to store and exit B Parameter Setting Multiplication: 0.1 5.0; Operating Instruction: Long press the B key, 4 digits flash together, press the A key each time the value is incremented by 1, and press the B key again after the appropriate value is adjusted to store and exit C Magnification Setting: 1X, 2X, 10X; Operating Instruction: Short press B key to change the magnification, 1x, 2x or 10x, automatic storage after 2 seconds D Decimal Point Setting: X.XXX, XX.XX, XXX.X, XXXX; Operating Instruction: Short press the A key to change the decimal point, automatic storage after 2 seconds Standard Potentiometer Linear Error: Above 5percent Display Range: Minimum 1999, Maximum 9999 For displays with a minimum value < 1000 or >1000, C02 or C10 should be considered firstNumberDisplay Minimum NumberDisplay Maximum NumberSet Minimum Value ASet Magnification B Maximum 5.0Set Decimal Point D PositionC10 C02 or C01 Setting10100001XXXXC012064003.2XXX.XC02330803000.5XXX.XC014 5050 5001XXX.XC0154204001.6XX.XXC0160800004XXXXC027 10001000 10002XXXXC01801001XX.XXC019300050003000.2XXXXC101002402.4XX.XXC0111 15001500 1500.3XXXXC1012 19992000 10002XXXXC02 . Package List: 1 x Potentiometer Note: This is a potentiometer module and cannot be applied directly to adjust power loads. It can only be served as a replacement for potentiometers on controllers and devices.
