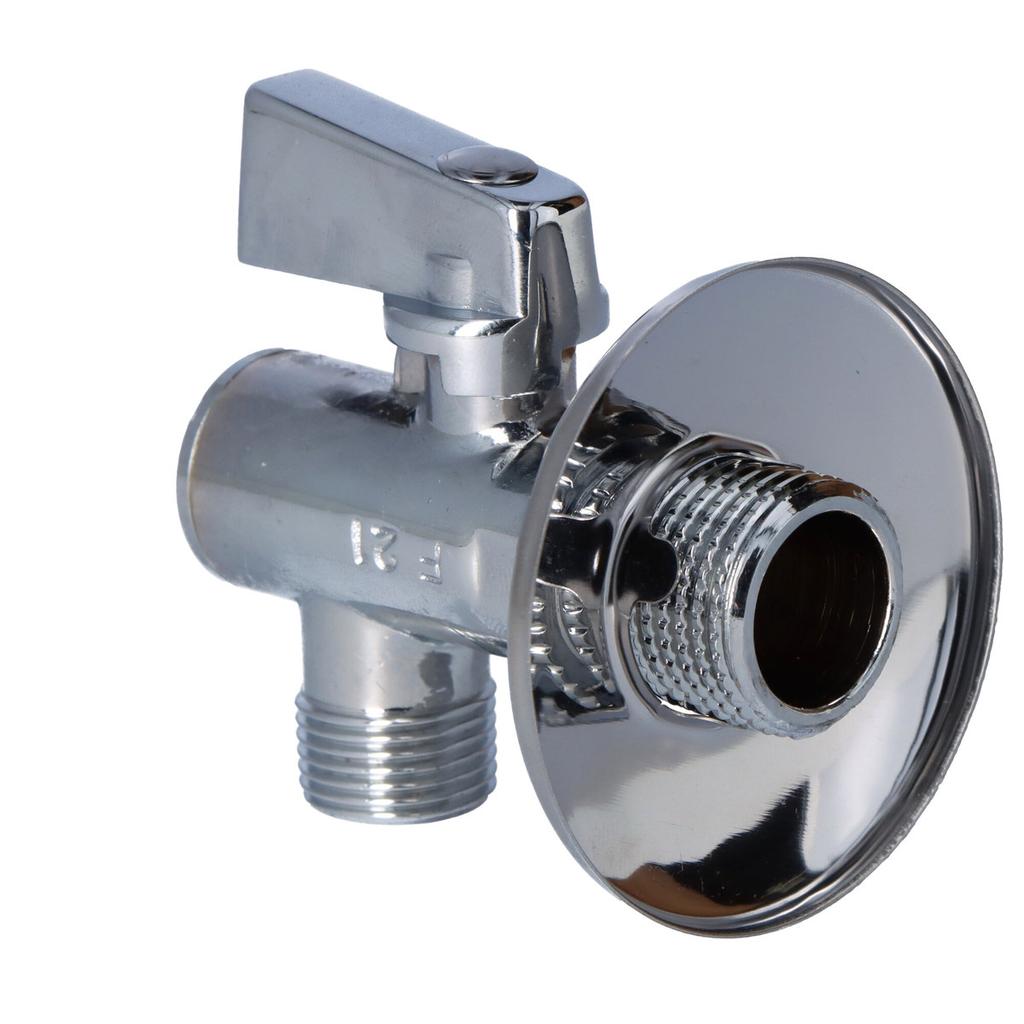

Angle Ball Valve 1/2"x3/8" with Rosette and Filter, Metal Handle

• OPERATING PARAMETERS

• nominal pressure 1 MPa (10 bar)

• working temperature up to 100° C

• filter cleaning accuracy: 0.4 mm, about 70 meshes per 1 square cm

• working media: hot, cold water for water supply and central heating installations

• valves are tested in the Armature Laboratory in Radom and Skawina, and have Hygienic Certificates issued by the National Institute of Hygiene

• manufacturer's Declaration of Conformity is issued for all valves

• MANUFACTURE AND MATERIALS

• bodies and nuts are made from molded parts and machined on machine tools

• body material: brass

• seals: NBR nitrile rubber, ceramic plates, POM

• lever/knob: ABS plastic/brass, aluminum alloy

• check valves: ABS poppet, stainless steel mesh filter

• valves are ground, polished and after this nickel-plated and chrome-plated, there are also sandblasted valve versions

• on special orders they can be plated only with nickel

• all valves are subject to 100% tightness testing

• simple construction, high reliability

• there are permanent markings on the valve body, including the manufacturer
