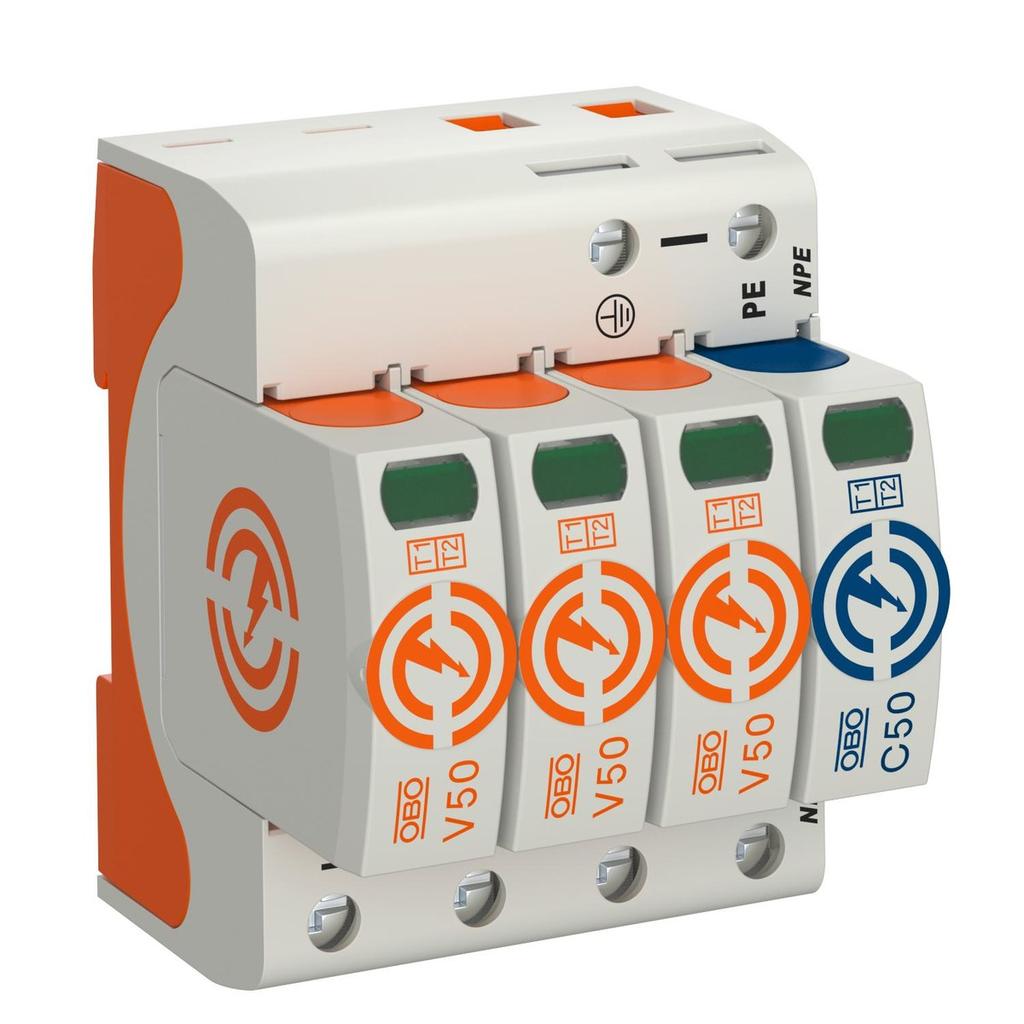

Surge Arrester, 4p Type 1+2 (class B+C) Type V50-3+NPE-280

• Surge arrester Type 1+2

• • For lightning protection equipotential bonding according to VDE 0185-305 (IEC 62305)

• • Surge current carrying capacity: 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total

• • Replaceable inserts with dynamic disconnection device and optical fault indication

• • Mechanical protection of inserts - anti-vibration protection, voltage coding

• • Housing made of self-extinguishing plastic (UL 94 V-0)

• • Available versions of arresters with remote fault signaling (FS) and a potential-free contact (NC/NO)

• Application: Equipotential bonding in lightning protection systems in buildings with external lightning protection systems of level III and IV.
