Feature:
1. WIDE APPLICABLE: Linear guide rail is widely used in automation equipment, accurate measuring instruments, electronic semiconductors, pharmaceutical machinery, packaging printing, welding and cutting, machine tools, industrial manufacturing and metalworking, etc. All the fields requiring accurate linear transmission and positioning
2. STRONG MATERIAL: The linear guide is made of very hard bearing steel, with strong rigidity, high accuracy, rust prevention characteristics. With four point contact design, which can withstand loads in all directions
3. SMOOTH AND QUIET: Can easily pass the 45 degrees free fall test after lubrication. The guide rails are very smooth. The carriage move smoothly and quietly, untied with excellent quality and fine workmanship. Longer service life compared with other brands of guides
4. APPLICABLE SCENARIO: Linear guide is small size, light weight, especially suitable for miniaturized equipment, such as routers, 3D printers and plasma cutting machines
5. ACCURATE SELF ALIGNMENT: The sliding guide has a self alignment function to achieve micrometer class positioning accuracy
Specification:

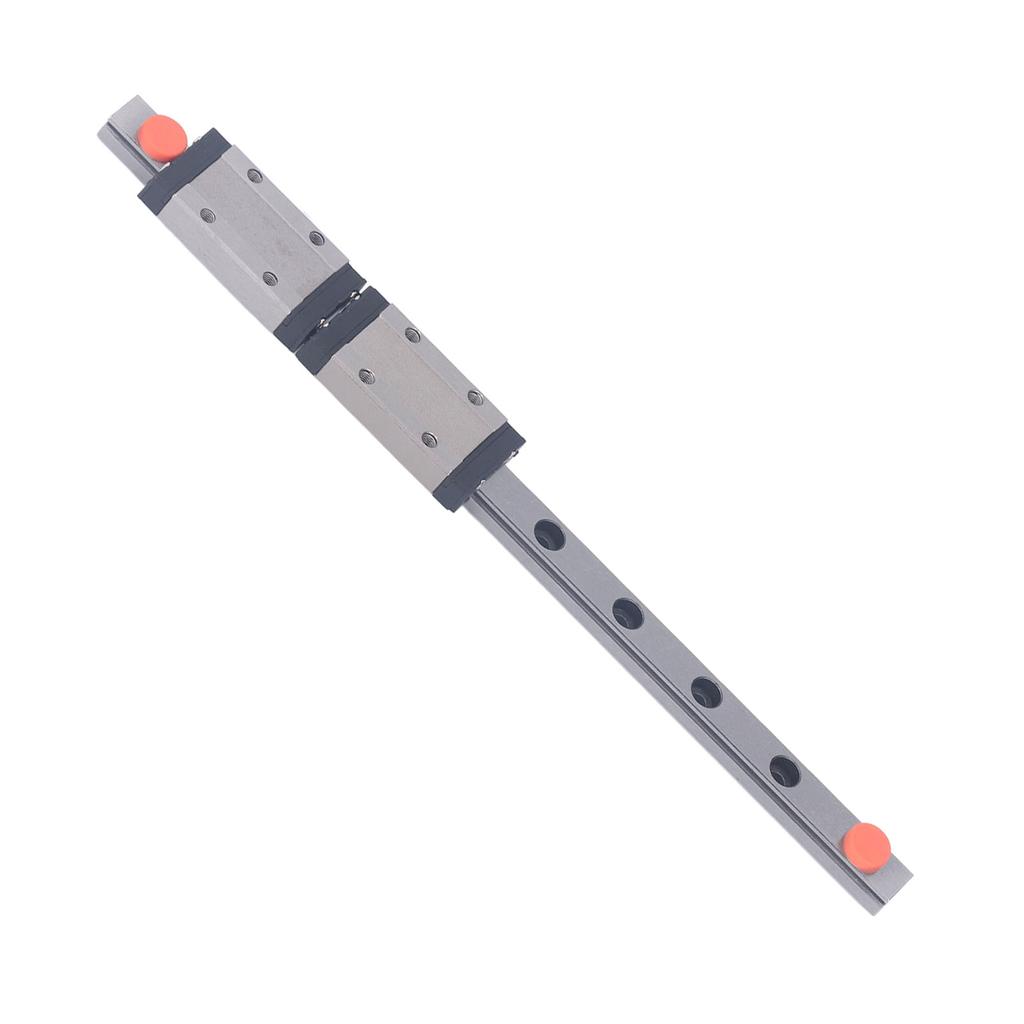

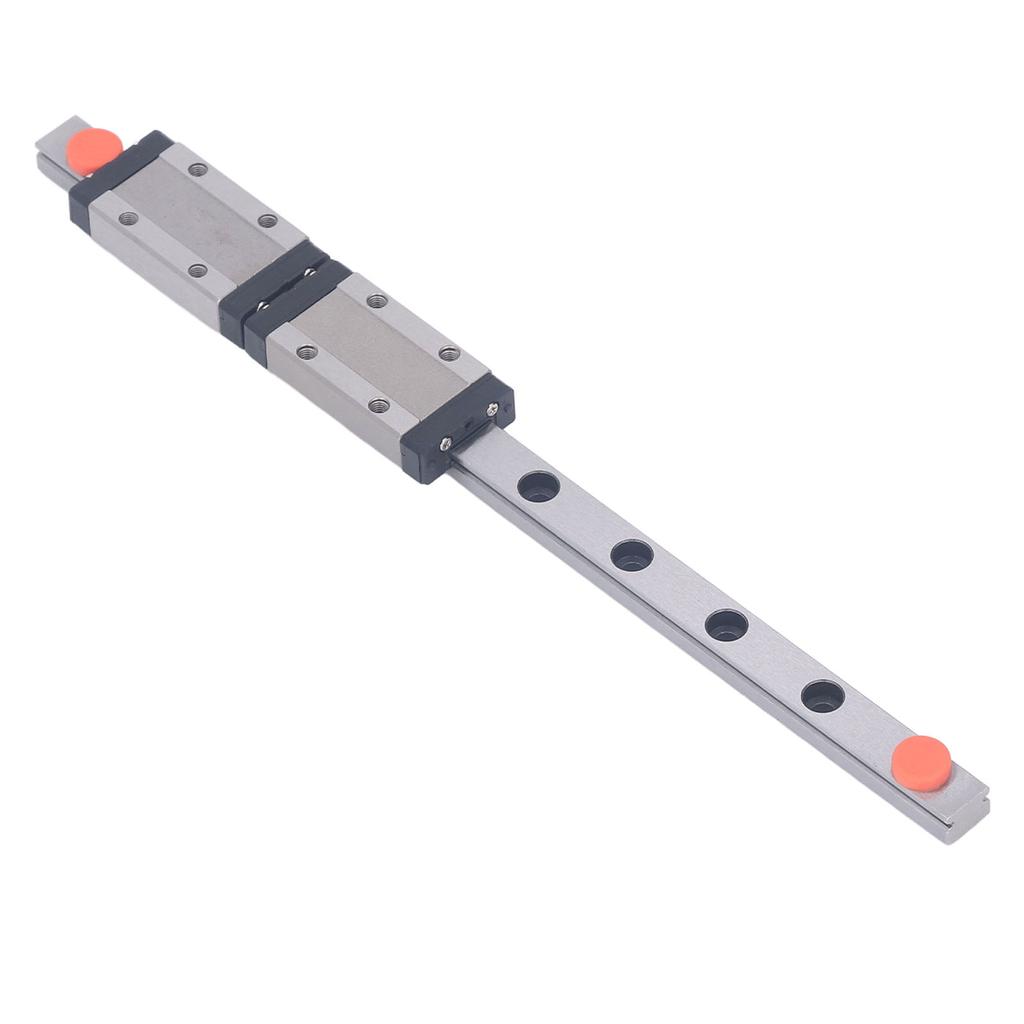

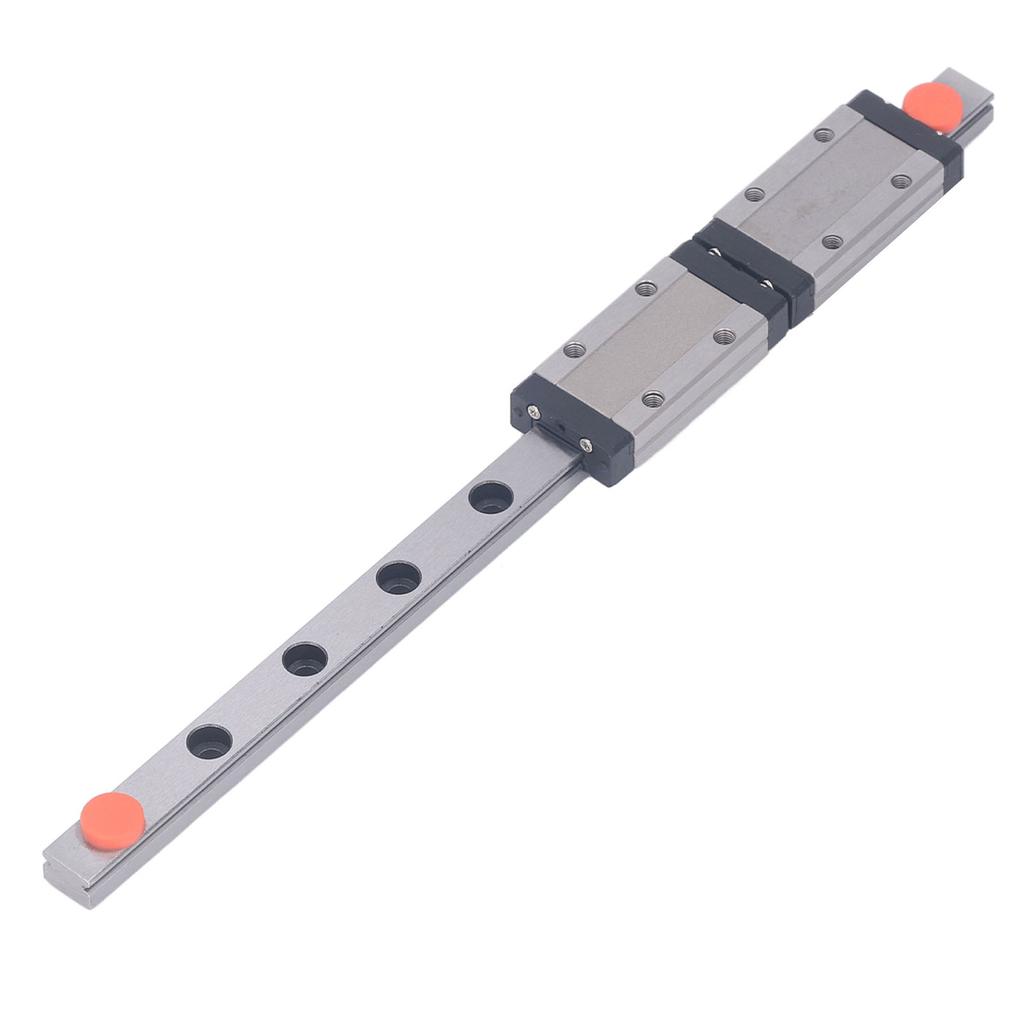

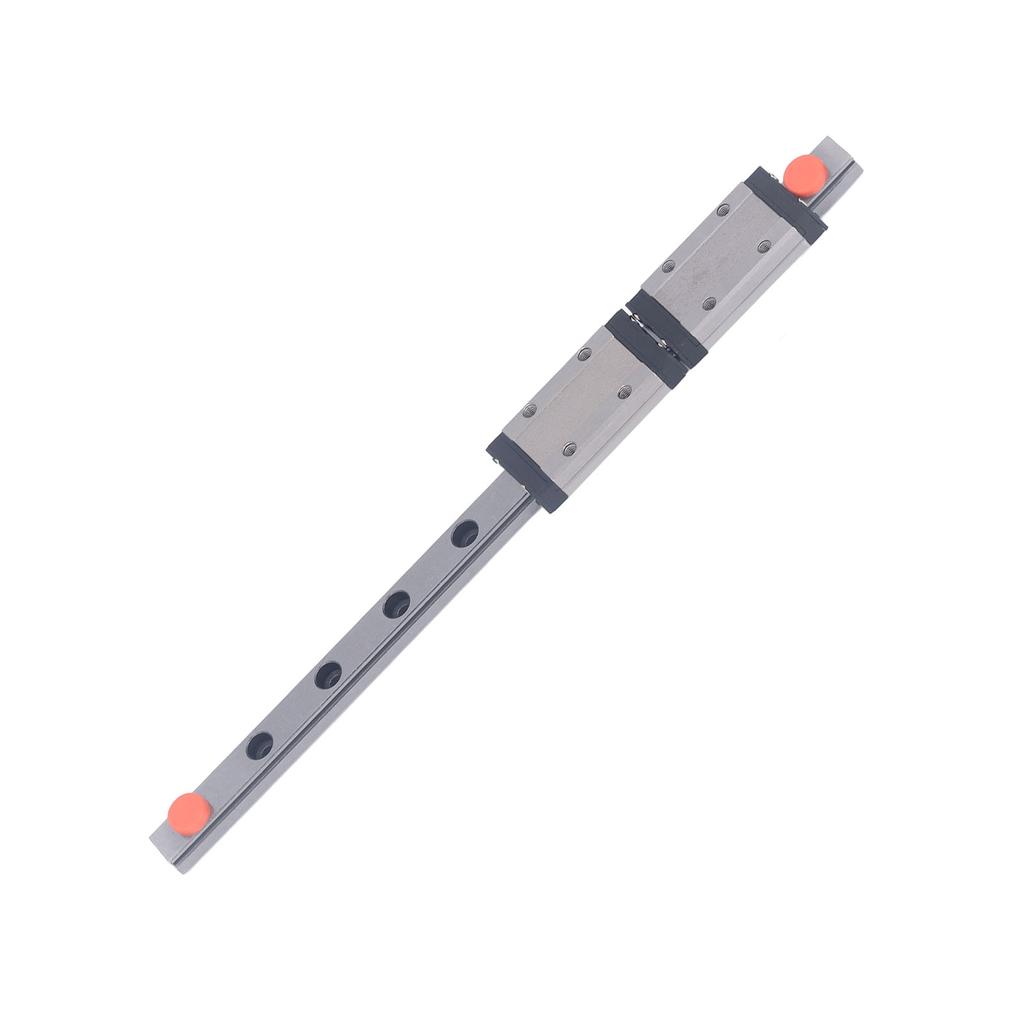

Item Type: Linear Guide Rail
Material: Bearing steel
Product Length: Approx. 200mm 7.87in
Basic Dynamic Load Rating: C: 2.55 (K N), C0: 4.02 (k N)
Allowable Static Moment: MR: 19.6 (N m), MP: 18.62 (N m), My: 18.62 (N m)
Sliding Track: Linear guide
Number of Sliders: 2 Sliders
Accuracy Level: H
Slider Fixing Method: Lock type
Features:
1. MGN series is small and lightweight, especially suitable for miniaturized equipment;
2. Slide block and slide rail material is bearing steel, with characteristics of non slip and durable;
3. Gothic four point contact design, can withstand the load in all directions, with strong rigidity and high accuracy;
4. With steel ball retainer design, has interchangeability under the allowed accuracy..
Package List:
1 x Linear Guide Rail
No-delivery refund
