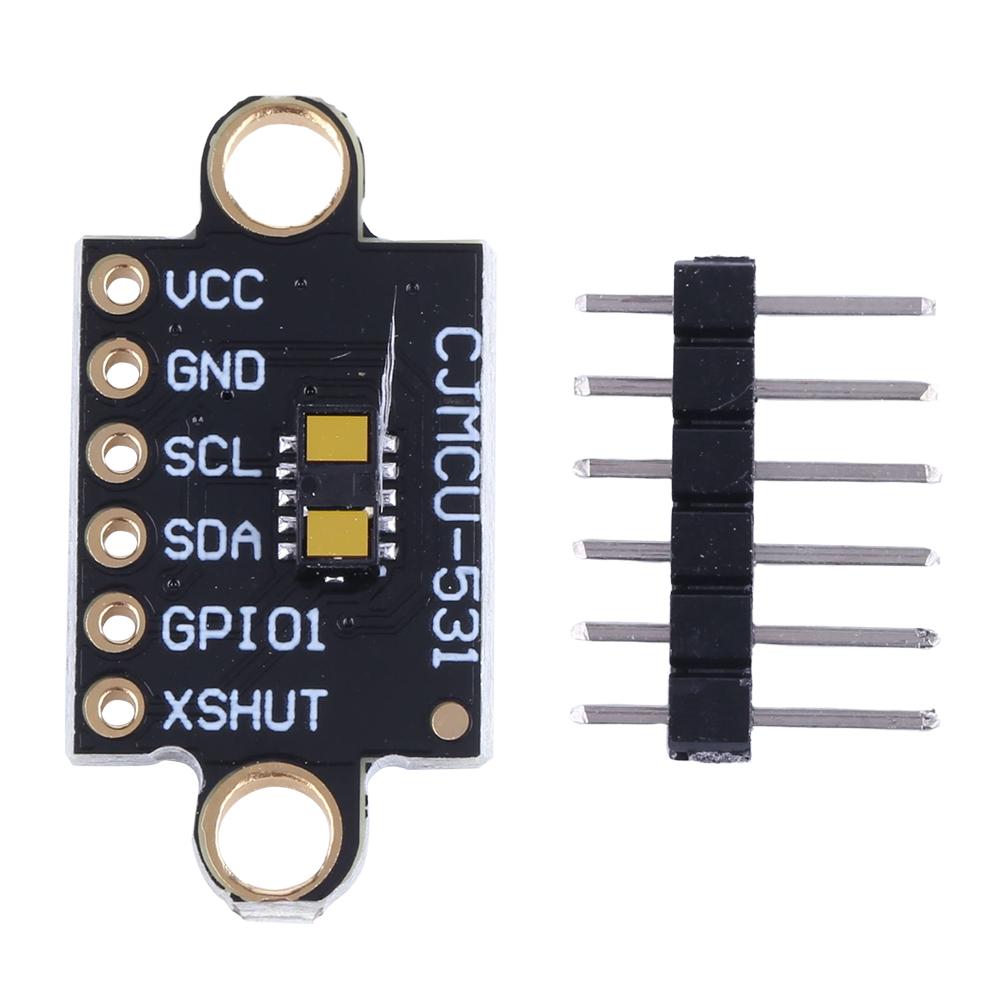

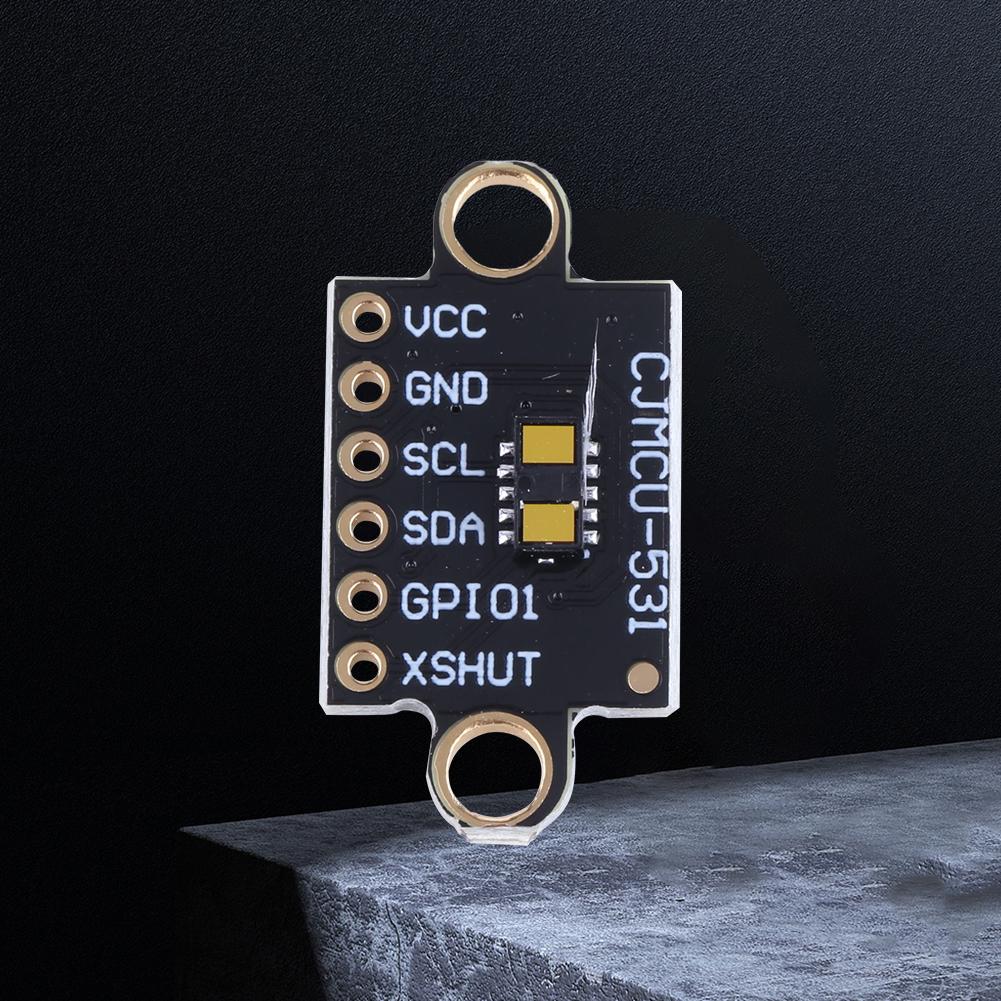

VL53L1X Ranging ToF Distance Measurement Sensor Time-of-flight Distance Measurement ToF Ranging Sensor for Arduino

High-concerned chemical : none Type : Module Origin : Mainland China Condition : New Laser Ranging Flight Time Sensor Module : Laser Ranging STM32 TOF Time of Flight Chip Flight Distance Measurement Sensor : Laser Ranging ToF Distance Measurement Sensor Time-of-flight Distance Measurement : ToF Laser Ranging Sensor ToF Laser Ranging Distance Measurement S : Time-of-Flight Distance Measurement Sensor

VL53L1X Ranging Flight Time Sensor Module Distance 400cm Measurement Extension Board Module Ranging TOF Time of Flight Chip Ranging ToF Distance Measurement Sensor Compatible with Arduino Feature: 1. High-Precision Measurement:Utilizing Time-of-Flight (ToF) technology, this ranging flight time sensor module achieves millimeter-level accuracy. It is ideal for applications requiring precise measurements, ensuring reliable and accurate data. 2. Extended Range Capability:With a measurement range extending up to 400 cm, this flight distance measurement sensor is versatile and suitable for a wide variety of scenarios. It meets diverse needs, from short-distance to long-distance applications. 3. Rapid Response:The time-of-flight distance measurementsensor provides quick distance data acquisition, making it for dynamic environments. It is widely applicable in fields such as robotics navigation, autonomous driving, smart home systems, and industrial automation, where real-time measurement is crucial. 4. Energy-Efficient Design:Operating in low-power mode, this ranging time-of-flight distance measurement sensor is ideal for battery-powered devices, extending their operational life. It features excellent anti-interference capabilities, ensuring stable performance even in complex environments. 5. Integrated Components:Equipped with built-in emitters and receivers, this Tof ranging sensor reduces the need for external components and simplifies system design. It supports the I2C interface, facilitating easy connection with various microcontrollers and development boards, thereby streamlining the development process. Specification: Origin: Mainland China Description: The VL53L1X is a new Time of Flight (ToF) conversion sensor that enhances the ST FlightSense product family. Fastest micro ToF sensor with 4m change and up to 50Hz change Unlike traditional infrared sensors, the VL53L1X uses ST's new generation ToF technology to make distance measurements regardless of target color and reflectivity. The size of the ROIs in the receiver array can also be programmed, allowing the sensor FOV to be reduced.

Features: Fully integrated micromodule Emitter: 940 nm invisible (Class1) SPAD (Single Photon Diode) acquisition array with integrated lens Low power microcontroller, running digital firmware VL53L0X compatible with FlightSense change sensor pin to pin Fast and accurate long-distance replacement Distance measurement up to 400 cm Change frequency up to 50Hz Typical full field of view (FoV): 27° Programmable region of interest (ROI) size in receiver array to reduce sensor field of view Programmable ROI position in receiver array provides multi-zone control from host Easy to integrate single reflowable component, many covers can be hidden behind window material.

Product size: 25.00x13.00x3.00mm/0.98x0.51x0.12inch Material: mixed material

Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.

1 x VL53L1X Module
