Features:
* and
* DC 12V to 24V/48V for Boost DC Converter Voltage Regulator for Boost for Stabilizer

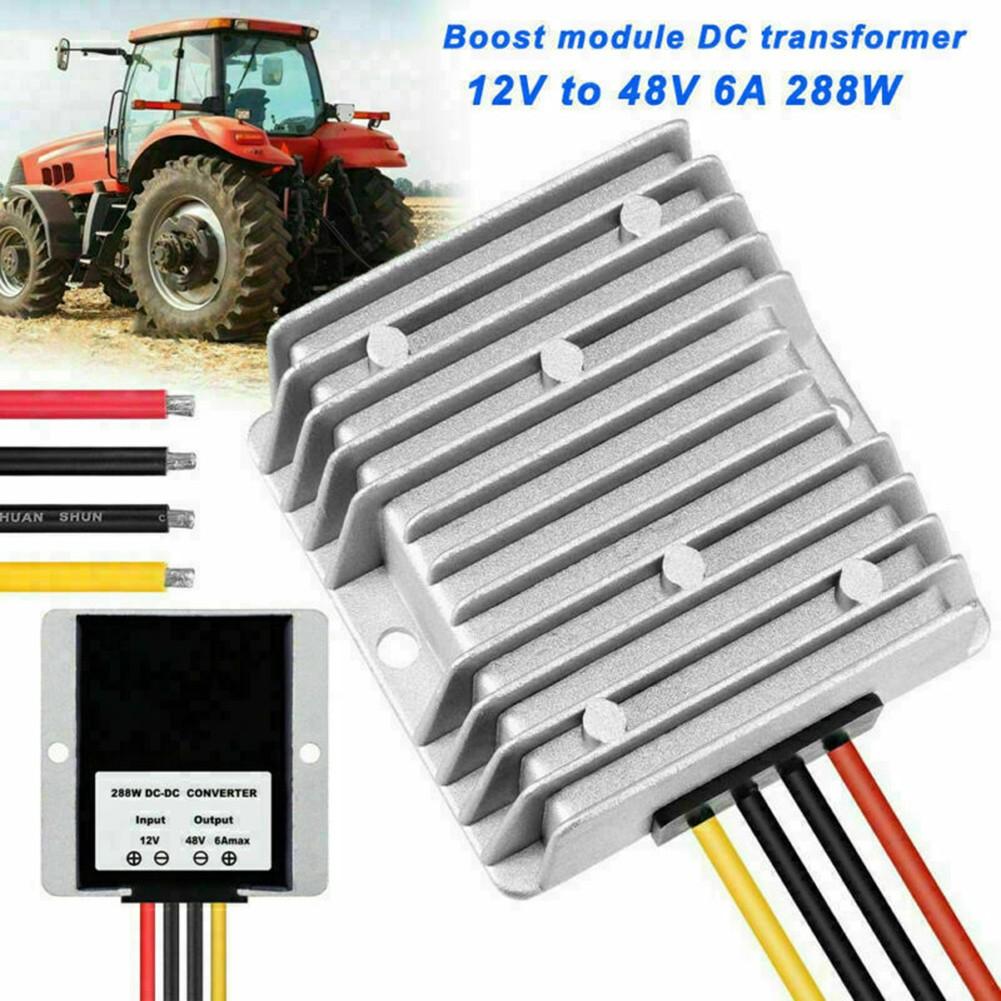

* DC 12V to DC 24V/48V power adapter converts DC 12V to DC 24V. Low power consumption; conversion rate as high as over 96%. Can be widely used in various electrical appliances, voltage input: DC 9-16V; output: DC 48V; for maximum current 3A 144W/5A 240W/ for 6A 288W
* housing makes the converter for a wide range of applications including vehicles, security s, hospital equipment, telecommunications, and more. The cord is about 12CM long, for slim, small and easy to install.
* Made of high thermal conductivity silicone filling and sealing technology. IP68 and shockproof. and high performance.
* With multiple automatic for Protection functions, overcurrent, short circuit, overtemperature, , and moisture- for proof(built-in overvoltage, undervoltage, overload, overheating, and short circuit for Protection.)
Specification:
Input: DC 12V(9V-16V)
Output voltage: 48V DC
Line output current: 3A/5A/ for 6A/10A/15A/20A
Model(optional):
DC12V to 48V 3A 144W,
DC12V to 48V 5A 240W,
DC12V to 48V for 6A 288W,

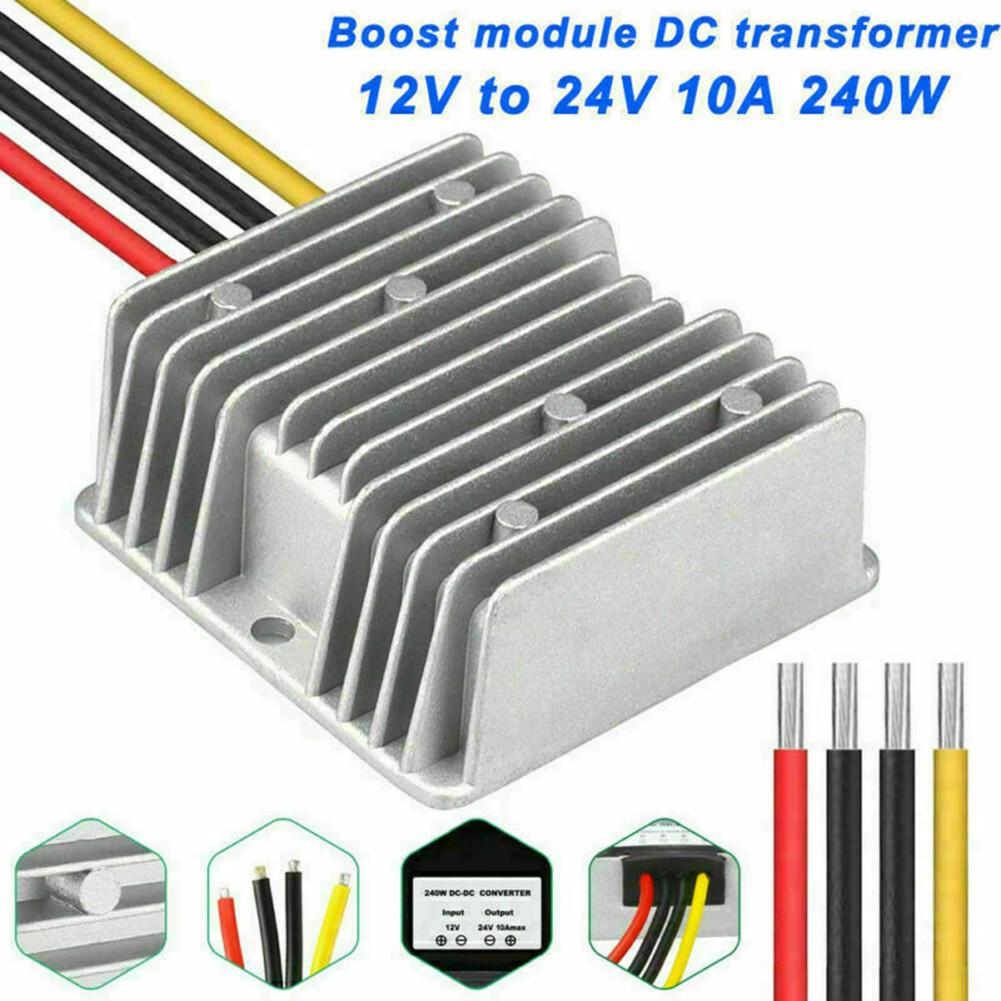

DC12V to 24V 10A 240W,
DC12V to 24V 15A 360W,
DC12V to 24V 20A 480W
Conversion efficiency: more than 95%
Over-temperature for Protection: 150C
Load regulation:±0.2%
Linear adjustment rate:±0.2%
for Protection level: IP68
Working temperature:-40~85°C
Package Included:
1 x DC-DC converter
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
